Bauknecht
Side-By-Side Refrigerator

Model # 3XKGN7050F00 Official Bauknecht refrigerator

Here are the diagrams and repair parts for Official Bauknecht 3XKGN7050F00 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

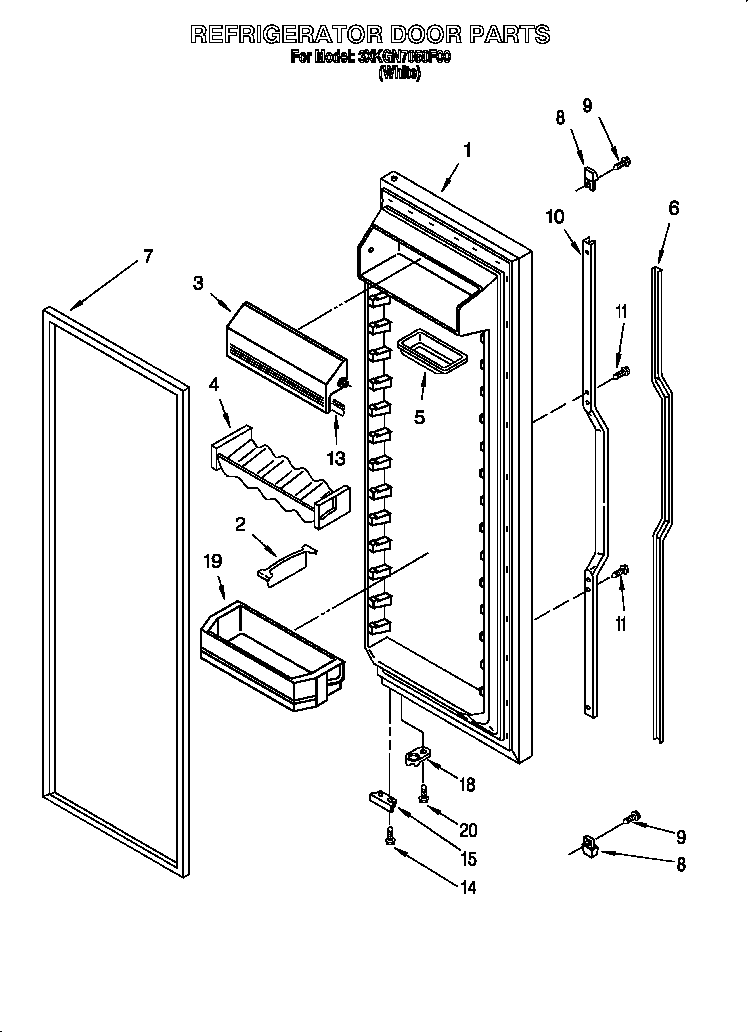

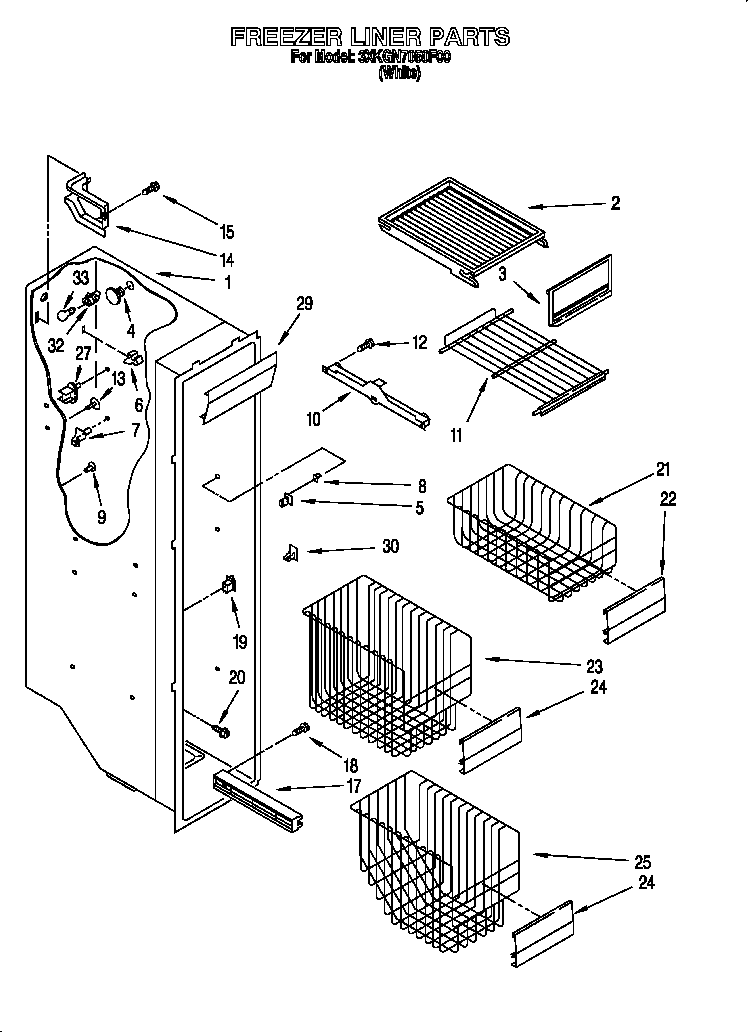

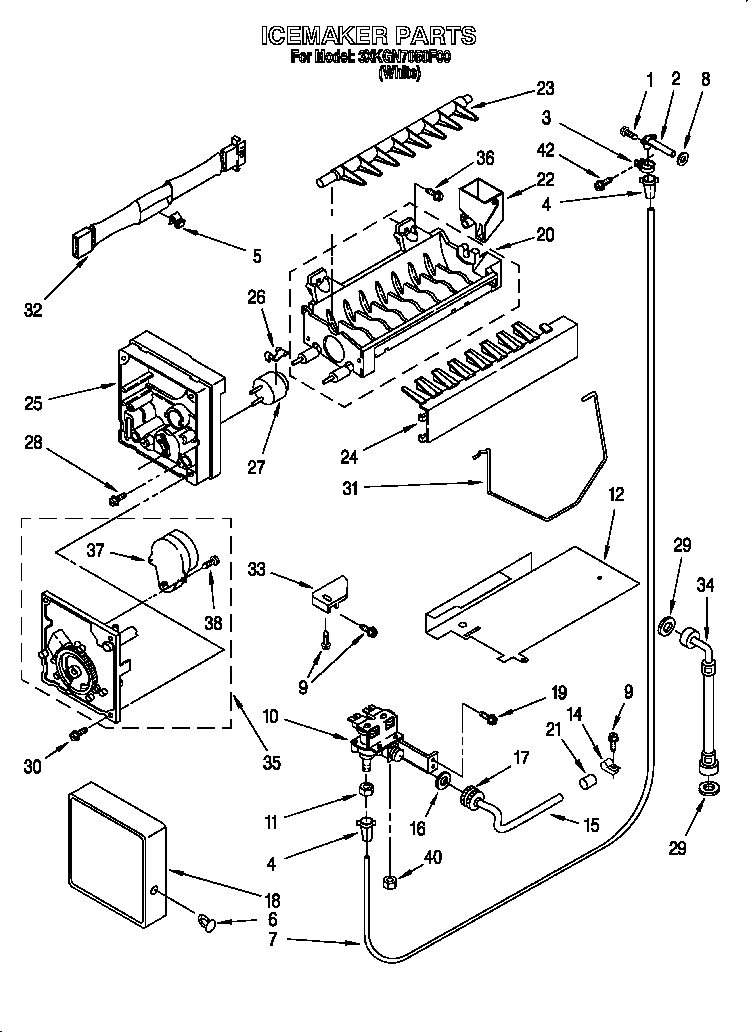

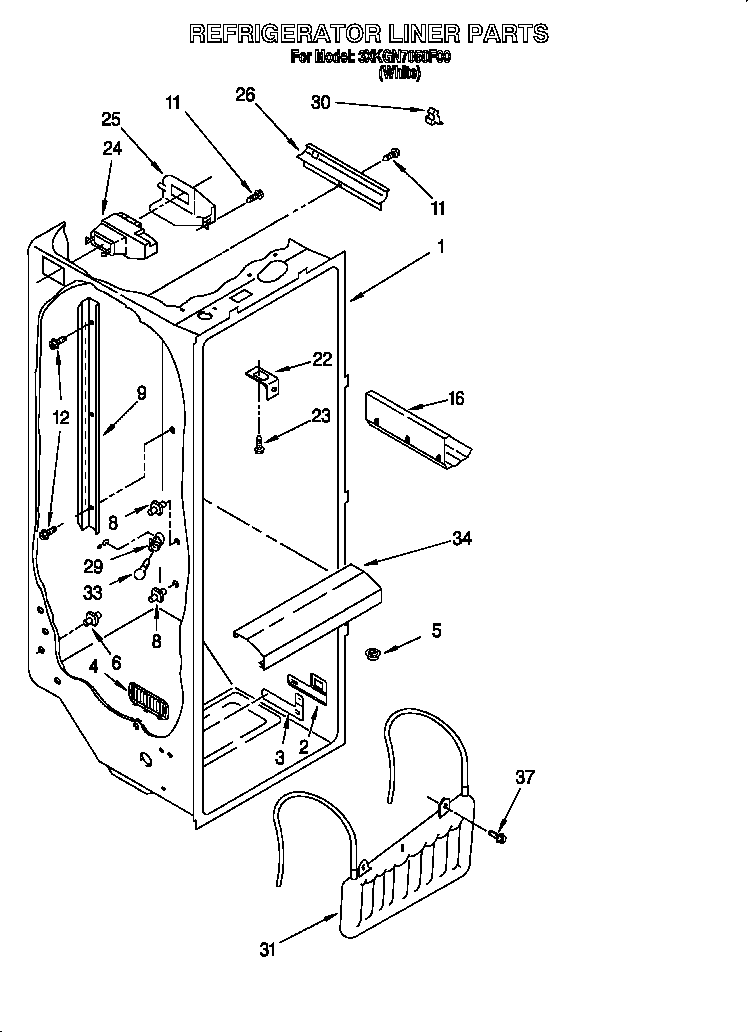

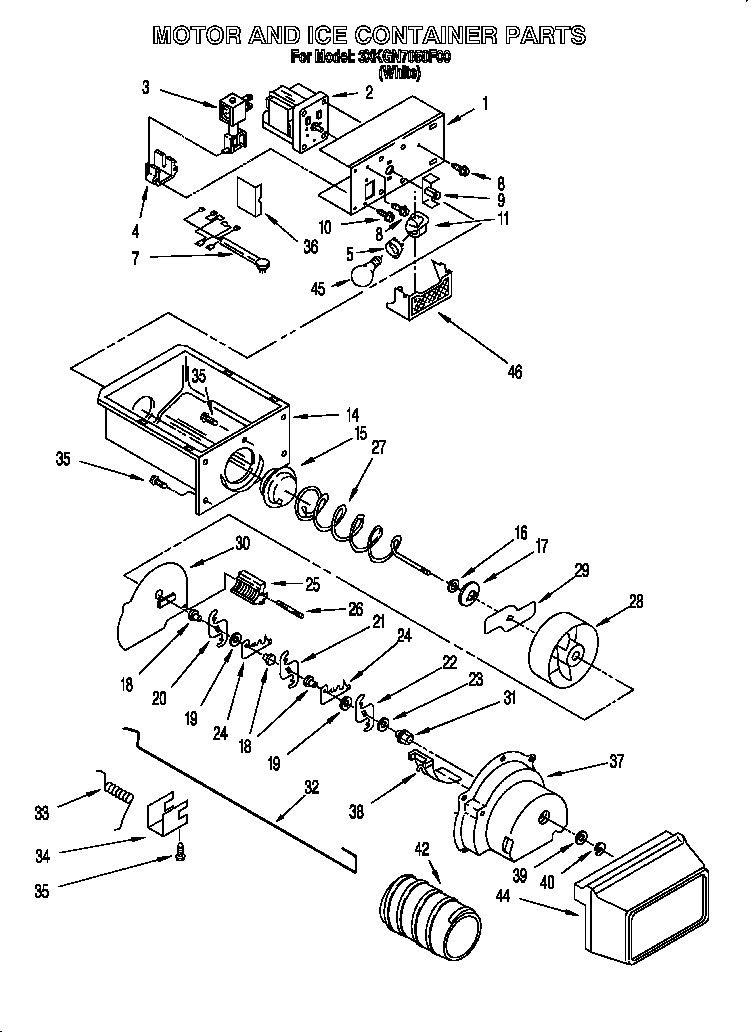

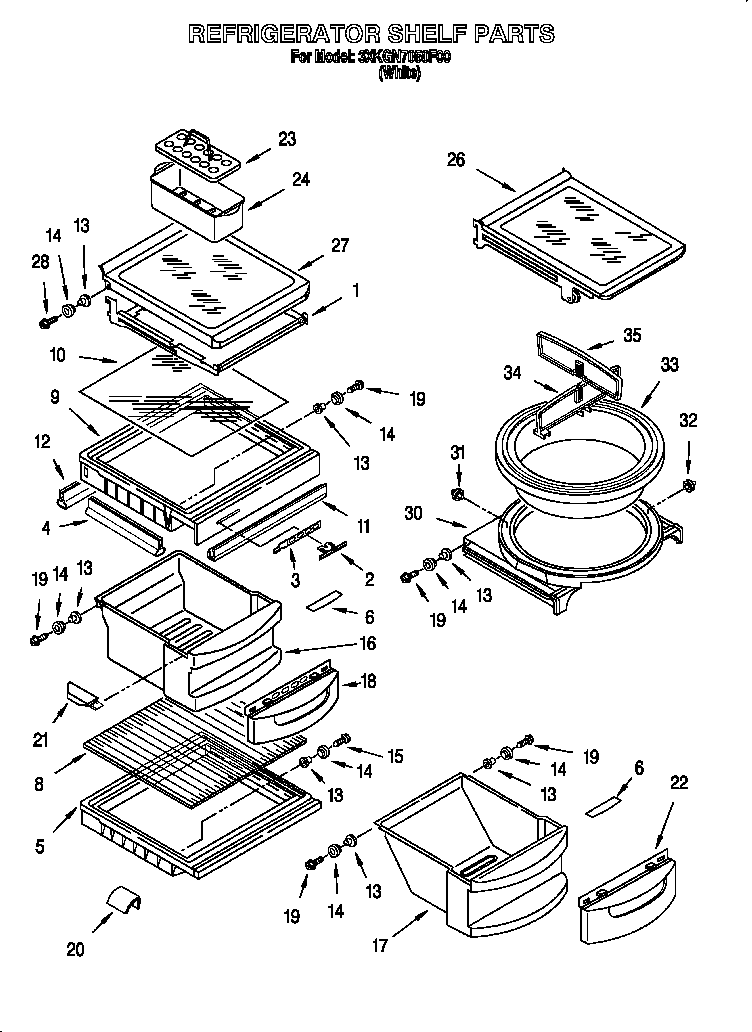

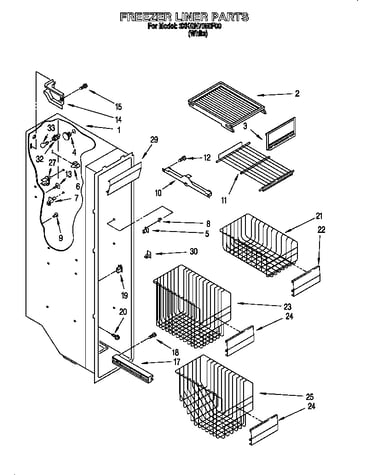

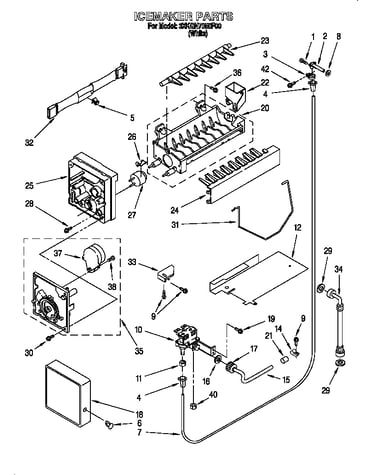

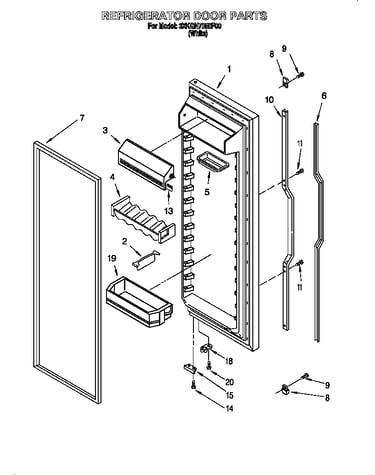

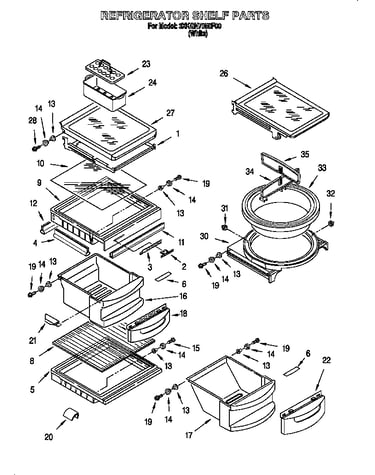

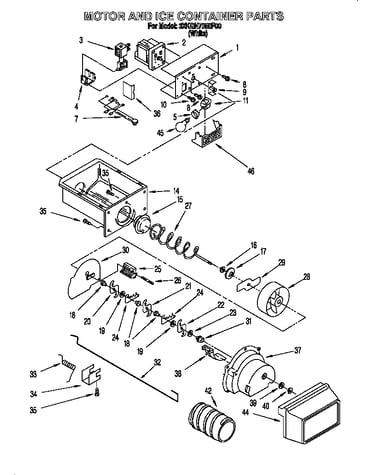

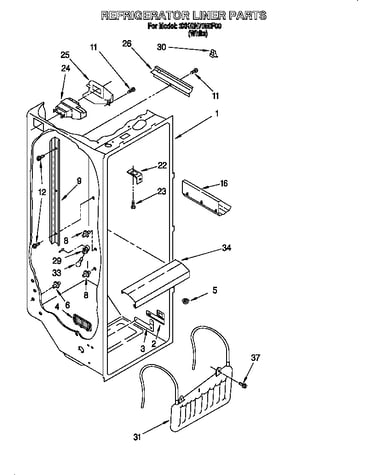

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 352 parts  |
Refrigerator Defrost Bi-metal 2176066
#35

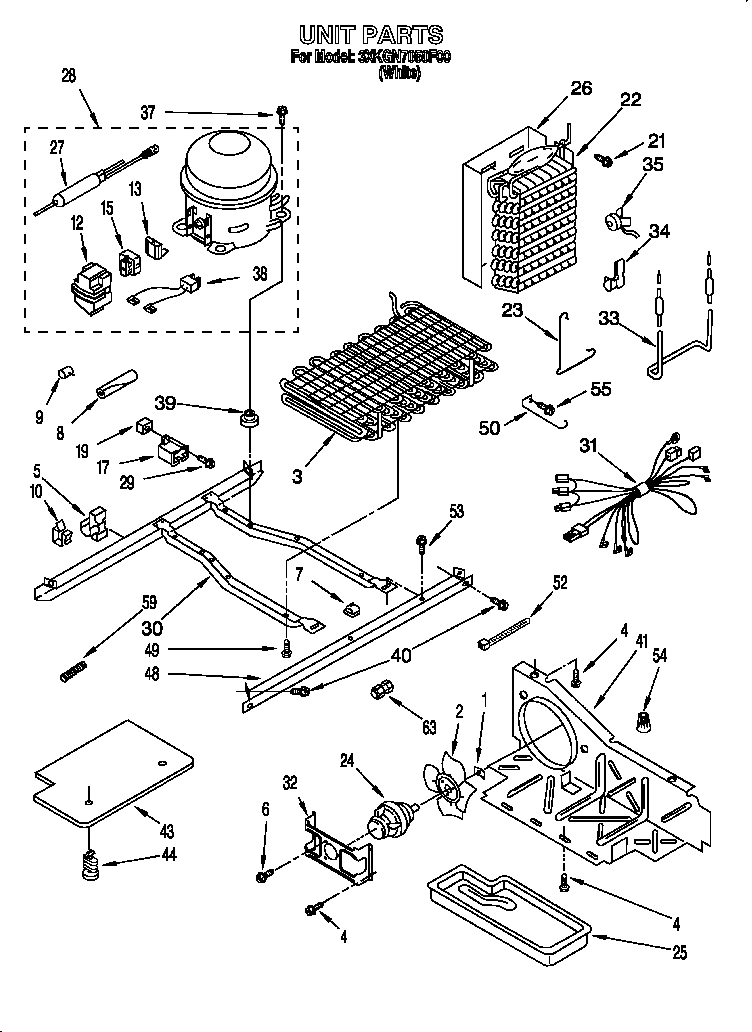

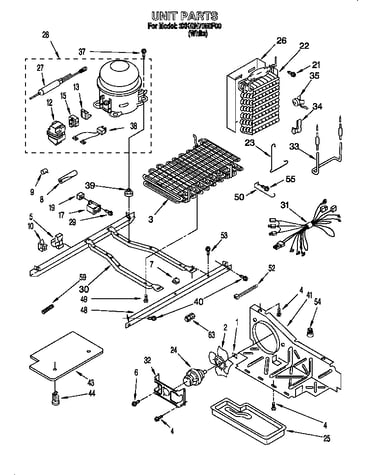

Unit diagram

Refrigerator defrost bi-metal

Part #2176066

Replaced by #WPW10225581

?
Manufacturer substitution
This part replaces 2176066. Substitute parts can look different from the original.
BEST SELLER
$34.02 |
15% OFF Phone Price : $40.02
In Stock
Refrigerator Bracket 2183771
#33

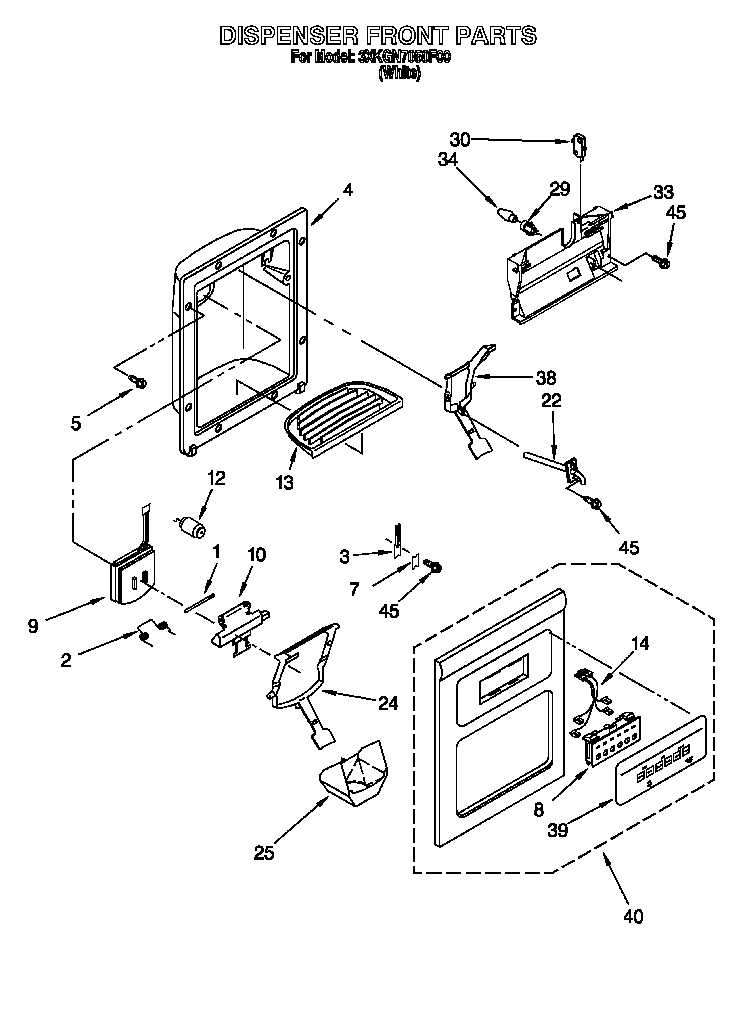

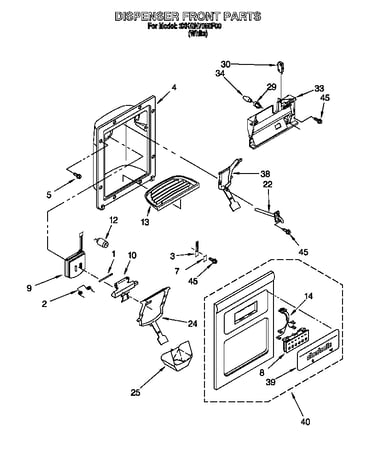

Dispenser front diagram

Refrigerator bracket

Part #2183771

Replaced by #WP2180226

?
Manufacturer substitution
This part replaces 2183771. Substitute parts can look different from the original.
BEST SELLER
$19.36 |
9% OFF Phone Price : $21.36
In Stock
Refrigerator Door Closer Cam 2155311
#54

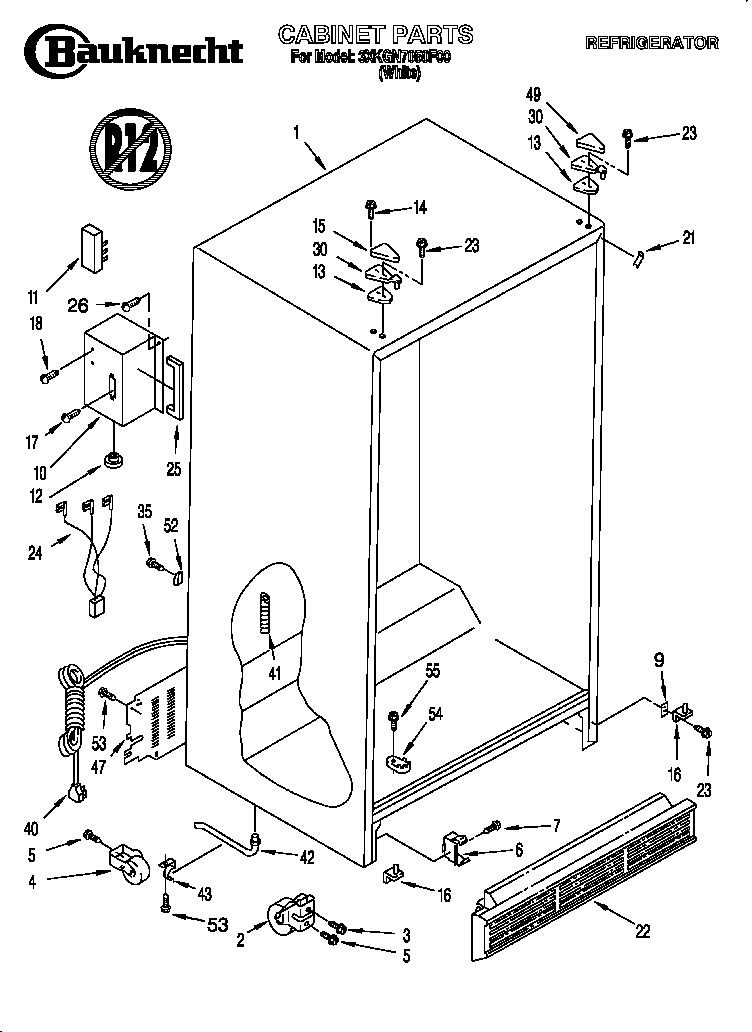

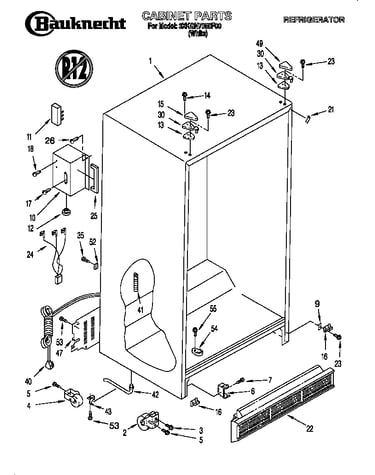

Cabinet diagram

Refrigerator door closer cam

Part #2155311

Replaced by #WPW10329686

?
Manufacturer substitution
This part replaces 2155311. Substitute parts can look different from the original.
BEST SELLER
$10.86 |
16% OFF Phone Price : $12.86
In Stock
Drier Tube 2164409
#27

Unit diagram

Drier tube

Part #2164409

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 2164409. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Refrigerator Evaporator Fan Blade 2169142
#8

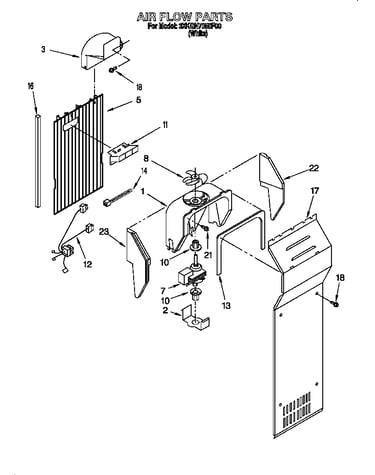

Air flow diagram

Refrigerator evaporator fan blade

Part #2169142

Replaced by #WP2169142

?
Manufacturer substitution
This part replaces 2169142. Substitute parts can look different from the original.
BEST SELLER
$38.22 |
14% OFF Phone Price : $44.22
In Stock
Refrigerator Dispenser Switch 2162361
#30

Dispenser front diagram

Refrigerator dispenser switch

Part #2162361

Replaced by #WP2162361

?
Manufacturer substitution
This part replaces 2162361. Substitute parts can look different from the original.
BEST SELLER
$19.03 |
10% OFF Phone Price : $21.03
In Stock
Refrigerator Freezer Door Gasket (replaces 2159078, 2171178, 2177289, 2181890, 2196244, 2221303, 2309532, W10911412) 2159074
#8

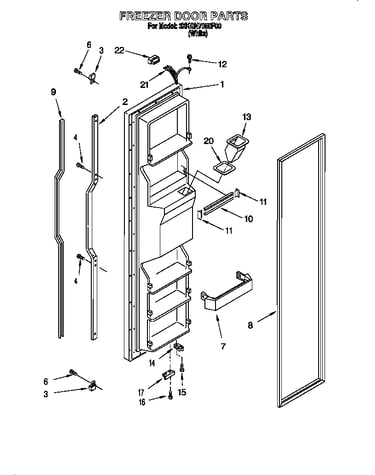

Freezer door diagram

Refrigerator freezer door gasket (replaces 2159078, 2171178, 2177289, 2181890, 2196244, 2221303, 2309532, w10911412)

Part #2159074

BEST SELLER
$186.70 |
6% OFF Phone Price : $198.70
In Stock
Refrigerator Ice Actuator 2180259
#24

Dispenser front diagram

Refrigerator ice actuator

Part #2180259

Replaced by #WP2180259

?
Manufacturer substitution
This part replaces 2180259. Substitute parts can look different from the original.
BEST SELLER
$76.74 |
7% OFF Phone Price : $82.74
In Stock
Refrigerator Spring 2180209
#2

Dispenser front diagram

Refrigerator spring

Part #2180209

Replaced by #WPW10224328

?
Manufacturer substitution
This part replaces 2180209. Substitute parts can look different from the original.
BEST SELLER
$36.14 |
14% OFF Phone Price : $42.14
In Stock
Refrigerator Door Switch 2149705
#4

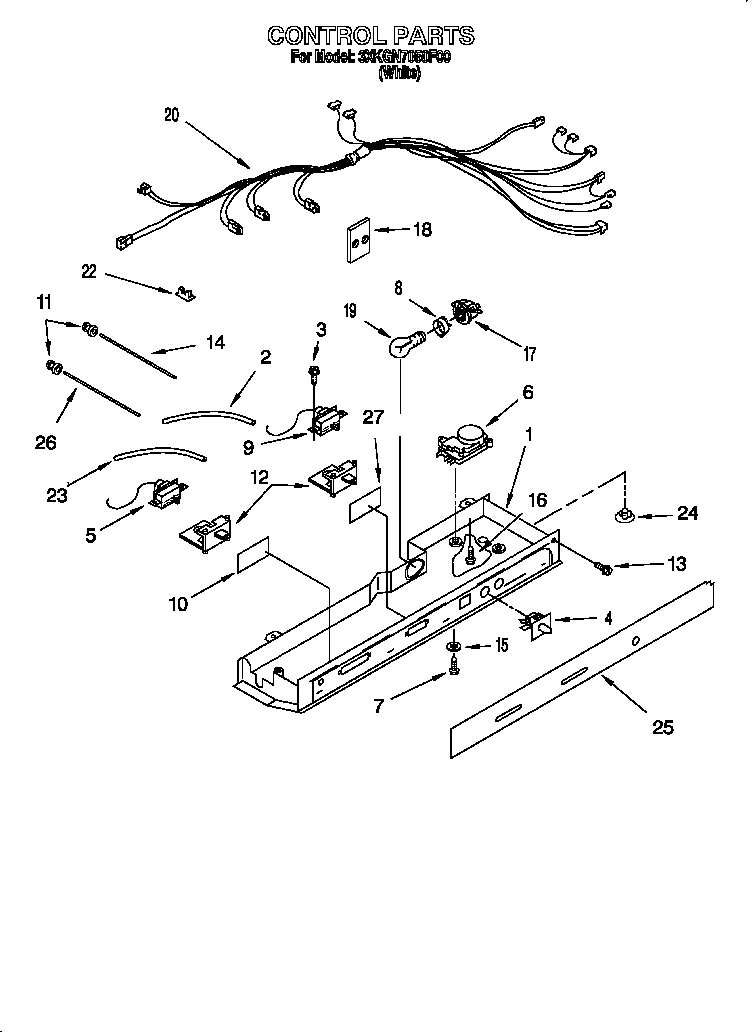

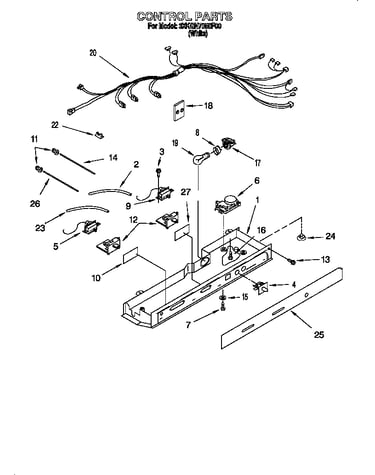

Control diagram

Refrigerator door switch

Part #2149705

Replaced by #WP2149705

?
Manufacturer substitution
This part replaces 2149705. Substitute parts can look different from the original.
BEST SELLER
$27.00 |
18% OFF Phone Price : $33.00
In Stock
