Model # OL-96 Official Amana oil furnace

Here are the diagrams and repair parts for Official Amana OL-96 oil furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 275 parts  |
Front Barrier Panel Assembly B9216904
#12D

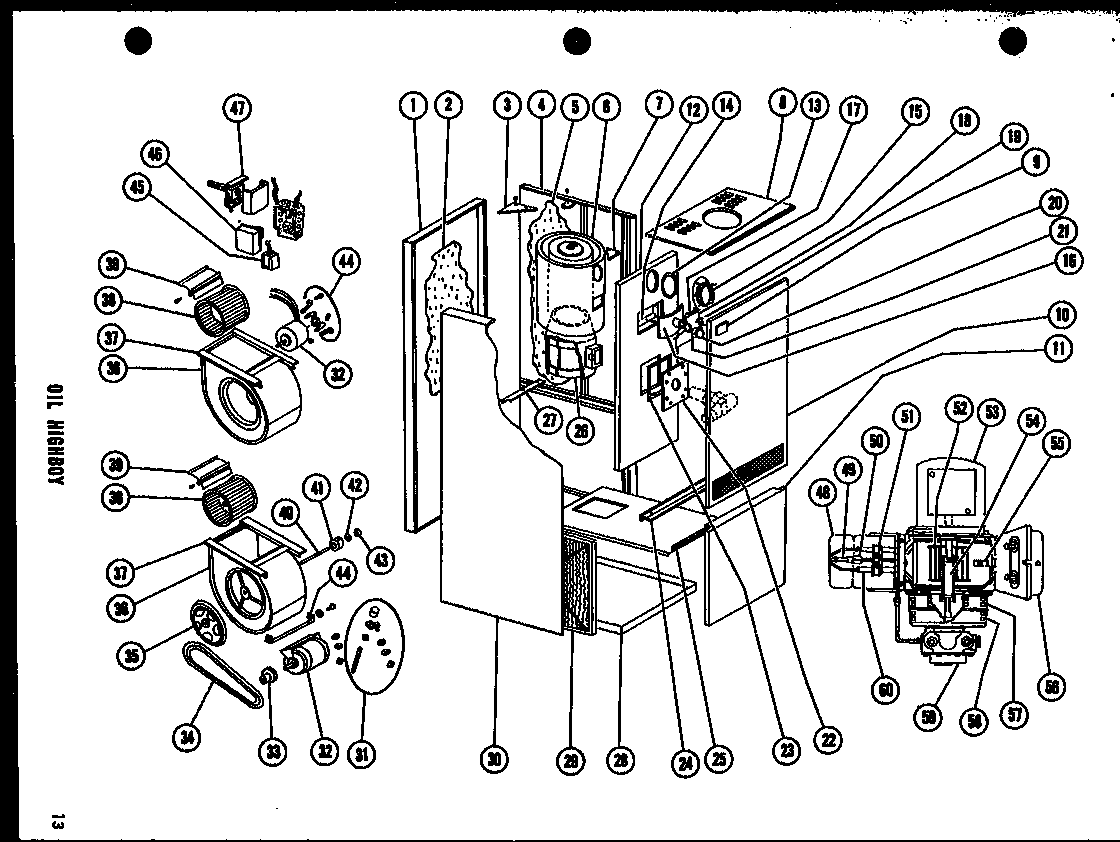

(oh-84d) (oh-96d) (oh-84) (oh-84-3) (oh-96) (oh-96-3) (oh-112) (oh-112-4) (oh-140) (oh-140-4) (oh-168) (oh-168-4) (oh-184) (oh-184-5) diagram

Front barrier panel assembly

Part #B9216904

The manufacturer no longer makes this part, and there's no substitute part

Front Tie Angle B9215904
#24D

(oh-84d) (oh-96d) (oh-84) (oh-84-3) (oh-96) (oh-96-3) (oh-112) (oh-112-4) (oh-140) (oh-140-4) (oh-168) (oh-168-4) (oh-184) (oh-184-5) diagram

Front tie angle

Part #B9215904

The manufacturer no longer makes this part, and there's no substitute part

Flue Collar Gasket B9210705
#4C

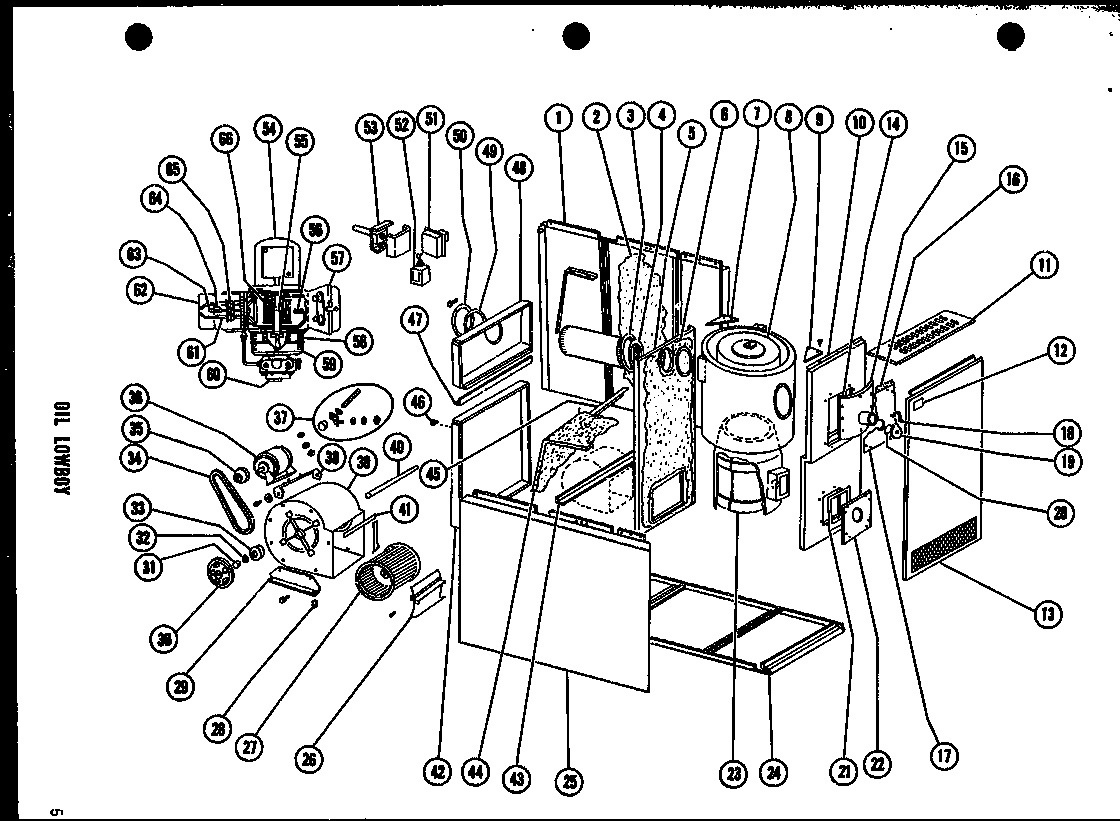

(ol-84) (ol-96) (ol-96-3) (ol-112) (ol-112-4) (ol-140) (ol-140-4) diagram

Flue collar gasket

Part #B9210705

The manufacturer no longer makes this part, and there's no substitute part

Motor Mounting Bracket Assembly, 9009300c B9203705
Motor mounting bracket assembly, 9009300c

Part #B9203705

The manufacturer no longer makes this part, and there's no substitute part

Front Barrier Panel C9421301
#10B

(ol-84) (ol-96) (ol-96-3) (ol-112) (ol-112-4) (ol-140) (ol-140-4) diagram

Front barrier panel

Part #C9421301

The manufacturer no longer makes this part, and there's no substitute part

Left Side Panel Assembly C9414005
#30A

(oh-84d) (oh-96d) (oh-84) (oh-84-3) (oh-96) (oh-96-3) (oh-112) (oh-112-4) (oh-140) (oh-140-4) (oh-168) (oh-168-4) (oh-184) (oh-184-5) diagram

Left side panel assembly

Part #C9414005

The manufacturer no longer makes this part, and there's no substitute part

Left Side Panel Assembly C9420501
#25A

(ol-84) (ol-96) (ol-96-3) (ol-112) (ol-112-4) (ol-140) (ol-140-4) diagram

Left side panel assembly

Part #C9420501

The manufacturer no longer makes this part, and there's no substitute part

Filter Media, 21 X 30 X 1/2 A9006201
#44A

(ol-84) (ol-96) (ol-96-3) (ol-112) (ol-112-4) (ol-140) (ol-140-4) diagram

Filter media, 21 x 30 x 1/2

Part #A9006201

The manufacturer no longer makes this part, and there's no substitute part

Front Left Gusset B9239901
#22A

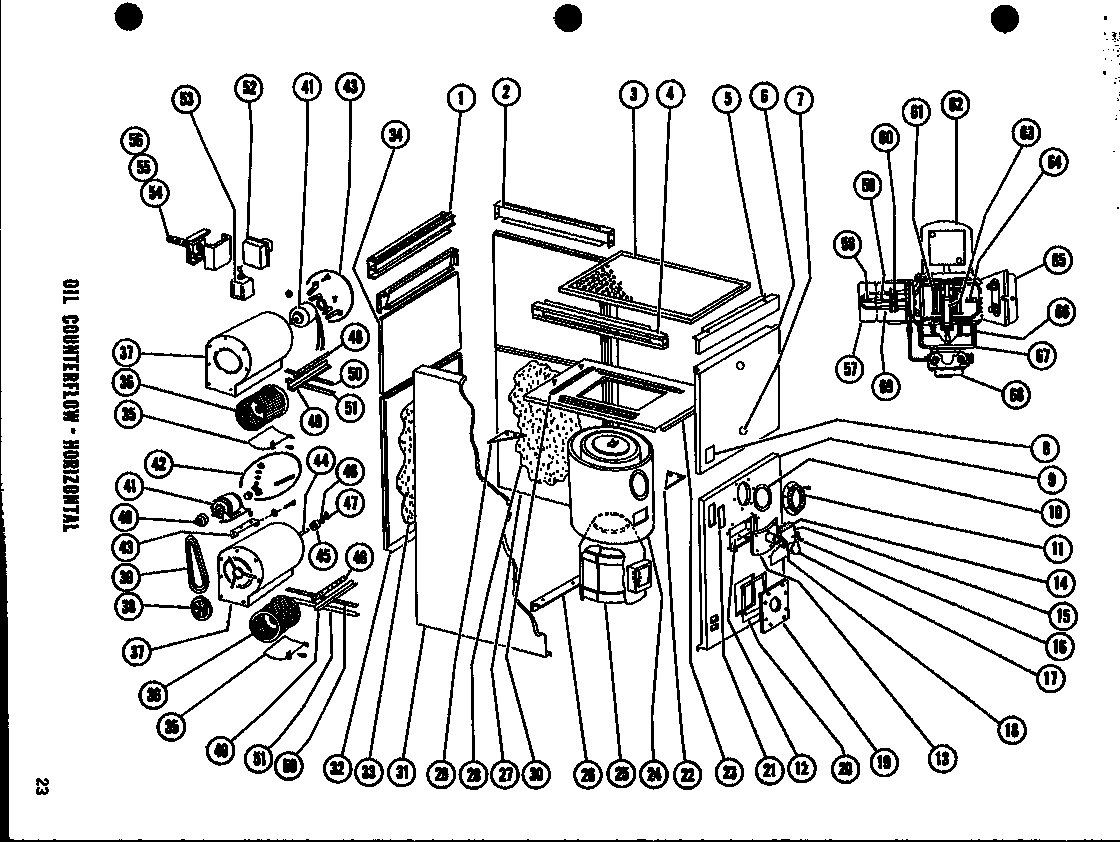

(osc-96d) (osc-96) (osc-96-3) diagram

Front left gusset

Part #B9239901

The manufacturer no longer makes this part, and there's no substitute part

Nozzle, 1.25 G.p.h., 80 Degrees H M0755304
Nozzle, 1.25 g.p.h., 80 degrees h

Part #M0755304

The manufacturer no longer makes this part, and there's no substitute part
