Model # 2539721040 Official Kenmore room air conditioner

Here are the diagrams and repair parts for Official Kenmore 2539721040 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 84 parts  |
Westinghouse Room Air Conditioner Filter Dryer 5300265301
#14

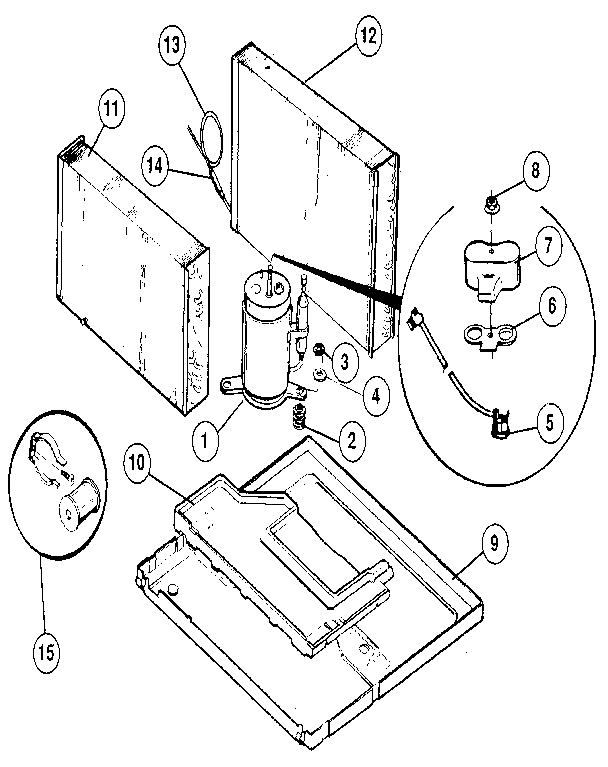

Compressor diagram

Westinghouse room air conditioner filter dryer

Part #5300265301

$212.62
In Stock
Kenmore Base 5303284816
#9

Compressor diagram

Kenmore base

Part #5303284816

$83.99
In Stock
Bracket Screw 3015312
Bracket screw

Part #3015312

Replaced by #5303293767

?
Manufacturer substitution
This part replaces 3015312. Substitute parts can look different from the original.
This item is not returnable
$5.80
In Stock
Screw 3015427
#18

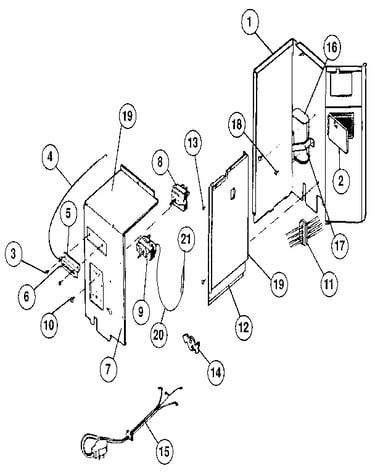

Cabinet diagram

Screw

Part #3015427

Replaced by #134178901

?
Manufacturer substitution
This part replaces 3015427. Substitute parts can look different from the original.
$14.69
In Stock
Cord 5303270109
#15

Cabinet diagram

Cord

Part #5303270109

Replaced by #5303301021

?
Manufacturer substitution
This part replaces 5303270109. Substitute parts can look different from the original.
$49.98
In Stock
Screw 3202975
Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
$4.77
In Stock
Room Air Conditioner Screw 5303015427
#13

Cabinet diagram

Room air conditioner screw

Part #5303015427

Replaced by #134178901

?
Manufacturer substitution
This part replaces 5303015427. Substitute parts can look different from the original.
$14.69
In Stock
Pactition 5303210984
#1

Cabinet diagram

Pactition

Part #5303210984

The manufacturer no longer makes this part, and there's no substitute part

Spacer 3001775
#14

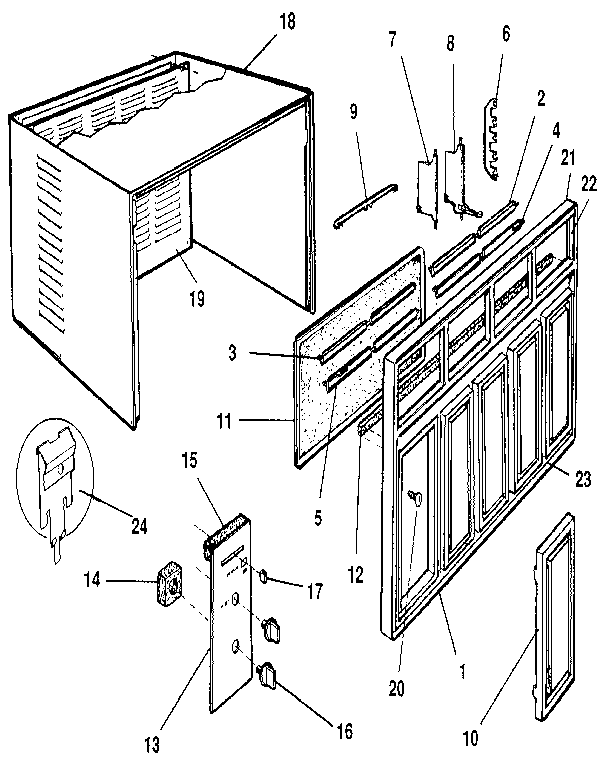

Cabinet and front panel diagram

Spacer

Part #3001775

The manufacturer no longer makes this part, and there's no substitute part

Washer 5303002664
#4

Compressor diagram

Washer

Part #5303002664

The manufacturer no longer makes this part, and there's no substitute part
