DeWalt
Power Sander

Model # DWE6401DS TYPE 1 Official DeWalt sander

Here are the diagrams and repair parts for Official DeWalt DWE6401DS-TYPE-1 sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 26 parts  |
Dewalt Switch N109192
#6

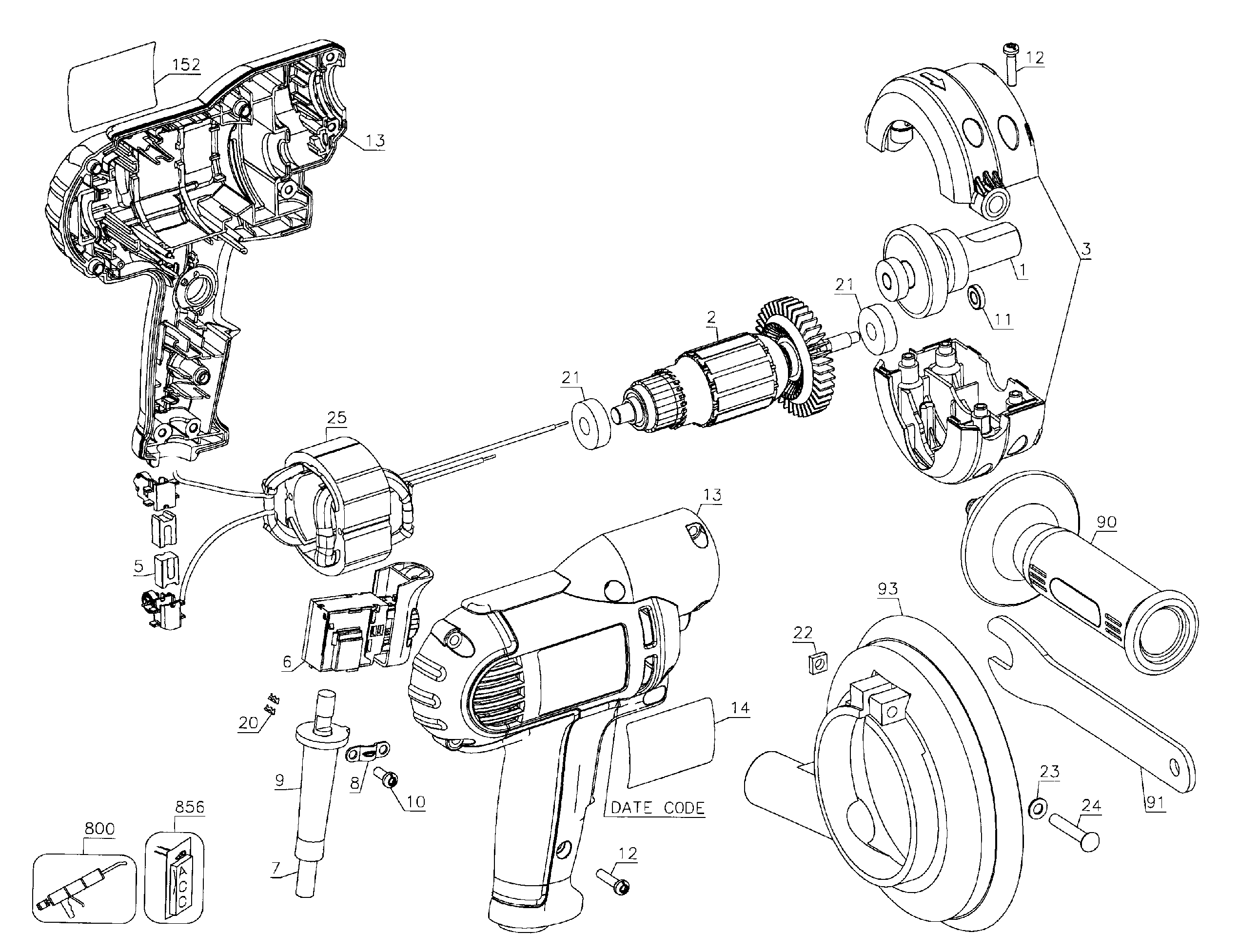

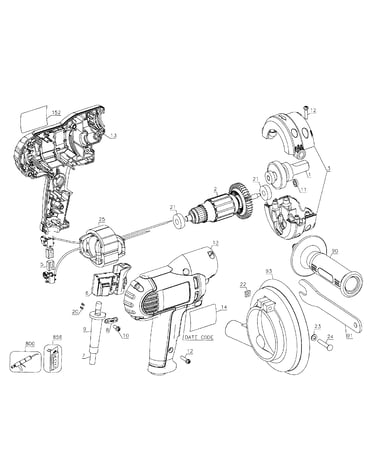

Sander assy diagram

Dewalt switch

Part #N109192

The manufacturer no longer makes this part, and there's no substitute part

Screw N017839
#12

Sander assy diagram

Screw

Part #N017839

The manufacturer no longer makes this part, and there's no substitute part

Bearing 605040-55
#21

Sander assy diagram

Bearing

Part #605040-55

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Housing N114481
#13

Sander assy diagram

Dewalt housing

Part #N114481

The manufacturer no longer makes this part, and there's no substitute part

Drill Motor Brush 649380-00
#5

Sander assy diagram

Drill motor brush

Part #649380-00

The manufacturer no longer makes this part, and there's no substitute part

Side Handle N042463
#90

Sander assy diagram

Side handle

Part #N042463

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Protector N114479
#9

Sander assy diagram

Dewalt protector

Part #N114479

The manufacturer no longer makes this part, and there's no substitute part

Screw N017542
#10

Sander assy diagram

Screw

Part #N017542

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Grease 283484-01
#NI

Sander assy diagram

Craftsman grease

Part #283484-01

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Adapter N132951
#3

Sander assy diagram

Dewalt adapter

Part #N132951

The manufacturer no longer makes this part, and there's no substitute part
