Amana
Side-By-Side Refrigerator

Model # SBDT520J-P7845303W Official Amana side-by-side refrigerator

Here are the diagrams and repair parts for Official Amana SBDT520J-P7845303W side-by-side refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

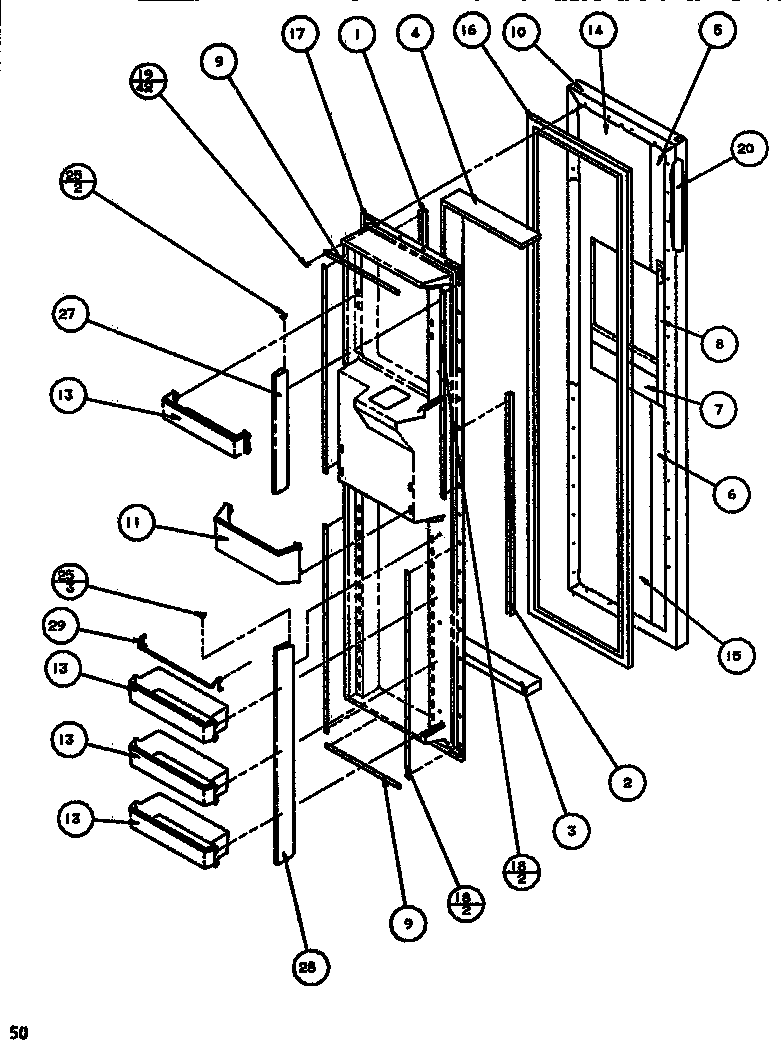

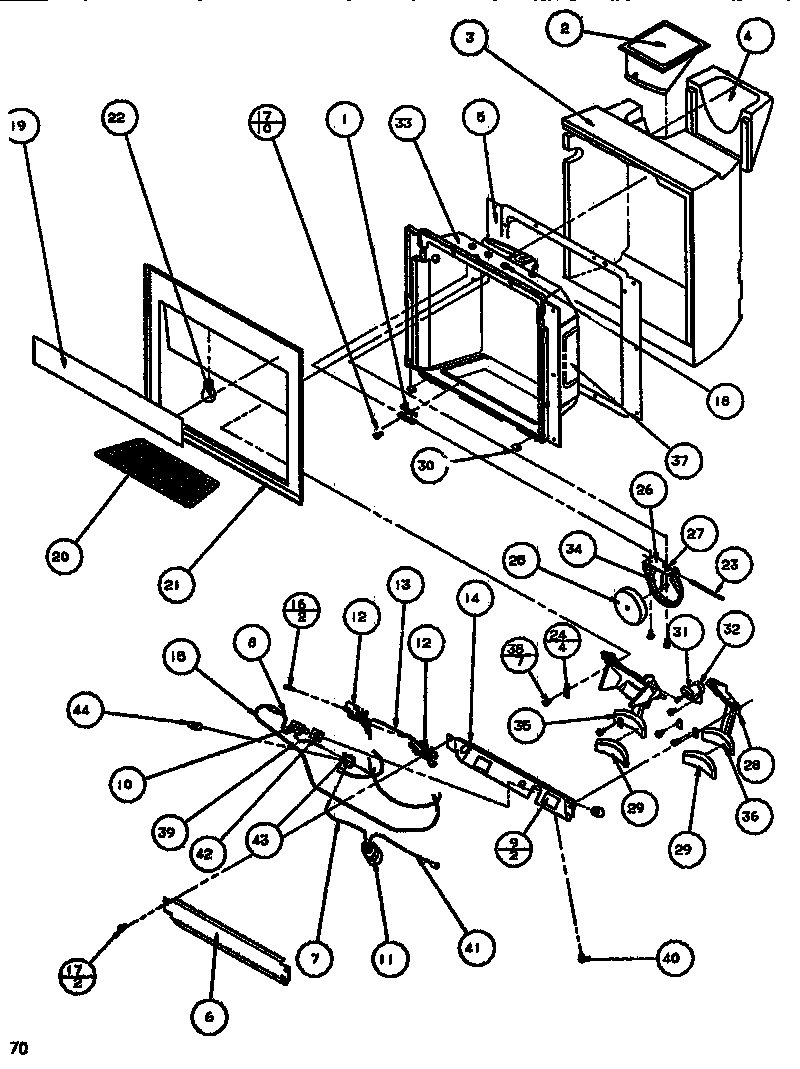

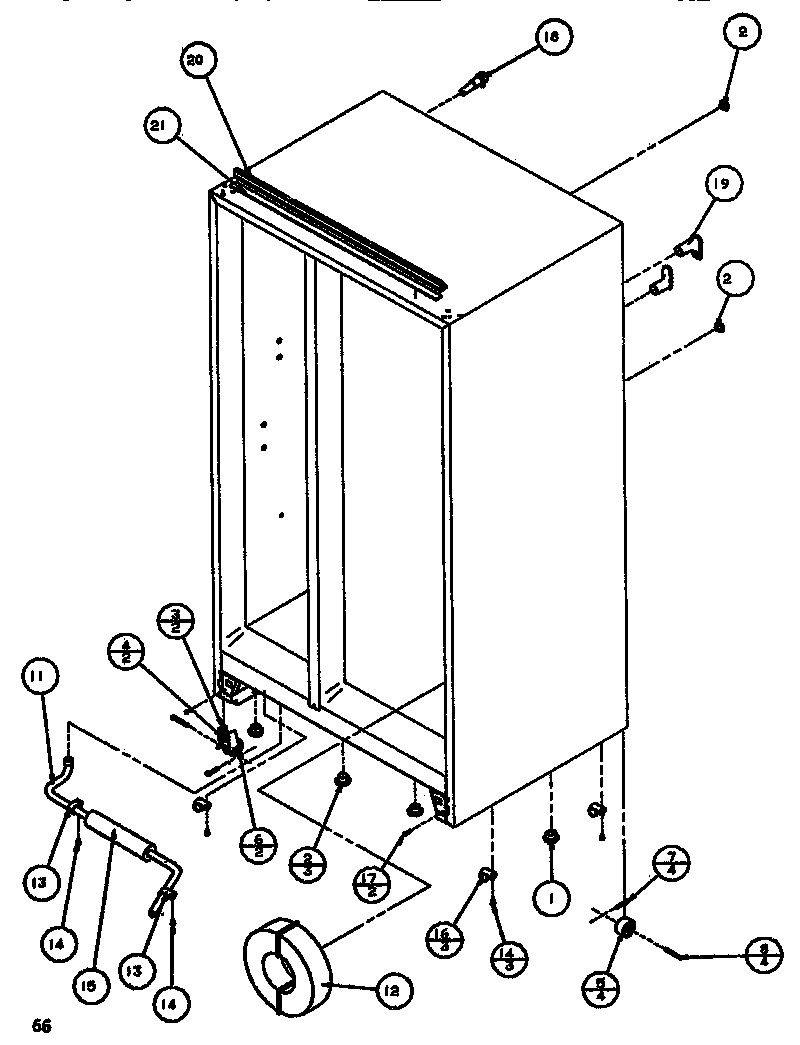

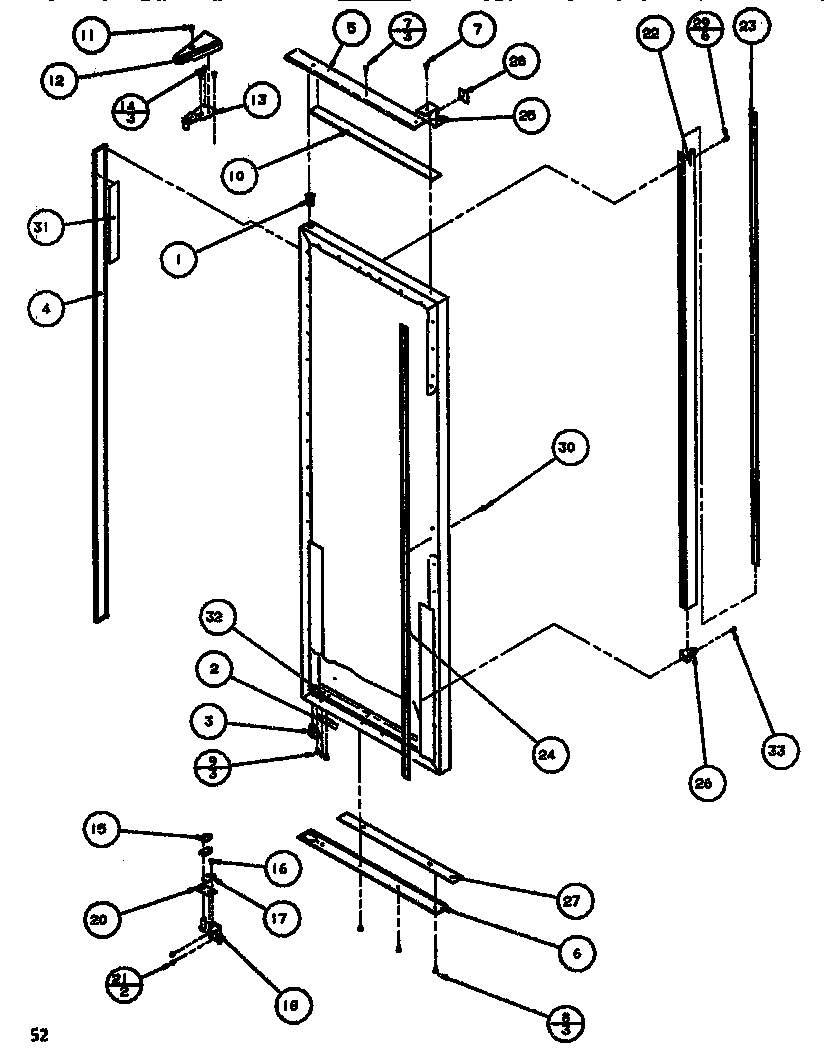

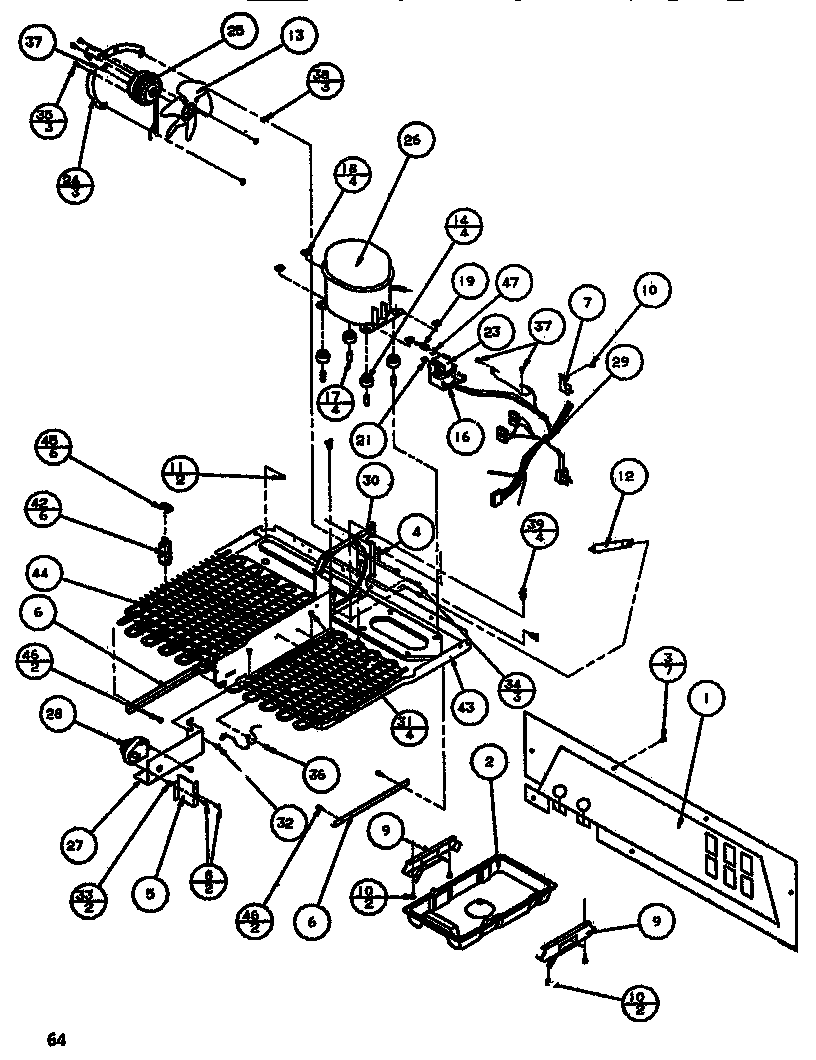

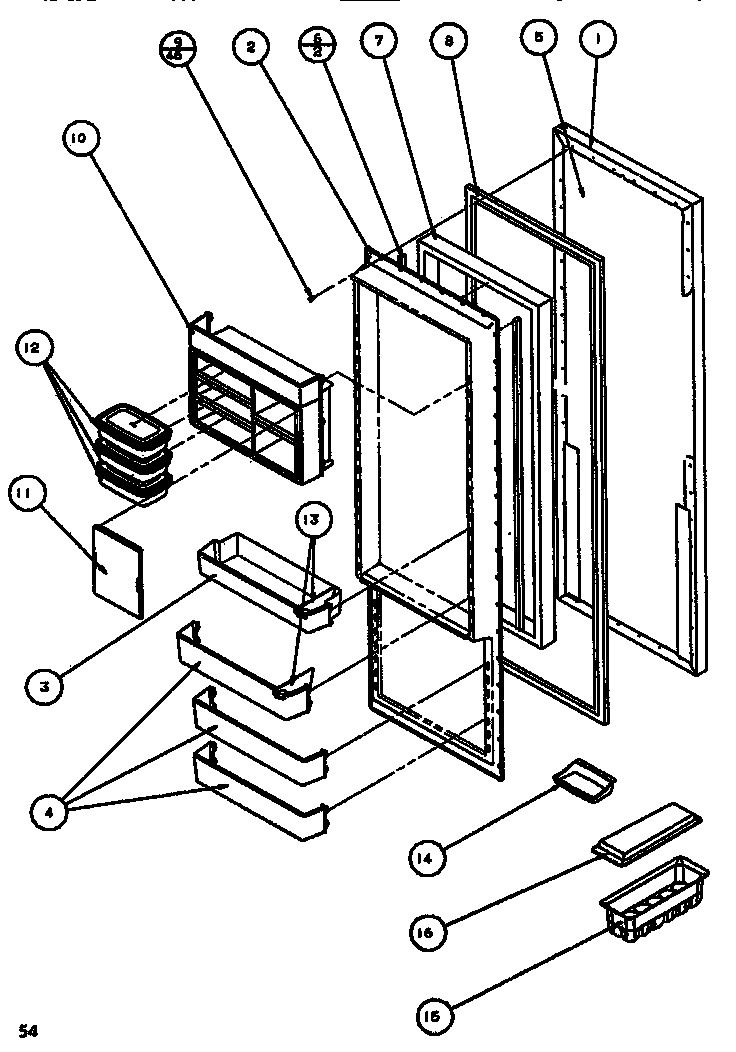

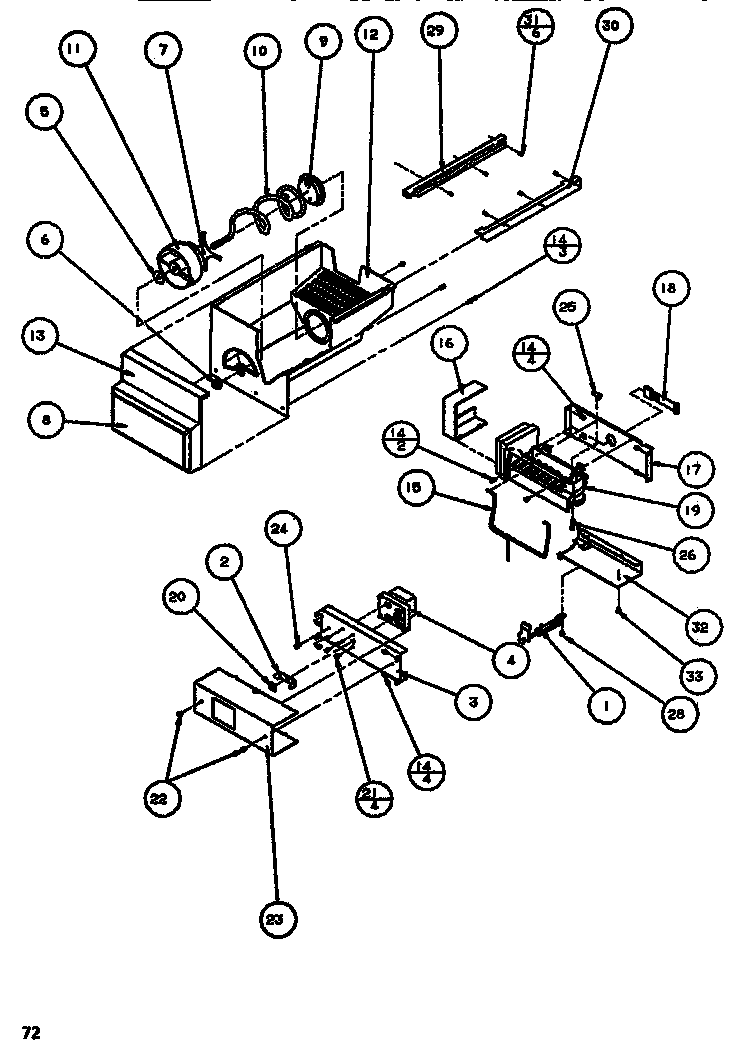

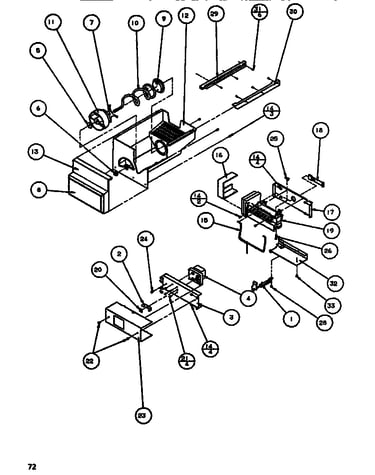

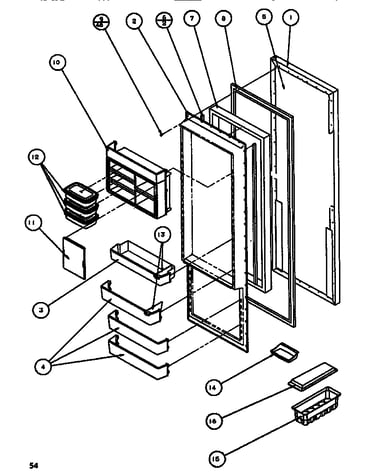

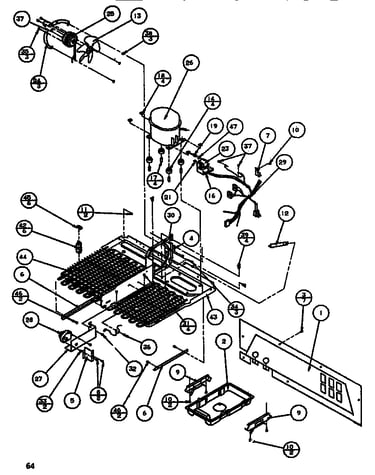

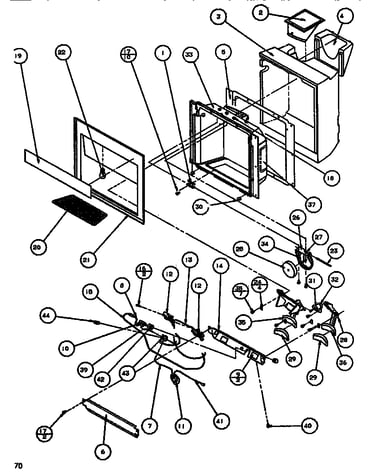

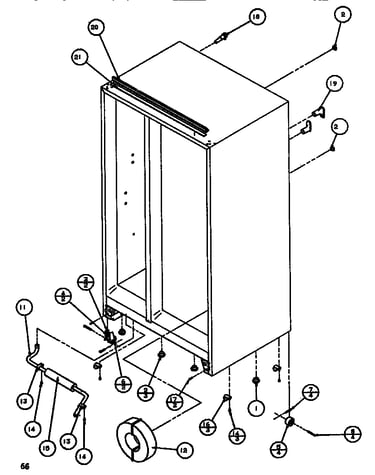

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 392 parts  |
Refrigerator Switch C3680308
#12

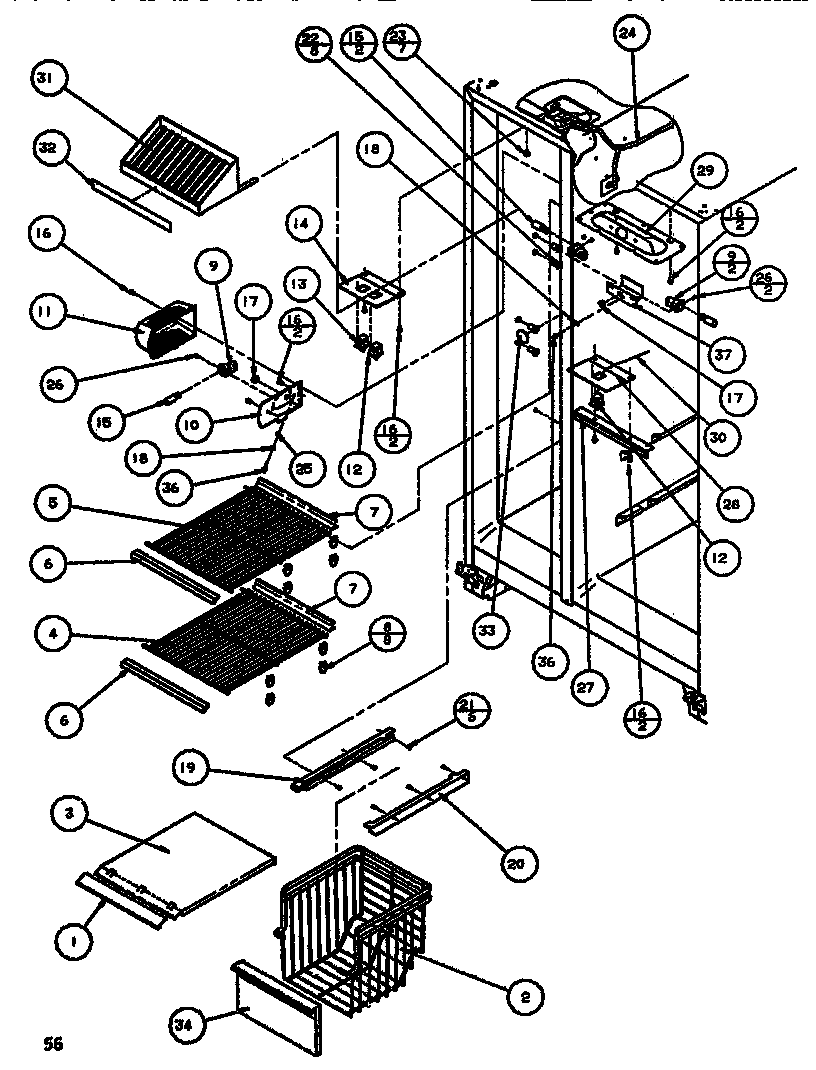

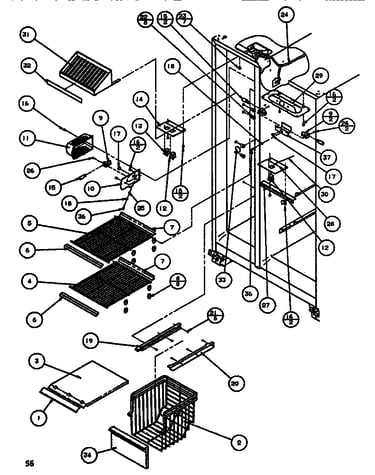

Freezer shelving & ref light diagram

Refrigerator switch

Part #C3680308

Replaced by #W11384469

?
Manufacturer substitution
This part replaces C3680308. Substitute parts can look different from the original.
BEST SELLER
$22.86 |
21% OFF Phone Price : $28.86
In Stock
Refrigerator Screw M0211005
Refrigerator screw

Part #M0211005

Replaced by #WPW10348409

?
Manufacturer substitution
This part replaces M0211005. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Refrigerator Union B5706901
#19

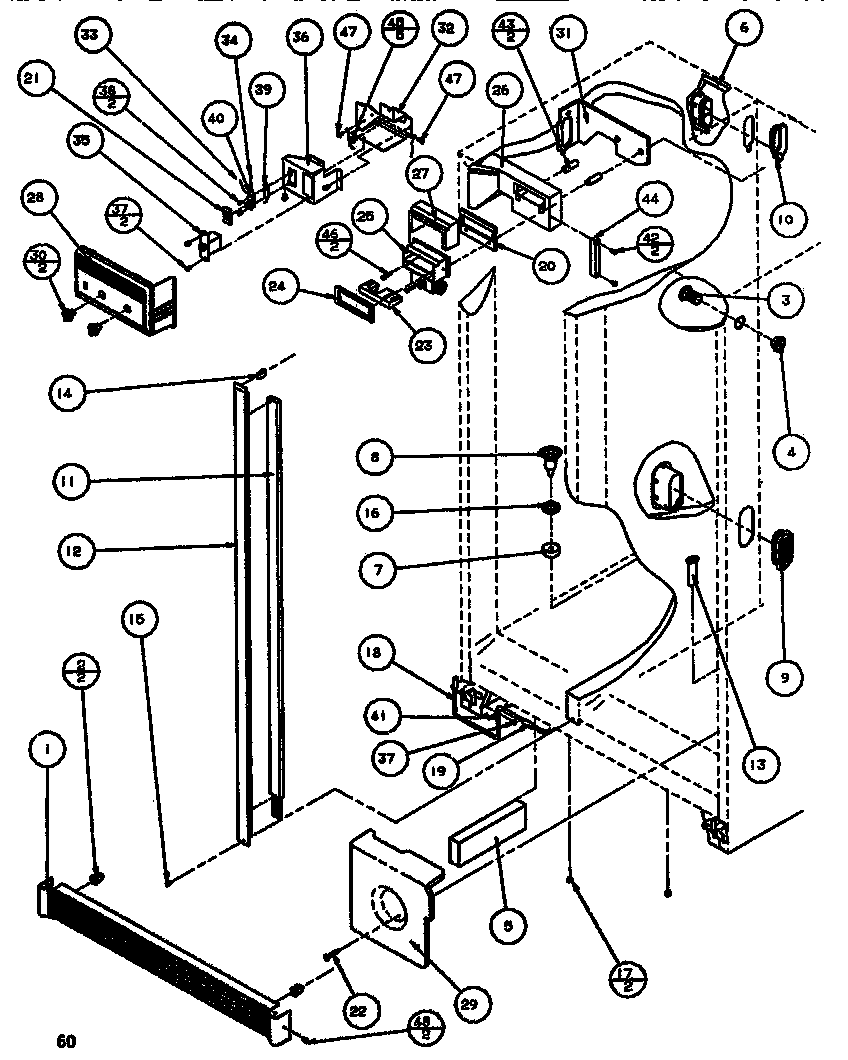

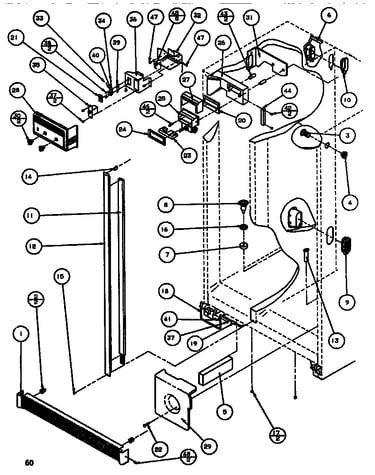

Controls & cabinet (ref/frz) diagram

Refrigerator union

Part #B5706901

Replaced by #WP4373559

?
Manufacturer substitution
This part replaces B5706901. Substitute parts can look different from the original.
$30.47 |
16% OFF Phone Price : $36.47
In Stock
Screw M0230917
Screw

Part #M0230917

Replaced by #67006425

?
Manufacturer substitution
This part replaces M0230917. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Refrigerator Screw M0211017
#30

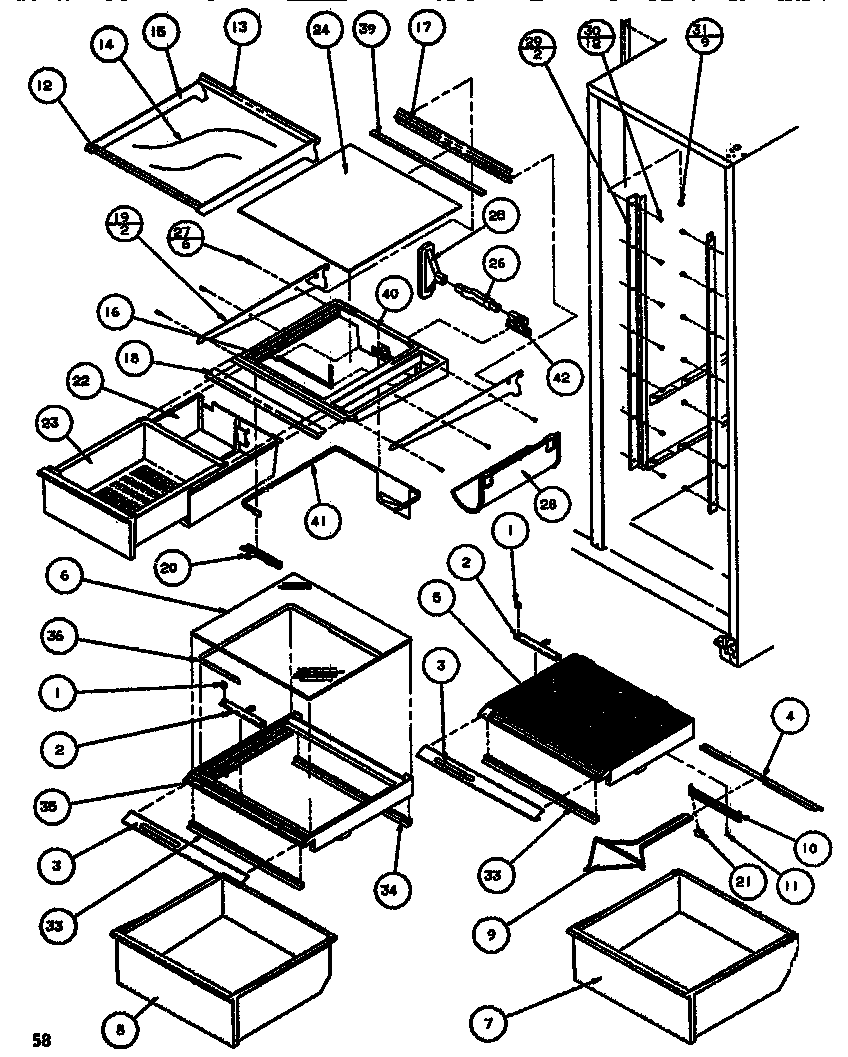

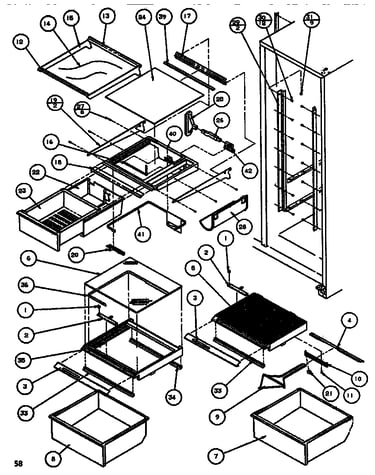

Shelving & drawers (ref) diagram

Refrigerator screw

Part #M0211017

Replaced by #67006425

?
Manufacturer substitution
This part replaces M0211017. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Refrigerator Clamp M0114003
#9

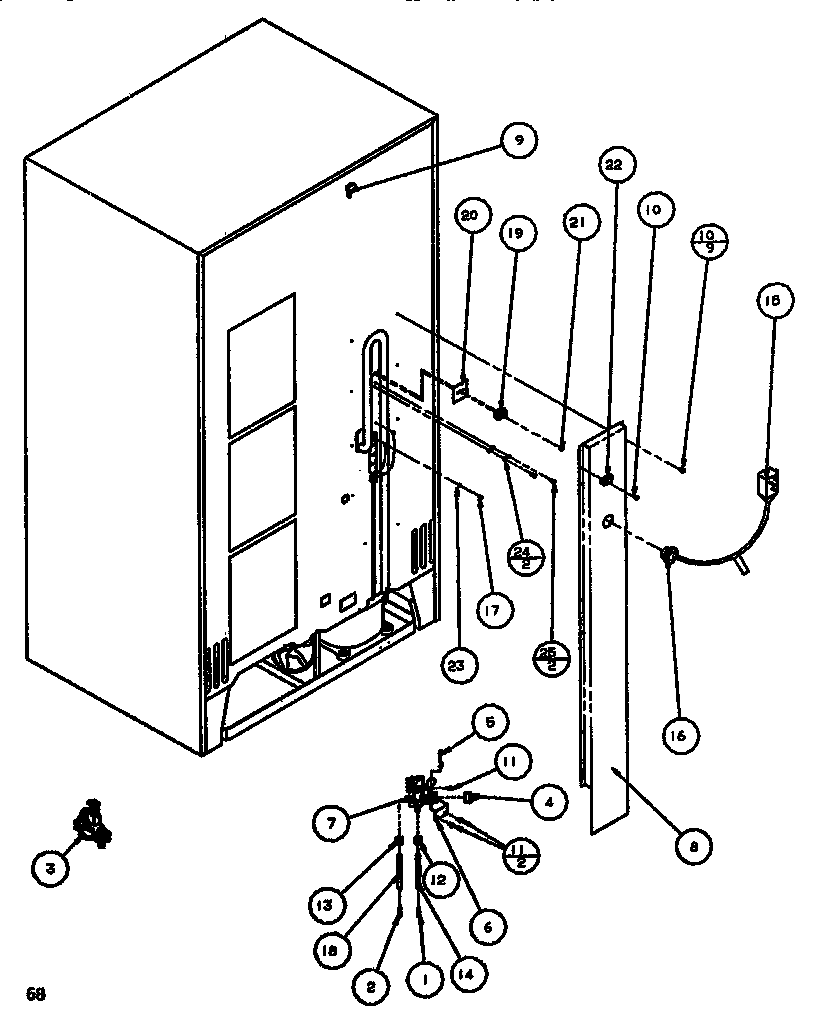

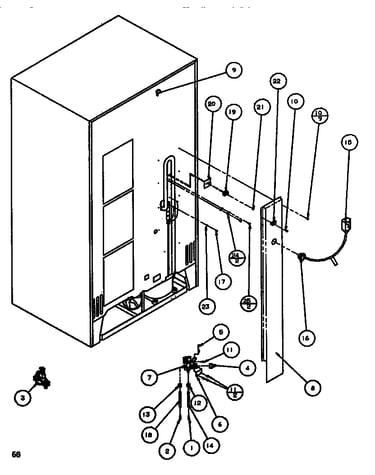

Cabinet back diagram

Refrigerator clamp

Part #M0114003

Replaced by #WPM0114003

?
Manufacturer substitution
This part replaces M0114003. Substitute parts can look different from the original.
$8.09 |
11% OFF Phone Price : $9.09
In Stock
Refrigerator Bushing C8964401
#1

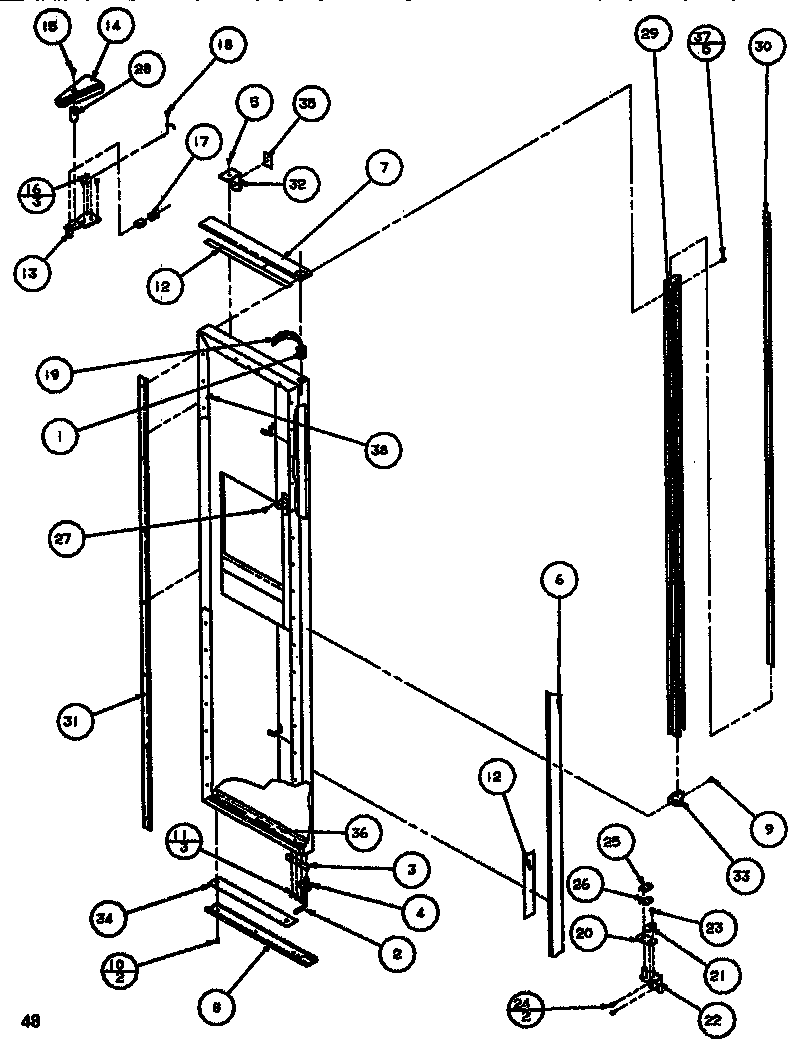

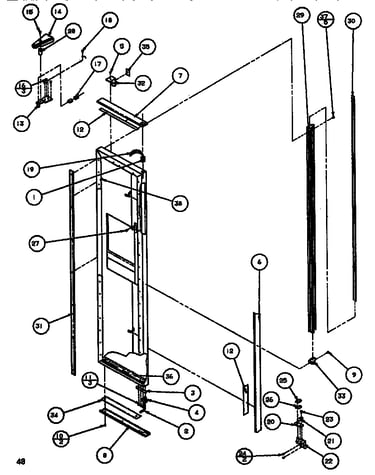

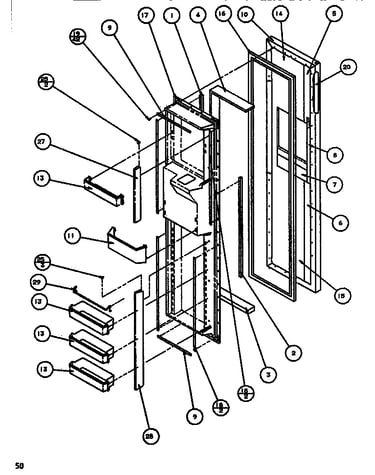

Door/hinge/trim freezer diagram

Refrigerator bushing

Part #C8964401

Replaced by #WP67004977

?
Manufacturer substitution
This part replaces C8964401. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Refrigerator Screw M0202321
#18

Door/hinge/trim freezer diagram

Refrigerator screw

Part #M0202321

Replaced by #8169479

?
Manufacturer substitution
This part replaces M0202321. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Clip M0117301
#2

Controls & cabinet (ref/frz) diagram

Clip

Part #M0117301

Replaced by #WPM0117303

?
Manufacturer substitution
This part replaces M0117301. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Screw M0211030
#36

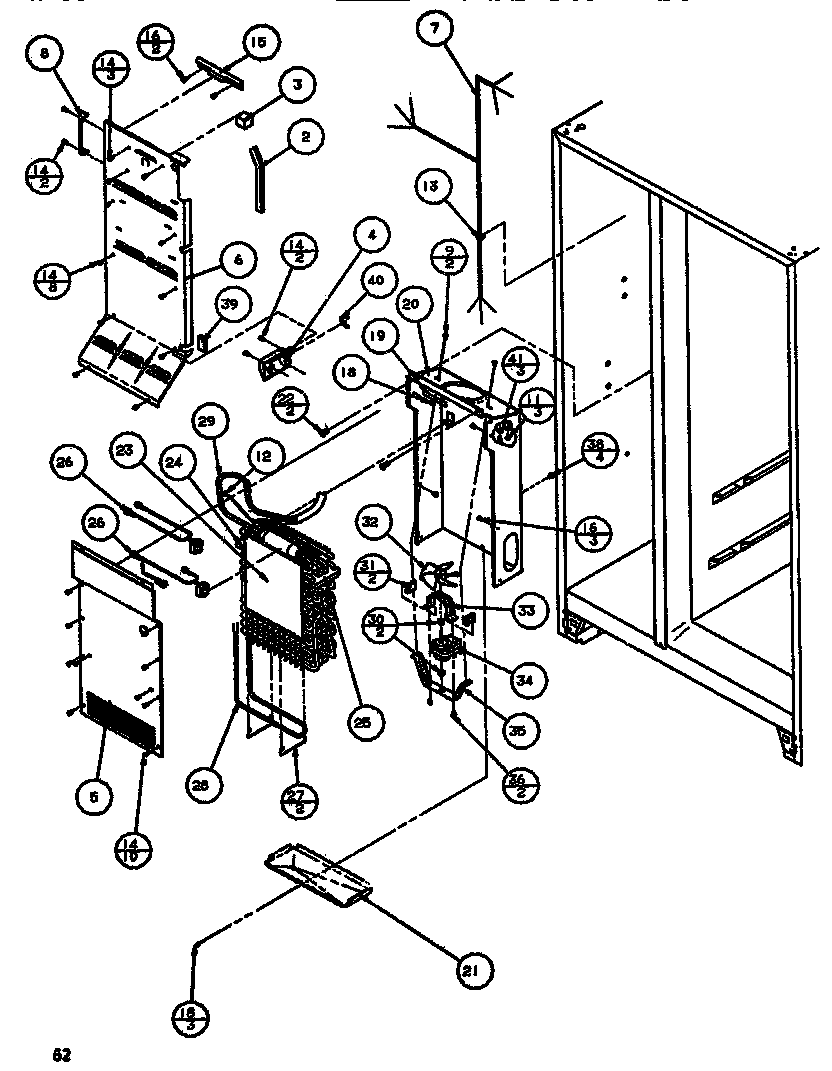

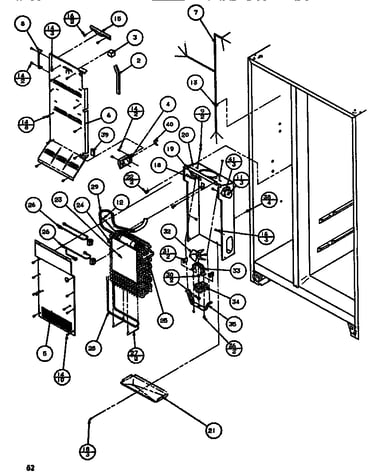

Evaporator & air handling diagram

Screw

Part #M0211030

Replaced by #R9800670

?
Manufacturer substitution
This part replaces M0211030. Substitute parts can look different from the original.
This item is not returnable
$4.97 |
17% OFF Phone Price : $5.97
In Stock
