Front-Engine Lawn Tractor

Model # RE11CRD (REQ11CRDB) Official Rally tractor

Here are the diagrams and repair parts for Official Rally RE11CRD-REQ11CRDB tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

  View engine

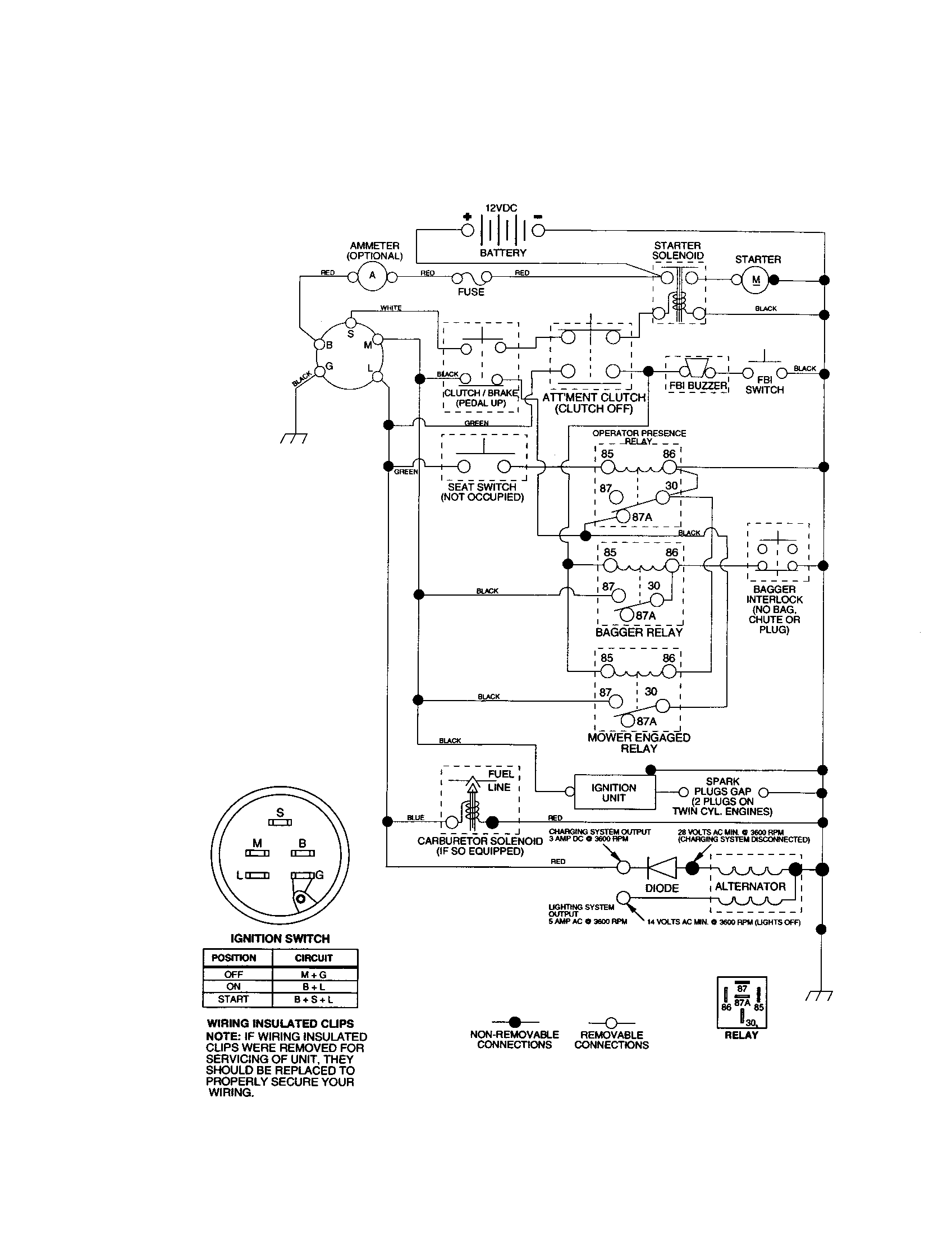

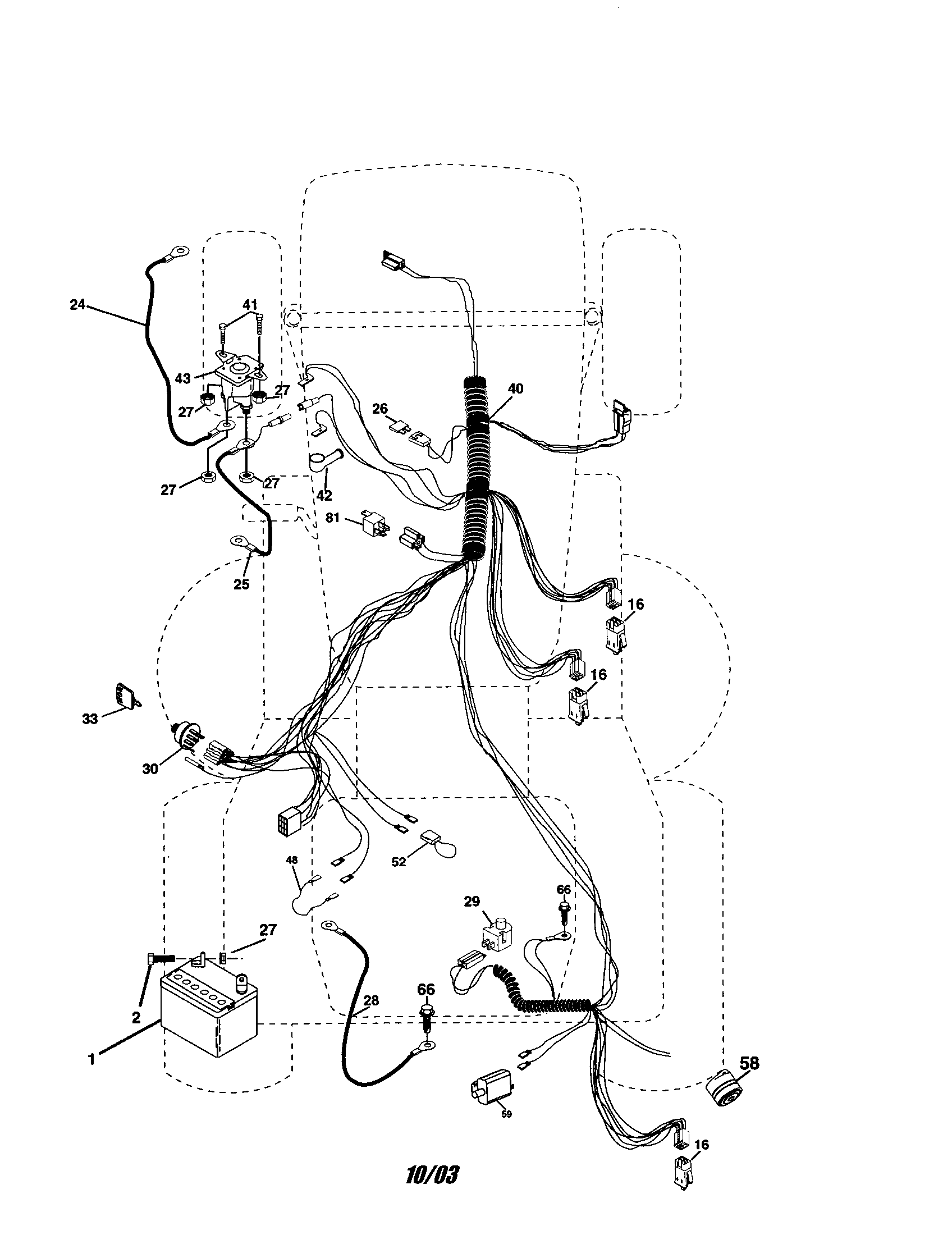

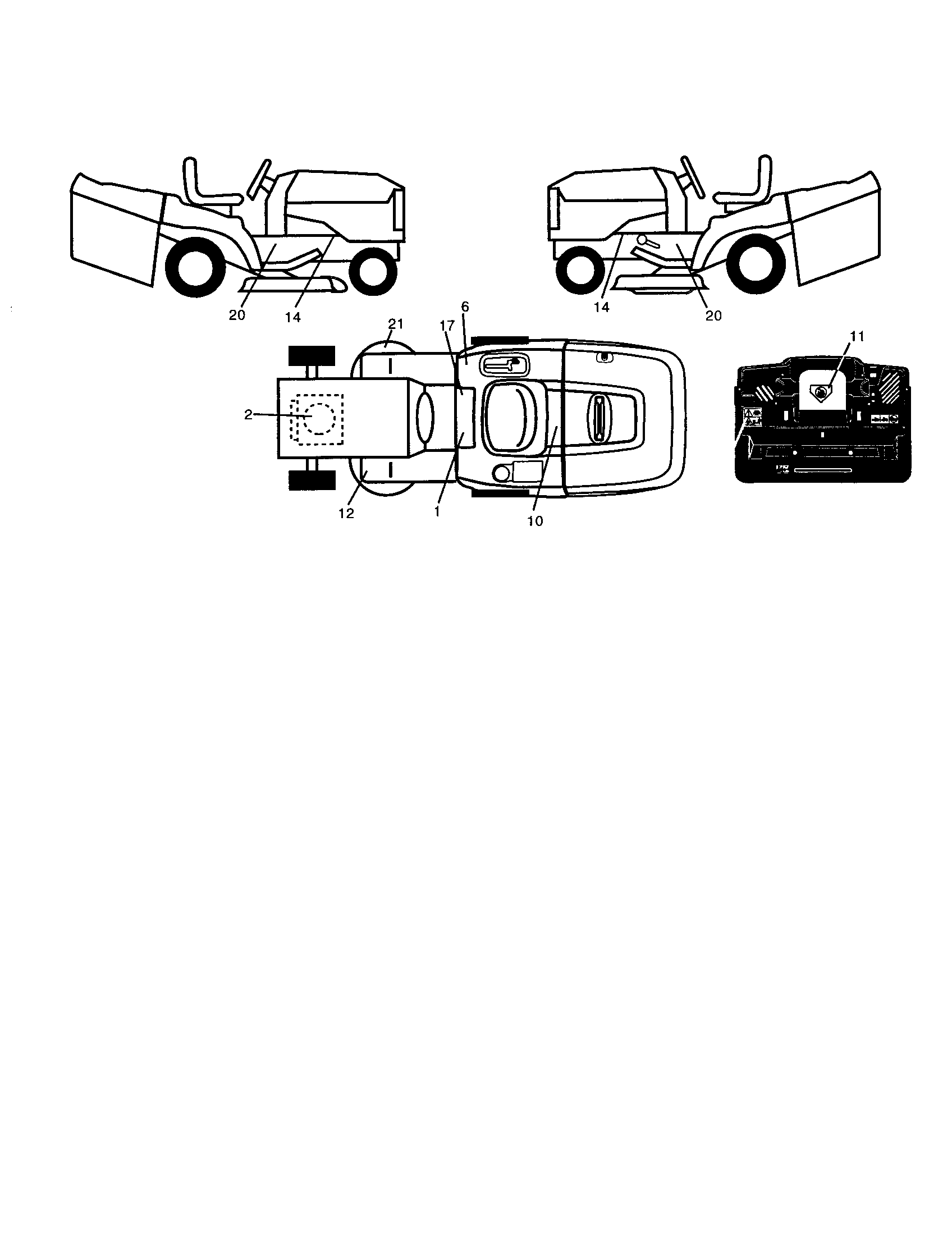

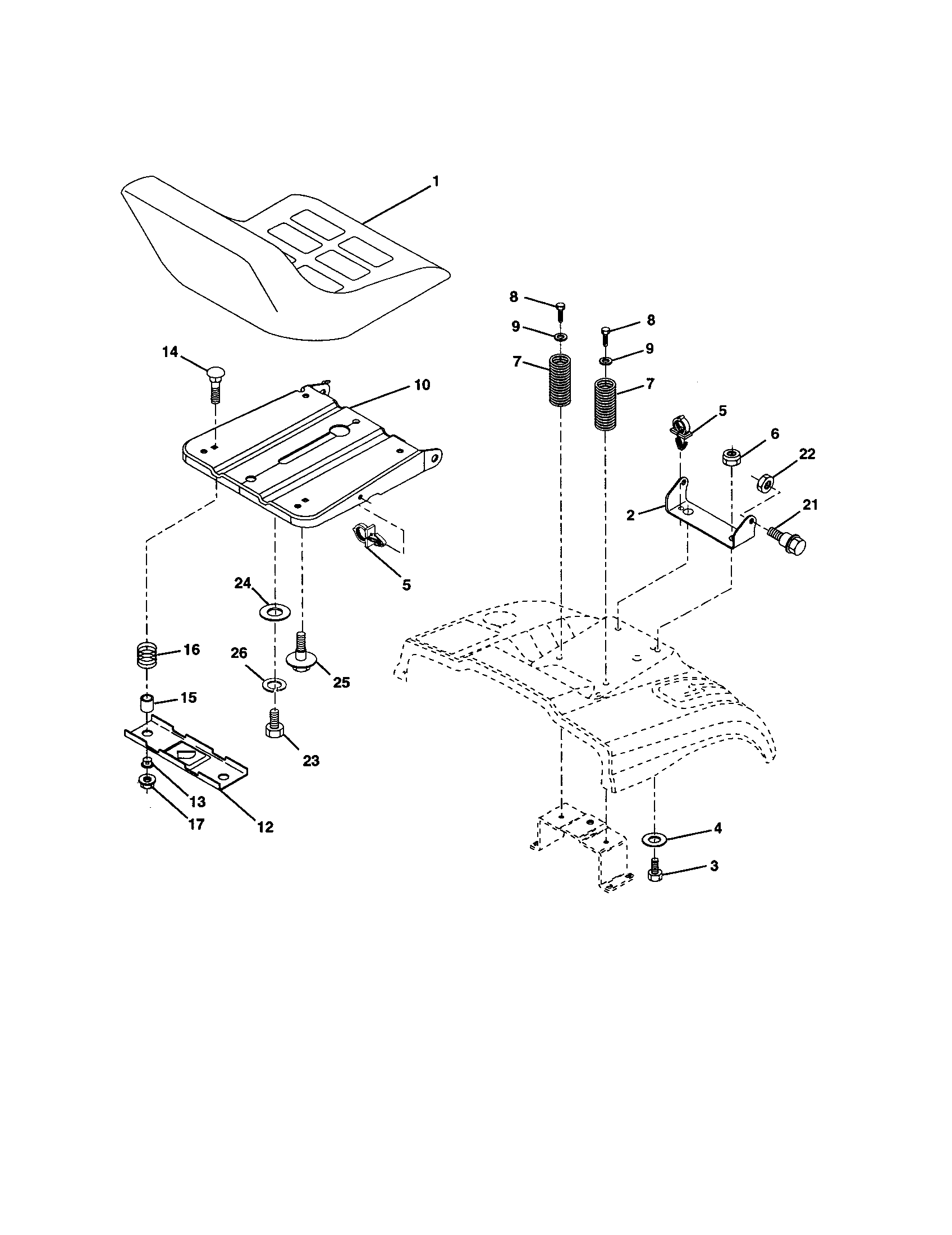

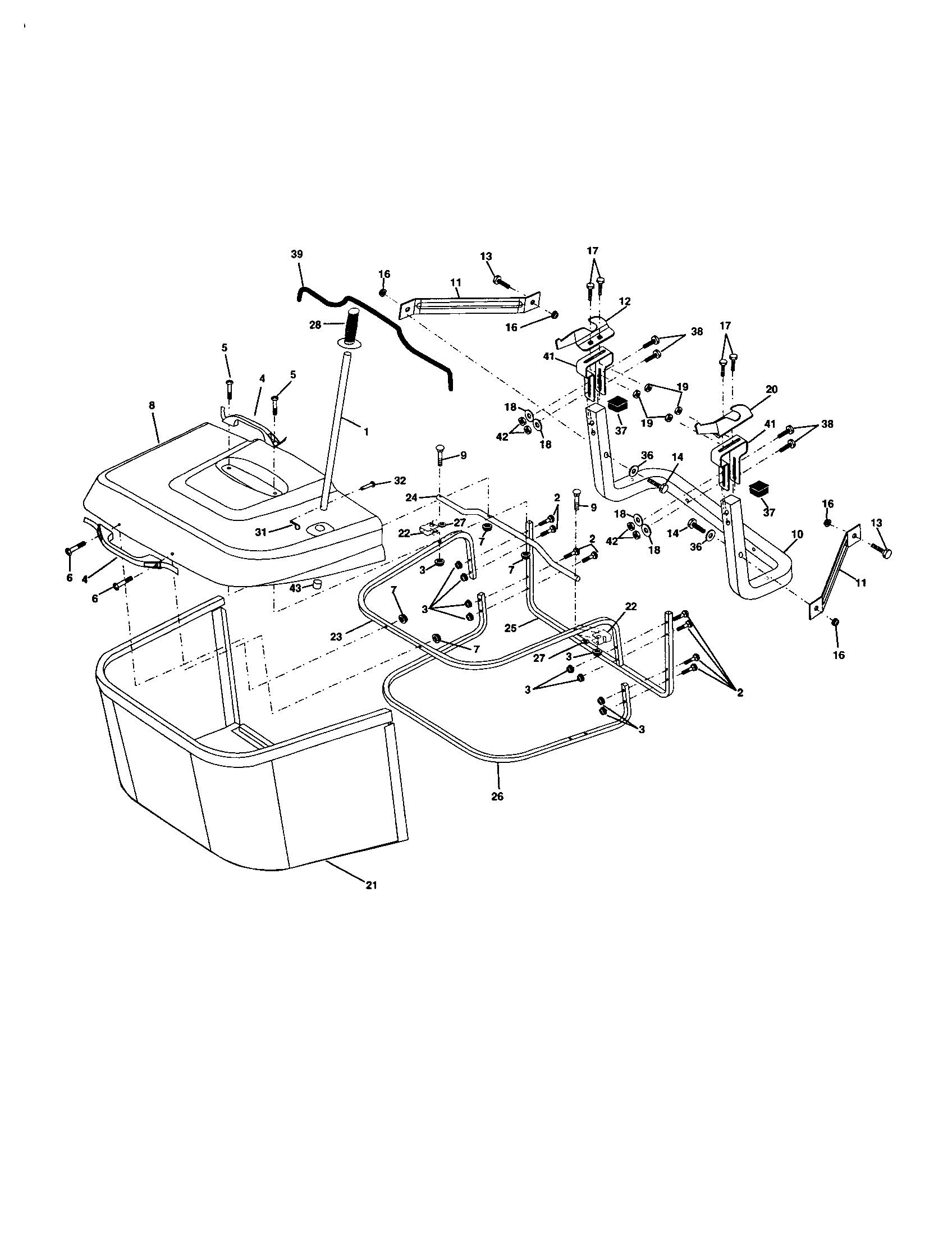

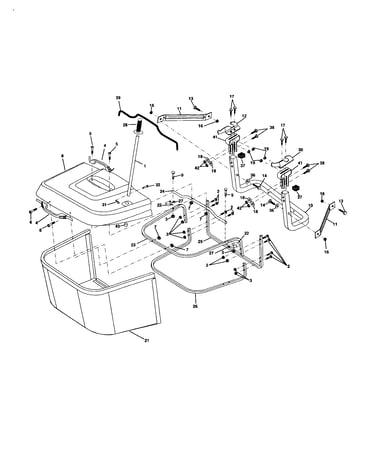

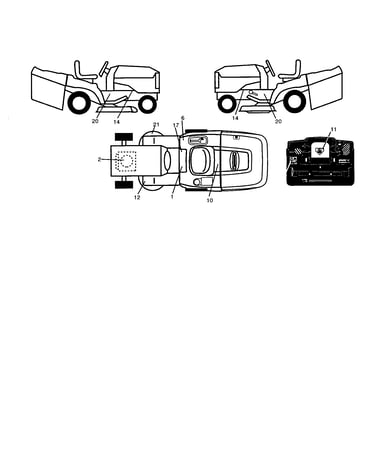

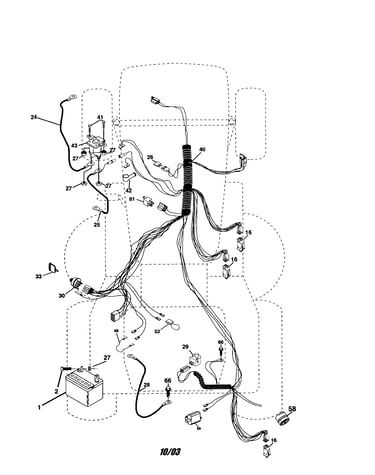

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 542 parts  |
Lawn Tractor Axle Cap 104757X428
#11

Wheels and tires diagram

Lawn tractor axle cap

Part #104757X428

Replaced by #532104757

?
Manufacturer substitution
This part replaces 104757X428. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lock Nut 73900600
Lock nut

Part #73900600

Replaced by #532409149

?
Manufacturer substitution
This part replaces 73900600. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Hex Flange Lock Nut 145212
#15

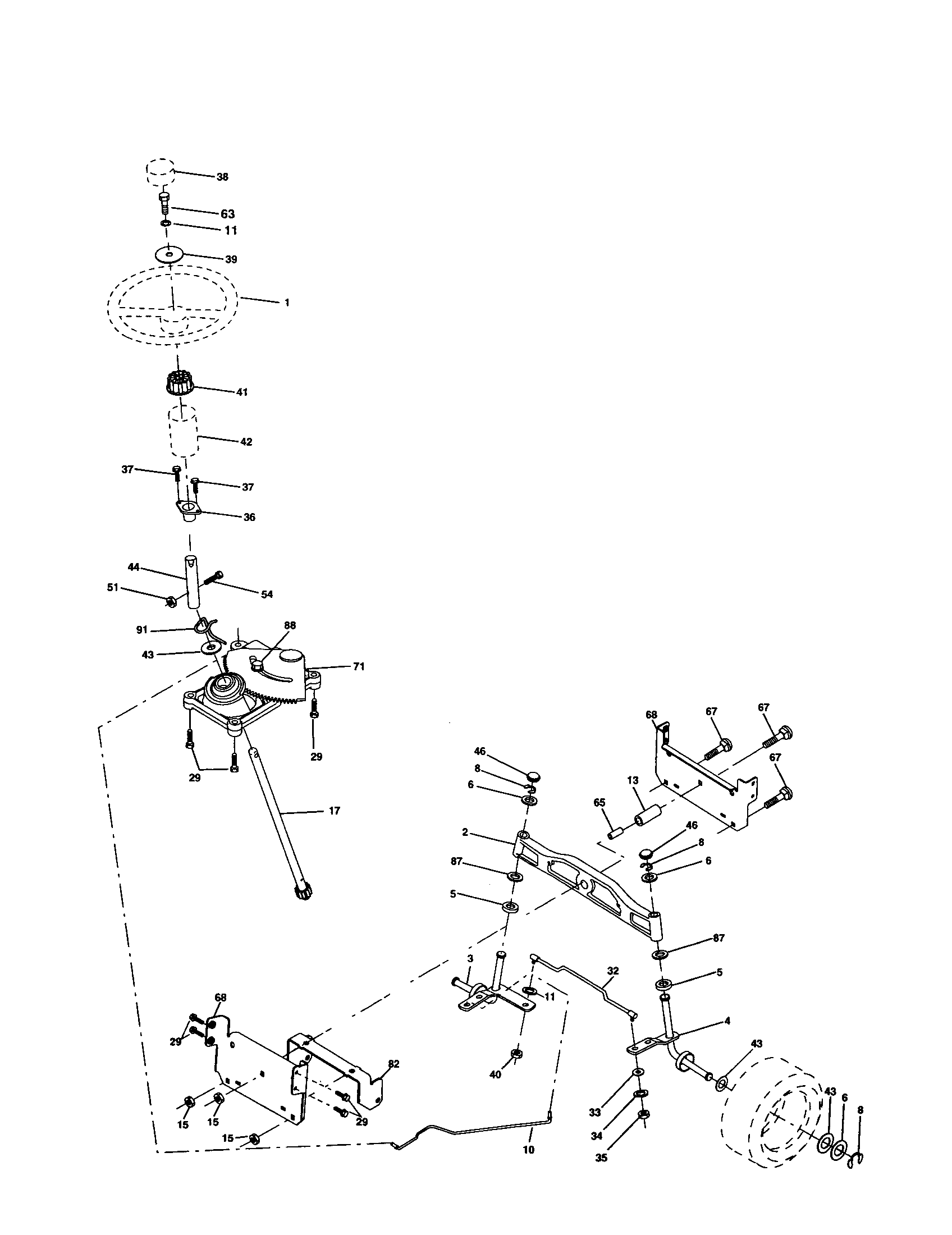

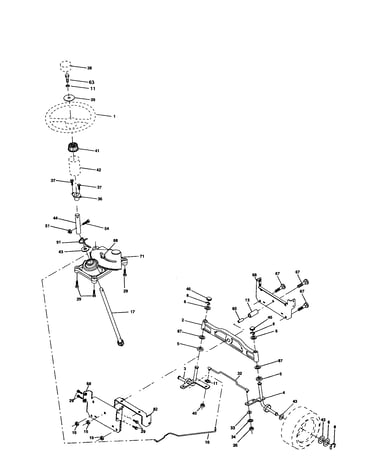

Steering assembly diagram

Hex flange lock nut

Part #145212

Replaced by #532409149

?
Manufacturer substitution
This part replaces 145212. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Tractor Idler Pulley 173438
#261

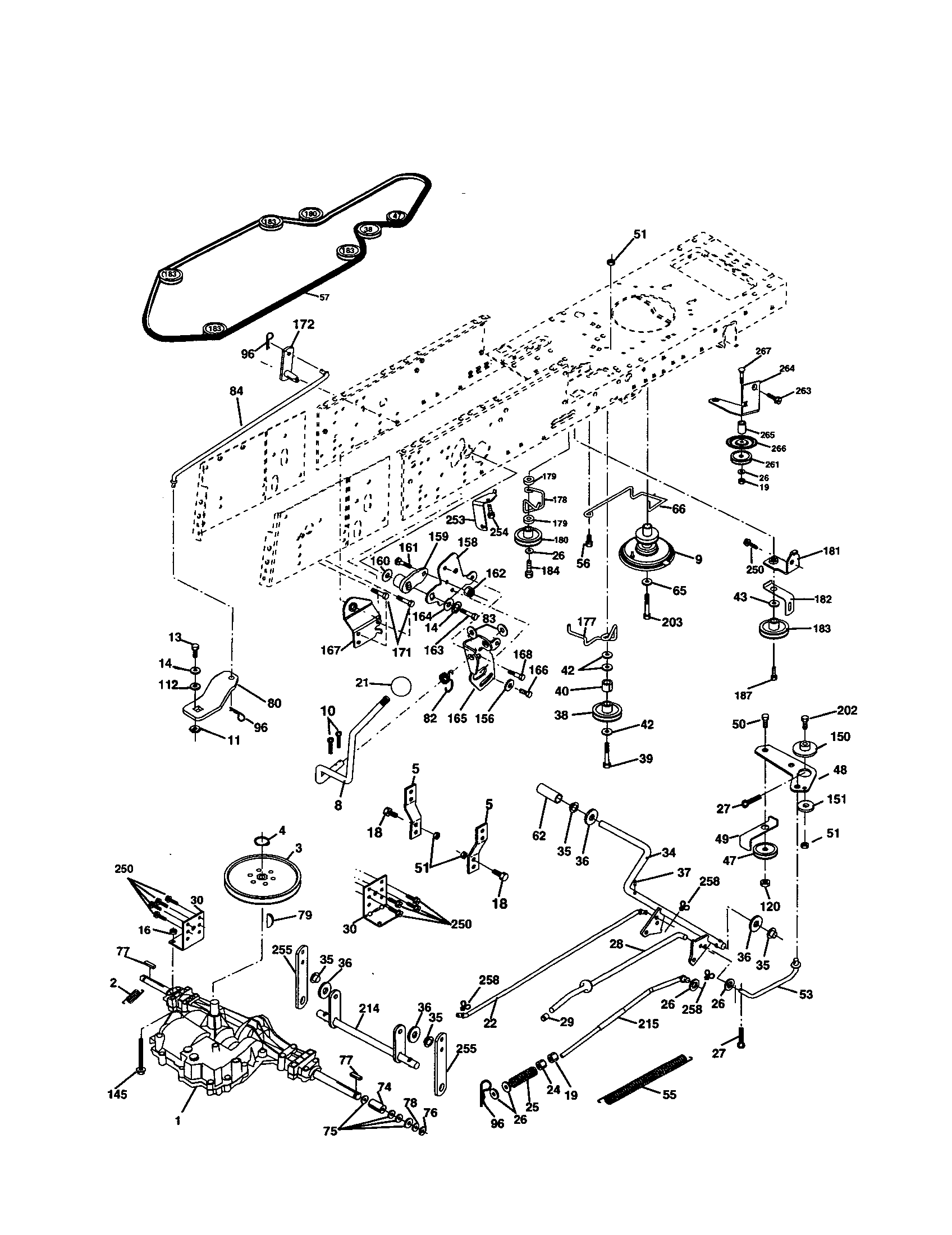

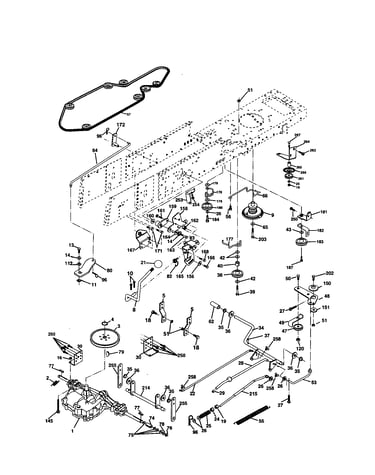

Drive diagram

Lawn tractor idler pulley

Part #173438

Replaced by #532173438

?
Manufacturer substitution
This part replaces 173438. Substitute parts can look different from the original.
BEST SELLER
$16.90 |
11% OFF Phone Price : $18.90
In Stock
Shoulder Bolt 137644
#116

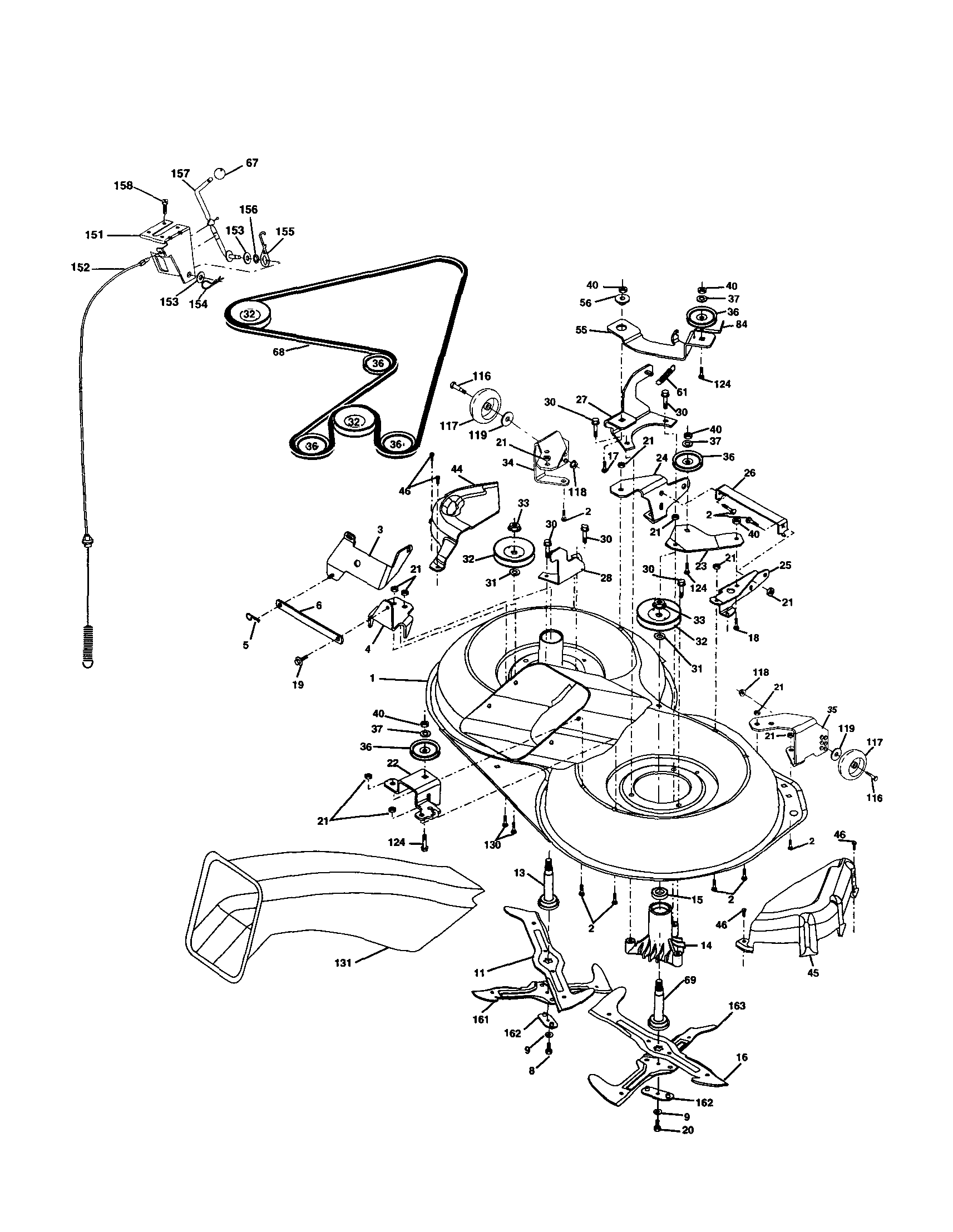

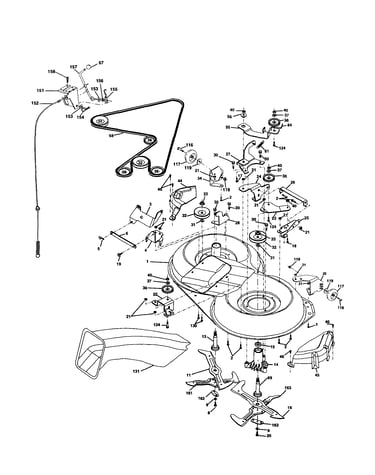

Mower diagram

Shoulder bolt

Part #137644

Replaced by #596434404

?
Manufacturer substitution
This part replaces 137644. Substitute parts can look different from the original.
BEST SELLER
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Flanged Toplock Nut 178342
#33

Mower diagram

Flanged toplock nut

Part #178342

Replaced by #596134801

?
Manufacturer substitution
This part replaces 178342. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Muffler Gasket 165291
#13

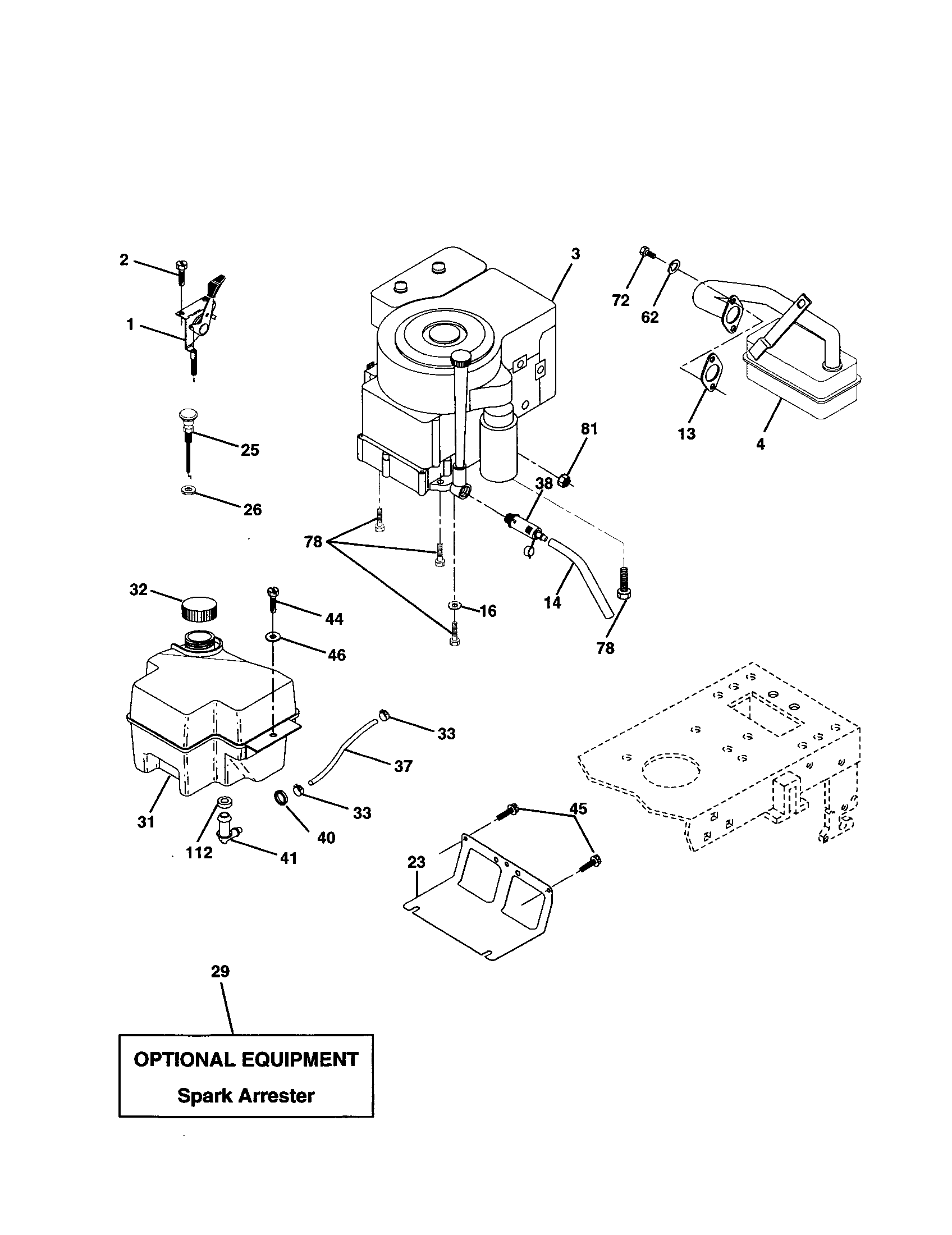

Engine diagram

Muffler gasket

Part #165291

Replaced by #692236

?
Manufacturer substitution
This part replaces 165291. Substitute parts can look different from the original.
BEST SELLER
$6.56 |
13% OFF Phone Price : $7.56
In Stock
Zinc Retainer Spring 163552
#20

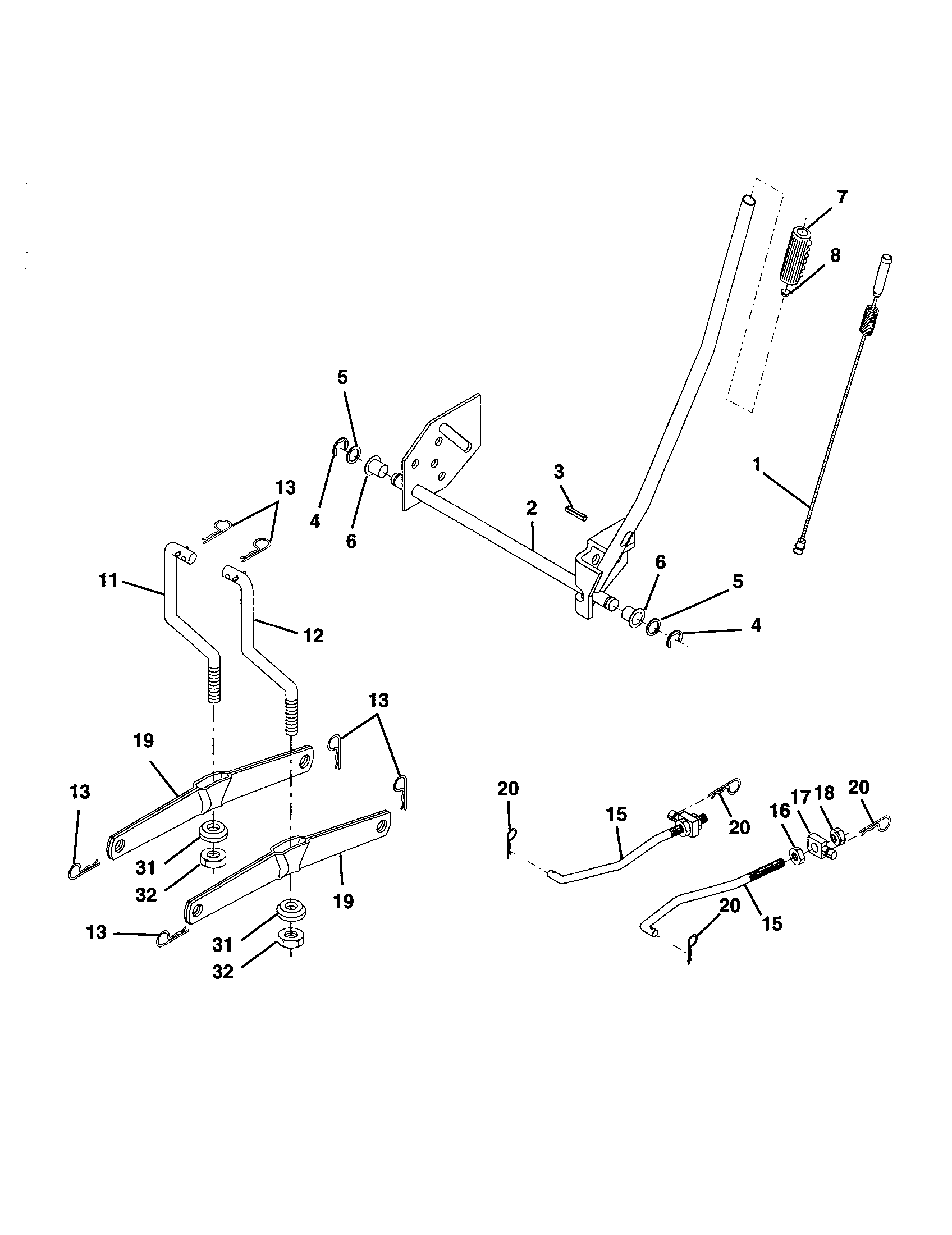

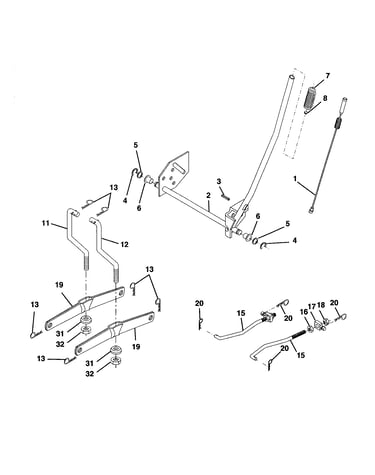

Mower lift diagram

Zinc retainer spring

Part #163552

Replaced by #532003146

?
Manufacturer substitution
This part replaces 163552. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.02 |
20% OFF Phone Price : $5.02
In Stock
Lawn Tractor Grass Catcher Left Gauge Wheel Bracket 2029J
#187

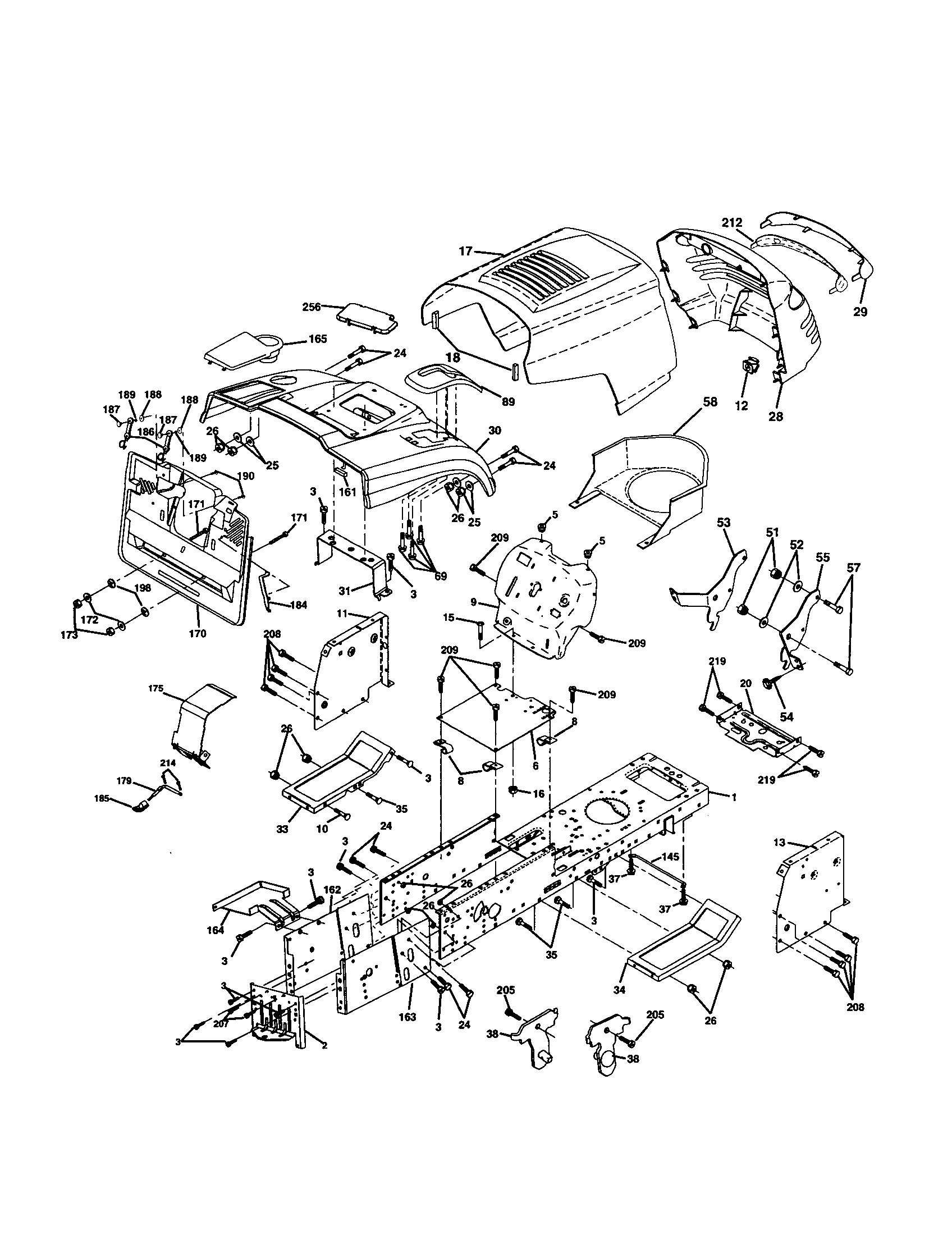

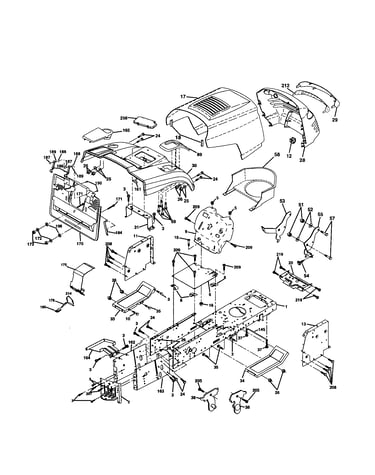

Chassis/enclosures diagram

Lawn tractor grass catcher left gauge wheel bracket

Part #2029J

Replaced by #596987401

?
Manufacturer substitution
This part replaces 2029J. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
Lawn Tractor Spindle, Right 169839
#4

Steering assembly diagram

Lawn tractor spindle, right

Part #169839

Replaced by #596873801

?
Manufacturer substitution
This part replaces 169839. Substitute parts can look different from the original.
BEST SELLER
$27.98 |
18% OFF Phone Price : $33.98
In Stock
