Model # HJ6521JRT2CSA Official Maytag water heater

Here are the diagrams and repair parts for Official Maytag HJ6521JRT2CSA water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 17 parts |

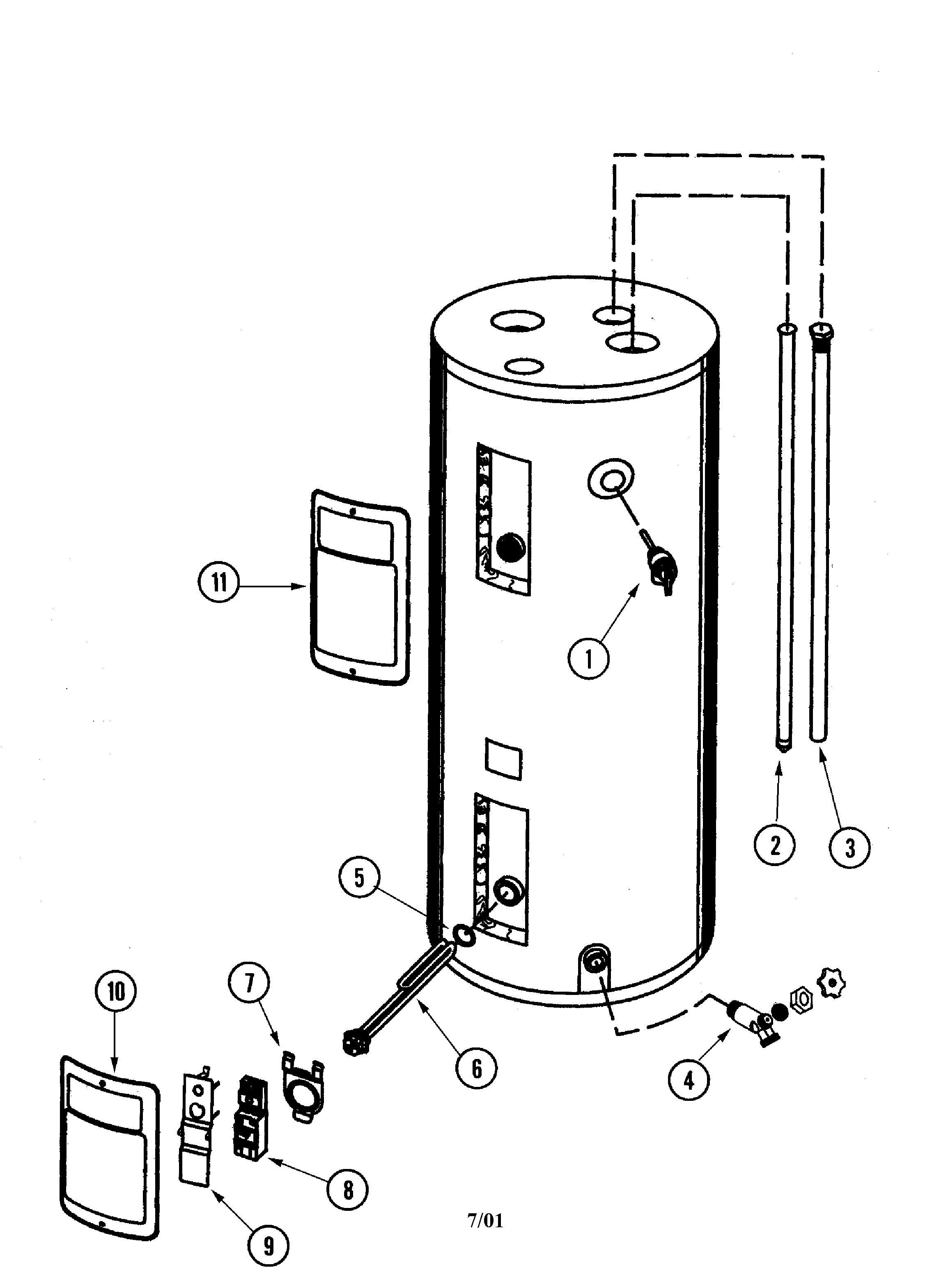

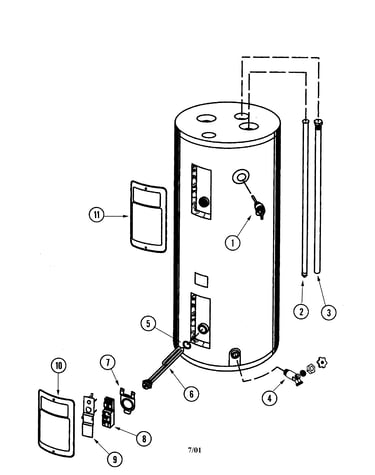

Body diagram

Dip tube

Part #66001303

The manufacturer no longer makes this part, and there's no substitute part

#1A

Body diagram

Temperature valve

Part #66001415

The manufacturer no longer makes this part, and there's no substitute part

Body diagram

Bracket, the

Part #66001054

The manufacturer no longer makes this part, and there's no substitute part

Body diagram

Terminal cover

Part #66001064

The manufacturer no longer makes this part, and there's no substitute part

Body diagram

Water heater temperature and pressure relief valve

Part #66001216

The manufacturer no longer makes this part, and there's no substitute part

#2B

Body diagram

Dip tube

Part #66001309

The manufacturer no longer makes this part, and there's no substitute part

Body diagram

Element gasket

Part #66001053

The manufacturer no longer makes this part, and there's no substitute part

Body diagram

Drain valve

Part #66001181

The manufacturer no longer makes this part, and there's no substitute part

#3A

Body diagram

Anode rod

Part #66001249

The manufacturer no longer makes this part, and there's no substitute part

#3B

Body diagram

Anode rod

Part #66001250

The manufacturer no longer makes this part, and there's no substitute part
