Model # 489451492 Official Sears 26" 10-speed lightweight bicycle

Here are the diagrams and repair parts for Official Sears 489451492 26" 10-speed lightweight bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 50 parts |

#28

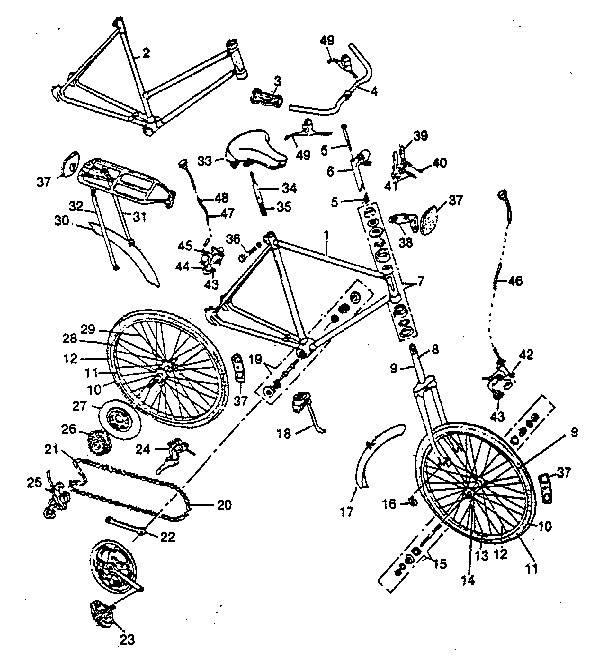

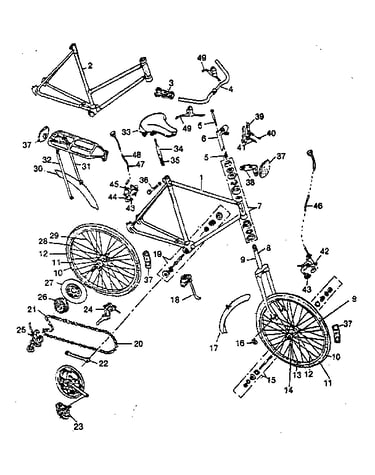

Unit parts diagram

Rr wheel asm

Part #045521

The manufacturer no longer makes this part, and there's no substitute part

#NI

All parts diagram

Huffy removal tool

Part #103004

The manufacturer no longer makes this part, and there's no substitute part

#NI

All parts diagram

Ming ta crnk fln nut

Part #061002

The manufacturer no longer makes this part, and there's no substitute part

Unit parts diagram

Bolt w/wedge

Part #008027

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Bicycle Tire, 26 X 1.5-in 040021

#10

Unit parts diagram

Craftsman bicycle tire, 26 x 1.5-in

Part #040021

The manufacturer no longer makes this part, and there's no substitute part

#13

Unit parts diagram

Front wheel assembly

Part #045011

The manufacturer no longer makes this part, and there's no substitute part

#43

Unit parts diagram

Ming ta bicycle brake shoe set

Part #104002

The manufacturer no longer makes this part, and there's no substitute part

#30

Unit parts diagram

Rr fndr/brac

Part #051012

The manufacturer no longer makes this part, and there's no substitute part

#17

Unit parts diagram

Ft fndr/brce

Part #100011

The manufacturer no longer makes this part, and there's no substitute part

Cable/casing

Part #087502

The manufacturer no longer makes this part, and there's no substitute part
