Kenmore
Top-Mount Refrigerator

Model # 25361884100 Official Kenmore top-mount refrigerator

Here are the diagrams and repair parts for Official Kenmore 25361884100 top-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

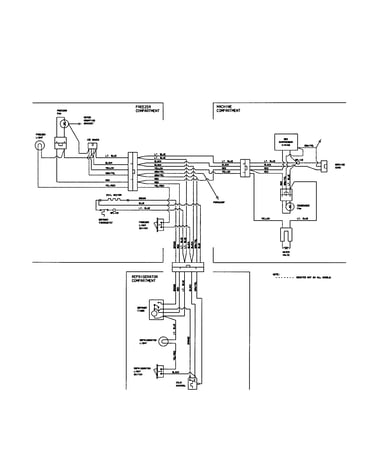

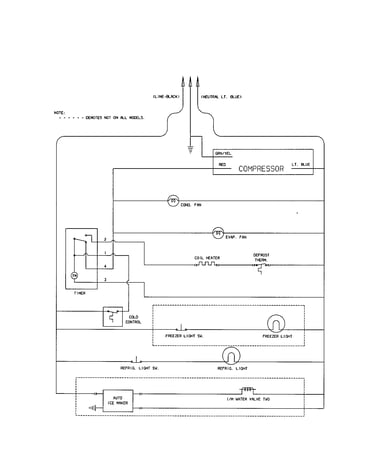

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 160 parts  |
Refrigerator Filter Drier 218944001
#4

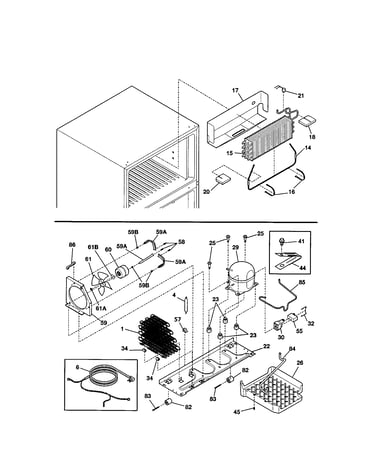

System diagram

Refrigerator filter drier

Part #218944001

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 218944001. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Appliance Light Bulb, 40-watt 5303001179
#15

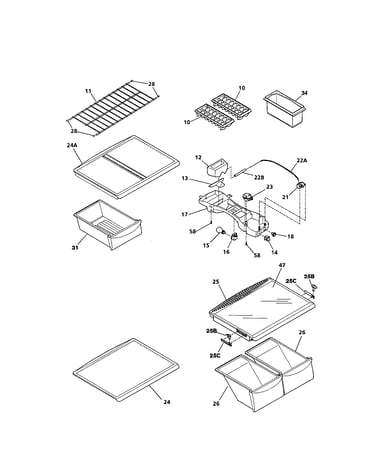

Shelves diagram

Appliance light bulb, 40-watt

Part #5303001179

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303001179. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Refrigerator Gasket 240370906
#2

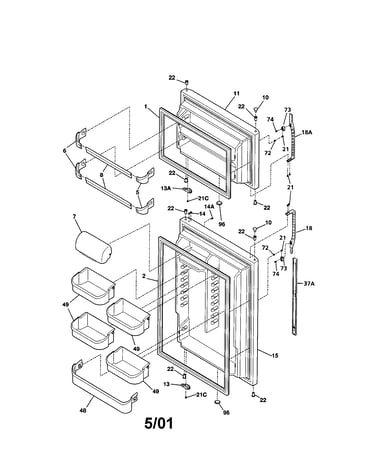

Door diagram

Refrigerator gasket

Part #240370906

Replaced by #241872513

?
Manufacturer substitution
This part replaces 240370906. Substitute parts can look different from the original.
BEST SELLER
$100.58 |
11% OFF Phone Price : $112.58
In Stock
Refrigerator Pan Cover Insert 240350655
#47

Shelves diagram

Refrigerator pan cover insert

Part #240350655

Replaced by #240350608

?
Manufacturer substitution
This part replaces 240350655. Substitute parts can look different from the original.
BEST SELLER
$104.62 |
10% OFF Phone Price : $116.62
In Stock
Evaporator Motor 240369701
#13

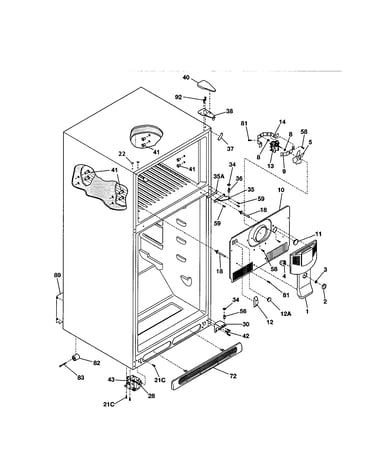

Cabinet diagram

Evaporator motor

Part #240369701

Replaced by #5303918549

?
Manufacturer substitution
This part replaces 240369701. Substitute parts can look different from the original.
BEST SELLER
$71.31 |
8% OFF Phone Price : $77.31
In Stock
Refrigerator Door Bin (replaces 240338104) 240338101
#48

Door diagram

Refrigerator door bin (replaces 240338104)

Part #240338101

BEST SELLER
$49.71 |
11% OFF Phone Price : $55.71
In Stock
Washer 240311301
#34

Cabinet diagram

Washer

Part #240311301

Replaced by #240311303

?
Manufacturer substitution
This part replaces 240311301. Substitute parts can look different from the original.
BEST SELLER
$8.27 |
11% OFF Phone Price : $9.27
In Stock
Refrigerator Drawer Cover 240364725
#25

Shelves diagram

Refrigerator drawer cover

Part #240364725

Replaced by #240364787

?
Manufacturer substitution
This part replaces 240364725. Substitute parts can look different from the original.
BEST SELLER
$86.14 |
7% OFF Phone Price : $92.14
In Stock
Refrigerator Timer 215846606
#23

Shelves diagram

Refrigerator timer

Part #215846606

Replaced by #215846602

?
Manufacturer substitution
This part replaces 215846606. Substitute parts can look different from the original.
BEST SELLER
$30.82 |
16% OFF Phone Price : $36.82
In Stock
Refrigerator Spill-safe Shelf 240358908
#24A

Shelves diagram

Refrigerator spill-safe shelf

Part #240358908

Replaced by #240358926

?
Manufacturer substitution
This part replaces 240358908. Substitute parts can look different from the original.
BEST SELLER
$135.60 |
8% OFF Phone Price : $147.60
In Stock
