Model # 1165118090 Official Kenmore powermate attachment

Here are the diagrams and repair parts for Official Kenmore 1165118090 powermate attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |

Roller Shaft 742006
#25

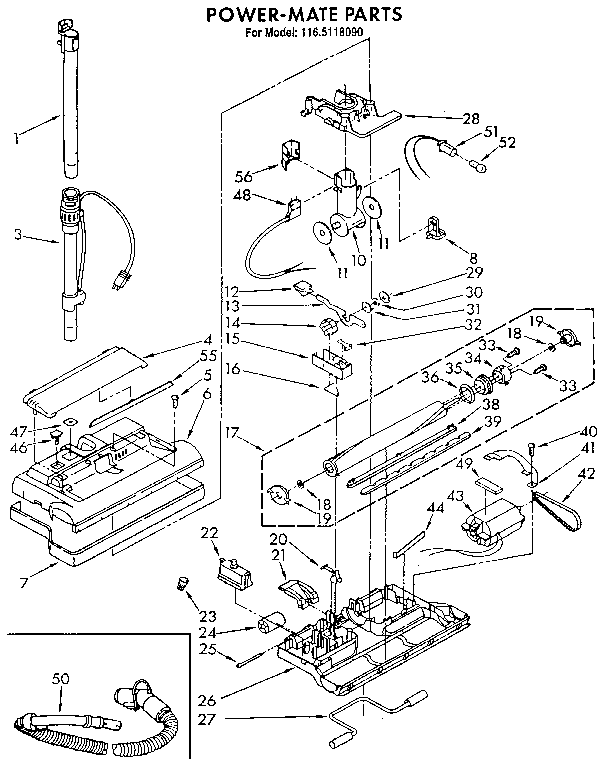

Power mate diagram

Roller shaft

Part #742006

The manufacturer no longer makes this part, and there's no substitute part

(not Serviced, Use Old ) Screw, Motor  Brush N/P
(not serviced, use old ) screw, motor brush

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Bulb Socket 747096
#51

Power mate diagram

Bulb socket

Part #747096

The manufacturer no longer makes this part, and there's no substitute part

Sprocket (black) 742506
#35

Power mate diagram

Sprocket (black)

Part #742506

The manufacturer no longer makes this part, and there's no substitute part

Protector 742332
#22

Power mate diagram

Protector

Part #742332

The manufacturer no longer makes this part, and there's no substitute part

Plug Cover 4153194
#56

Power mate diagram

Plug cover

Part #4153194

The manufacturer no longer makes this part, and there's no substitute part

Brush 742454
#17

Power mate diagram

Brush

Part #742454

The manufacturer no longer makes this part, and there's no substitute part

Bumper 747222
#7

Power mate diagram

Bumper

Part #747222

The manufacturer no longer makes this part, and there's no substitute part

Motor 4148773
#43

Power mate diagram

Motor

Part #4148773

The manufacturer no longer makes this part, and there's no substitute part

Swivel 4153196
#10

Power mate diagram

Swivel

Part #4153196

The manufacturer no longer makes this part, and there's no substitute part
