Model # DV407AGW/XAA-03 Official Samsung dryer

Here are the diagrams and repair parts for Official Samsung DV407AGW-XAA-03 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 152 parts  |
Dryer Idler Assembly DC96-00882C
#1-66

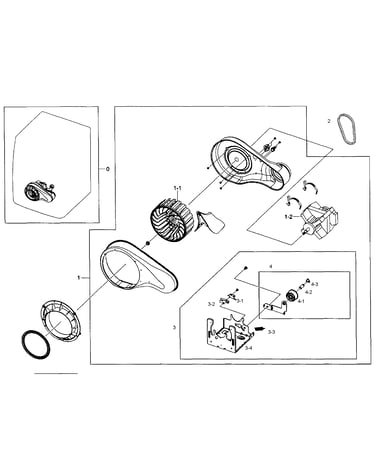

Motor assy diagram

Dryer idler assembly

Part #DC96-00882C

Replaced by #DC93-00634A

?
Manufacturer substitution
This part replaces DC96-00882C. Substitute parts can look different from the original.
BEST SELLER
$48.68 |
11% OFF Phone Price : $54.68
In Stock
Dryer Drum Support Roller (replaces Dc97-07523a, Dc97-07523b) DC97-16782A
#4-9

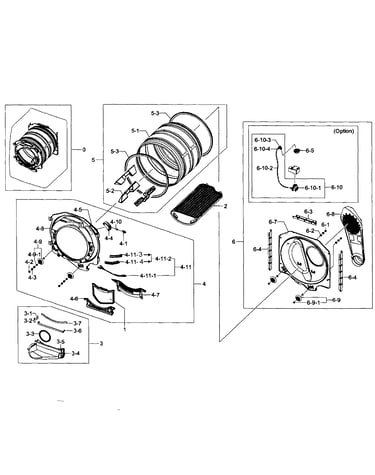

Drum assy diagram

Dryer drum support roller (replaces dc97-07523a, dc97-07523b)

Part #DC97-16782A

BEST SELLER
$40.58 |
13% OFF Phone Price : $46.58
In Stock
Dryer Drum Belt (replaces 6602-001314) 6602-001655
#2

Motor assy diagram

Dryer drum belt (replaces 6602-001314)

Part #6602-001655

BEST SELLER
$32.20 |
16% OFF Phone Price : $38.20
In Stock
Dryer Thermistor (replaces Dc32-0007a) DC32-00007A
#1-71

Motor assy diagram

Dryer thermistor (replaces dc32-0007a)

Part #DC32-00007A

BEST SELLER
$25.82 |
19% OFF Phone Price : $31.82
In Stock
Dryer Thermal Cut-off Thermostat DC47-00016A
#1-72

Motor assy diagram

Dryer thermal cut-off thermostat

Part #DC47-00016A

BEST SELLER
$25.87 |
19% OFF Phone Price : $31.87
In Stock
Dryer Burner Igniter DC47-00022A
#4

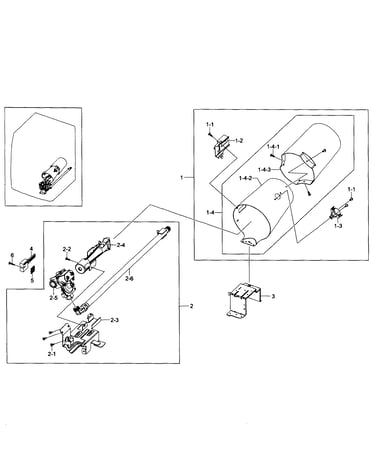

Burner assy diagram

Dryer burner igniter

Part #DC47-00022A

BEST SELLER
$117.34 |
9% OFF Phone Price : $129.34
In Stock
Wings Fan DC67-00180A
#1-5

Motor assy diagram

Wings fan

Part #DC67-00180A

Replaced by #DC67-00180B

?
Manufacturer substitution
This part replaces DC67-00180A. Substitute parts can look different from the original.
BEST SELLER
$92.59 |
6% OFF Phone Price : $98.59
In Stock
Dryer High-limit Thermostat (replaces 35001192) DC47-00017A
#1-3

Burner assy diagram

Dryer high-limit thermostat (replaces 35001192)

Part #DC47-00017A

BEST SELLER
$70.15 |
8% OFF Phone Price : $76.15
In Stock
Dryer Drum DC97-14849A
#5

Drum assy diagram

Dryer drum

Part #DC97-14849A

BEST SELLER
This item is not returnable
$330.21 |
$12.00 OFF Phone Price : $342.21
In Stock
Dryer Radiant Sensor DC32-00008A
#1-2

Burner assy diagram

Dryer radiant sensor

Part #DC32-00008A

BEST SELLER
$144.05 |
8% OFF Phone Price : $156.05
In Stock
