Model # KRFF305EWH05 Official KitchenAid refrigerator

Here are the diagrams and repair parts for Official KitchenAid KRFF305EWH05 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

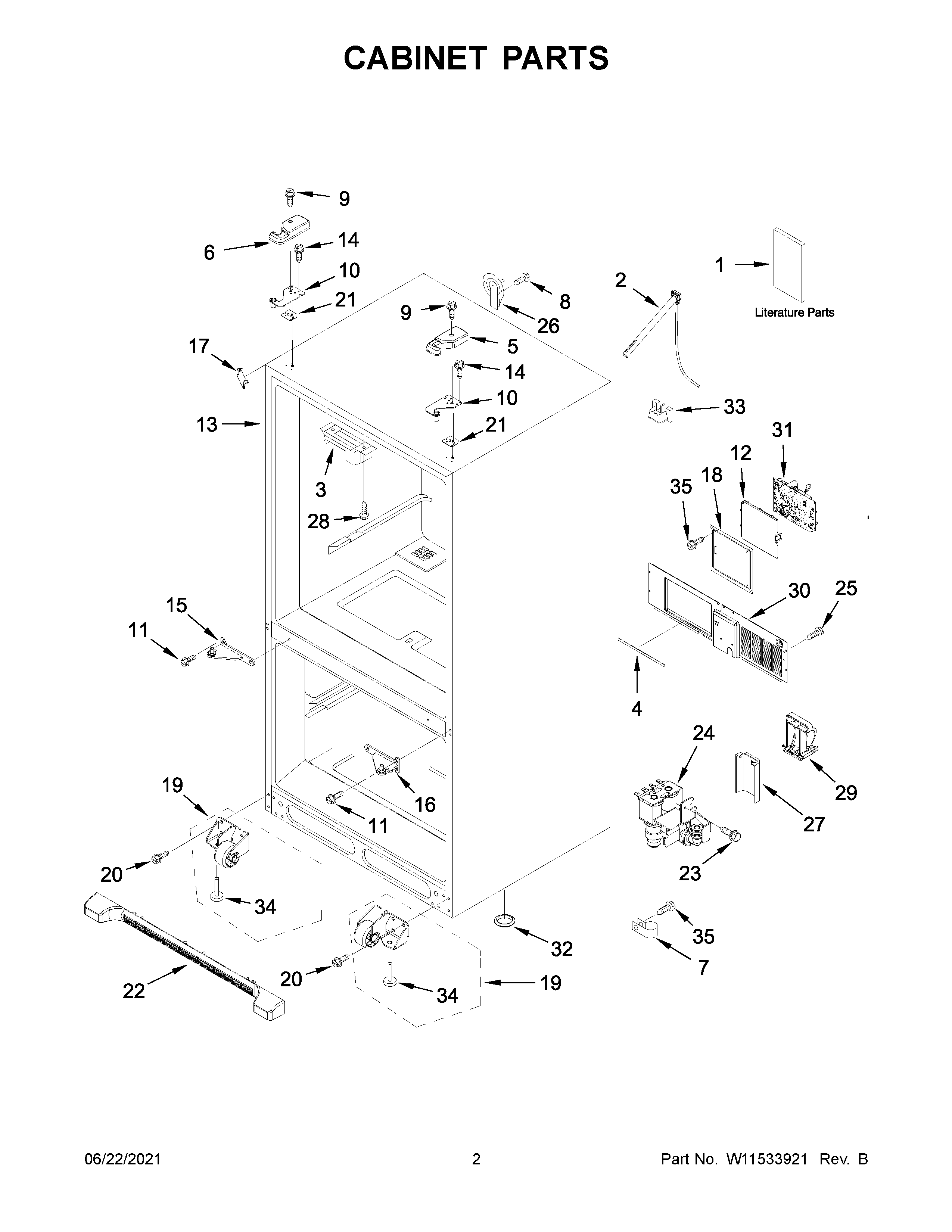

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 261 parts  |
Filter, Water W11256384
#19

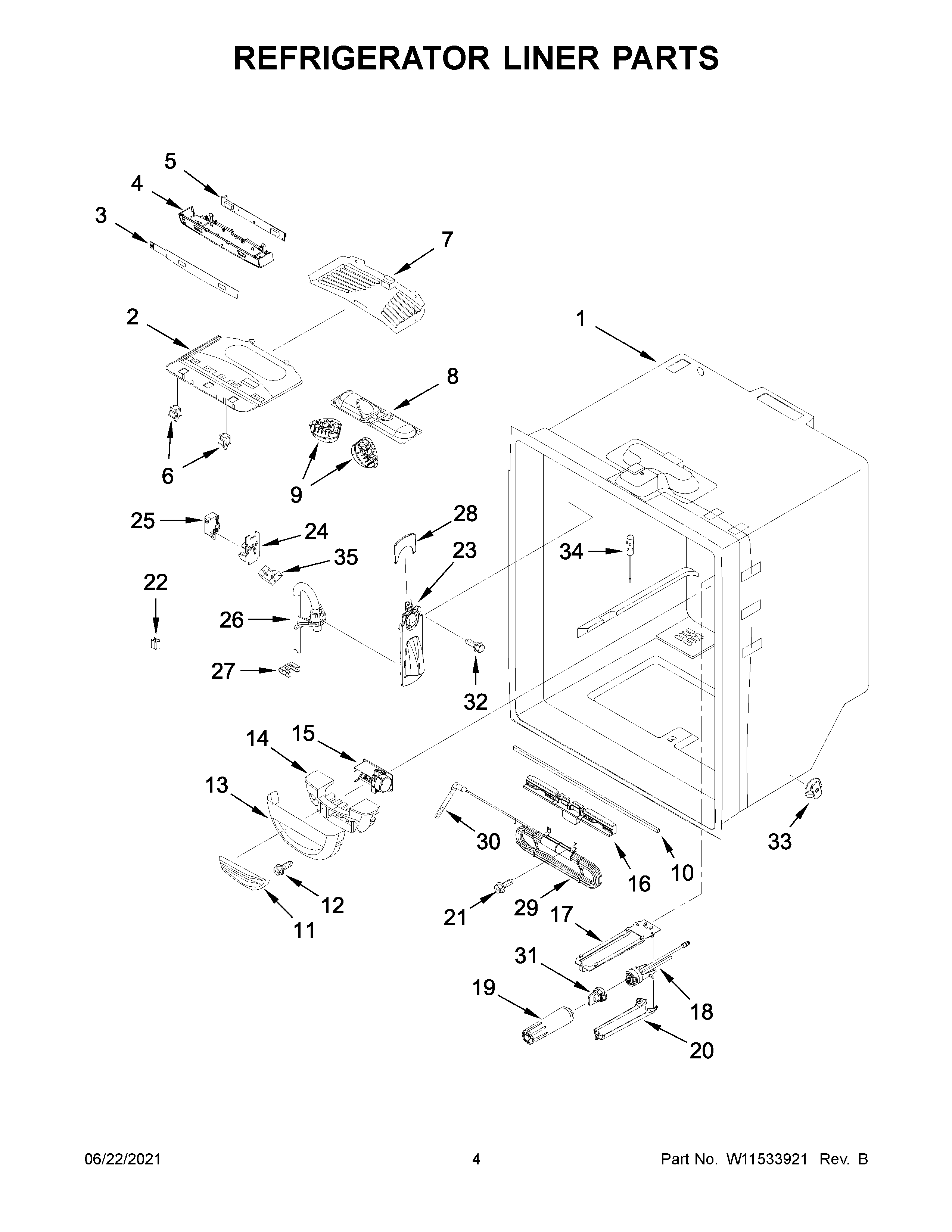

Refrigerator liner parts diagram

Filter, water

Part #W11256384

Replaced by #EDR4RXD1

?
Manufacturer substitution
This part replaces W11256384. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$59.99
In Stock
Refrigerator Thermistor 12791419SP
#4

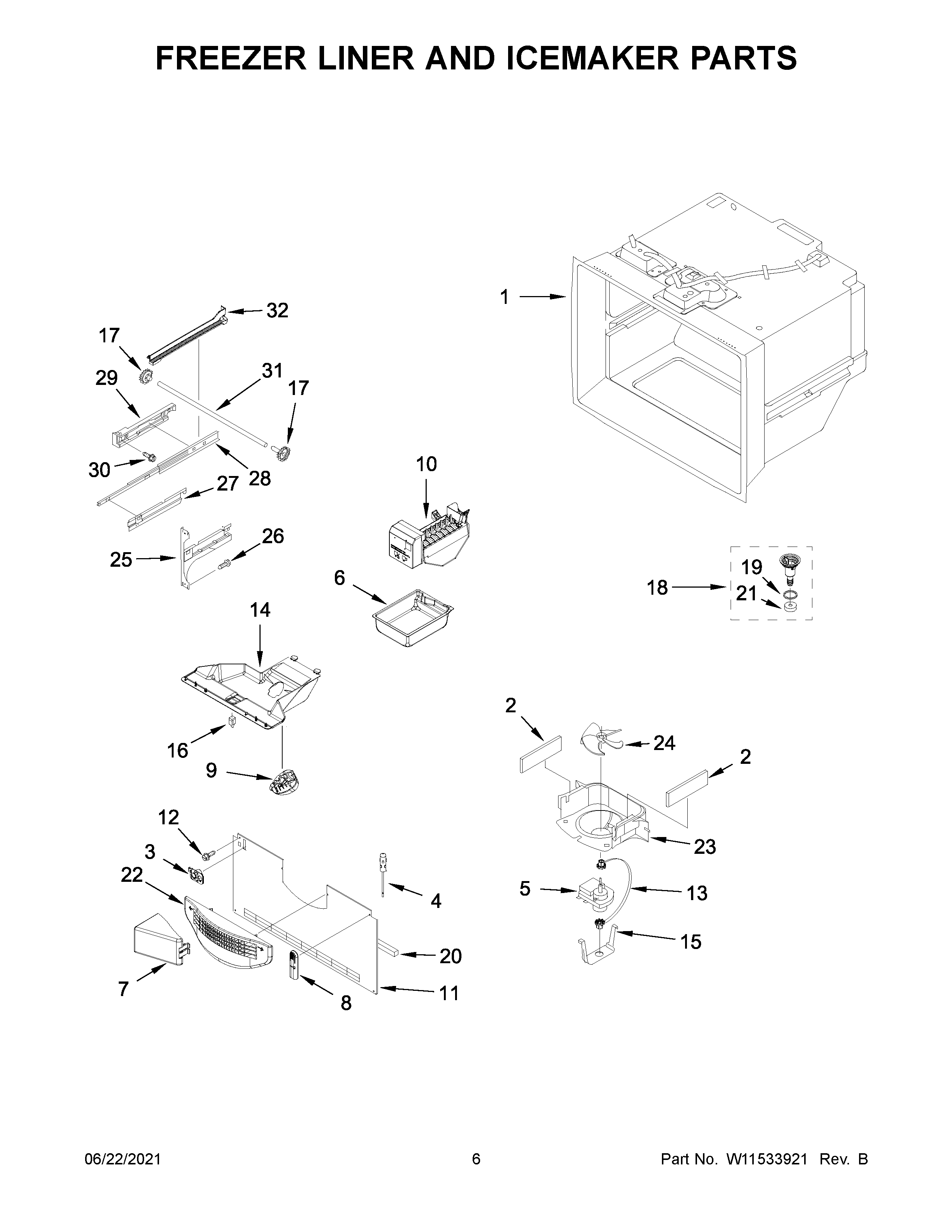

Freezer liner and icemaker parts diagram

Refrigerator thermistor

Part #12791419SP

Replaced by #W10316760

?
Manufacturer substitution
This part replaces 12791419SP. Substitute parts can look different from the original.
BEST SELLER
$44.27 |
12% OFF Phone Price : $50.27
In Stock
Switch- Rock W10847853
#6

Refrigerator liner parts diagram

Switch- rock

Part #W10847853

Replaced by #W11384469

?
Manufacturer substitution
This part replaces W10847853. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Ikea Refrigerator Door Gasket, Right (gray) (replaces W10571956) W10830162
#8A

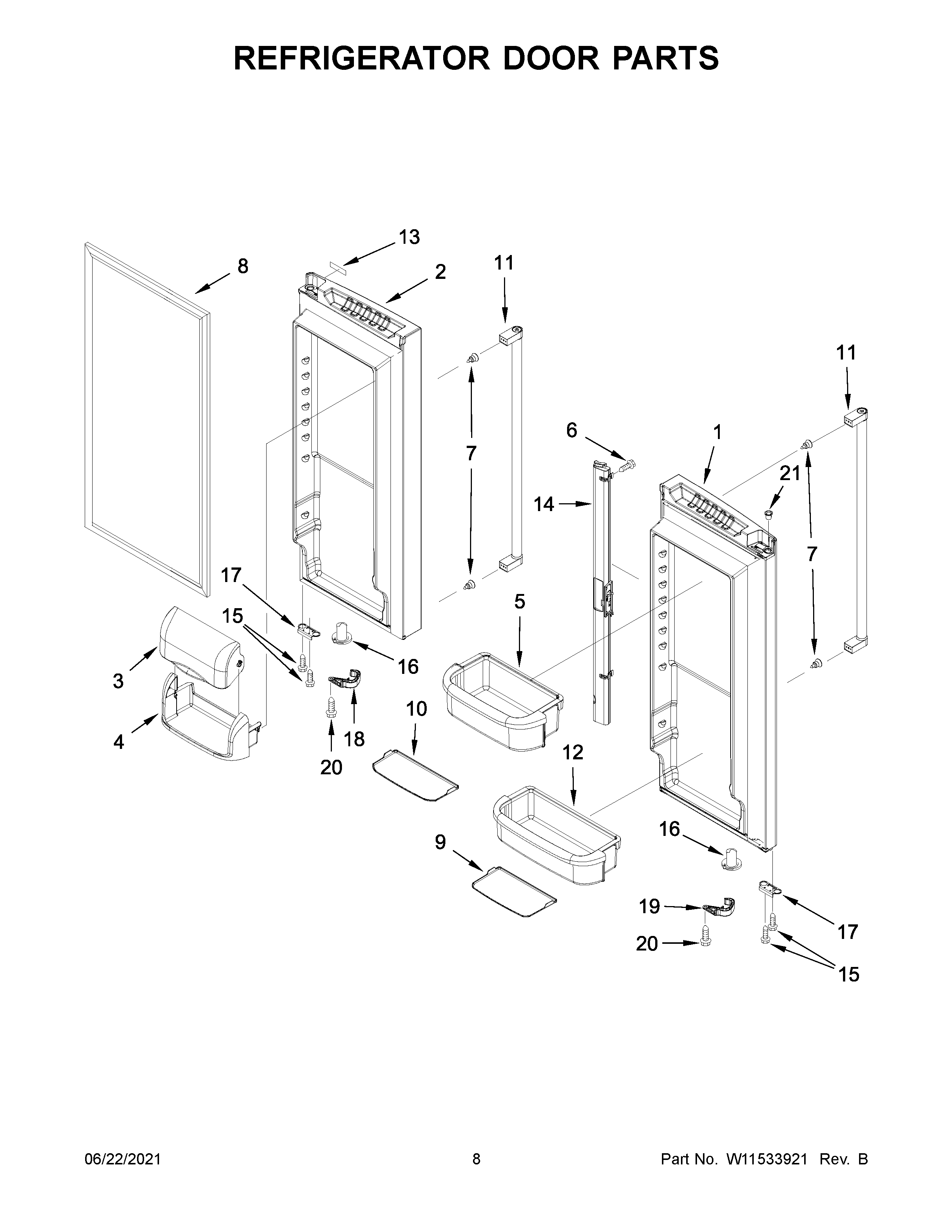

Refrigerator door parts diagram

Ikea refrigerator door gasket, right (gray) (replaces w10571956)

Part #W10830162

BEST SELLER
$111.17 |
10% OFF Phone Price : $123.17
In Stock
Hemera 30 De W11468934
Hemera 30 de

Part #W11468934

Replaced by #W11602886

?
Manufacturer substitution
This part replaces W11468934. Substitute parts can look different from the original.
BEST SELLER
$19.61 |
9% OFF Phone Price : $21.61
In Stock
Dacor Refrigerator Door Gasket W10443320
#3A

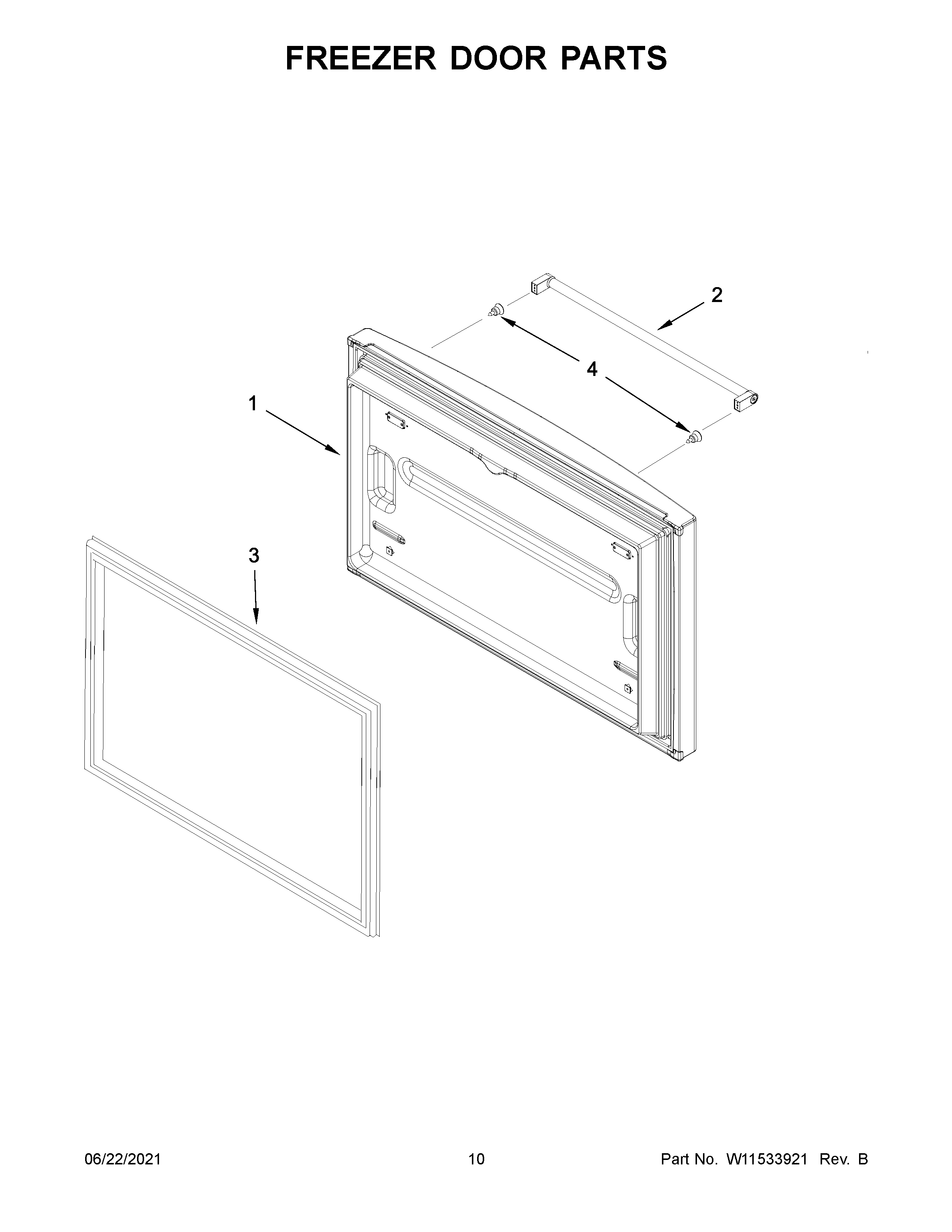

Freezer door parts diagram

Dacor refrigerator door gasket

Part #W10443320

BEST SELLER
$27.63 |
18% OFF Phone Price : $33.63
In Stock
Refrigerator Start Relay W10197428
#12

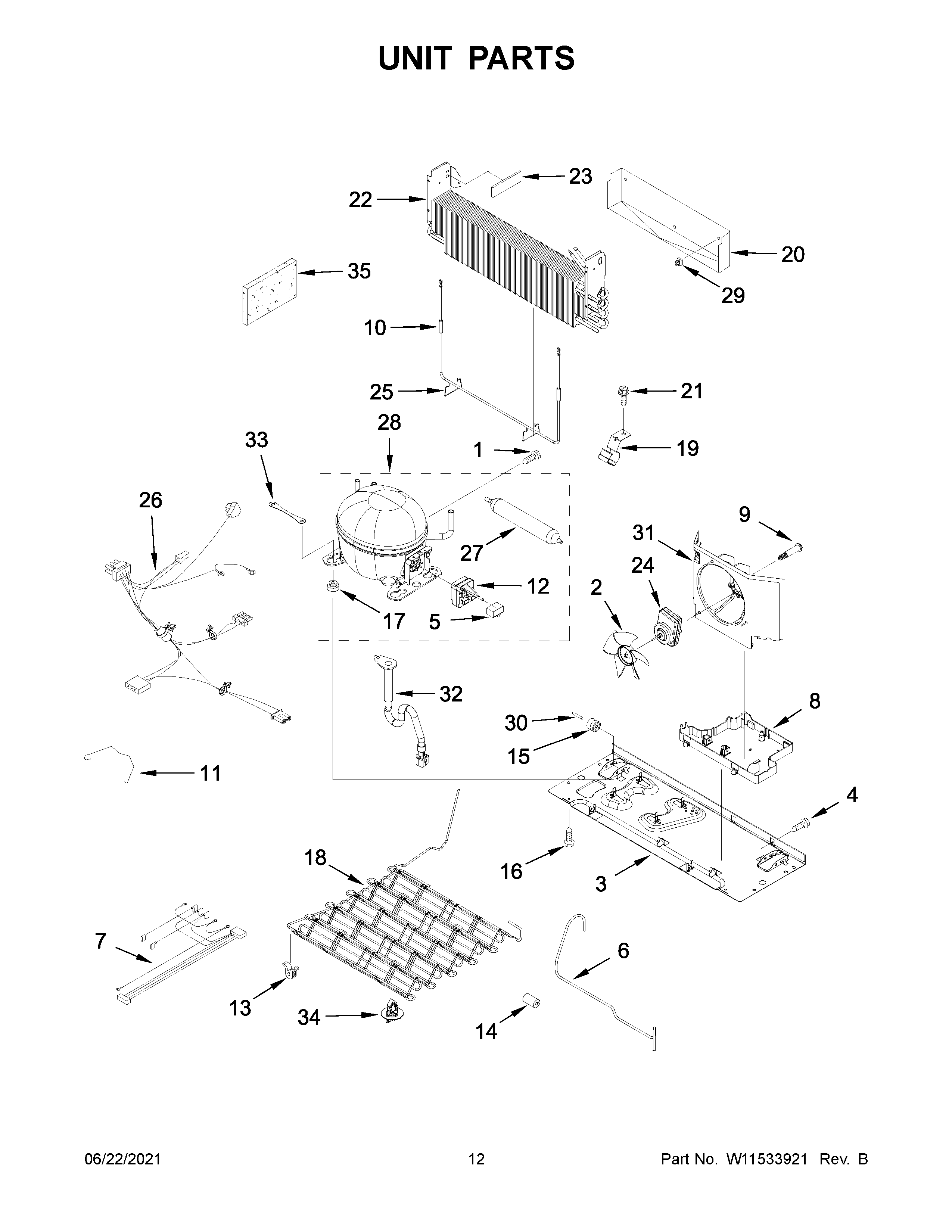

Unit parts diagram

Refrigerator start relay

Part #W10197428

Replaced by #WPW10197428

?
Manufacturer substitution
This part replaces W10197428. Substitute parts can look different from the original.
BEST SELLER
$50.91 |
11% OFF Phone Price : $56.91
In Stock
Refrigerator Evaporator Motor 13062901
#5

Freezer liner and icemaker parts diagram

Refrigerator evaporator motor

Part #13062901

Replaced by #W11024089

?
Manufacturer substitution
This part replaces 13062901. Substitute parts can look different from the original.
BEST SELLER
$45.28 |
12% OFF Phone Price : $51.28
In Stock
Refrigerator Run Capacitor W10350564
#5

Unit parts diagram

Refrigerator run capacitor

Part #W10350564

Replaced by #WPW10350564

?
Manufacturer substitution
This part replaces W10350564. Substitute parts can look different from the original.
BEST SELLER
$46.40 |
11% OFF Phone Price : $52.40
In Stock
Pantry Lid 12656813
#31

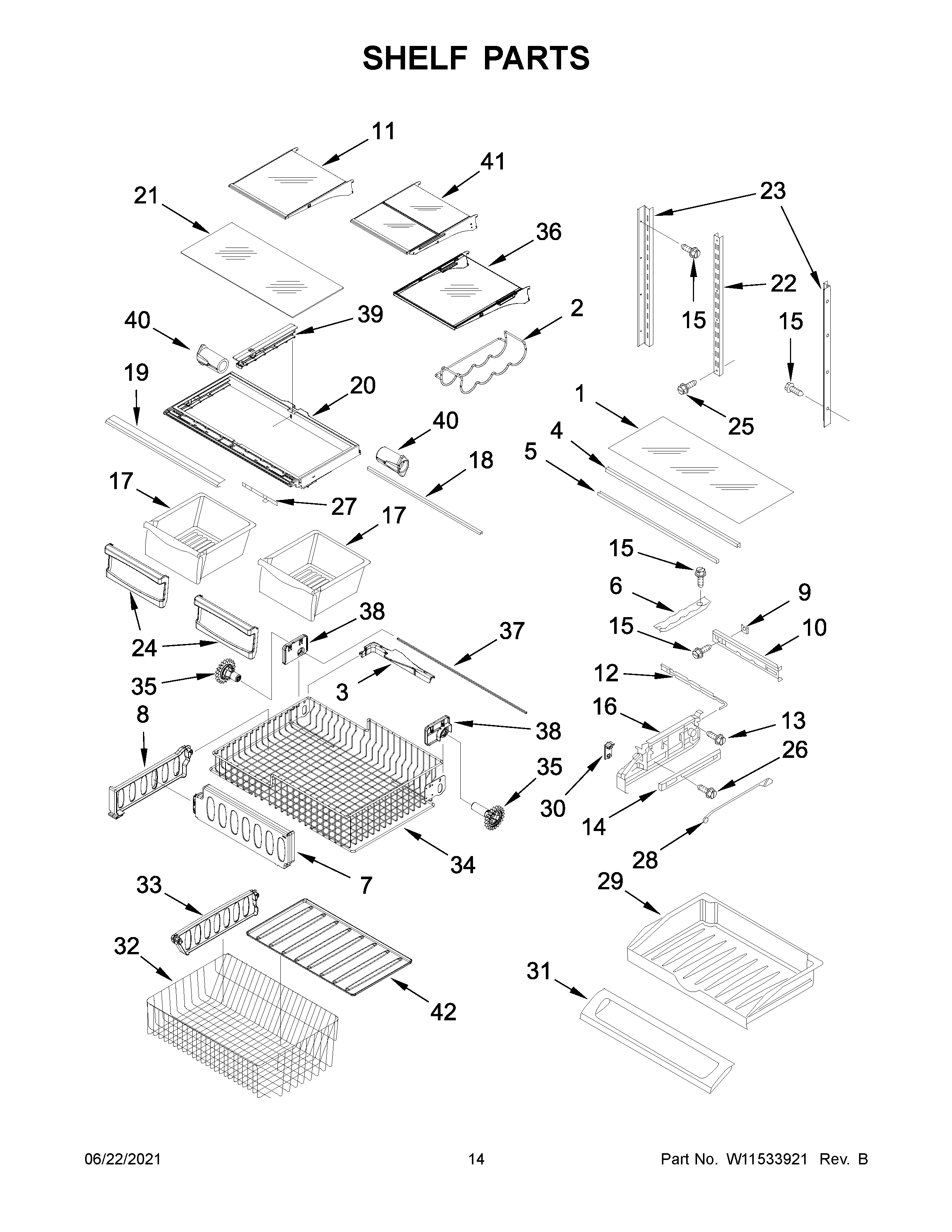

Shelf parts diagram

Pantry lid

Part #12656813

Replaced by #W10827015

?
Manufacturer substitution
This part replaces 12656813. Substitute parts can look different from the original.
BEST SELLER
$100.46 |
11% OFF Phone Price : $112.46
In Stock
