Model # 11627212790 Official Kenmore canister vacuum

Here are the diagrams and repair parts for Official Kenmore 11627212790 canister vacuum, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for11627212790 Vacuum Cleaners

  • Vacuum Bag, 2-pack 50557
    #31A

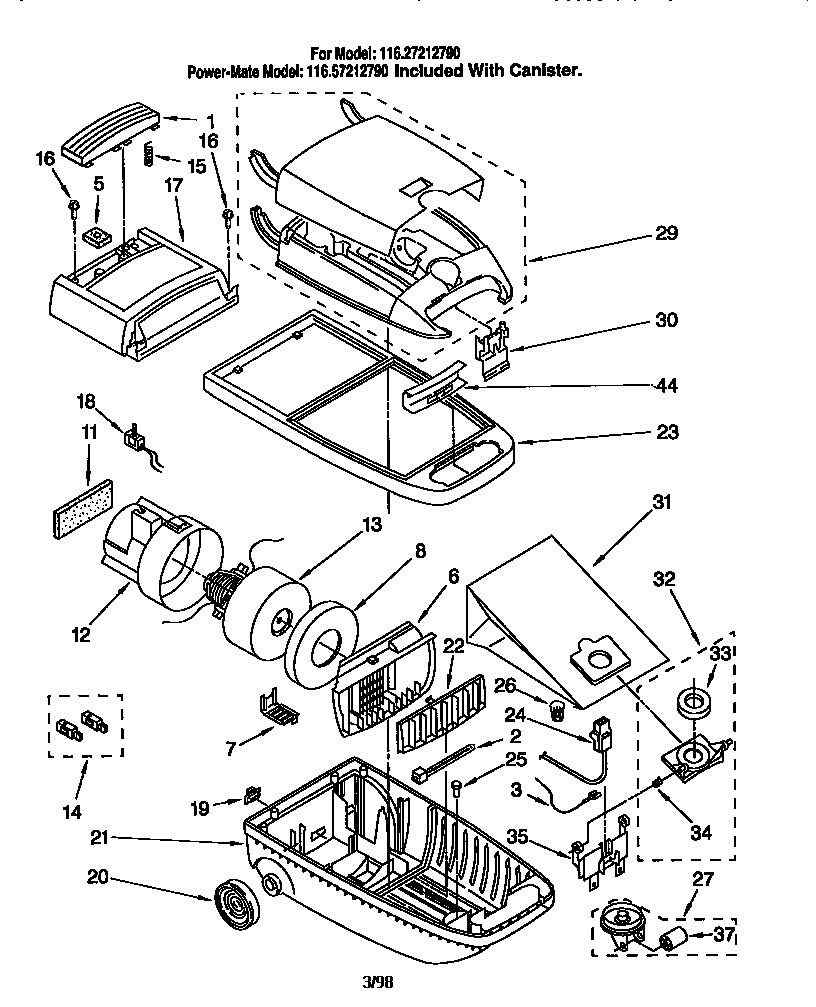

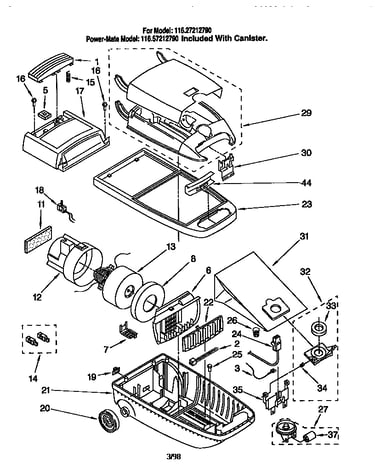

    Base assembly diagram

    Vacuum bag, 2-pack

    Part #50557

    The manufacturer no longer makes this part, and there's no substitute part

  • Vacuum Grip Handle 4155620
    #44

    Base assembly diagram

    Vacuum grip handle

    Part #4155620

    The manufacturer no longer makes this part, and there's no substitute part

  • Vacuum Hose Adapter 4370325
    #6

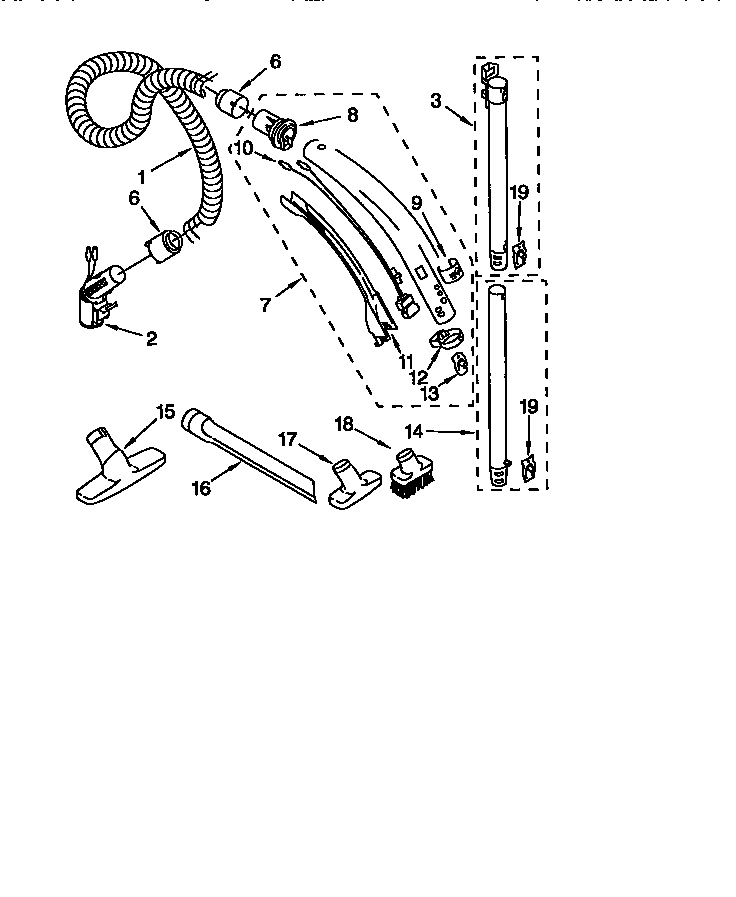

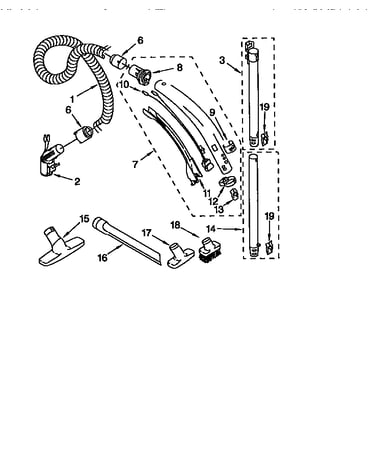

    Hose and attachments diagram

    Vacuum hose adapter

    Part #4370325

    The manufacturer no longer makes this part, and there's no substitute part

  • Vacuum Wheel 4369683
    #27

    Base assembly diagram

    Vacuum wheel

    Part #4369683

    The manufacturer no longer makes this part, and there's no substitute part

  • Spring 744258
    #15

    Base assembly diagram

    Spring

    Part #744258

    The manufacturer no longer makes this part, and there's no substitute part

  • Vacuum Owner's Manual LIT4370628

    #NI

    All parts diagram

    Vacuum owner's manual

    Part #LIT4370628

    The manufacturer no longer makes this part, and there's no substitute part

  • Bracket 4369339
    #6

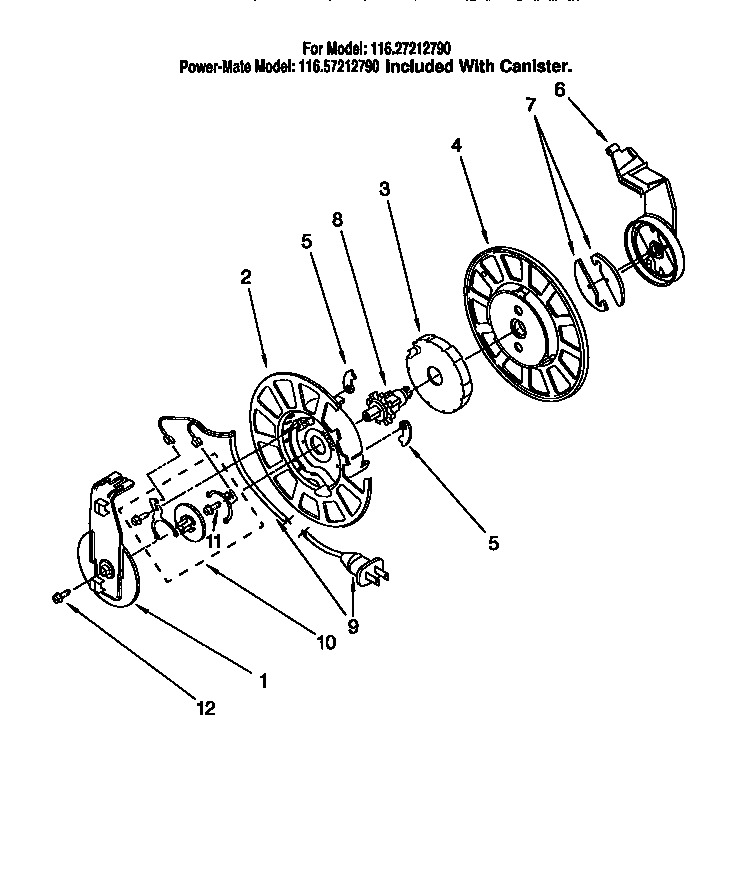

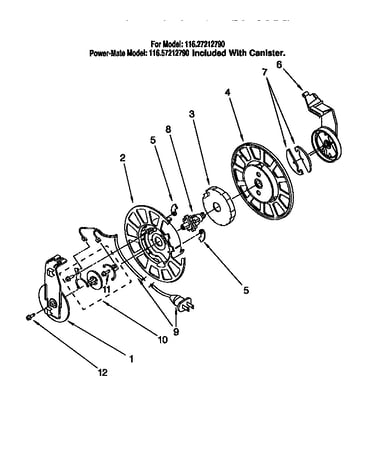

    Power cord reel diagram

    Bracket

    Part #4369339

    The manufacturer no longer makes this part, and there's no substitute part

  • Vacuum Hose Adapter 4370327
    #8

    Hose and attachments diagram

    Vacuum hose adapter

    Part #4370327

    The manufacturer no longer makes this part, and there's no substitute part

  • Motor Brush 8192553
    #14

    Base assembly diagram

    Motor brush

    Part #8192553

    The manufacturer no longer makes this part, and there's no substitute part

  • Lead Wire 4369803
    #3

    Base assembly diagram

    Lead wire

    Part #4369803

    The manufacturer no longer makes this part, and there's no substitute part
