Sunbeam
Electric Range

Model # SNS3EMLXA Official Sunbeam electric range

Here are the diagrams and repair parts for Official Sunbeam SNS3EMLXA electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 137 parts  |
30"oven Door SB294020RSC
#7

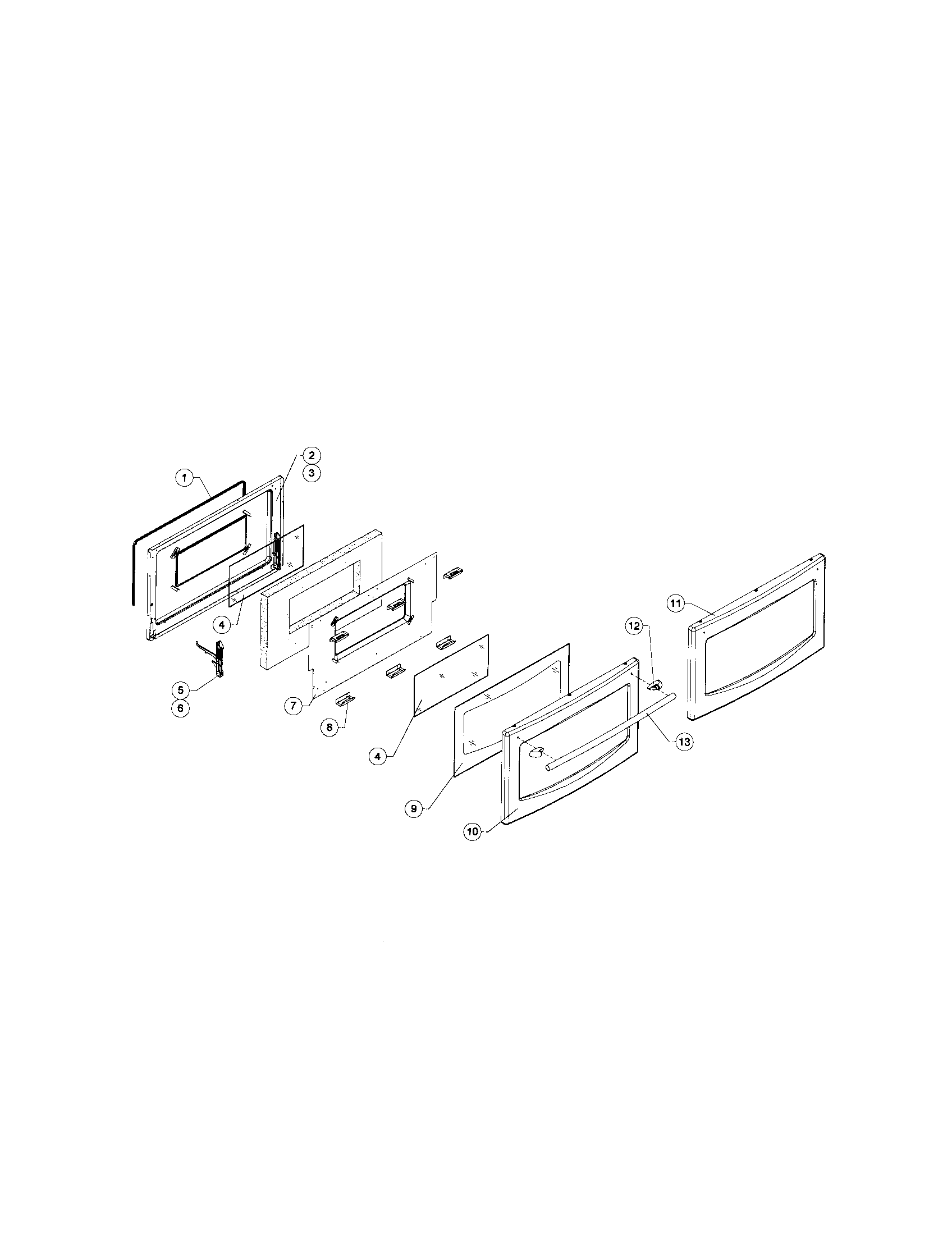

Outside door diagram

30"oven door

Part #SB294020RSC

The manufacturer no longer makes this part, and there's no substitute part

Tall Pnl-b SB294068RSC
#1

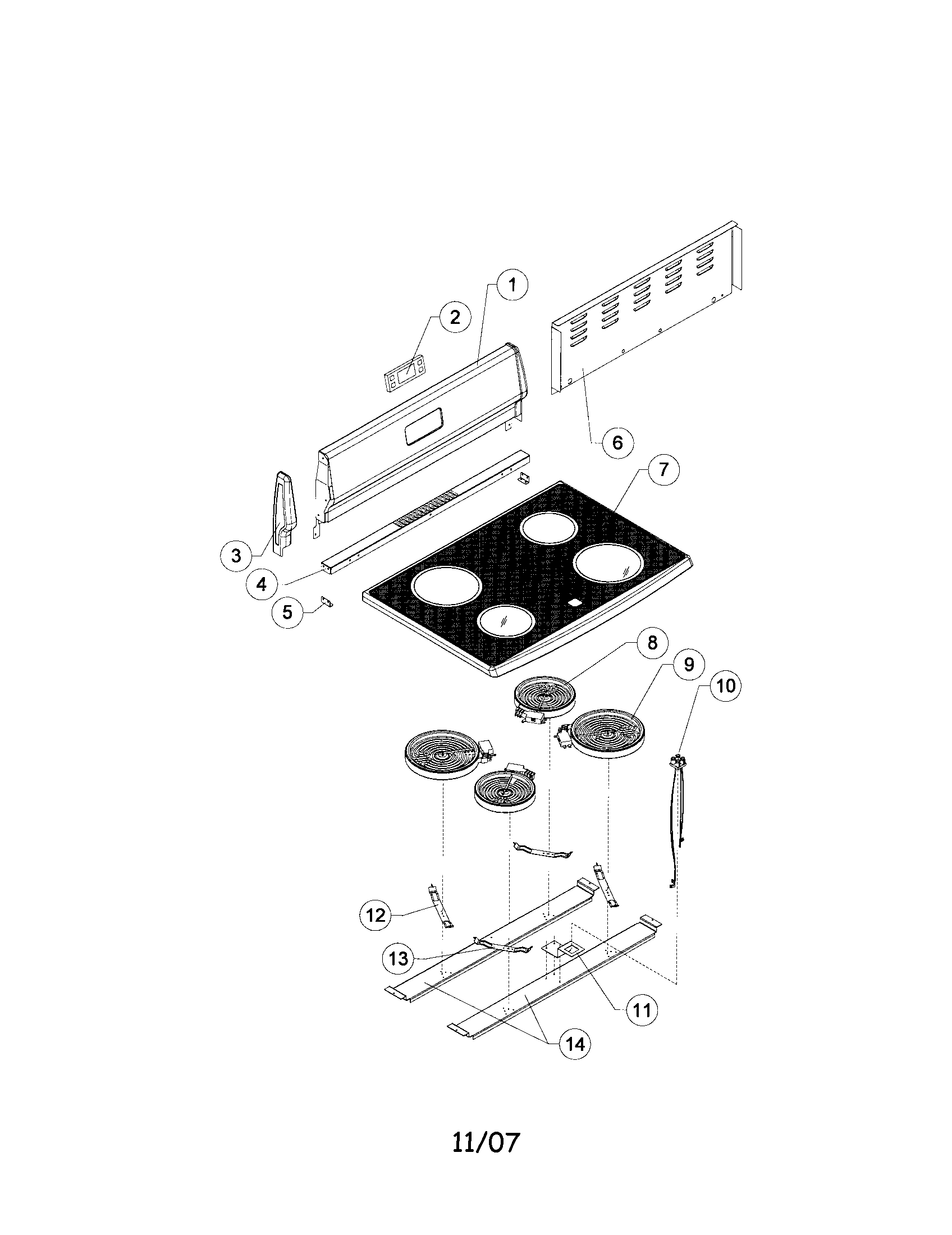

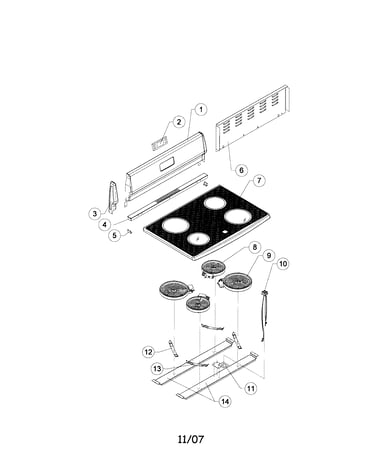

Cooktop and backguard diagram

Tall pnl-b

Part #SB294068RSC

The manufacturer no longer makes this part, and there's no substitute part

Panel Endcap SB293040RSC
#3B

Cooktop and backguard diagram

Panel endcap

Part #SB293040RSC

The manufacturer no longer makes this part, and there's no substitute part

Flat Knob SB293026RSC
#12

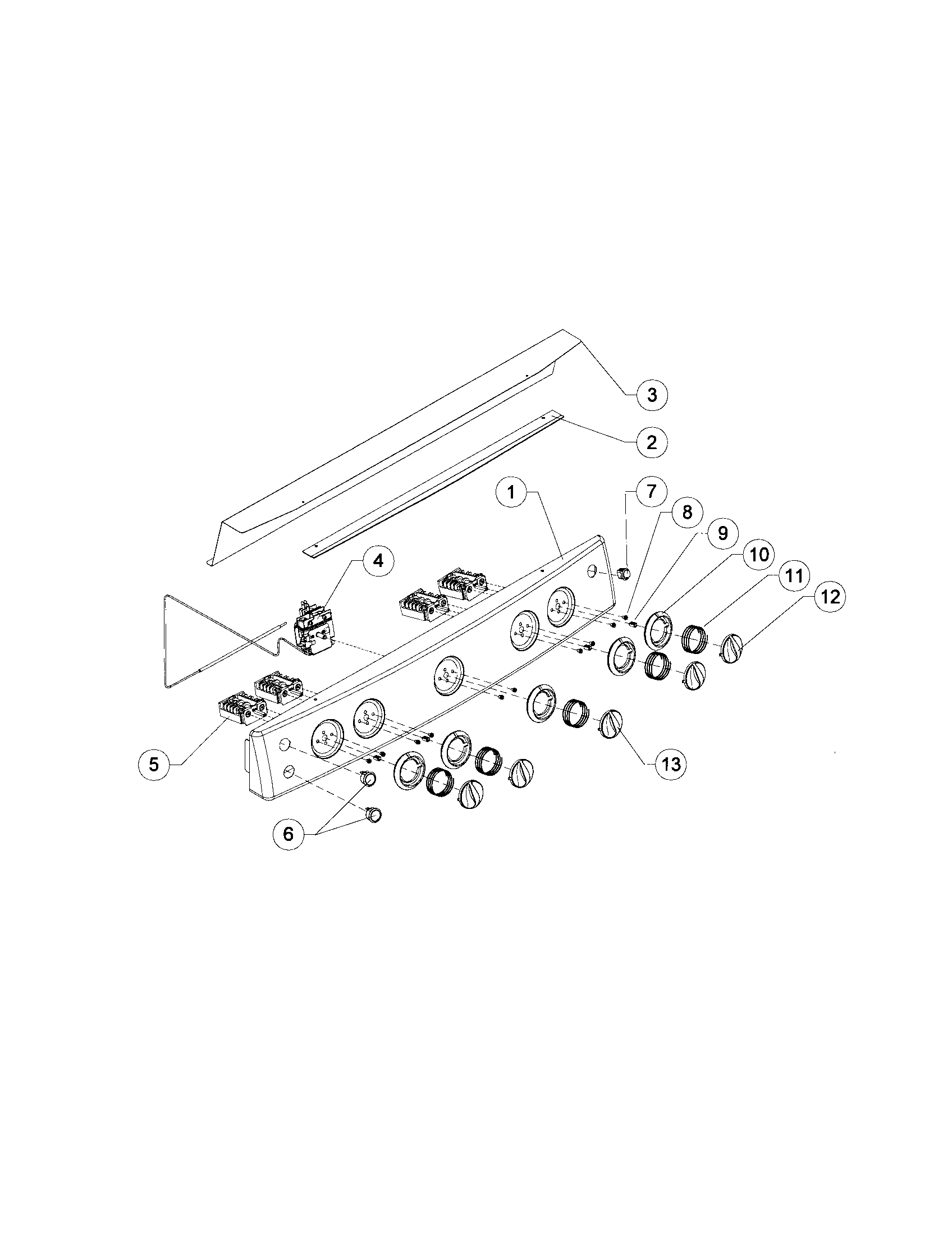

Control panel diagram

Flat knob

Part #SB293026RSC

The manufacturer no longer makes this part, and there's no substitute part

Anti Tip K SB292995RSC
#2

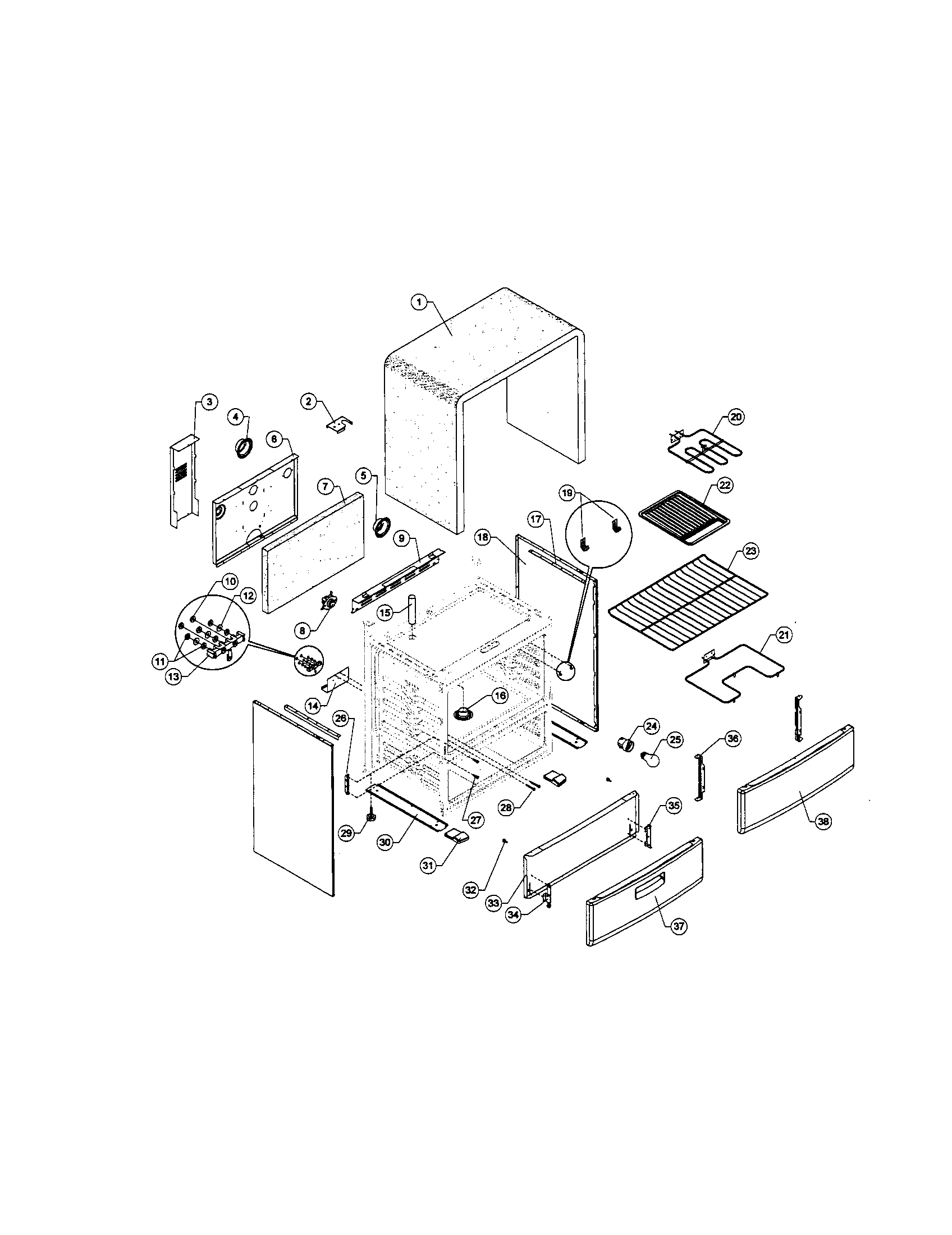

Chassis diagram

Anti tip k

Part #SB292995RSC

The manufacturer no longer makes this part, and there's no substitute part

Terminal Block SB914279
#13

Chassis diagram

Terminal block

Part #SB914279

The manufacturer no longer makes this part, and there's no substitute part

Handle SB294049RSC
#13

Outside door diagram

Handle

Part #SB294049RSC

The manufacturer no longer makes this part, and there's no substitute part

Cable Cover SB294465RSC
#3

Chassis diagram

Cable cover

Part #SB294465RSC

The manufacturer no longer makes this part, and there's no substitute part

30"gl Cera SB295332RSC
#7A

Cooktop and backguard diagram

30"gl cera

Part #SB295332RSC

The manufacturer no longer makes this part, and there's no substitute part

Terminal Block SB295412RSC
#11

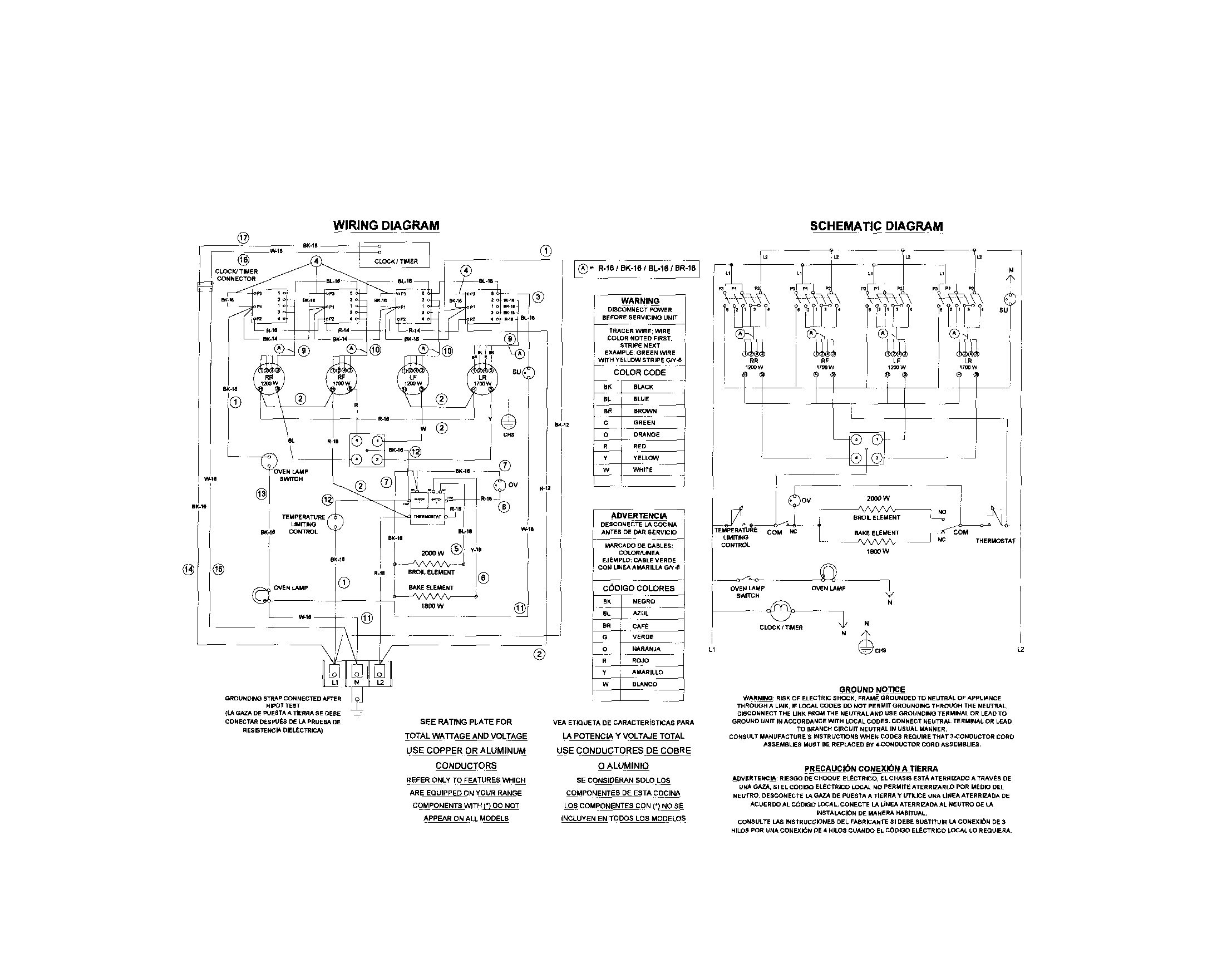

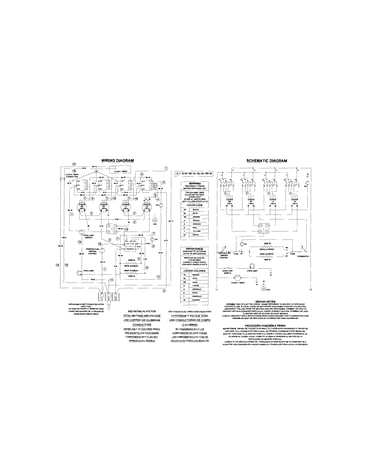

Wiring diagram diagram

Terminal block

Part #SB295412RSC

The manufacturer no longer makes this part, and there's no substitute part
