Model # 693357230 Official Kenmore gas wall furnace

Here are the diagrams and repair parts for Official Kenmore 693357230 gas wall furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

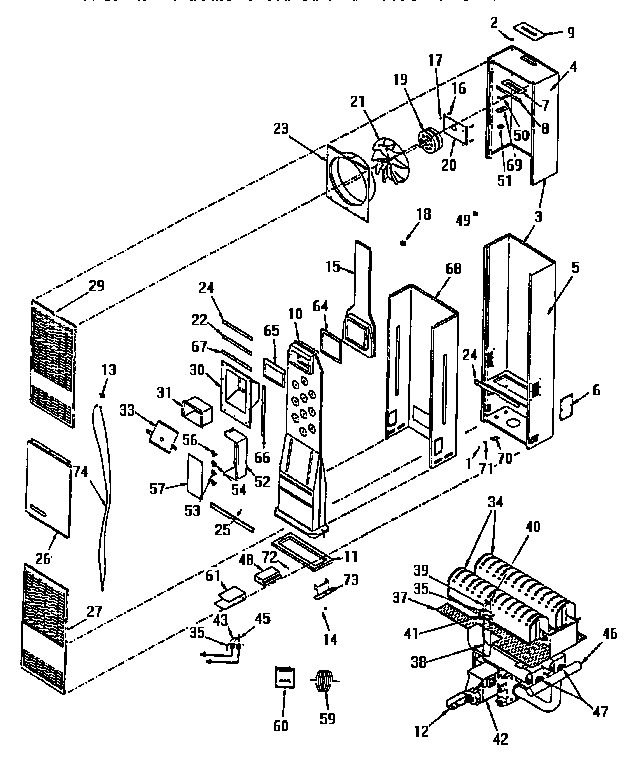

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |
Thermostat 109417-G2
#60

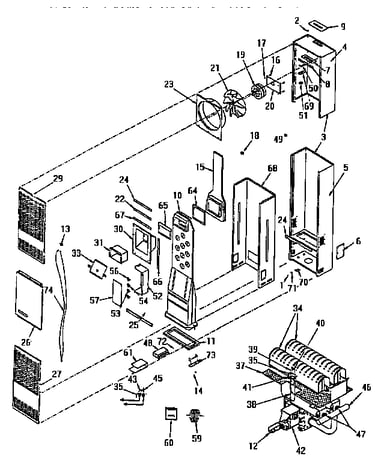

Functional replacement parts diagram

Thermostat

Part #109417-G2

The manufacturer no longer makes this part, and there's no substitute part

Junction Box Assembly 120156-G1
#49

Functional replacement parts diagram

Junction box assembly

Part #120156-G1

The manufacturer no longer makes this part, and there's no substitute part

Gas Valve 120388-G2
#42

Functional replacement parts diagram

Gas valve

Part #120388-G2

The manufacturer no longer makes this part, and there's no substitute part

Motor 120101-G1
#18

Functional replacement parts diagram

Motor

Part #120101-G1

The manufacturer no longer makes this part, and there's no substitute part

Cabinet 120065-G1-3
#4

Functional replacement parts diagram

Cabinet

Part #120065-G1-3

The manufacturer no longer makes this part, and there's no substitute part

Coverside Outlet 120022-G1
#6

Functional replacement parts diagram

Coverside outlet

Part #120022-G1

The manufacturer no longer makes this part, and there's no substitute part

Pilot Burner 120639-G1
#39

Functional replacement parts diagram

Pilot burner

Part #120639-G1

The manufacturer no longer makes this part, and there's no substitute part

Chrome Rest 120160-G1
#32

Functional replacement parts diagram

Chrome rest

Part #120160-G1

The manufacturer no longer makes this part, and there's no substitute part

Hood Shield 120372-G2
#33

Functional replacement parts diagram

Hood shield

Part #120372-G2

The manufacturer no longer makes this part, and there's no substitute part

Fan Switch 120127-G1
#53

Functional replacement parts diagram

Fan switch

Part #120127-G1

The manufacturer no longer makes this part, and there's no substitute part
