Kenmore
Room Air Conditioner

Model # 10635710591 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 10635710591 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 141 parts  |
Cement 279368
#10

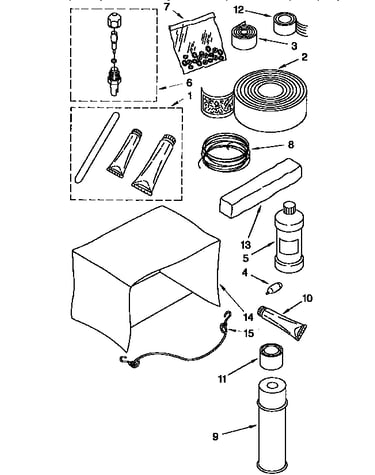

Optional diagram

Cement

Part #279368

Replaced by #WP279368

?
Manufacturer substitution
This part replaces 279368. Substitute parts can look different from the original.
BEST SELLER
$42.72 |
37% OFF Was : $67.49
In Stock
Valve 876764
#6

Optional diagram

Valve

Part #876764

Replaced by #876764

?
Manufacturer substitution
This part replaces 876764. Substitute parts can look different from the original.
BEST SELLER
$26.12 |
45% OFF Was : $47.10
In Stock
Screw 487910
#16

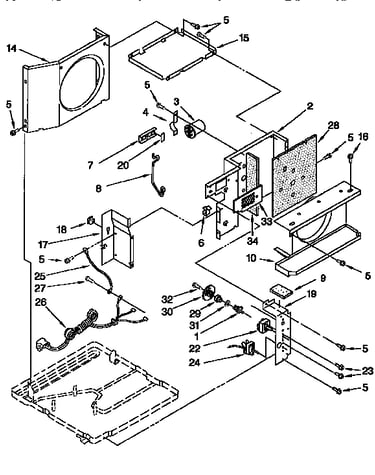

Air flow and control diagram

Screw

Part #487910

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 487910. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Seal 859600
#36

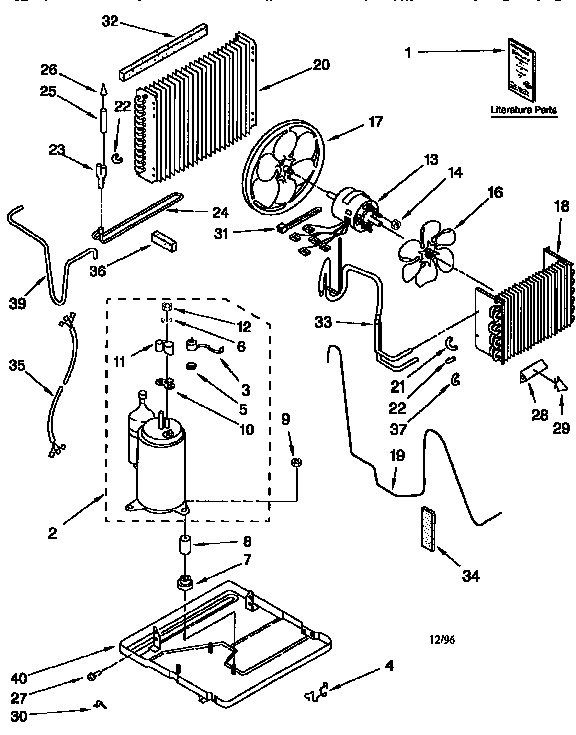

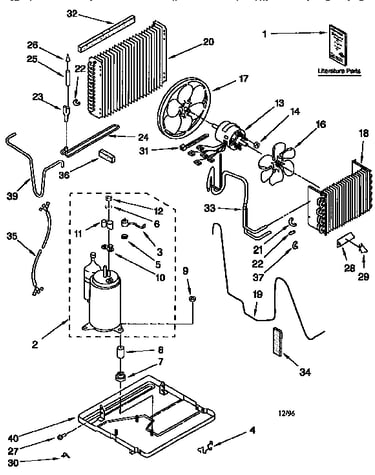

Unit diagram

Seal

Part #859600

Replaced by #WP854334

?
Manufacturer substitution
This part replaces 859600. Substitute parts can look different from the original.
$9.99 |
9% OFF Phone Price : $10.99
In Stock
Valve Kit 978027
#6C

Optional diagram

Valve kit

Part #978027

Replaced by #978027

?
Manufacturer substitution
This part replaces 978027. Substitute parts can look different from the original.
$38.69 |
13% OFF Phone Price : $44.69
In Stock
Ge Room Air Conditioner Outdoor Cover 484184
#14C

Optional diagram

Ge room air conditioner outdoor cover

Part #484184

$54.49 |
10% OFF Phone Price : $60.49
In Stock
Screw, 8 X 1 488480
Screw, 8 x 1

Part #488480

Replaced by #WP489069

?
Manufacturer substitution
This part replaces 488480. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Valve Kit 978025
#6A

Optional diagram

Valve kit

Part #978025

Replaced by #WP978025

?
Manufacturer substitution
This part replaces 978025. Substitute parts can look different from the original.
$29.51 |
44% OFF Was : $53.00
In Stock
Ground Wire 856094
#25

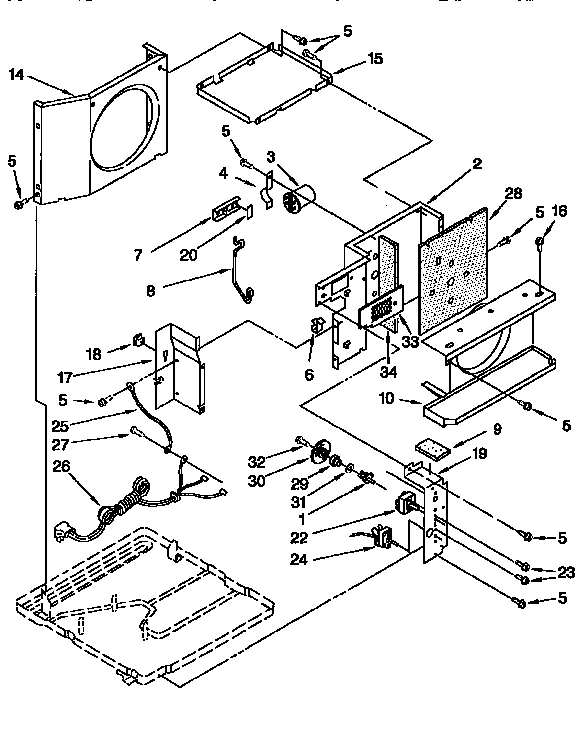

Air flow and control diagram

Ground wire

Part #856094

Replaced by #857078

?
Manufacturer substitution
This part replaces 856094. Substitute parts can look different from the original.
$10.49 |
16% OFF Phone Price : $12.49
In Stock
Refrigerator Screw 1157158
#5

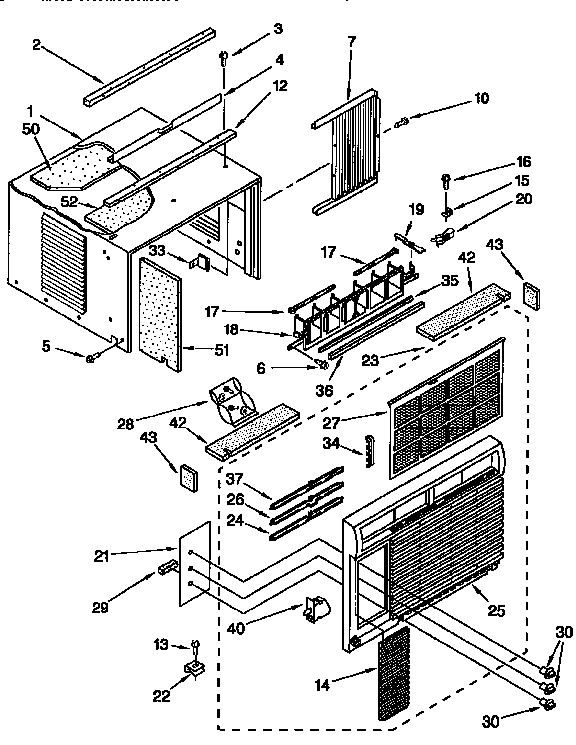

Cabinet diagram

Refrigerator screw

Part #1157158

Replaced by #WP489069

?
Manufacturer substitution
This part replaces 1157158. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
