Model # 4331AA-2 Official Eureka upright vacuum

Here are the diagrams and repair parts for Official Eureka 4331AA-2 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

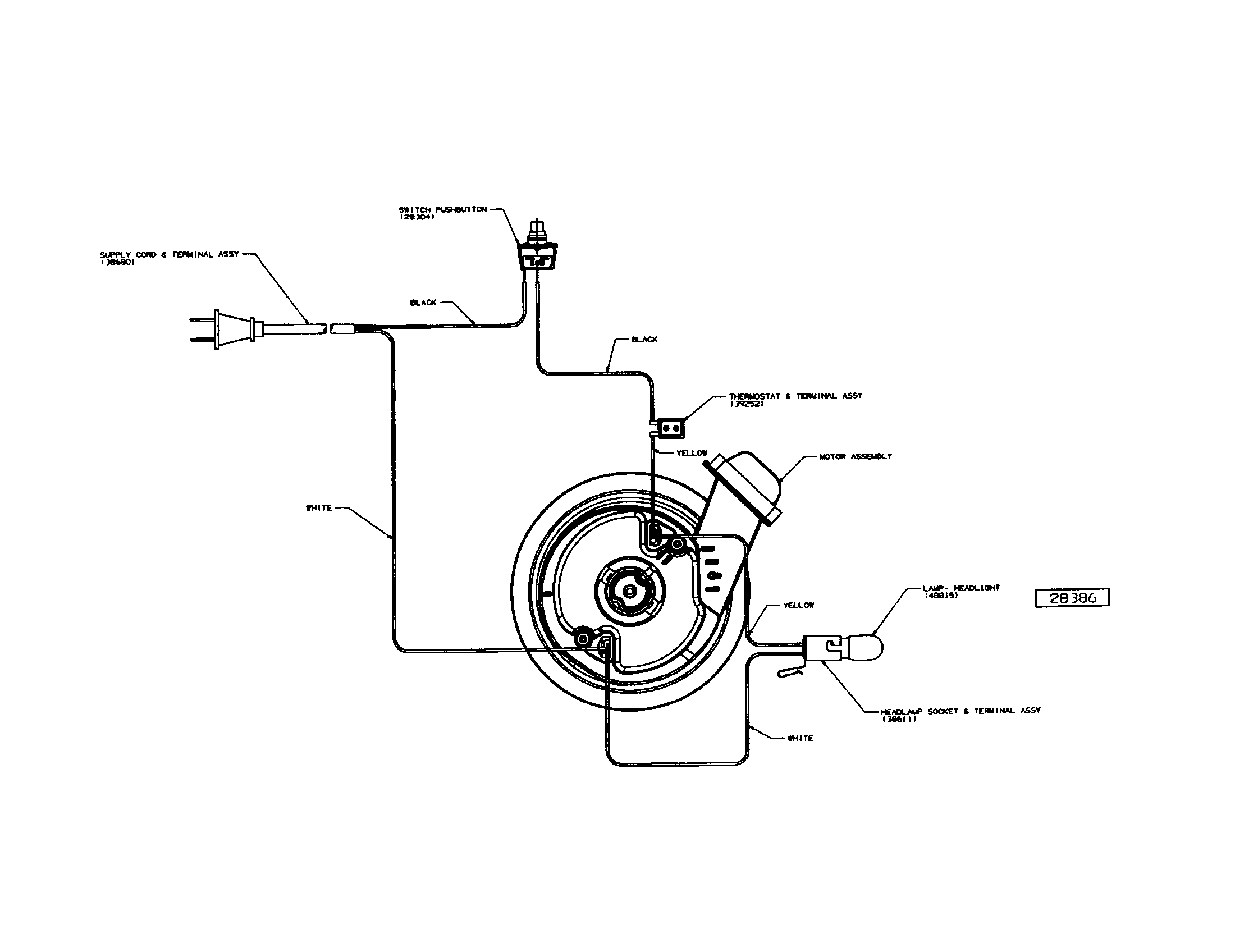

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |

Vacuum Screw, 10-pack 53238-44
Vacuum screw, 10-pack

Part #53238-44

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Crevice Tool 27237-3
#7

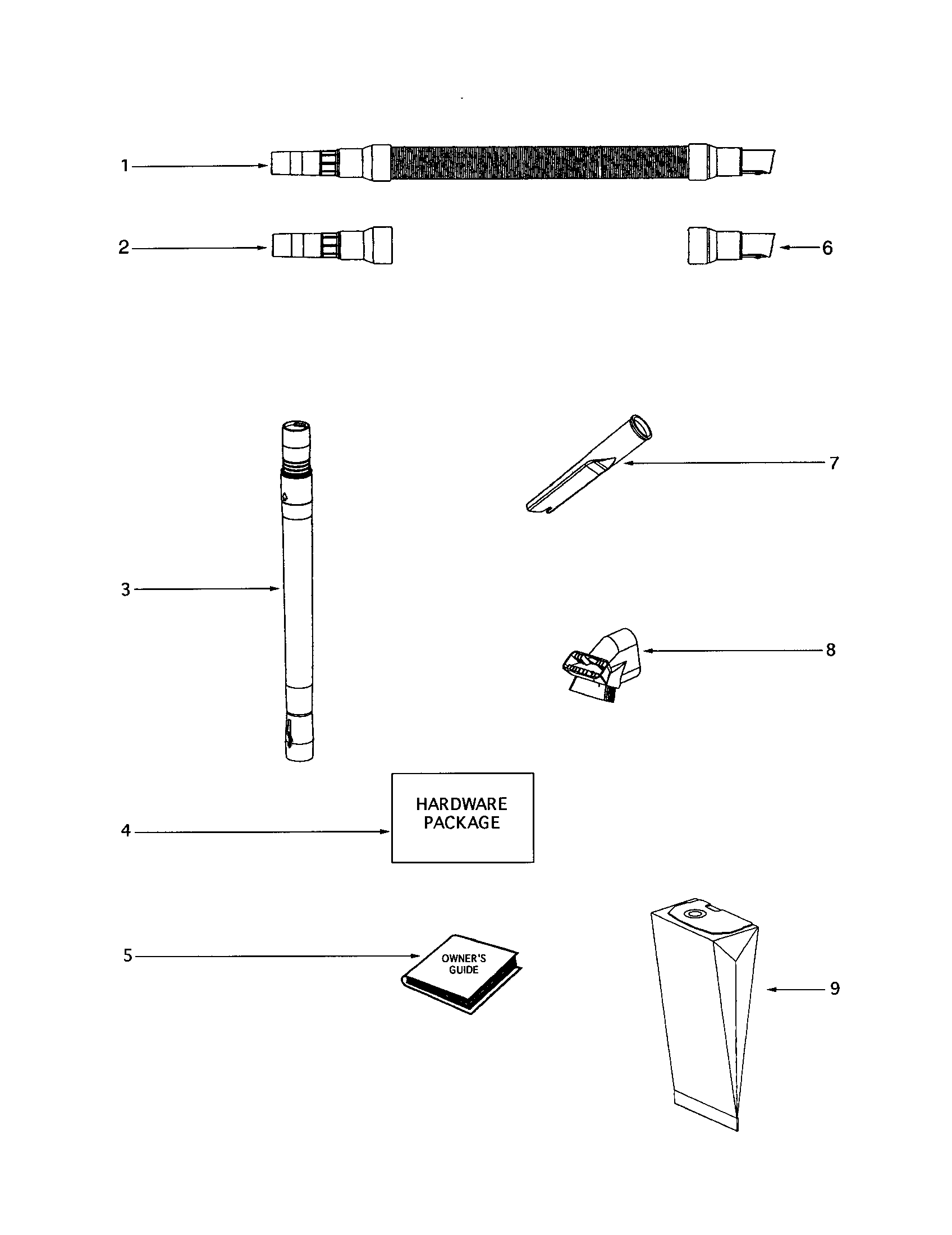

Hose diagram

Vacuum crevice tool

Part #27237-3

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Adapter 28243A-316N
#5

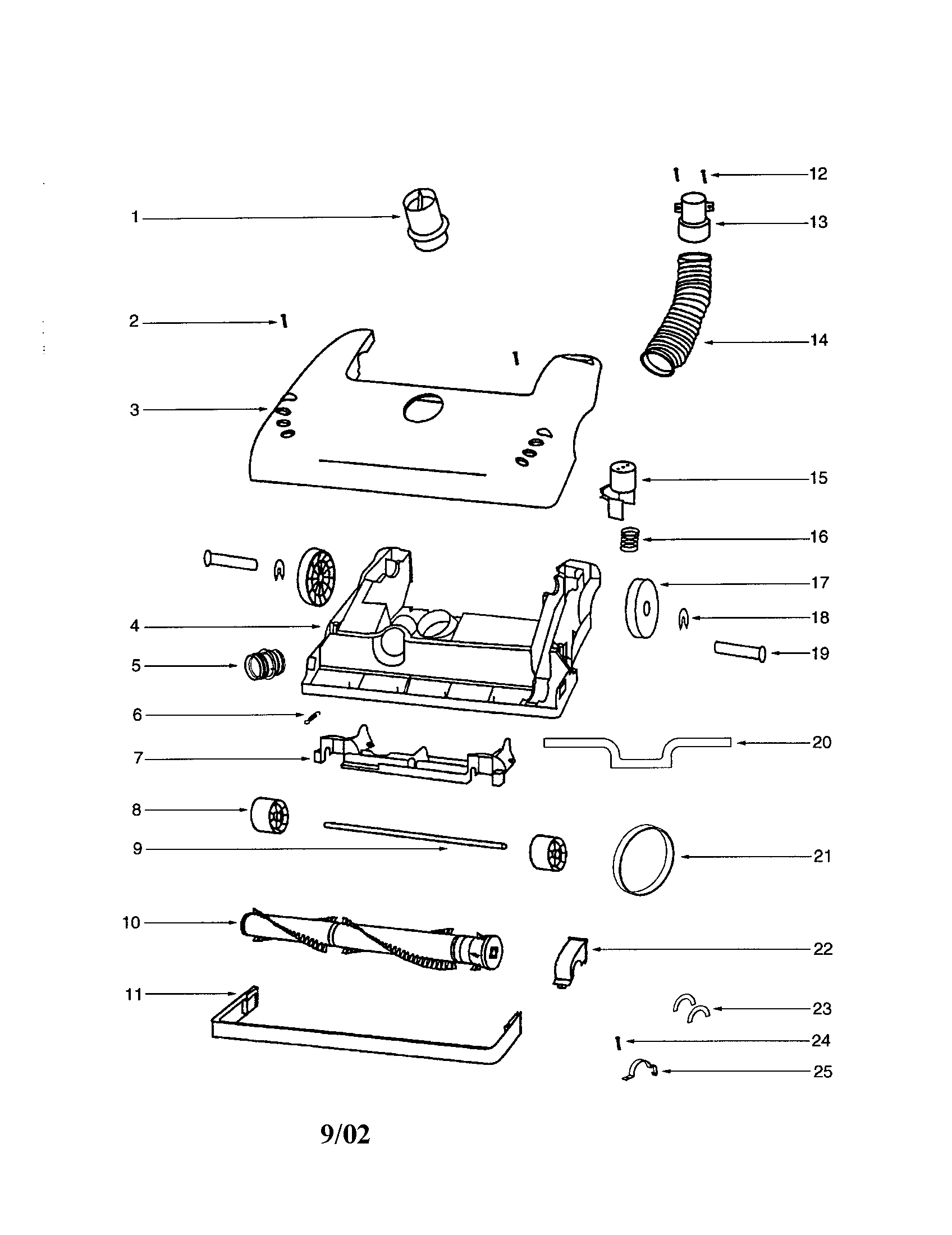

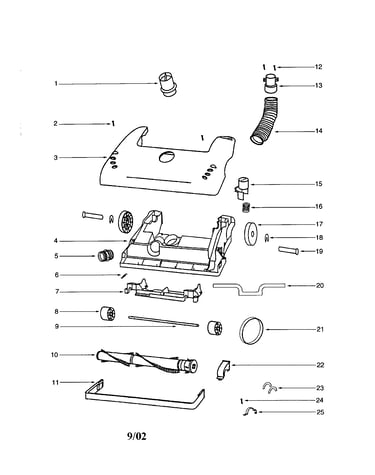

Base/hood diagram

Vacuum adapter

Part #28243A-316N

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel Axle Bracket 14993C-119N
#7

Base/hood diagram

Vacuum wheel axle bracket

Part #14993C-119N

The manufacturer no longer makes this part, and there's no substitute part

Air Duct 15536A-119N
#29

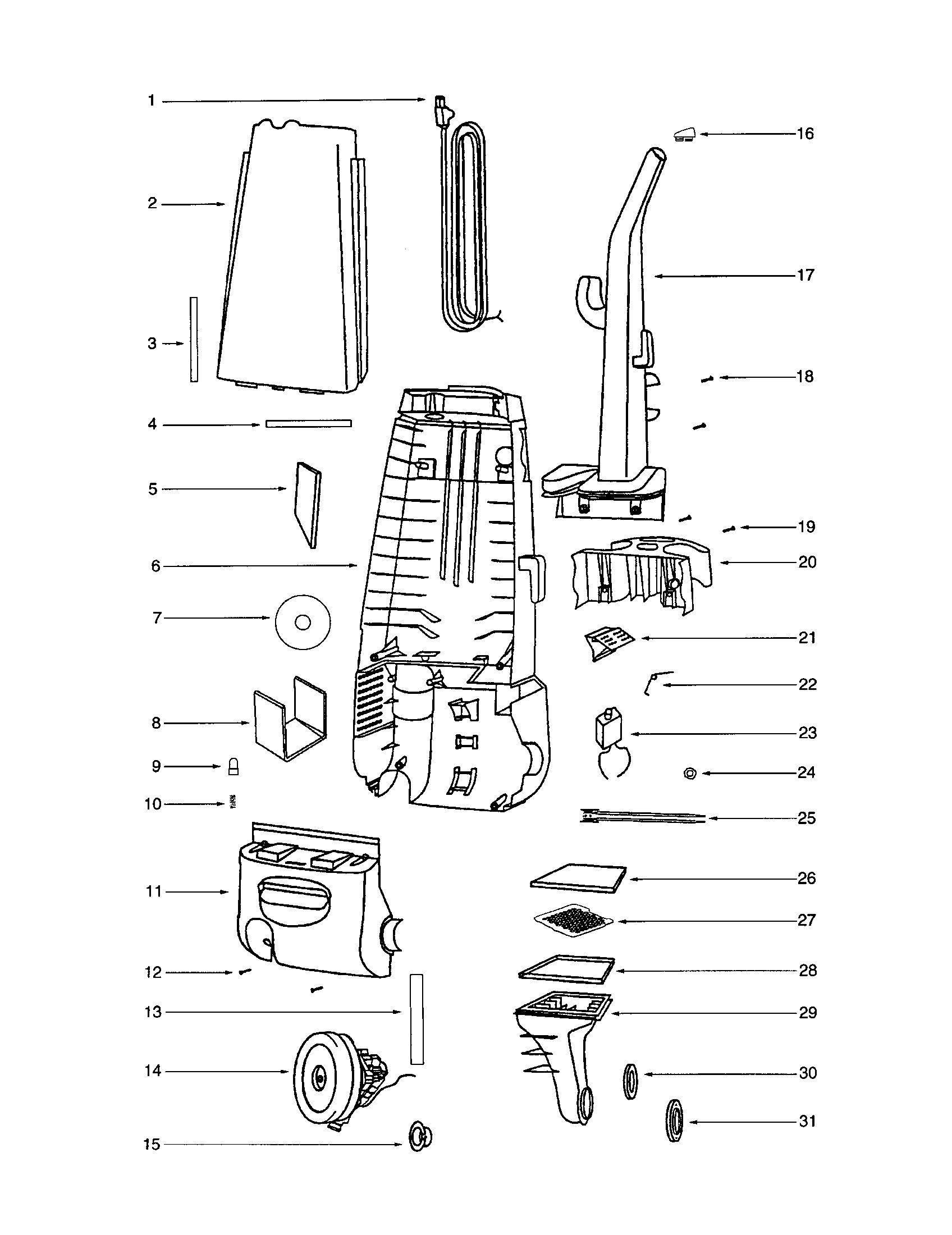

Bag cover/handle diagram

Air duct

Part #15536A-119N

The manufacturer no longer makes this part, and there's no substitute part

Gasket 58506-1
#20

Base/hood diagram

Gasket

Part #58506-1

The manufacturer no longer makes this part, and there's no substitute part

Motor Shield 38688A
#7

Bag cover/handle diagram

Motor shield

Part #38688A

The manufacturer no longer makes this part, and there's no substitute part

Electrolux Vacuum Spring 54943
#6

Base/hood diagram

Electrolux vacuum spring

Part #54943

The manufacturer no longer makes this part, and there's no substitute part

Ring-10-pk 60165-1
#24

Bag cover/handle diagram

Ring-10-pk

Part #60165-1

The manufacturer no longer makes this part, and there's no substitute part

Gasket 27171A
#30

Bag cover/handle diagram

Gasket

Part #27171A

The manufacturer no longer makes this part, and there's no substitute part
