Sharp
Countertop Microwave

Model # R-305EW Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-305EW microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

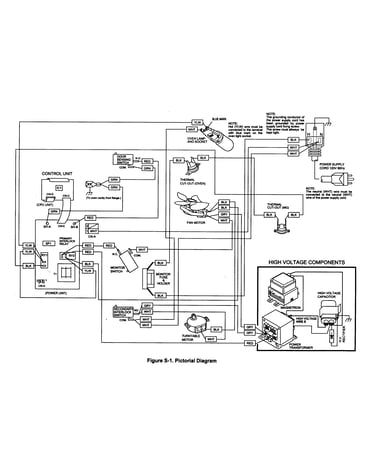

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |
Sharp Door Frame GWAKPA791WRRZ
#5-3

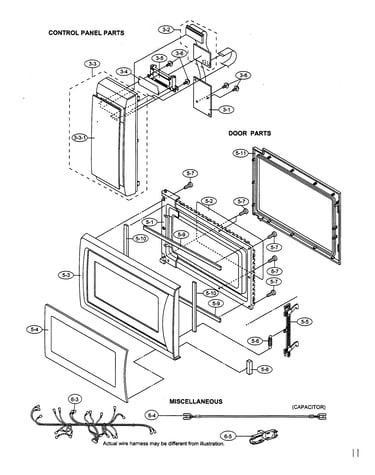

Control/door assy diagram

Sharp door frame

Part #GWAKPA791WRRZ

The manufacturer no longer makes this part, and there's no substitute part

Fuse Holder QFSHDA009WRE0
#1-2

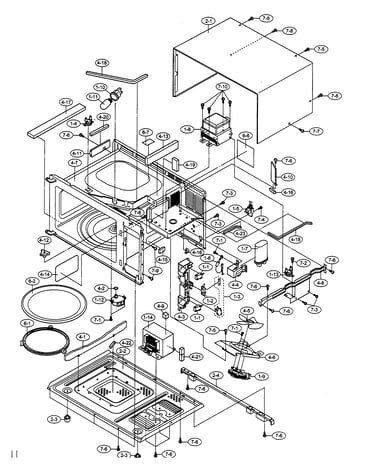

Oven assy diagram

Fuse holder

Part #QFSHDA009WRE0

The manufacturer no longer makes this part, and there's no substitute part

Spring MSPRTA187WRE0
#5-6

Control/door assy diagram

Spring

Part #MSPRTA187WRE0

The manufacturer no longer makes this part, and there's no substitute part

Microwave Turntable Support FROLPA079WRK0
#6-1

Oven assy diagram

Microwave turntable support

Part #FROLPA079WRK0

The manufacturer no longer makes this part, and there's no substitute part

Microwave Turntable Tray NTNT-A079WRF0
#6-2

Oven assy diagram

Microwave turntable tray

Part #NTNT-A079WRF0

The manufacturer no longer makes this part, and there's no substitute part

15t7/n120v RLMPTA081WRZZ
#1-11

Oven assy diagram

15t7/n120v

Part #RLMPTA081WRZZ

The manufacturer no longer makes this part, and there's no substitute part

Screw LX-CZA070WRE0
#7-8

Oven assy diagram

Screw

Part #LX-CZA070WRE0

The manufacturer no longer makes this part, and there's no substitute part

Microwave Turntable Motor 507453
#1-12

Oven assy diagram

Microwave turntable motor

Part #507453

The manufacturer no longer makes this part, and there's no substitute part

Coupling PPACGA084WRF0
#4-2

Oven assy diagram

Coupling

Part #PPACGA084WRF0

The manufacturer no longer makes this part, and there's no substitute part

Sheet PSHEPA382WRE0
#5-2

Control/door assy diagram

Sheet

Part #PSHEPA382WRE0

The manufacturer no longer makes this part, and there's no substitute part
