Model # GMC305PRS02 Official Whirlpool electric built-in oven with microwave
Here are the diagrams and repair parts for Official Whirlpool GMC305PRS02 electric built-in oven with microwave, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manualBy Schematic
By Part

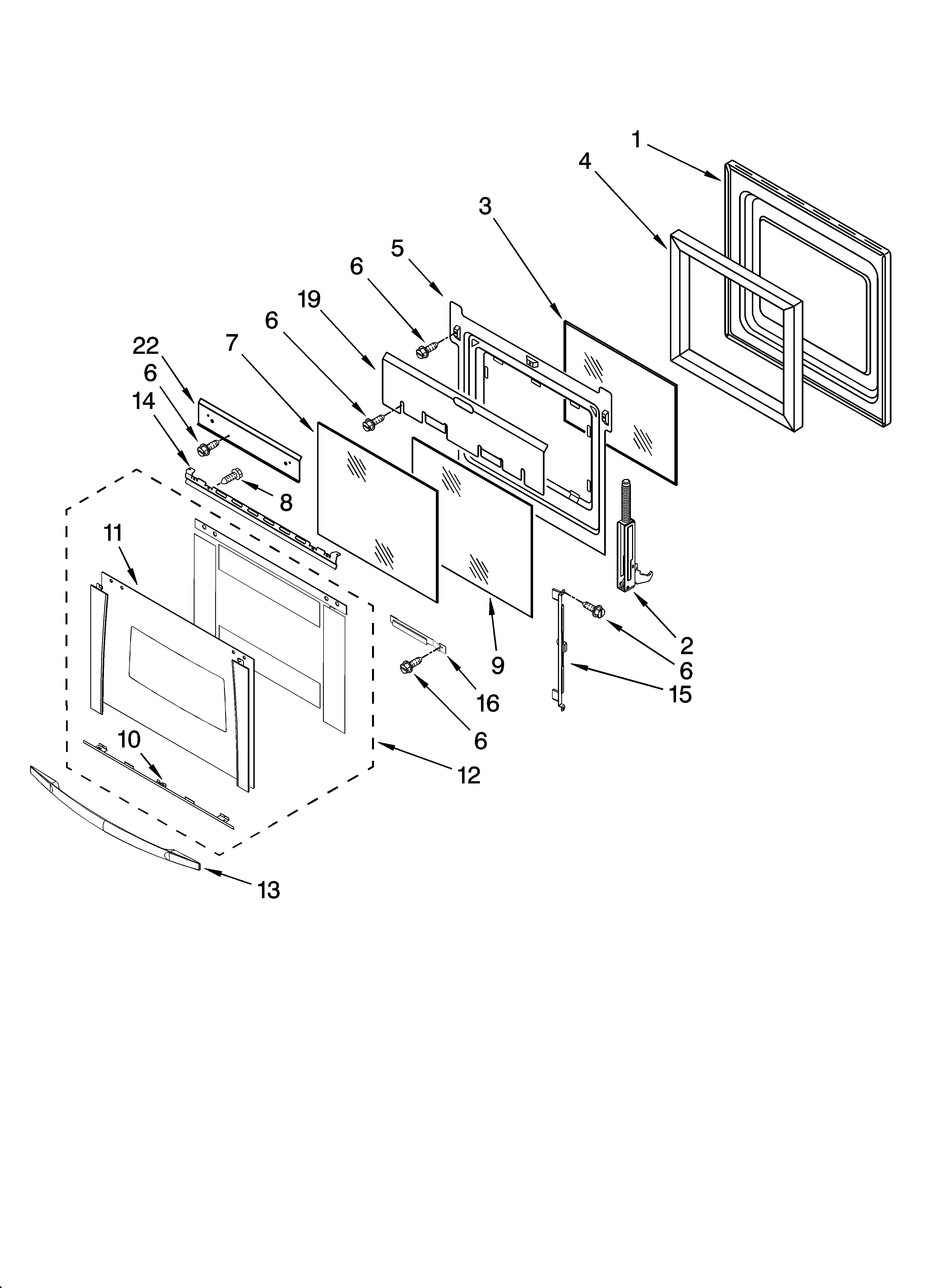

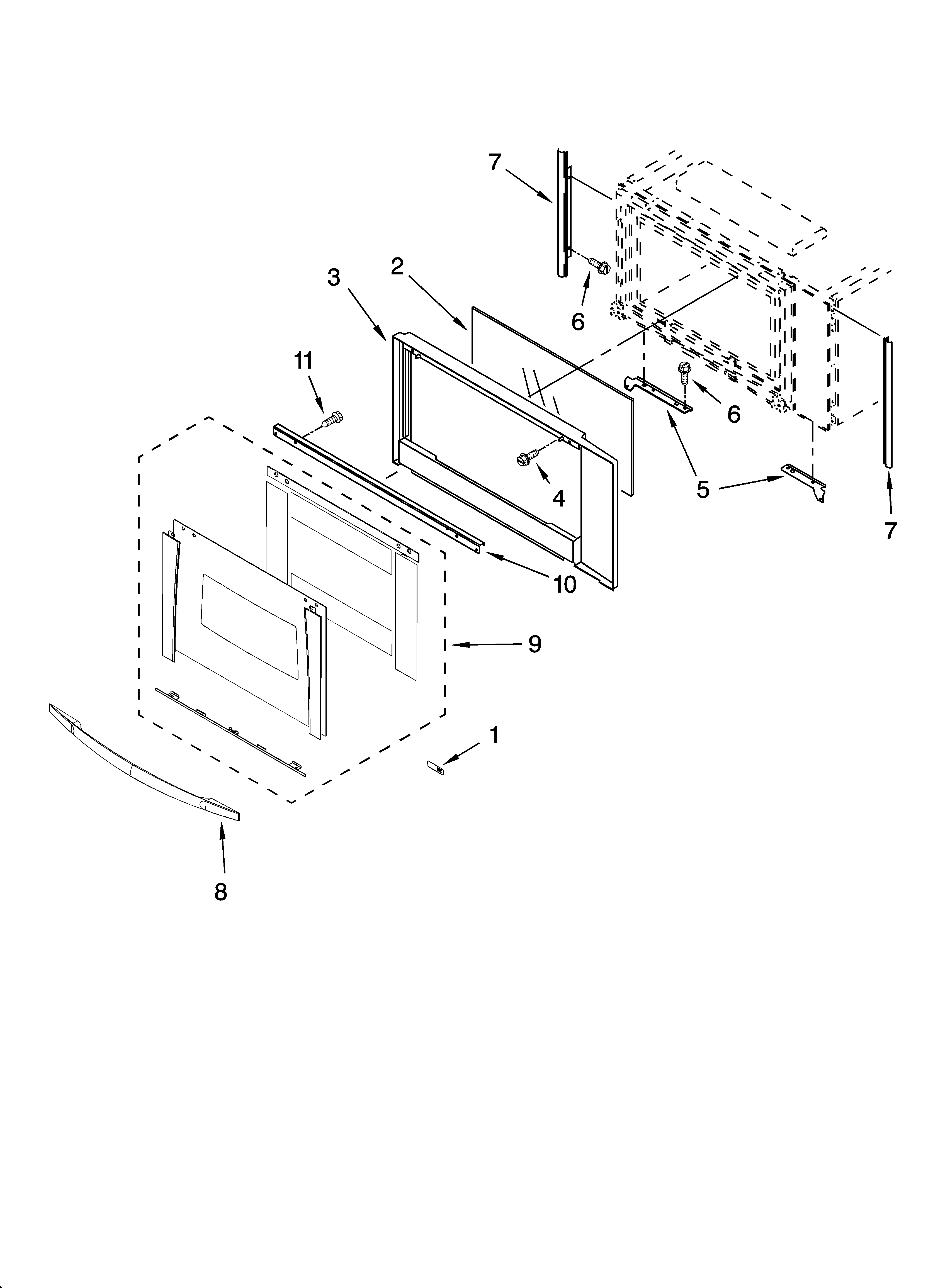

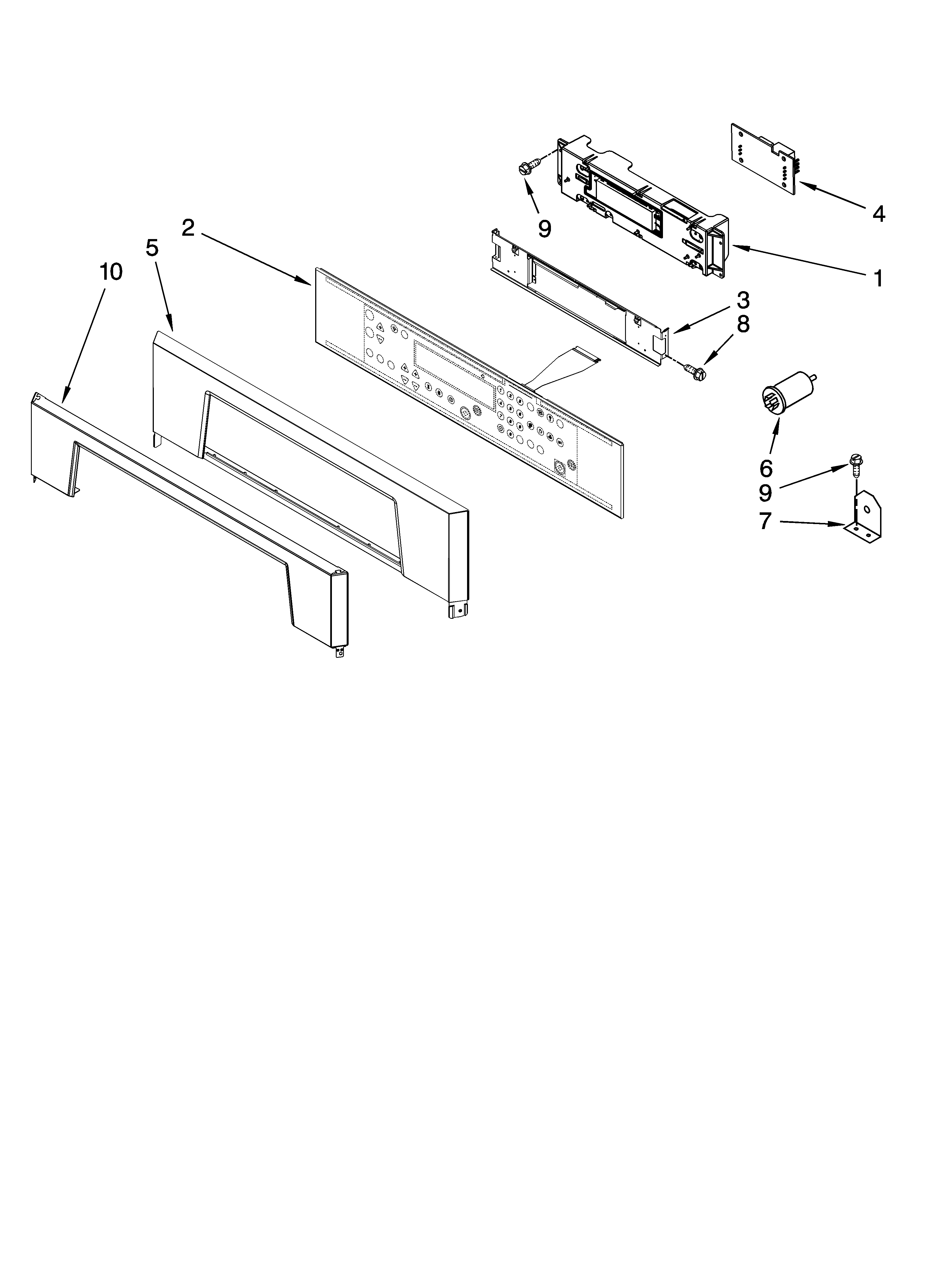

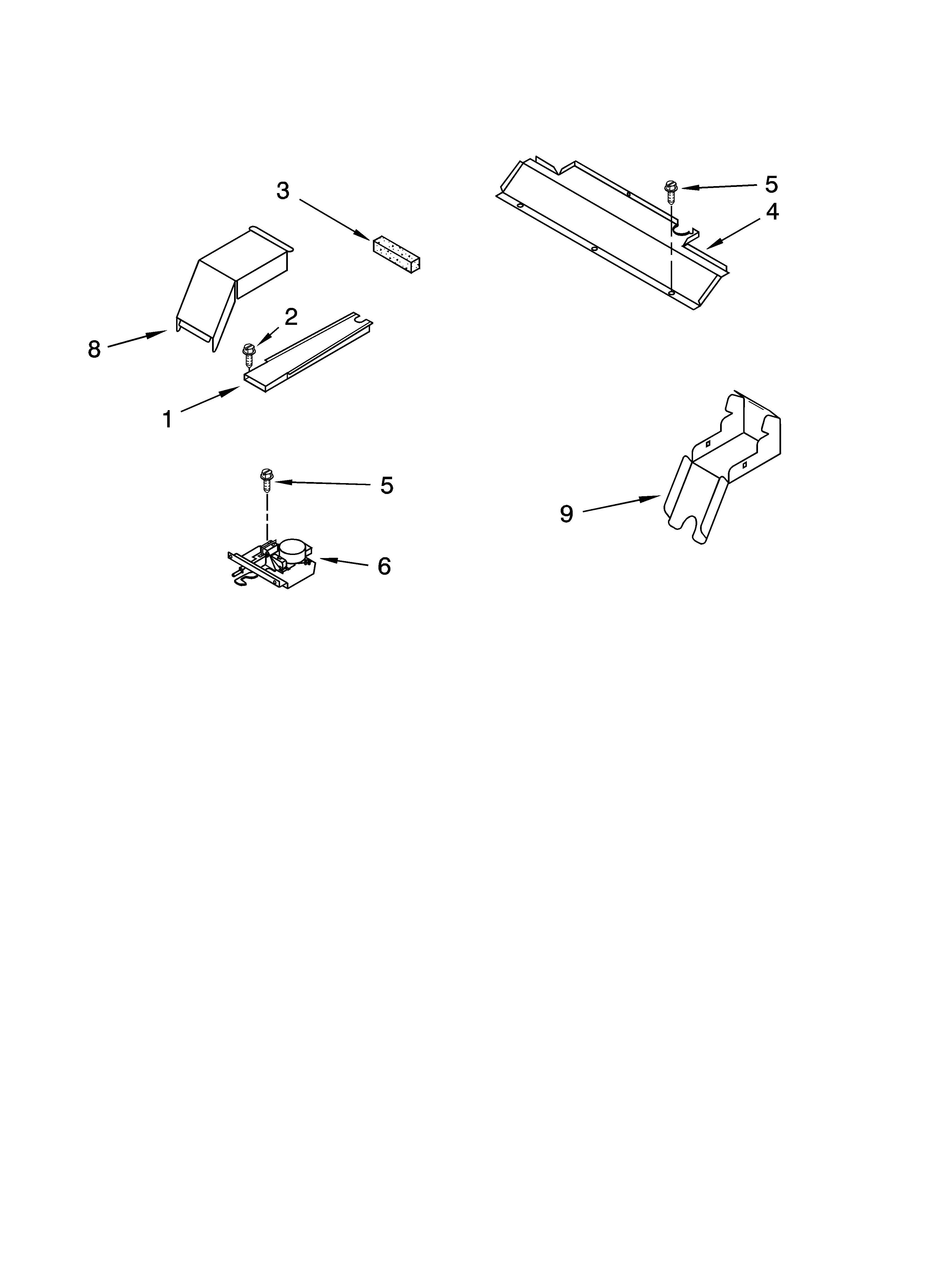

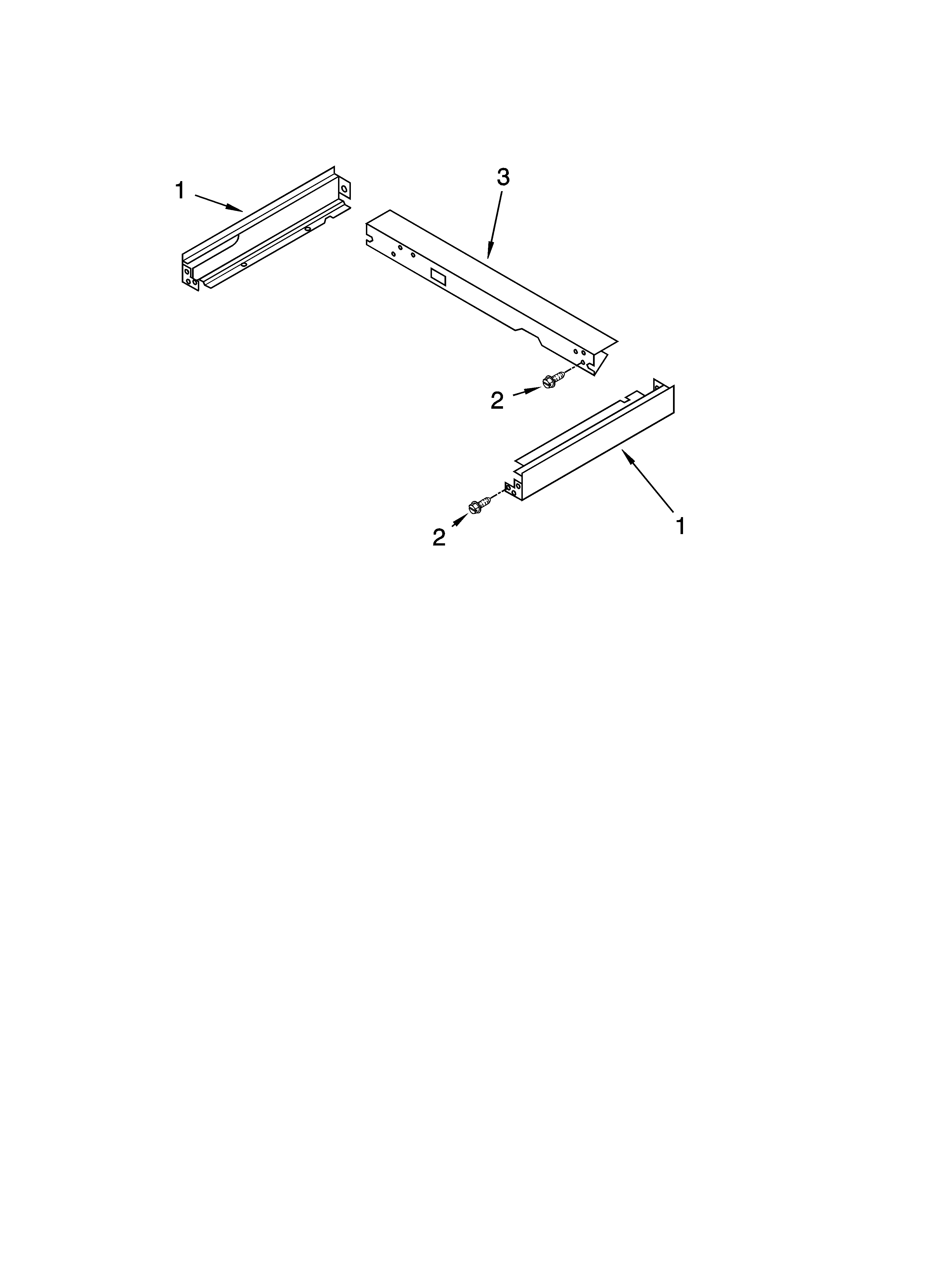

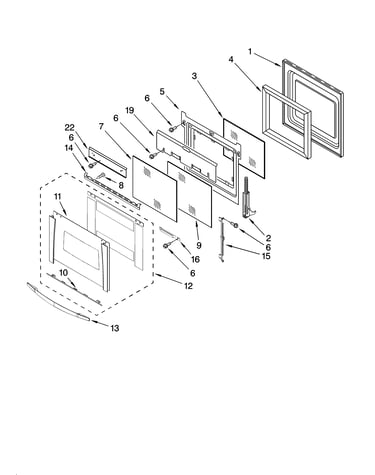

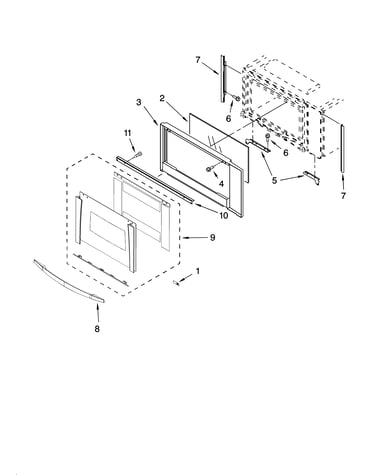

SELECT DIAGRAM
Browse Parts for
GMC305PRS02 Electric Built-In Oven with Microwave
#51

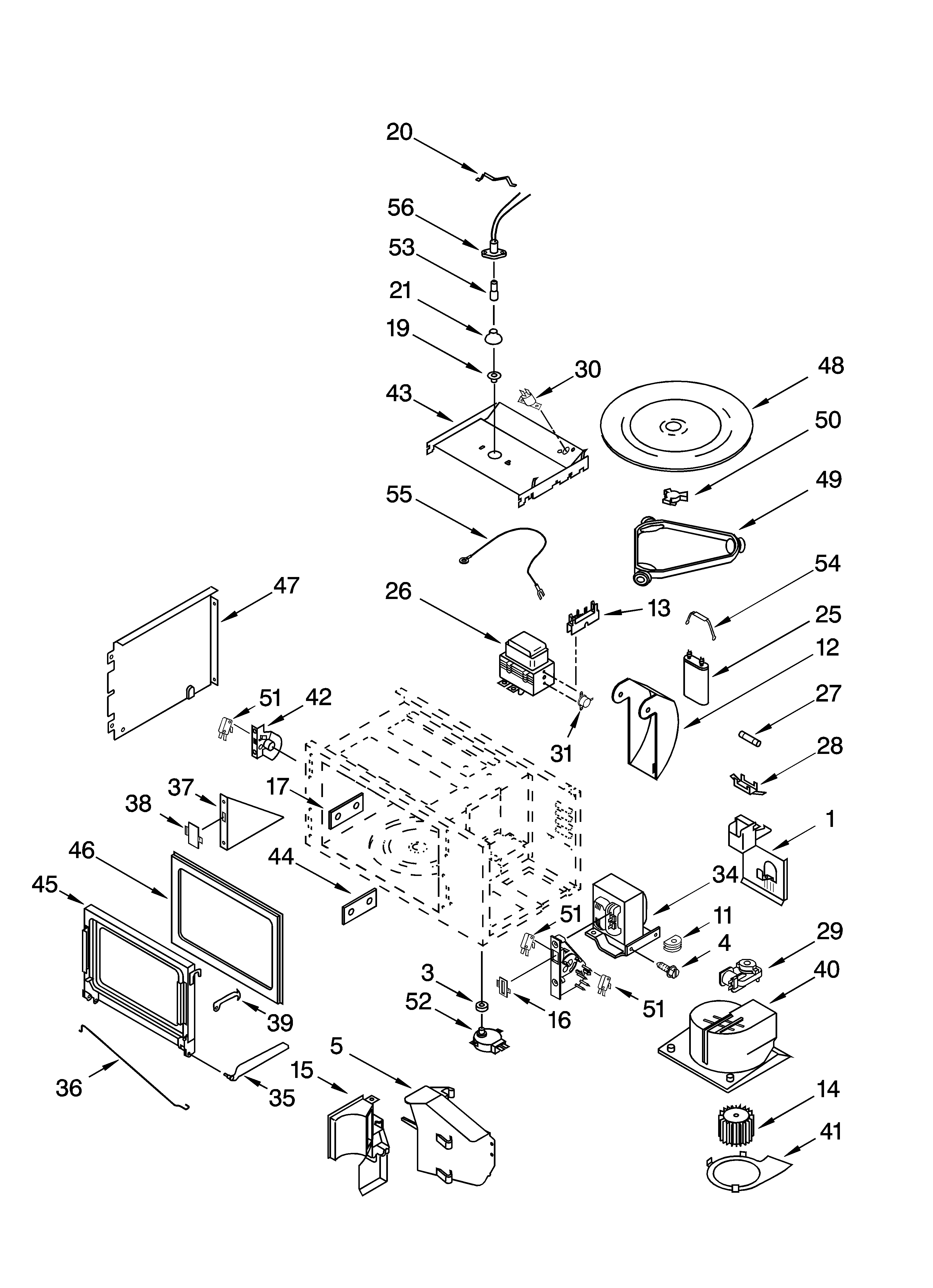

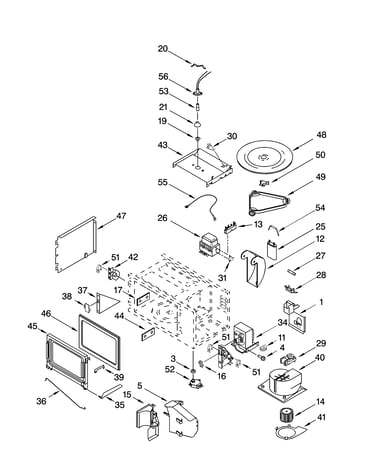

Cabinet and stirrer parts diagram
Microwave door interlock switch
Part #4375346
Replaced by #W10211972
?
Manufacturer substitution
This part replaces 4375346. Substitute parts can look different from the original.
$28.80 |
17% OFF Phone Price : $34.80
In Stock
#4

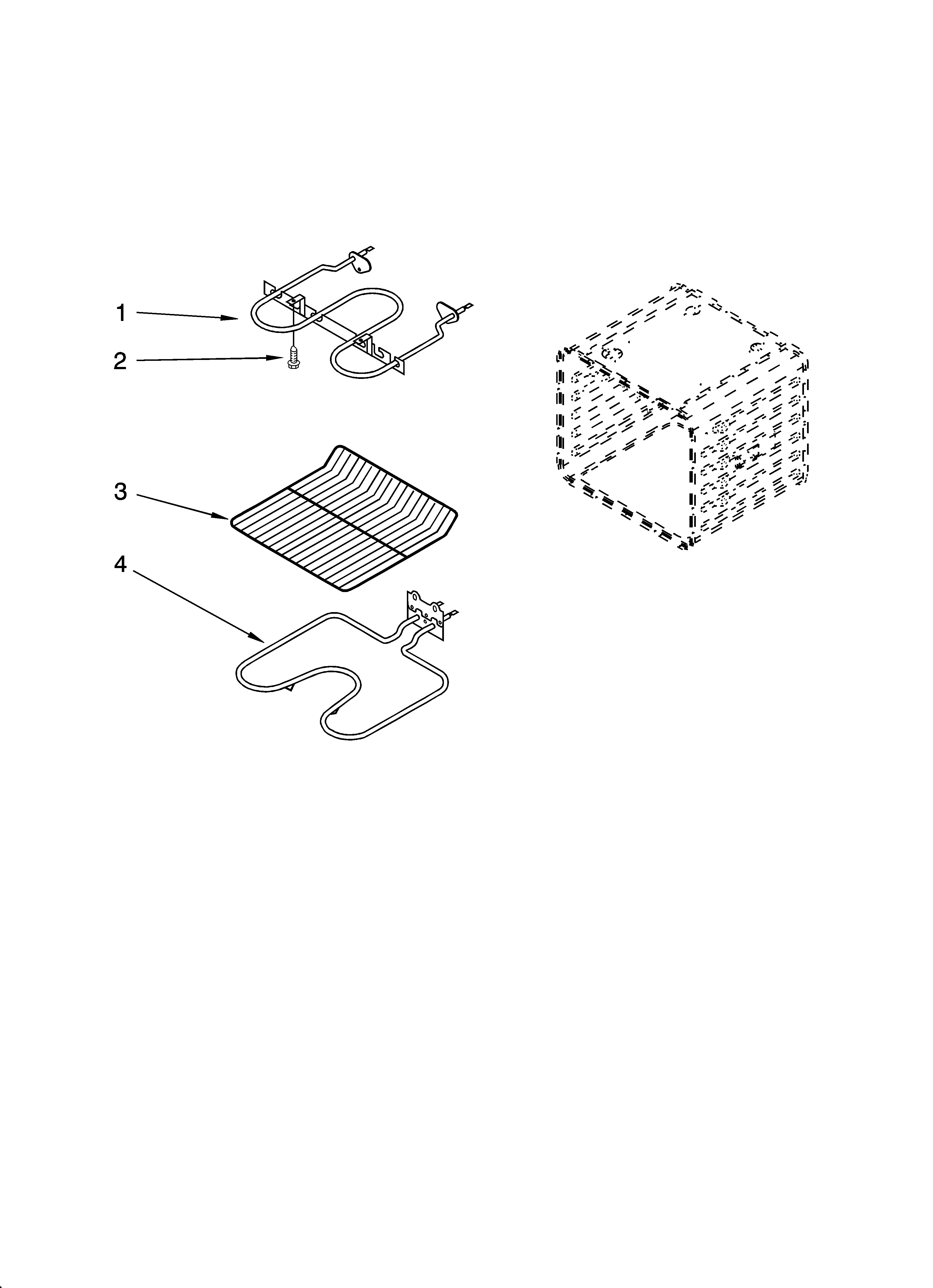

Internal oven parts diagram
Oven bake element
Part #9760766
Replaced by #WPW10207397
?
Manufacturer substitution
This part replaces 9760766. Substitute parts can look different from the original.
$52.31 |
10% OFF Phone Price : $58.31
In Stock
#29

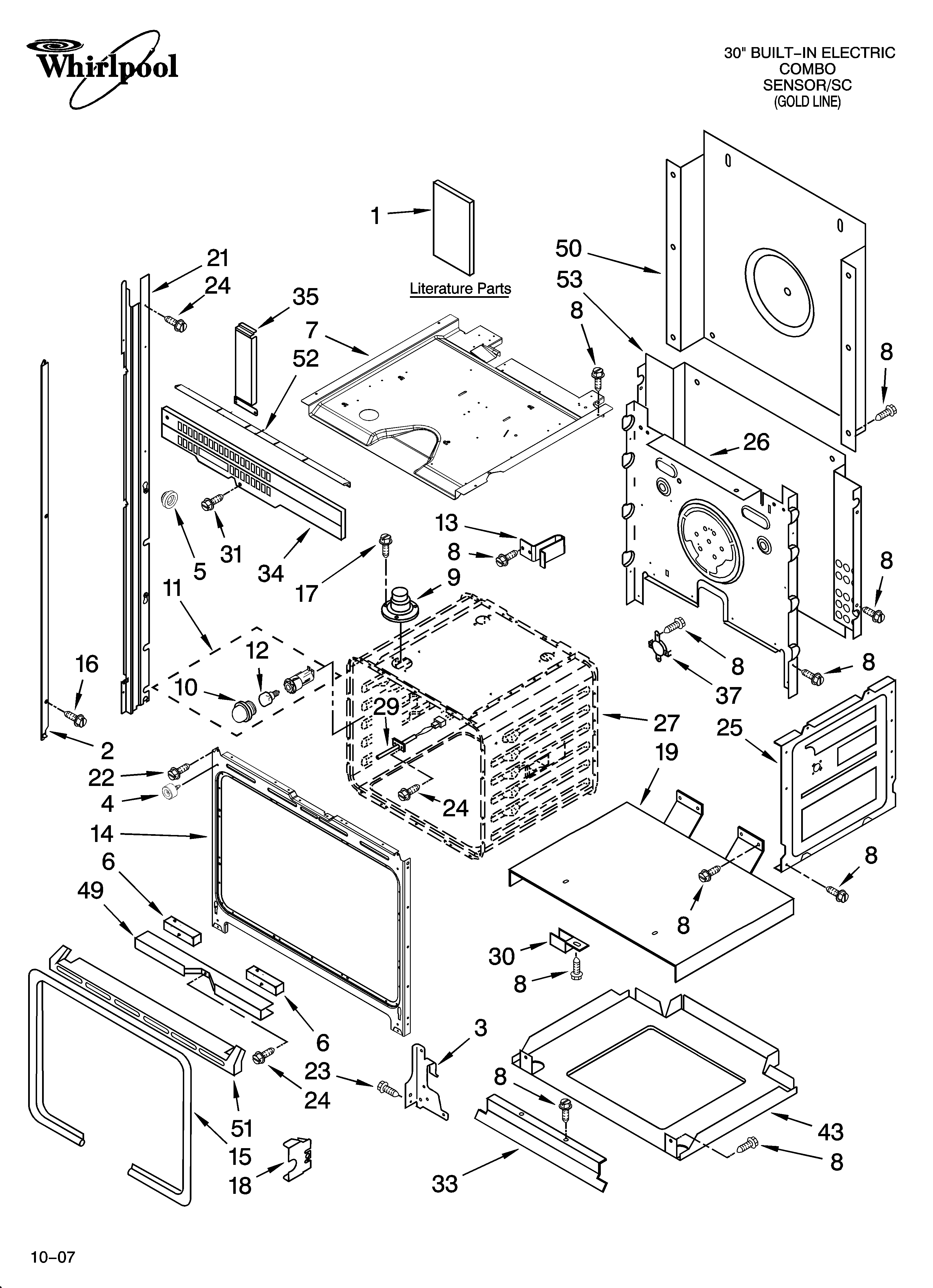

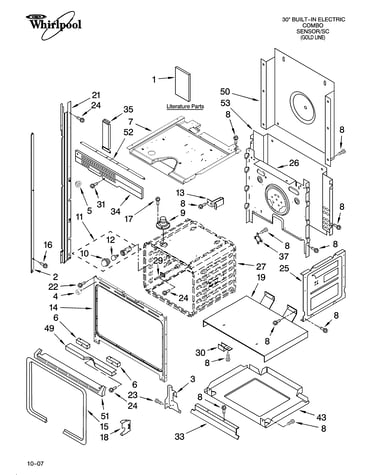

Oven parts diagram
Wall oven temperature sensor
Part #4455636
Replaced by #WPW10131825
?
Manufacturer substitution
This part replaces 4455636. Substitute parts can look different from the original.
$59.66 |
9% OFF Phone Price : $65.66
In Stock
#26
Cabinet and stirrer parts diagram
Magnetron
Part #4375072
The manufacturer no longer makes this part, and there's no substitute part
#1
Internal oven parts diagram
Range broil element
Part #9760771
Replaced by #WP9760771
?
Manufacturer substitution
This part replaces 9760771. Substitute parts can look different from the original.
$65.73 |
8% OFF Phone Price : $71.73
In Stock
#NI

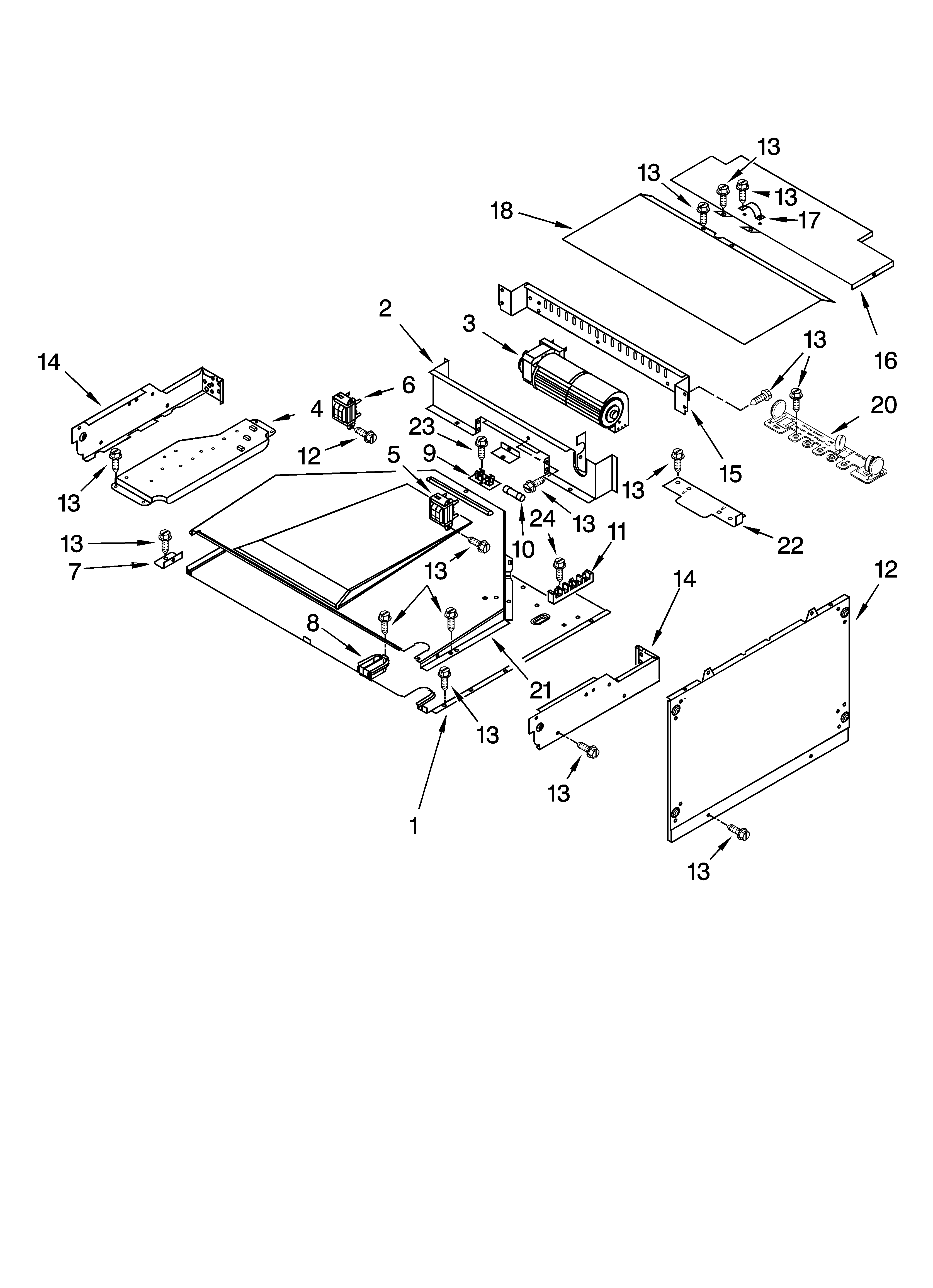

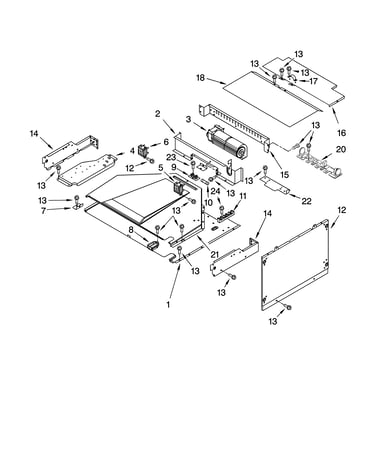

Top venting parts, optional parts (not included) diagram
Spray w
Part #350930
Replaced by #350930
?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
#54
Cabinet and stirrer parts diagram
Diode
Part #4375349
Replaced by #WPW10687786
?
Manufacturer substitution
This part replaces 4375349. Substitute parts can look different from the original.
$20.49 |
23% OFF Phone Price : $26.49
In Stock
#42A
Cabinet and stirrer parts diagram
Mounting bracket
Part #4375336
Replaced by #W10727408
?
Manufacturer substitution
This part replaces 4375336. Substitute parts can look different from the original.
$88.84 |
6% OFF Phone Price : $94.84
In Stock
#42
Cabinet and stirrer parts diagram
Oven mounting bracket
Part #4375335
Replaced by #W10727408
?
Manufacturer substitution
This part replaces 4375335. Substitute parts can look different from the original.
$88.84 |
6% OFF Phone Price : $94.84
In Stock
#3A
Top venting parts, optional parts (not included) diagram
Wall oven cooling fan
Part #W10016550
Replaced by #WPW10016550
?
Manufacturer substitution
This part replaces W10016550. Substitute parts can look different from the original.
$153.62 |
7% OFF Phone Price : $165.62
In Stock
