Kenmore
Electric Range

Model # 9119382192 Official Kenmore electric freestanding range

Here are the diagrams and repair parts for Official Kenmore 9119382192 electric freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

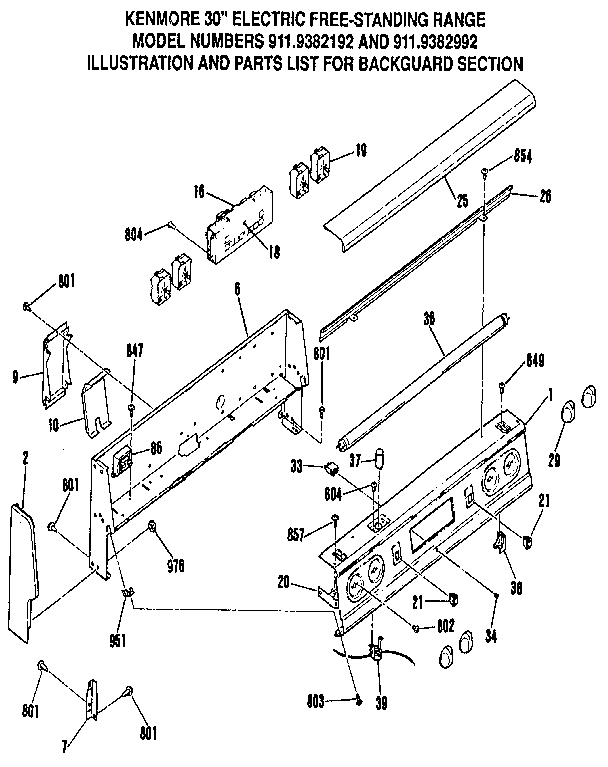

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 154 parts  |
40a15 Bulb STD372401
#257

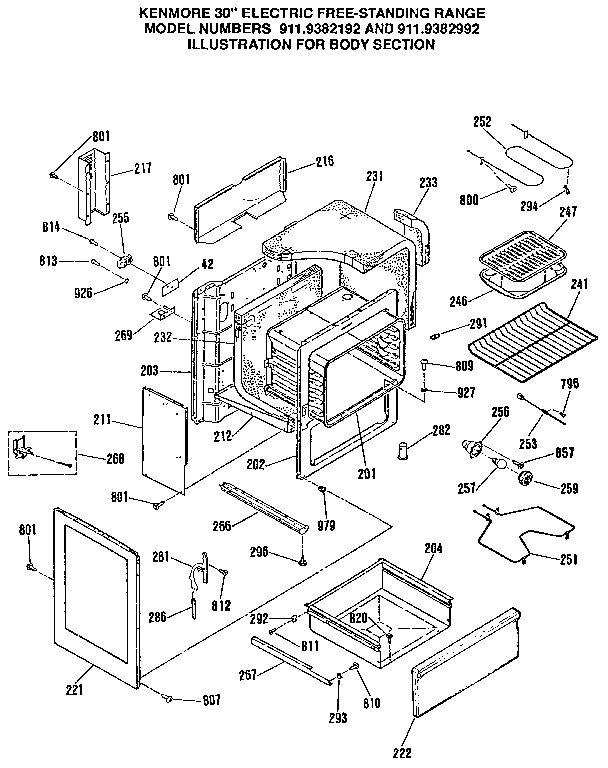

Body section diagram

40a15 bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Bake Element WB44K5012
#251

Body section diagram

Bake element

Part #WB44K5012

Replaced by #WB44K5012

?
Manufacturer substitution
This part replaces WB44K5012. Substitute parts can look different from the original.
BEST SELLER
$44.59 |
12% OFF Phone Price : $50.59
In Stock
Term Blk Asm WB17K5017
#82

Main top section diagram

Term blk asm

Part #WB17K5017

Replaced by #WB17X210

?
Manufacturer substitution
This part replaces WB17K5017. Substitute parts can look different from the original.
BEST SELLER
$22.97 |
21% OFF Phone Price : $28.97
In Stock
Broil Support WB02X9719
#294

Body section diagram

Broil support

Part #WB02X9719

Replaced by #WB2X9719

?
Manufacturer substitution
This part replaces WB02X9719. Substitute parts can look different from the original.
BEST SELLER
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Surf Unit-8" WB30X0255
#57

Main top section diagram

Surf unit-8"

Part #WB30X0255

Replaced by #WP660533

?
Manufacturer substitution
This part replaces WB30X0255. Substitute parts can look different from the original.
$26.68 |
18% OFF Phone Price : $32.68
In Stock
Screw, #10-32 X 17/32-in WB01X1253
#810

Body section diagram

Screw, #10-32 x 17/32-in

Part #WB01X1253

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces WB01X1253. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Oven Door Gasket WB02K5221
#132

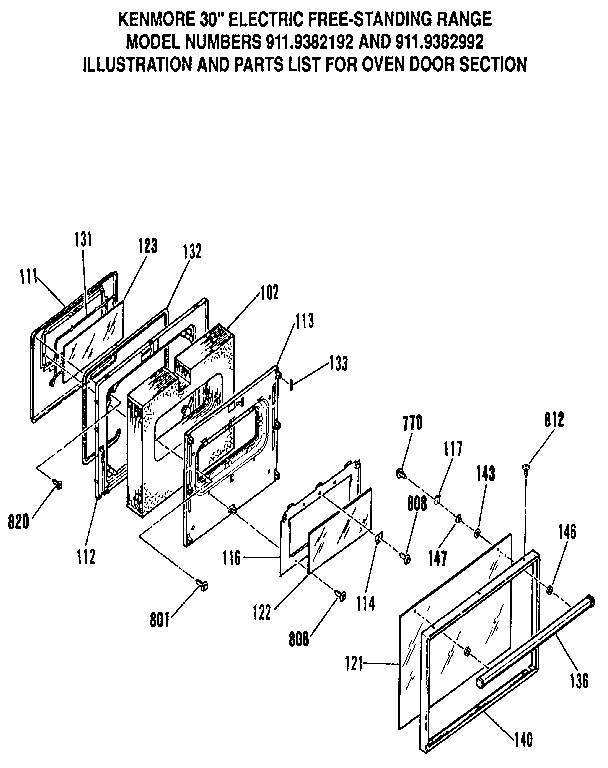

Oven door section diagram

Oven door gasket

Part #WB02K5221

Replaced by #WB2K5319

?
Manufacturer substitution
This part replaces WB02K5221. Substitute parts can look different from the original.
$109.34 |
10% OFF Phone Price : $121.34
In Stock
Clip-term Bk WB17X0211
#83

Main top section diagram

Clip-term bk

Part #WB17X0211

Replaced by #WB17X211

?
Manufacturer substitution
This part replaces WB17X0211. Substitute parts can look different from the original.
$8.87 |
10% OFF Phone Price : $9.87
In Stock
Surf Unit-6" WB30X0256
#56

Main top section diagram

Surf unit-6"

Part #WB30X0256

Replaced by #WB30X256

?
Manufacturer substitution
This part replaces WB30X0256. Substitute parts can look different from the original.
$60.49 |
9% OFF Phone Price : $66.49
In Stock
Screw-10ab WB01X1137
#809

Body section diagram

Screw-10ab

Part #WB01X1137

Replaced by #WB1X1137

?
Manufacturer substitution
This part replaces WB01X1137. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
