Model # 1037156304 Official Kenmore gas range

Here are the diagrams and repair parts for Official Kenmore 1037156304 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

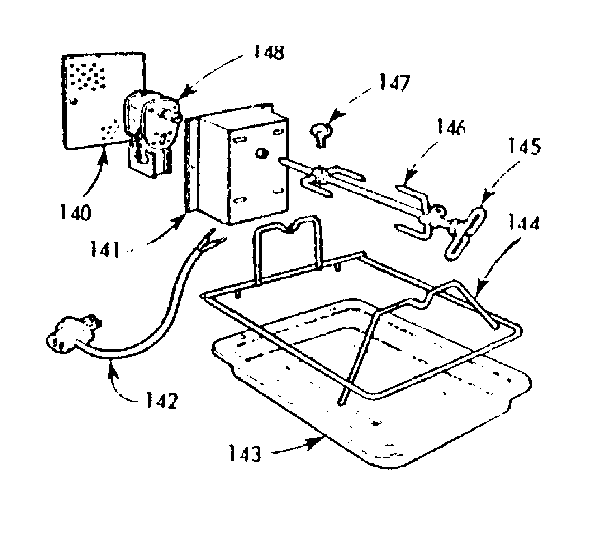

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 131 parts  |
Lamp Bulb 65973
#118A

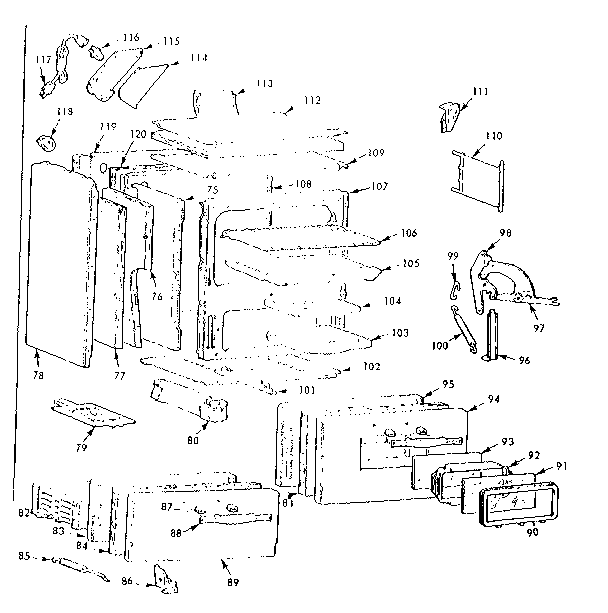

Body section diagram

Lamp bulb

Part #65973

Replaced by #40A15

?
Manufacturer substitution
This part replaces 65973. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Drawer Guide 97820
#101B

Body section diagram

Drawer guide

Part #97820

This item is not returnable
$3.99
In Stock
Door Arm 97758
#97A

Body section diagram

Door arm

Part #97758

Replaced by #230872

?
Manufacturer substitution
This part replaces 97758. Substitute parts can look different from the original.
This item is not returnable
$6.99
In Stock
Backguard 100285
#1

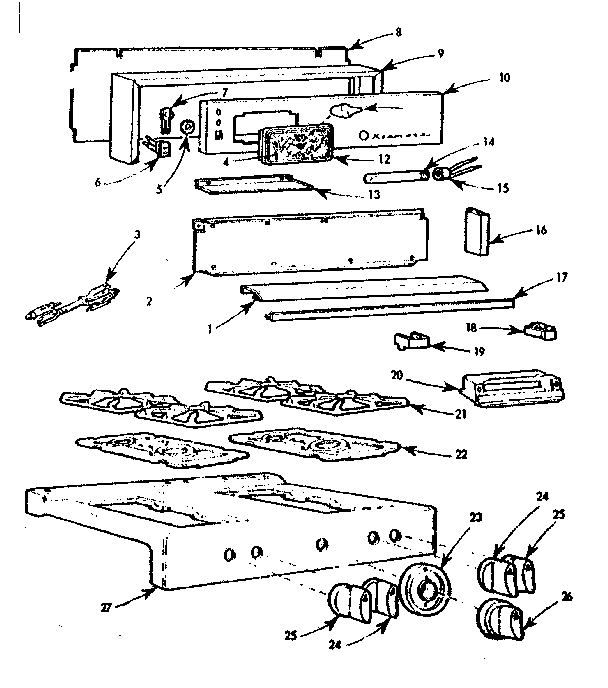

Backguard & maintop diagram

Backguard

Part #100285

The manufacturer no longer makes this part, and there's no substitute part

Gas Valve 101220
#50B

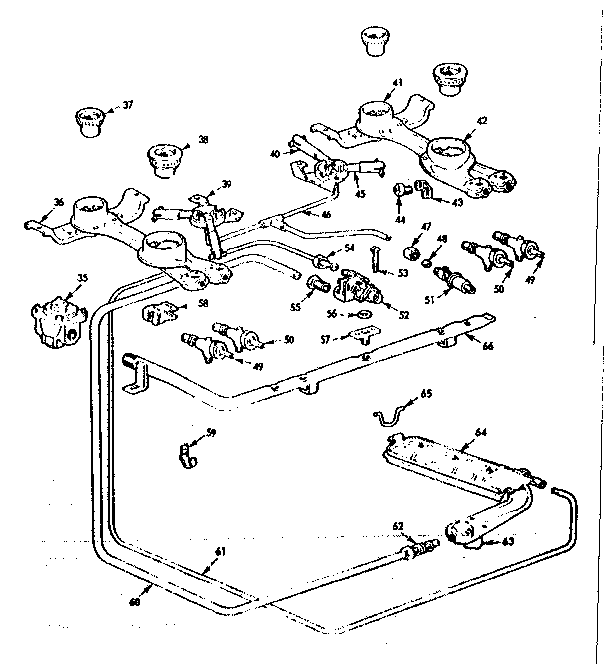

Burner section diagram

Gas valve

Part #101220

The manufacturer no longer makes this part, and there's no substitute part

Side Lining 70398
#75

Body section diagram

Side lining

Part #70398

The manufacturer no longer makes this part, and there's no substitute part

Burner Body 104088
#42A

Burner section diagram

Burner body

Part #104088

The manufacturer no longer makes this part, and there's no substitute part

Deflector 98163
#113

Body section diagram

Deflector

Part #98163

The manufacturer no longer makes this part, and there's no substitute part

Mounting Screw 87570
#53

Burner section diagram

Mounting screw

Part #87570

The manufacturer no longer makes this part, and there's no substitute part

Burner Body 104087
#41B

Burner section diagram

Burner body

Part #104087

The manufacturer no longer makes this part, and there's no substitute part
