Model # ZIDI240WBII Official GE double drawer refrigerator

Here are the diagrams and repair parts for Official GE ZIDI240WBII double drawer refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |
Dryer Filter WR86X0096
#35

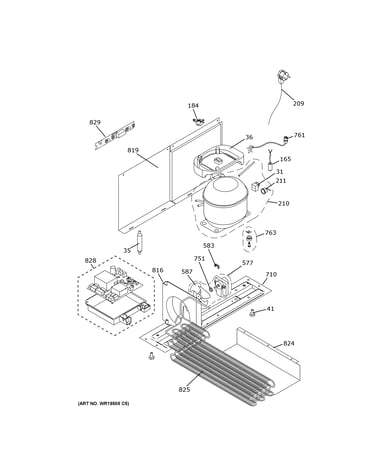

Machine compartment diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Beverage Cooler Power Control Board (replaces Wr17x11680, Wr55x10407, Wr55x10507, Wr55x10508, Wr55x10509, Wr55x10510, Wr55x10511, Wr55x10512) WR55X10430
#828

Machine compartment diagram

Beverage cooler power control board (replaces wr17x11680, wr55x10407, wr55x10507, wr55x10508, wr55x10509, wr55x10510, wr55x10511, wr55x10512)

Part #WR55X10430

$454.55 |
$12.00 OFF Phone Price : $466.55
In Stock
Wine Cooler Compressor Start Relay WR07X10072
#31

Machine compartment diagram

Wine cooler compressor start relay

Part #WR07X10072

$96.54 |
11% OFF Phone Price : $108.54
In Stock
Refrigerator Compressor WR87X10112
#210

Machine compartment diagram

Refrigerator compressor

Part #WR87X10112

$672.35
In Stock
Refrigeration Appliance Evaporator Fan Motor And Blade WR60X10165
#601

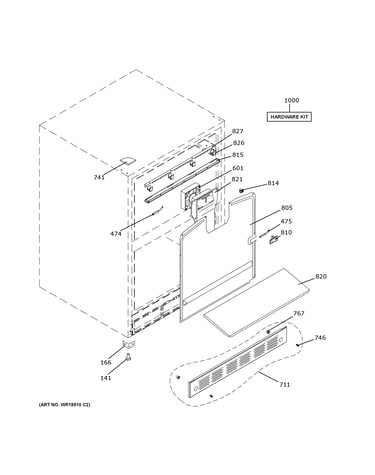

Cabinet & shelves diagram

Refrigeration appliance evaporator fan motor and blade

Part #WR60X10165

$226.00 |
5% OFF Phone Price : $238.00
In Stock
Reed Switch WR23X10623
#475

Cabinet & shelves diagram

Reed switch

Part #WR23X10623

Replaced by #WR23X10378

?
Manufacturer substitution
This part replaces WR23X10623. Substitute parts can look different from the original.
$58.80
In Stock
Drawer Guide WR17X11681
#799

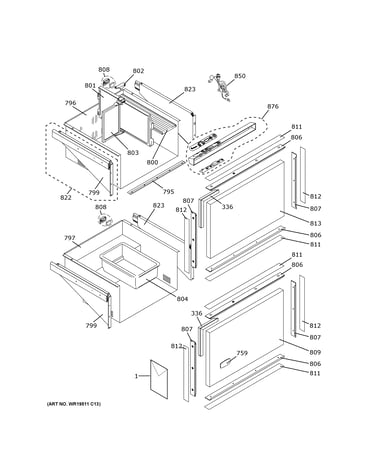

Doors & controls diagram

Drawer guide

Part #WR17X11681

$345.98
In Stock
Magnetic Gas WR24X10215
#336

Doors & controls diagram

Magnetic gas

Part #WR24X10215

$156.46
In Stock
Compressor M WR01X10452
#763

Machine compartment diagram

Compressor m

Part #WR01X10452

$35.97 |
14% OFF Phone Price : $41.97
In Stock
Kit Screw WR01X10455
#1000

Cabinet & shelves diagram

Kit screw

Part #WR01X10455

$60.74
In Stock
