Kenmore
Charcoal Grill

Model # 2582397630 Official Kenmore gas grill

Here are the diagrams and repair parts for Official Kenmore 2582397630 gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 135 parts  |
Cap Screw STD522507
#106

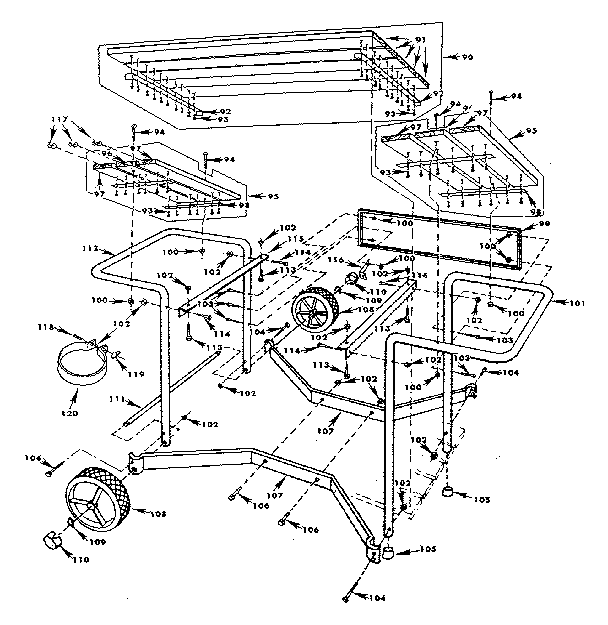

Cart diagram

Cap screw

Part #STD522507

The manufacturer no longer makes this part, and there's no substitute part

Hose Assembly 10111-4
#143

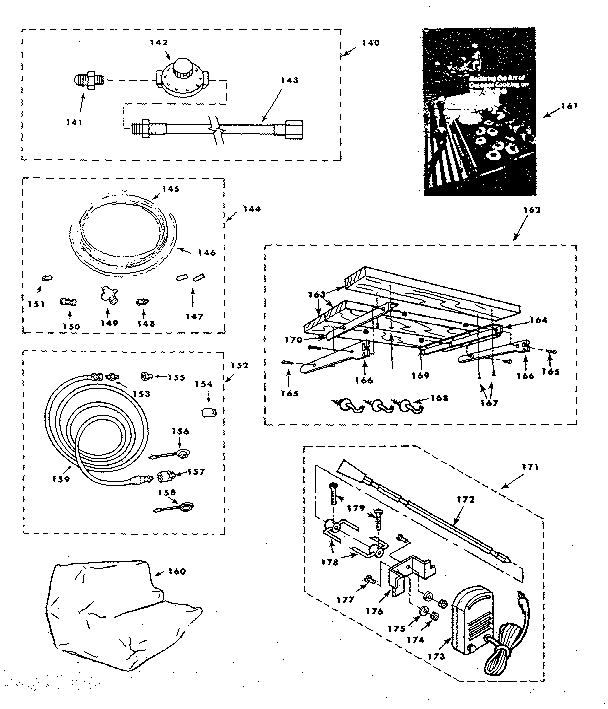

Optional accessories diagram

Hose assembly

Part #10111-4

The manufacturer no longer makes this part, and there's no substitute part

Rotisserie 10004-147
#171

Optional accessories diagram

Rotisserie

Part #10004-147

The manufacturer no longer makes this part, and there's no substitute part

Post 10183-46
#82

Post and patio diagram

Post

Part #10183-46

The manufacturer no longer makes this part, and there's no substitute part

Screw STD600803
#18

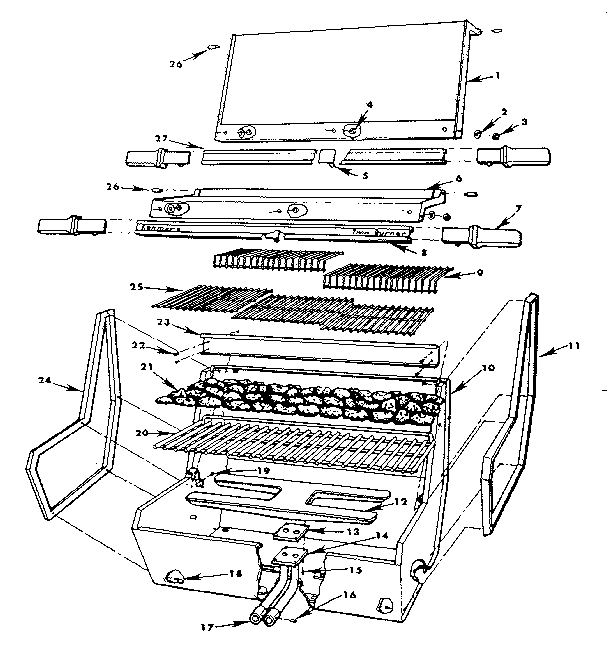

Gas grill housing parts diagram

Screw

Part #STD600803

The manufacturer no longer makes this part, and there's no substitute part

Adapter 10345-3
#148

Optional accessories diagram

Adapter

Part #10345-3

The manufacturer no longer makes this part, and there's no substitute part

Cup Holder 10578-9
#44

Support section diagram

Cup holder

Part #10578-9

The manufacturer no longer makes this part, and there's no substitute part

Shelf 10711-42
#96

Cart diagram

Shelf

Part #10711-42

The manufacturer no longer makes this part, and there's no substitute part

Screw Y-12336
#94

Cart diagram

Screw

Part #Y-12336

The manufacturer no longer makes this part, and there's no substitute part

Half Union Y-278
#49

Support section diagram

Half union

Part #Y-278

The manufacturer no longer makes this part, and there's no substitute part
