Kenmore
Canister Vacuum

Model # 11629904 Official Kenmore vacuum cleaner & attachment set

Here are the diagrams and repair parts for Official Kenmore 11629904 vacuum cleaner & attachment set, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 95 parts  |

Kit Swivel 569657
#98

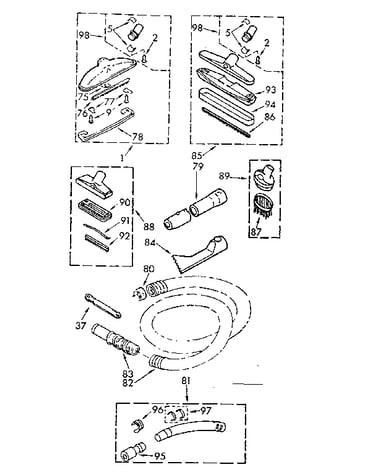

Attachment parts diagram

Kit swivel

Part #569657

The manufacturer no longer makes this part, and there's no substitute part

Ring 670042
#5

Attachment parts diagram

Ring

Part #670042

The manufacturer no longer makes this part, and there's no substitute part

Button Kit 569626
#96

Attachment parts diagram

Button kit

Part #569626

The manufacturer no longer makes this part, and there's no substitute part

Rug Nozzle 722389
#1

Attachment parts diagram

Rug nozzle

Part #722389

The manufacturer no longer makes this part, and there's no substitute part

Gasket 763450
#102

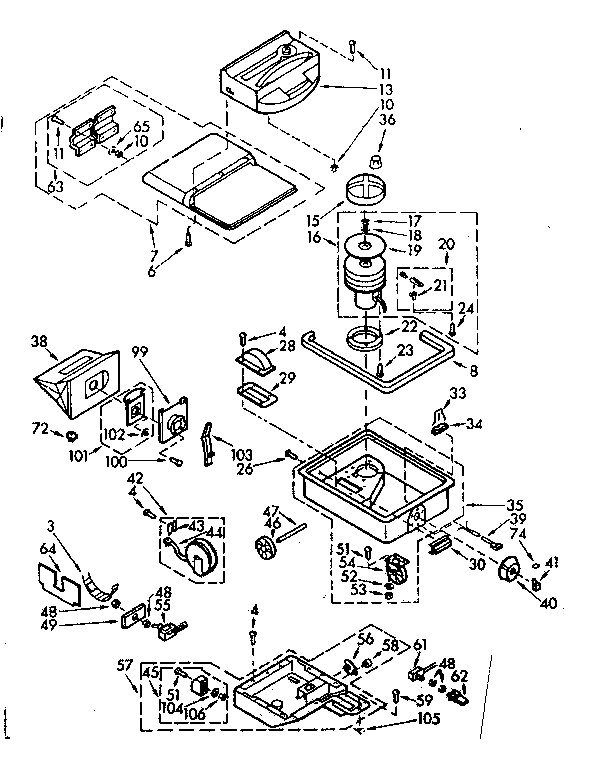

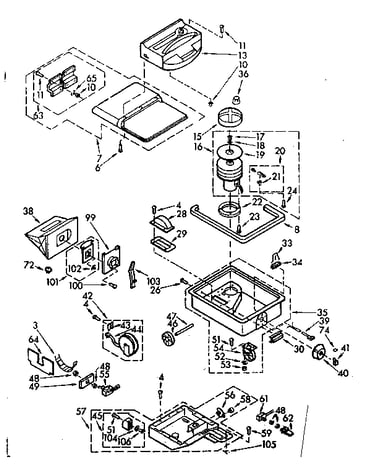

Vacuum cleaner assembly diagram

Gasket

Part #763450

The manufacturer no longer makes this part, and there's no substitute part

Port 763335
#40

Vacuum cleaner assembly diagram

Port

Part #763335

The manufacturer no longer makes this part, and there's no substitute part

Terminal 722410
#83

Attachment parts diagram

Terminal

Part #722410

The manufacturer no longer makes this part, and there's no substitute part

Pedal 762933
#62

Vacuum cleaner assembly diagram

Pedal

Part #762933

The manufacturer no longer makes this part, and there's no substitute part

Motor 700356
#16

Vacuum cleaner assembly diagram

Motor

Part #700356

The manufacturer no longer makes this part, and there's no substitute part

Brush 721793
#76

Attachment parts diagram

Brush

Part #721793

The manufacturer no longer makes this part, and there's no substitute part
