Model # 40L1400U Official Toshiba led television

Here are the diagrams and repair parts for Official Toshiba 40L1400U led television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 21 parts  |

Television Power Cord 75036667
#20

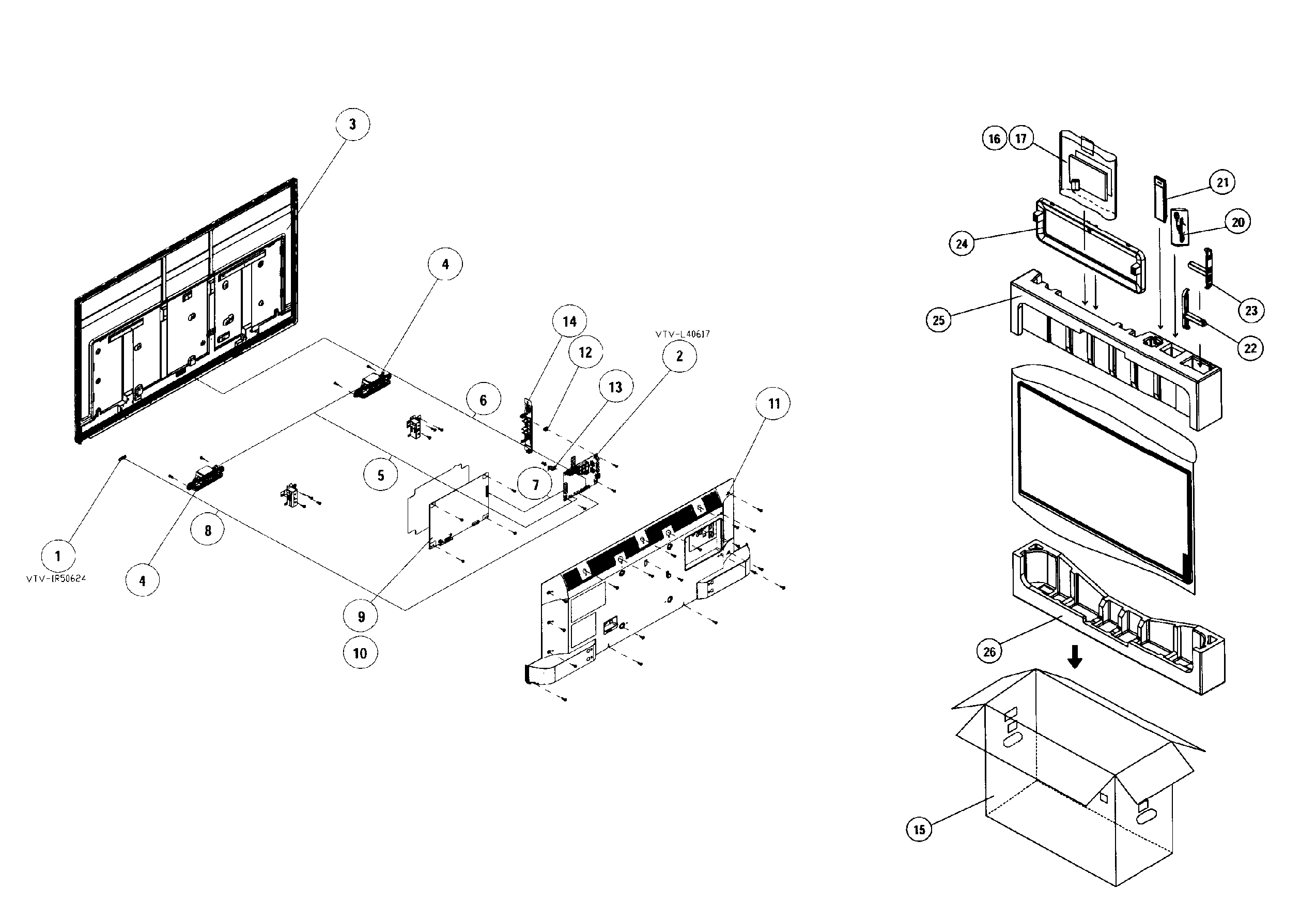

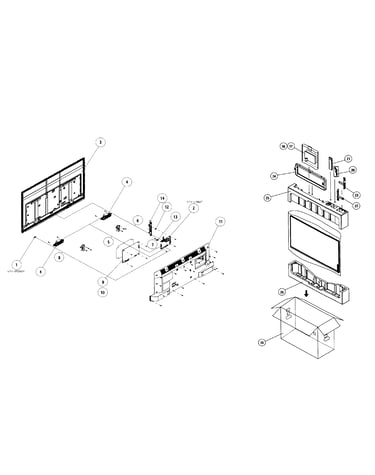

Cabinet parts diagram

Television power cord

Part #75036667

The manufacturer no longer makes this part, and there's no substitute part

Bracket 75037662
#23

Cabinet parts diagram

Bracket

Part #75037662

The manufacturer no longer makes this part, and there's no substitute part

Cable Mb-i 75037670
#8

Cabinet parts diagram

Cable mb-i

Part #75037670

The manufacturer no longer makes this part, and there's no substitute part

Pcb 75037556
#1

Cabinet parts diagram

Pcb

Part #75037556

The manufacturer no longer makes this part, and there's no substitute part

Television Speaker 75033385
#4

Cabinet parts diagram

Television speaker

Part #75033385

The manufacturer no longer makes this part, and there's no substitute part

Television Remote Control 75028874
#21

Cabinet parts diagram

Television remote control

Part #75028874

The manufacturer no longer makes this part, and there's no substitute part

Key Plate 75037660
#14

Cabinet parts diagram

Key plate

Part #75037660

The manufacturer no longer makes this part, and there's no substitute part

Cover 75037658
#11

Cabinet parts diagram

Cover

Part #75037658

The manufacturer no longer makes this part, and there's no substitute part

Toshiba Lcd Panel 75037677
#3A

Cabinet parts diagram

Toshiba lcd panel

Part #75037677

The manufacturer no longer makes this part, and there's no substitute part

Toshiba Base Stand 75037659
#24

Cabinet parts diagram

Toshiba base stand

Part #75037659

The manufacturer no longer makes this part, and there's no substitute part
