GE
Bottom-Mount Refrigerator

Model # GBS18KBPACC Official GE refrigerator - p series

Here are the diagrams and repair parts for Official GE GBS18KBPACC refrigerator - p series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

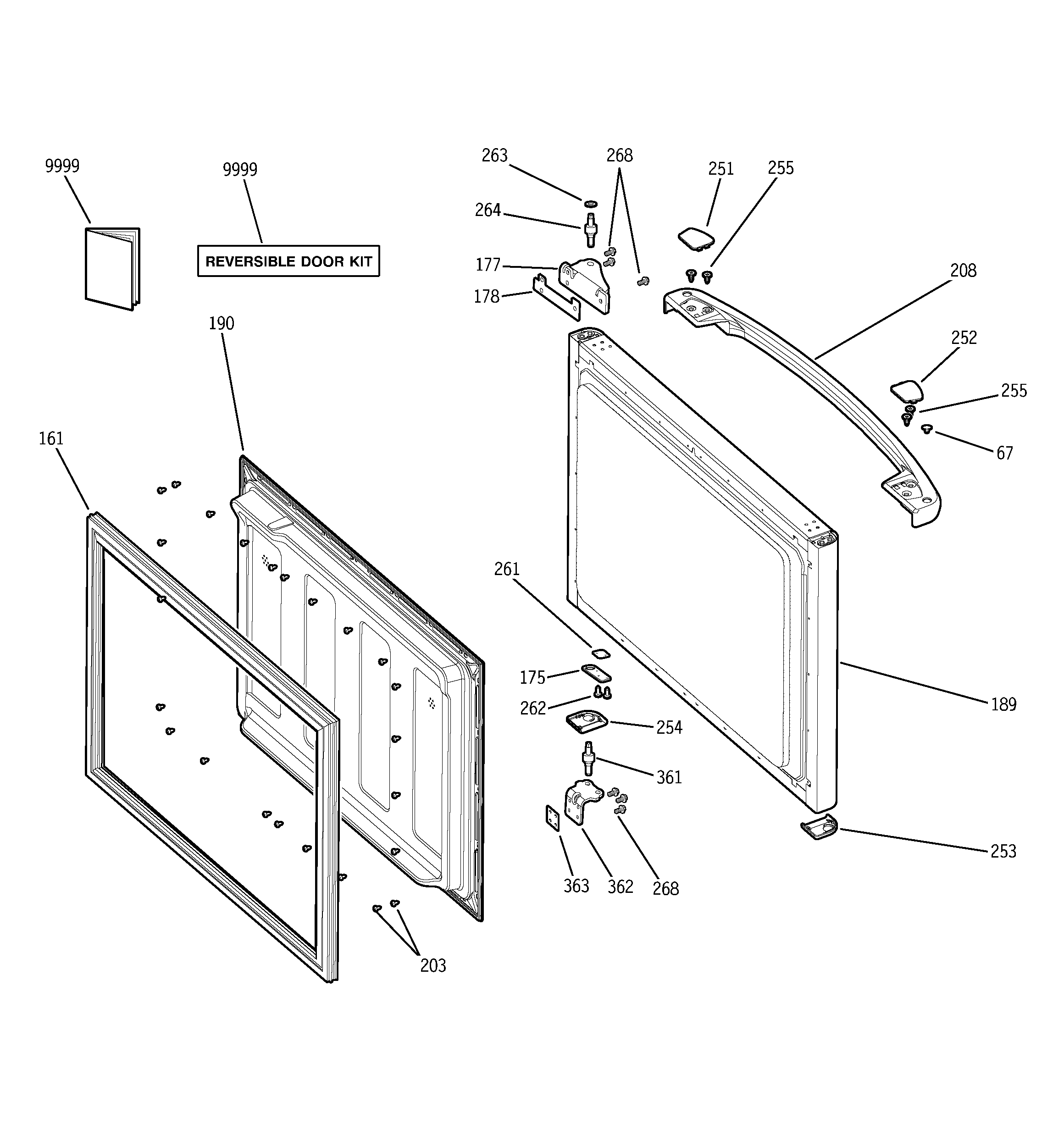

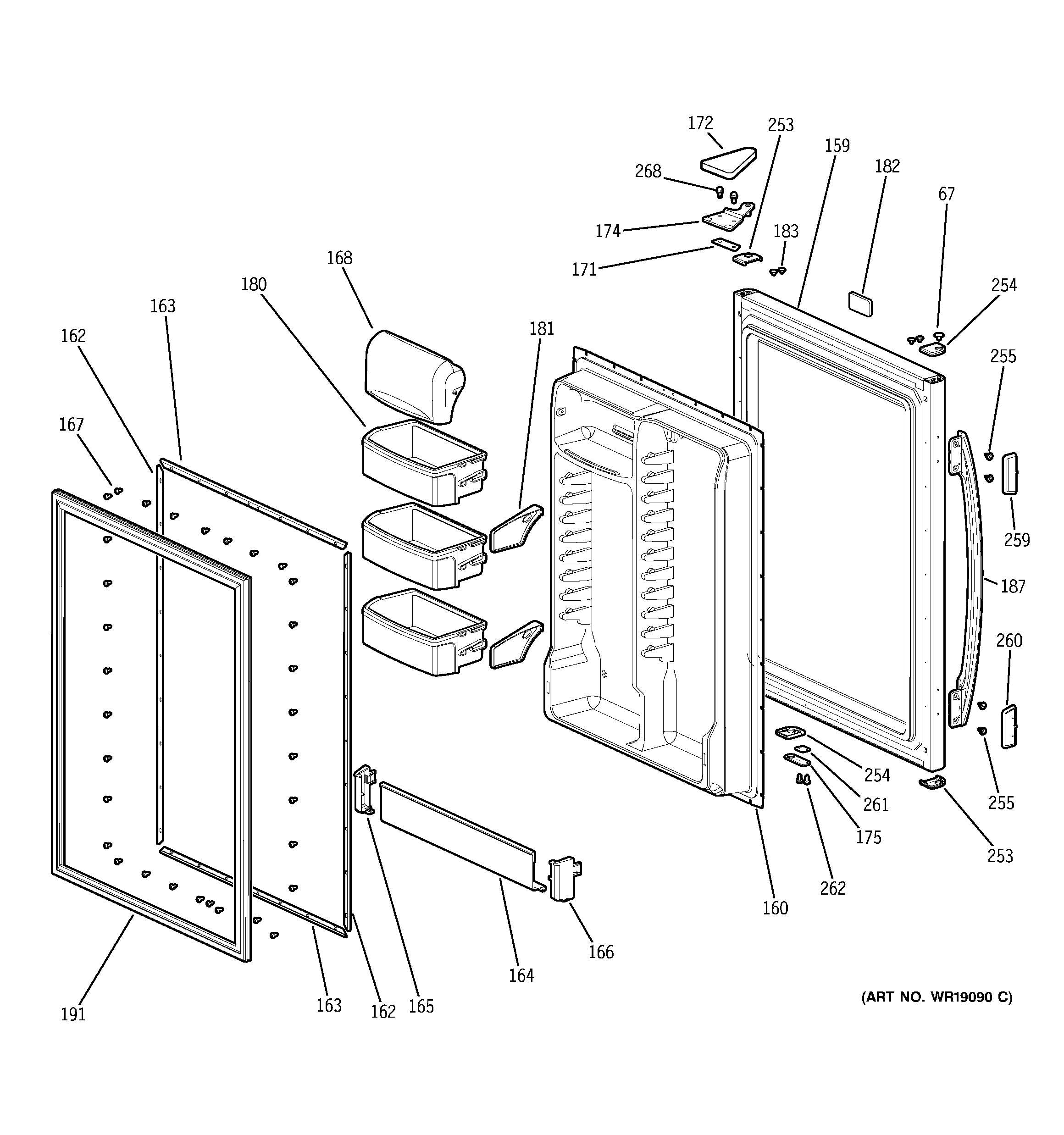

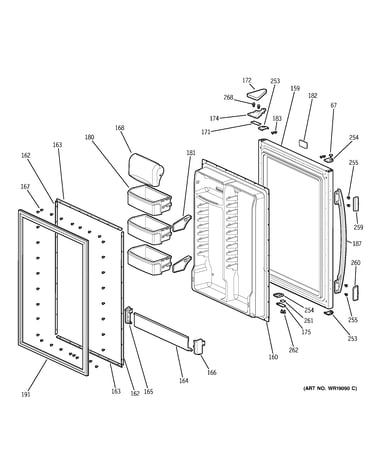

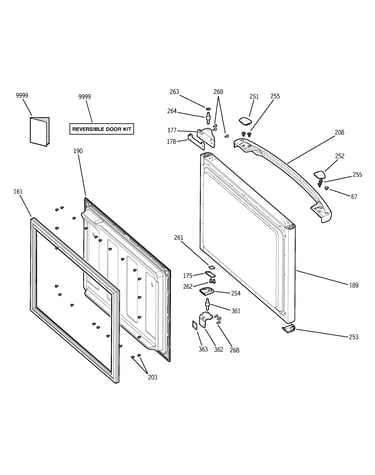

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 205 parts  |
Refrigerator Compressor WR87X10060
#130

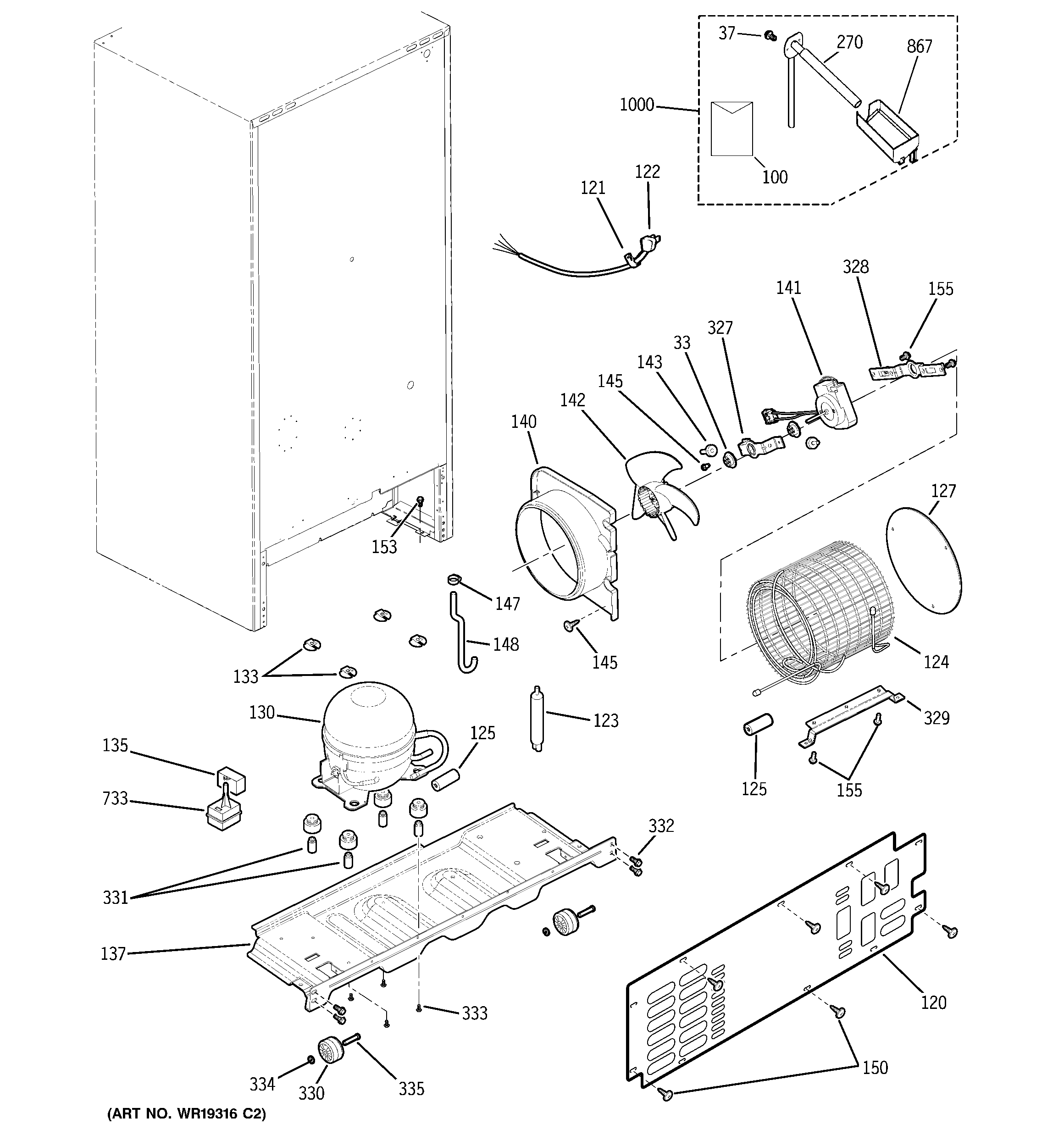

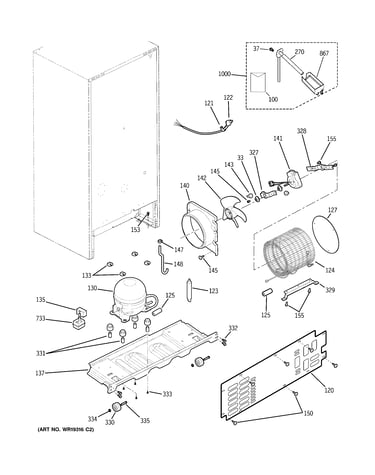

Unit parts diagram

Refrigerator compressor

Part #WR87X10060

Replaced by #WR87X20798

?
Manufacturer substitution
This part replaces WR87X10060. Substitute parts can look different from the original.
BEST SELLER
$394.05 |
$12.00 OFF Phone Price : $406.05
In Stock
Grommet & Tu WR17X11543
#270

Unit parts diagram

Grommet & tu

Part #WR17X11543

Replaced by #WR17X11168

?
Manufacturer substitution
This part replaces WR17X11543. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$24.41 |
20% OFF Phone Price : $30.41
In Stock
Refrigerator Ice Maker Fill Cup WR29X10058
#867

Unit parts diagram

Refrigerator ice maker fill cup

Part #WR29X10058

Replaced by #WR29X10109

?
Manufacturer substitution
This part replaces WR29X10058. Substitute parts can look different from the original.
This item is not returnable
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Refrigerator Screw WR01X10274
Refrigerator screw

Part #WR01X10274

Replaced by #WZ4X241D

?
Manufacturer substitution
This part replaces WR01X10274. Substitute parts can look different from the original.
$17.31 |
10% OFF Phone Price : $19.31
In Stock
Refrigerator Kick Plate Grille (bisque) WR79X10018
#113

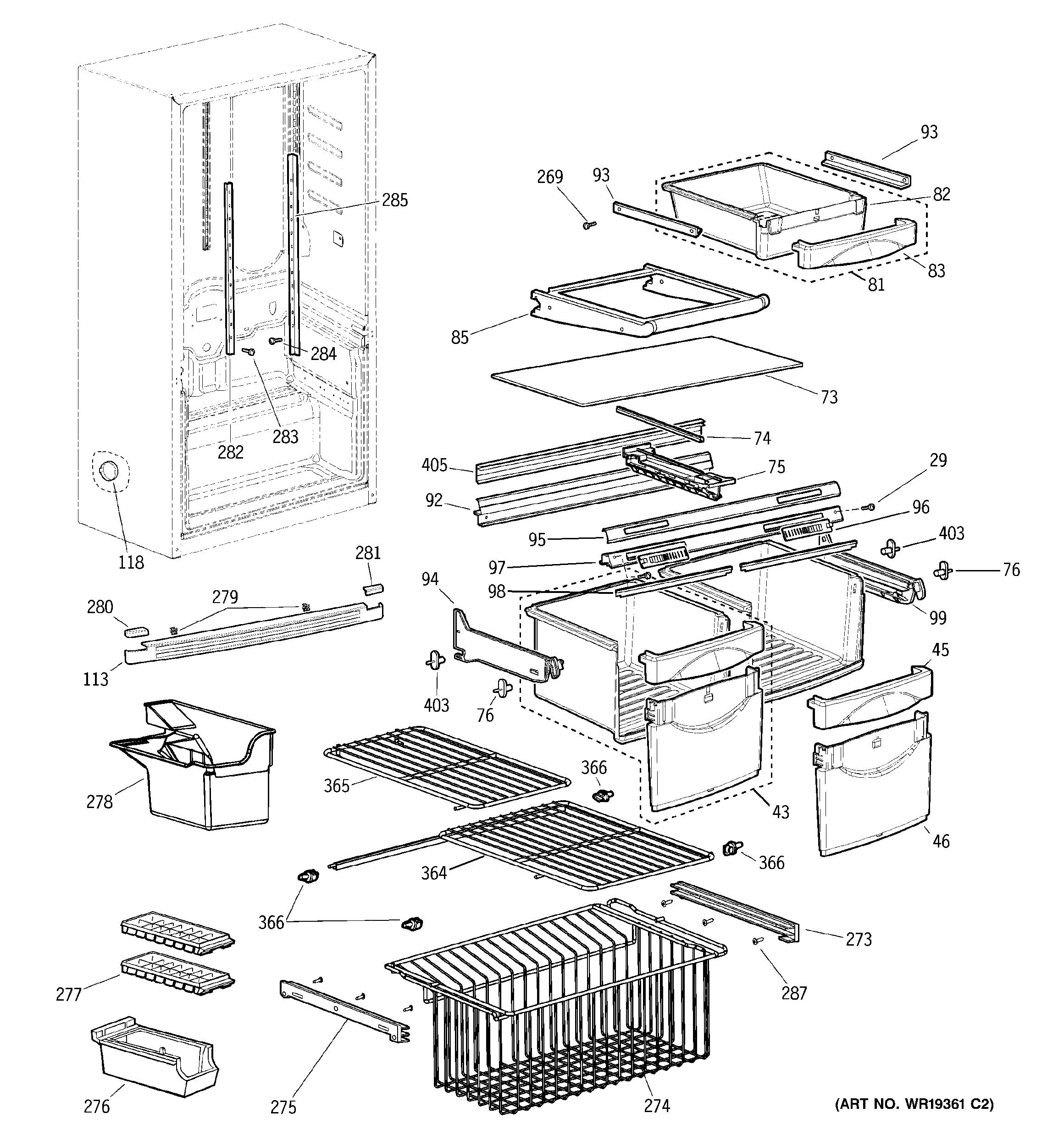

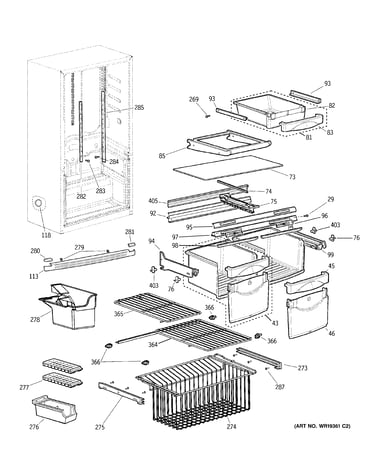

Shelves diagram

Refrigerator kick plate grille (bisque)

Part #WR79X10018

$36.49
In Stock
Ge Profile Refrigerator Evaporator Fan Motor Grommet WR02X10520
Ge profile refrigerator evaporator fan motor grommet

Part #WR02X10520

This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Refrigerator Screw WR1M478
#65

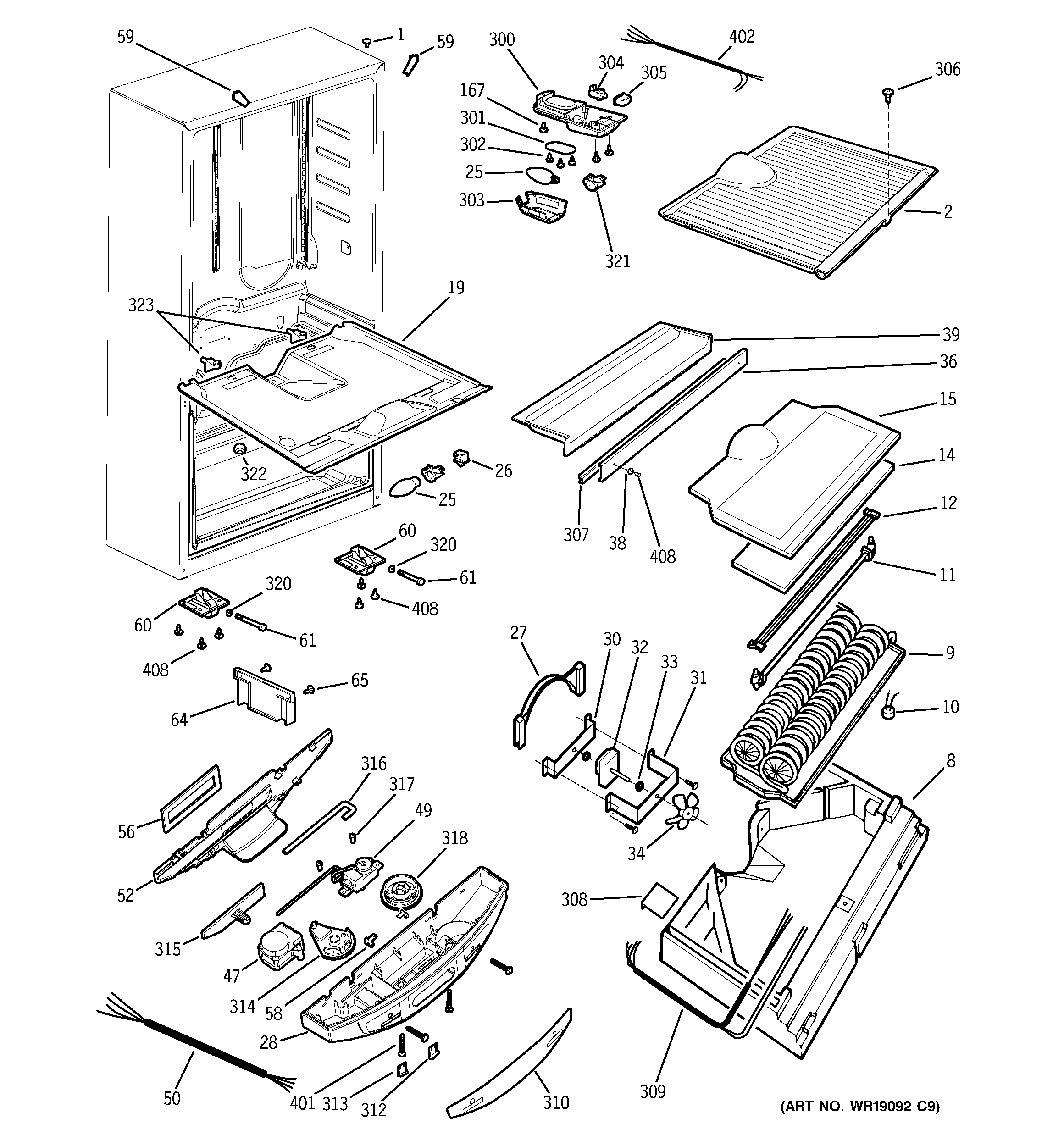

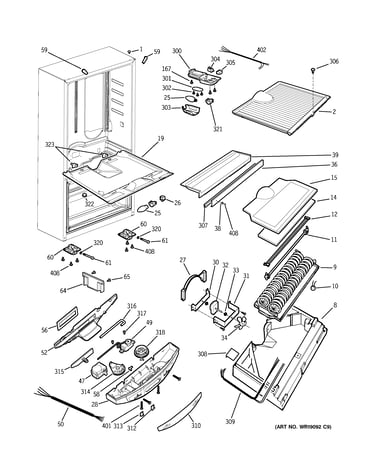

Cabinet diagram

Refrigerator screw

Part #WR1M478

Replaced by #WE2M174

?
Manufacturer substitution
This part replaces WR1M478. Substitute parts can look different from the original.
$10.24 |
16% OFF Phone Price : $12.24
In Stock
Refrigerator Condenser Fan Motor Bracket WR02X10521
#327

Unit parts diagram

Refrigerator condenser fan motor bracket

Part #WR02X10521

Replaced by #WR02X11863

?
Manufacturer substitution
This part replaces WR02X10521. Substitute parts can look different from the original.
This item is not returnable
$7.90 |
11% OFF Phone Price : $8.90
In Stock
Evaporator Motor WR60M132
#32

Cabinet diagram

Evaporator motor

Part #WR60M132

Replaced by #WR60X10300

?
Manufacturer substitution
This part replaces WR60M132. Substitute parts can look different from the original.
$111.62 |
10% OFF Phone Price : $123.62
In Stock
Condenser Fan Blade WR60X10049
#142

Unit parts diagram

Condenser fan blade

Part #WR60X10049

Replaced by #WR60X24484

?
Manufacturer substitution
This part replaces WR60X10049. Substitute parts can look different from the original.
This item is not returnable
$26.55 |
18% OFF Phone Price : $32.55
In Stock
