GE
Refrigerator

Model # ZIR301NPPBII Official GE refrigerator

Here are the diagrams and repair parts for Official GE ZIR301NPPBII refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

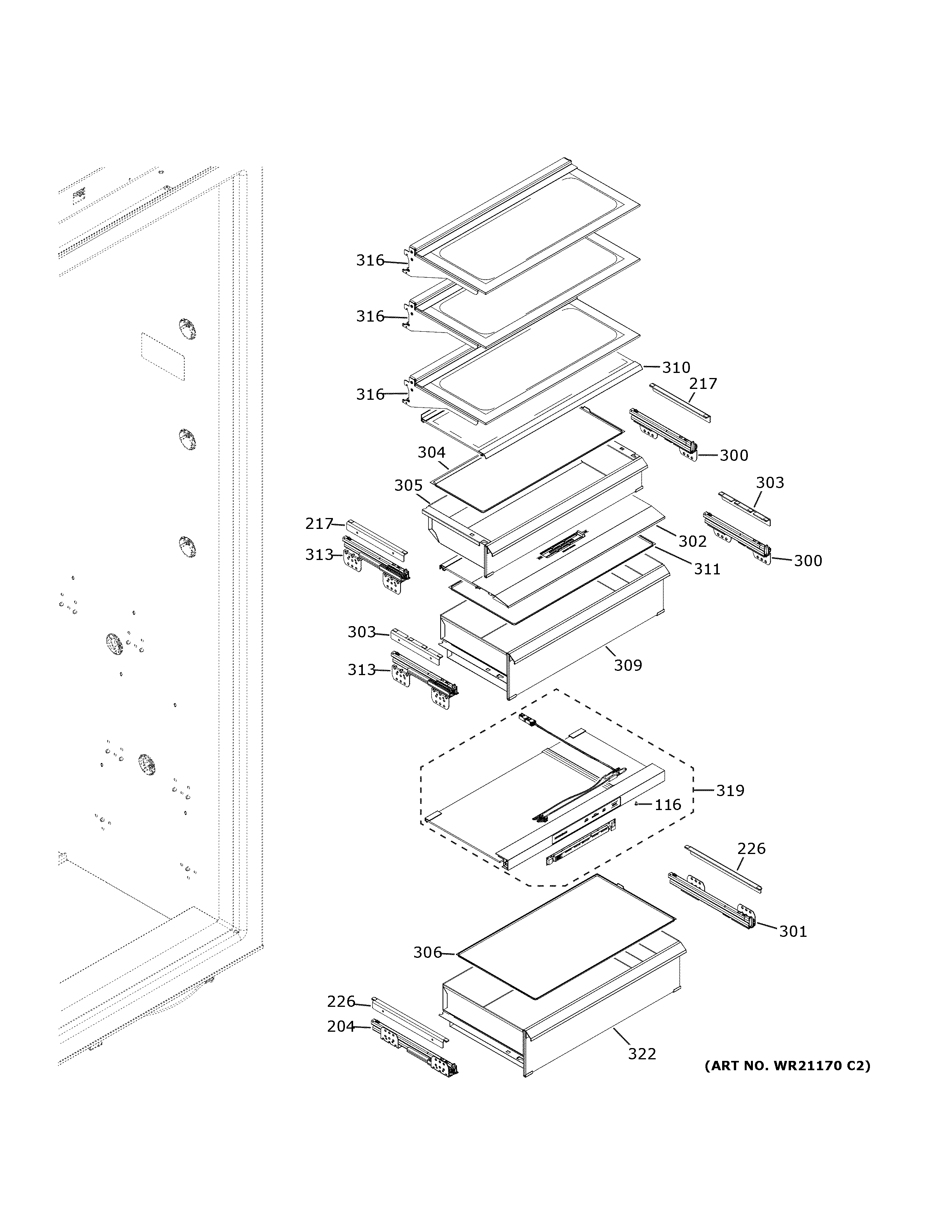

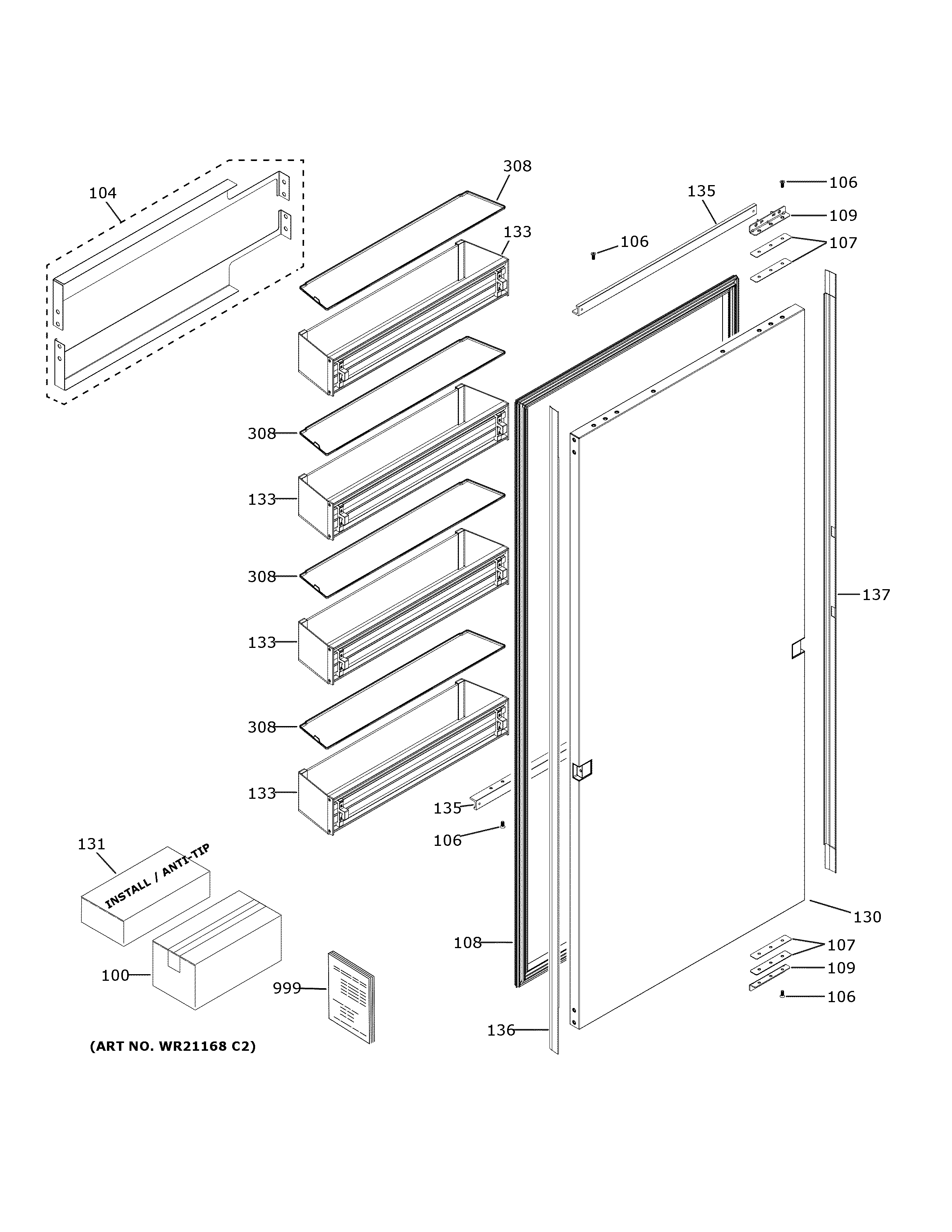

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 154 parts  |
R600 Drier W/ Red Cap WR87X30875
#433

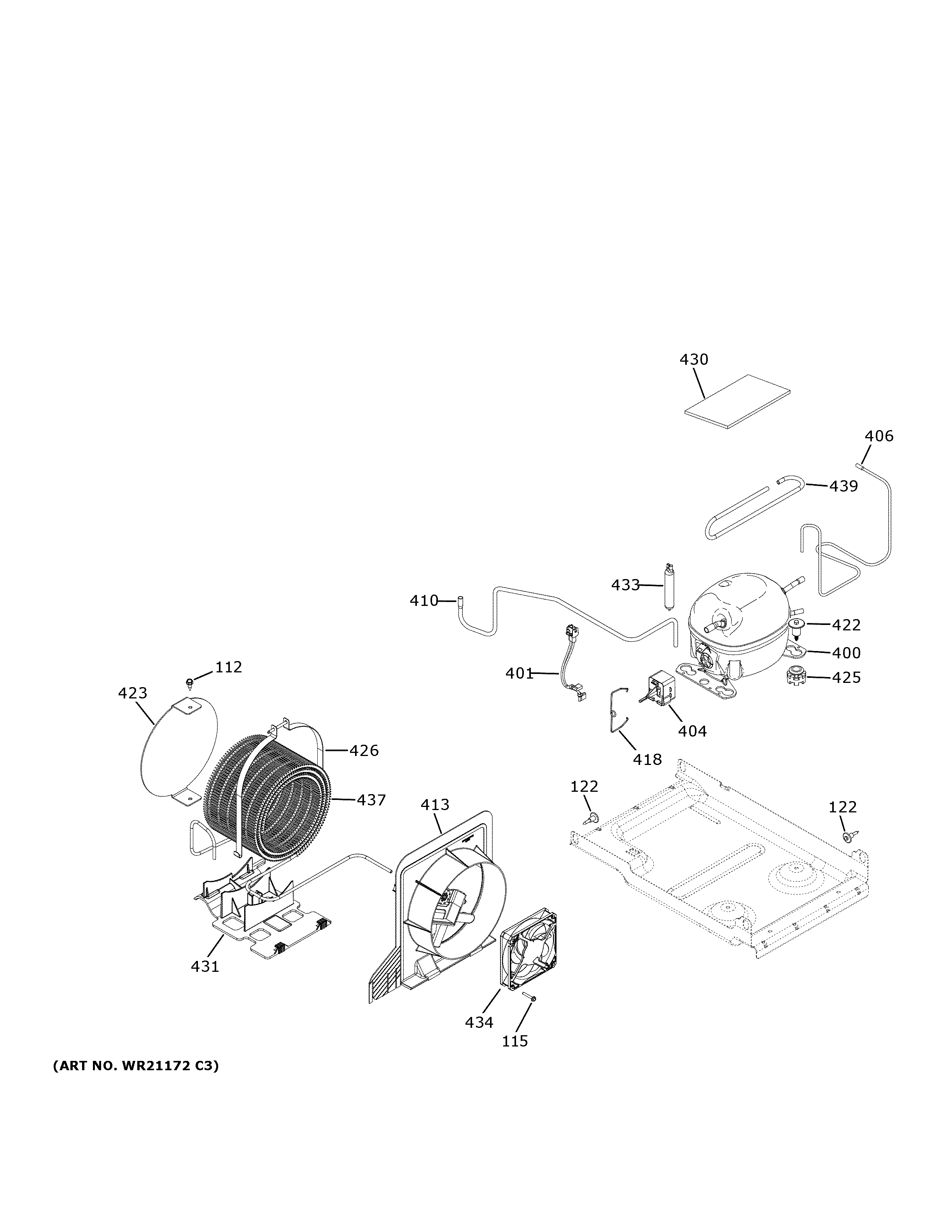

Machine compartment diagram

R600 drier w/ red cap

Part #WR87X30875

BEST SELLER
$56.29
In Stock
Refrigerator Water Inlet Valve Assembly (replaces Wr57x10032) WR57X33326
#323

Case parts diagram

Refrigerator water inlet valve assembly (replaces wr57x10032)

Part #WR57X33326

BEST SELLER
$66.89 |
8% OFF Phone Price : $72.89
In Stock
Ge Refrigerator Water Filter XWF
#256

Case parts diagram

Ge refrigerator water filter

Part #XWF

Replaced by #XWFE

?
Manufacturer substitution
This part replaces XWF. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$71.06 |
8% OFF Phone Price : $77.06
In Stock
Refrigerator Water Filter Bypass (replaces Wr17x30044) WR17X33825
#415

Case parts diagram

Refrigerator water filter bypass (replaces wr17x30044)

Part #WR17X33825

BEST SELLER
$31.32 |
16% OFF Phone Price : $37.32
In Stock
Refrigerator Evaporator Fan Motor Grommet WR02X12008
#237

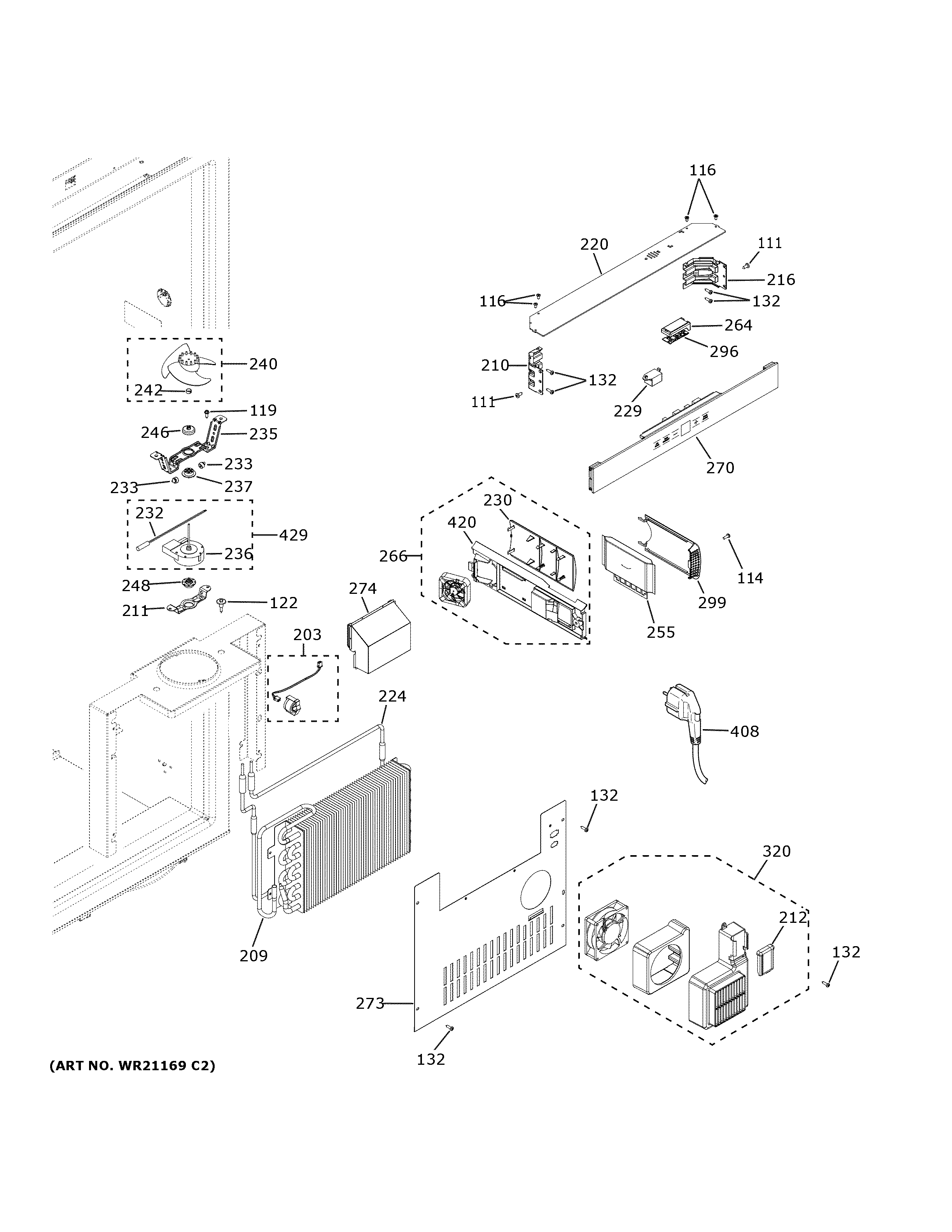

Fresh food section diagram

Refrigerator evaporator fan motor grommet

Part #WR02X12008

BEST SELLER
$19.32
In Stock
Refrigerator Water Tube Fitting, 1/4-in (replaces Wr02x10472, Wr02x13671, Wr02x31891) WR02X13738
#249

Case parts diagram

Refrigerator water tube fitting, 1/4-in (replaces wr02x10472, wr02x13671, wr02x31891)

Part #WR02X13738

$12.60 |
14% OFF Phone Price : $14.60
In Stock
Freezer Basket Bumper (replaces Wr02x11329) WR02X10540
#233

Fresh food section diagram

Freezer basket bumper (replaces wr02x11329)

Part #WR02X10540

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Refrigerator Humidity Sensor WR55X24585
#234

Case parts diagram

Refrigerator humidity sensor

Part #WR55X24585

$82.71 |
7% OFF Phone Price : $88.71
In Stock
Ge Profile Grommet WR02X10678
#432

Case parts diagram

Ge profile grommet

Part #WR02X10678

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Cplg1/4-.079 WR97X10032
#7006

Lokring connetors diagram

Cplg1/4-.079

Part #WR97X10032

$34.51
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Most common symptoms to help you fix your refrigerators

Choose a symptom to see related refrigerator repairs.

View all

Why is water dripping from my refrigerator onto the floor?

Main causes: water valve leaking, frozen or broken defrost drain tube, overflowing drain pan, cracked water system tubin…

Read more

Why won't my refrigerator cool at all?

Main causes: blocked air vents, compressor problems, condenser or evaporator fan not working, control system failure, se…

Read more

What routine maintenance does my refrigerator need?

Things to do: clean condenser coils, replace the water filter, clean the interior, adjust doors to prevent air leaks, cl…

Read more

Why won't my refrigerator run?

Main causes: control board or cold control failure, broken compressor start relay, compressor motor failure, defrost tim…

Read more

Why is my freezer not cold enough?

Main causes: leaky door gasket, defrost system failure, evaporator fan not running, dirty condenser coils, condenser fan…

Read more

Why isn't my refrigerator cooling well?

Main causes: blocked vents, defrost system problems, evaporator fan failure, dirty condenser coils, bad sensors, condens…

Read more

Why won't my refrigerator ice maker make ice?

Main causes: jammed ice cubes, broken ice maker assembly, dirty water filter, kinked water line, bad water valve, freeze…

Read more

Why is frost building up in my refrigerator's freezer?

Main causes: damaged door seal, faulty defrost sensor or bi-metal thermostat, broken defrost heater, bad defrost timer o…

Read more
