Model # SB-PC820P Official Panasonic speaker system

Here are the diagrams and repair parts for Official Panasonic SB-PC820P speaker system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 6 of 6 parts  |
Panel RYBV0007-S
#2

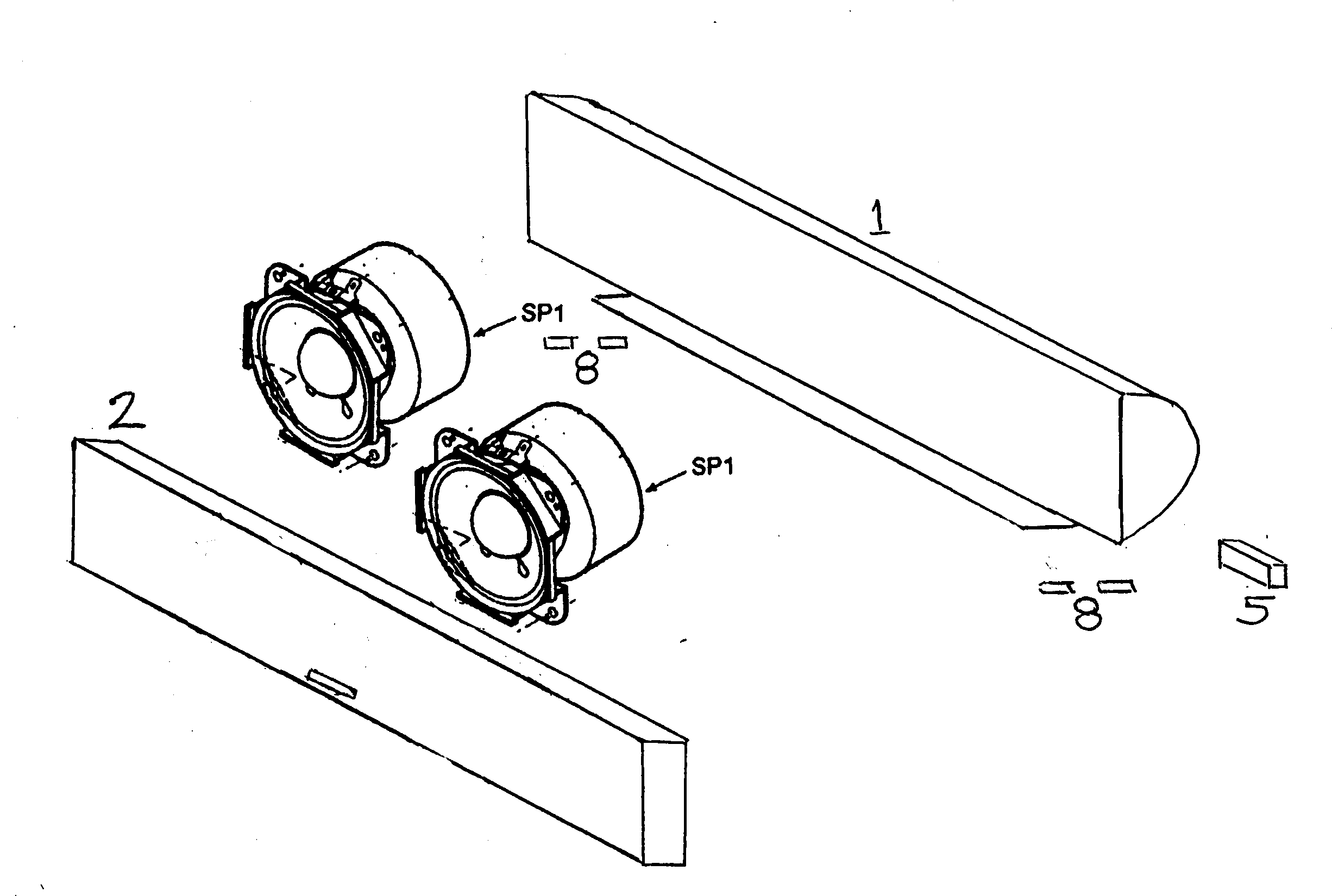

Cabinet parts diagram

Panel

Part #RYBV0007-S

The manufacturer no longer makes this part, and there's no substitute part

Leg RKA0072-KJ
#8

Cabinet parts diagram

Leg

Part #RKA0072-KJ

The manufacturer no longer makes this part, and there's no substitute part

Rr Cabinet RFKHBPC820PS
#1

Cabinet parts diagram

Rr cabinet

Part #RFKHBPC820PS

The manufacturer no longer makes this part, and there's no substitute part

Terminal RJH5219
#5

Cabinet parts diagram

Terminal

Part #RJH5219

The manufacturer no longer makes this part, and there's no substitute part

Service Manual MD0401035C1
#NI

Cabinet parts diagram

Service manual

Part #MD0401035C1

The manufacturer no longer makes this part, and there's no substitute part

Speaker EAST65P08F6
#SP1

Cabinet parts diagram

Speaker

Part #EAST65P08F6

The manufacturer no longer makes this part, and there's no substitute part
