Electric Range

Model # XB625DK7BB Official GE electric range

Here are the diagrams and repair parts for Official GE XB625DK7BB electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 96 parts  |
Range Surface Element Control Switch, 2,600-watt WB24T10025
#24

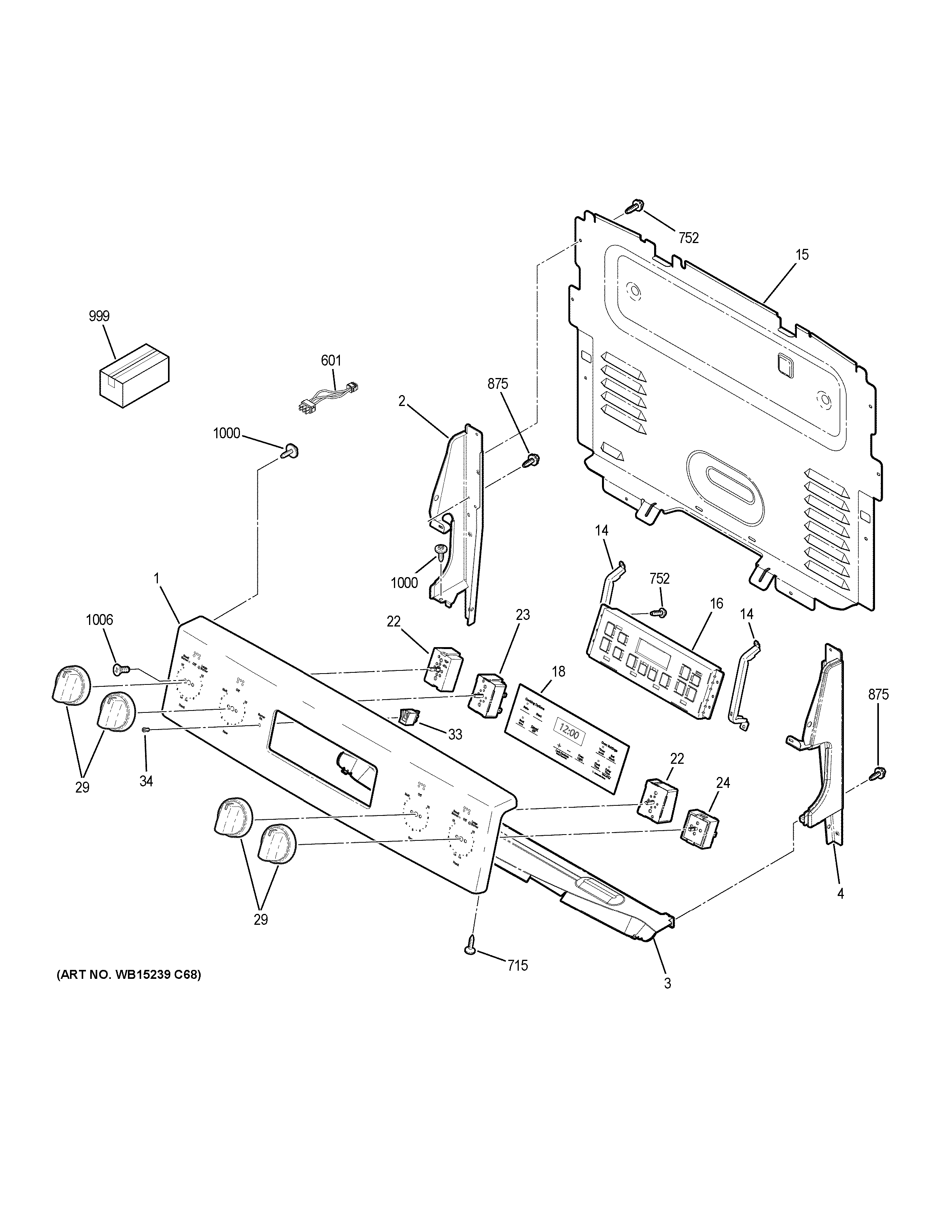

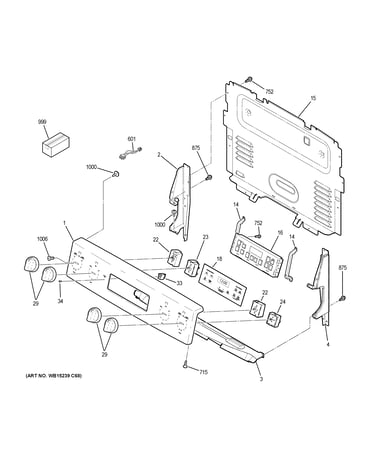

Control panel diagram

Range surface element control switch, 2,600-watt

Part #WB24T10025

BEST SELLER
$35.05 |
15% OFF Phone Price : $41.05
In Stock
Range Radiant Surface Element, 5-1/2-in (replaces Wb30t10127) WB30T10145
#56

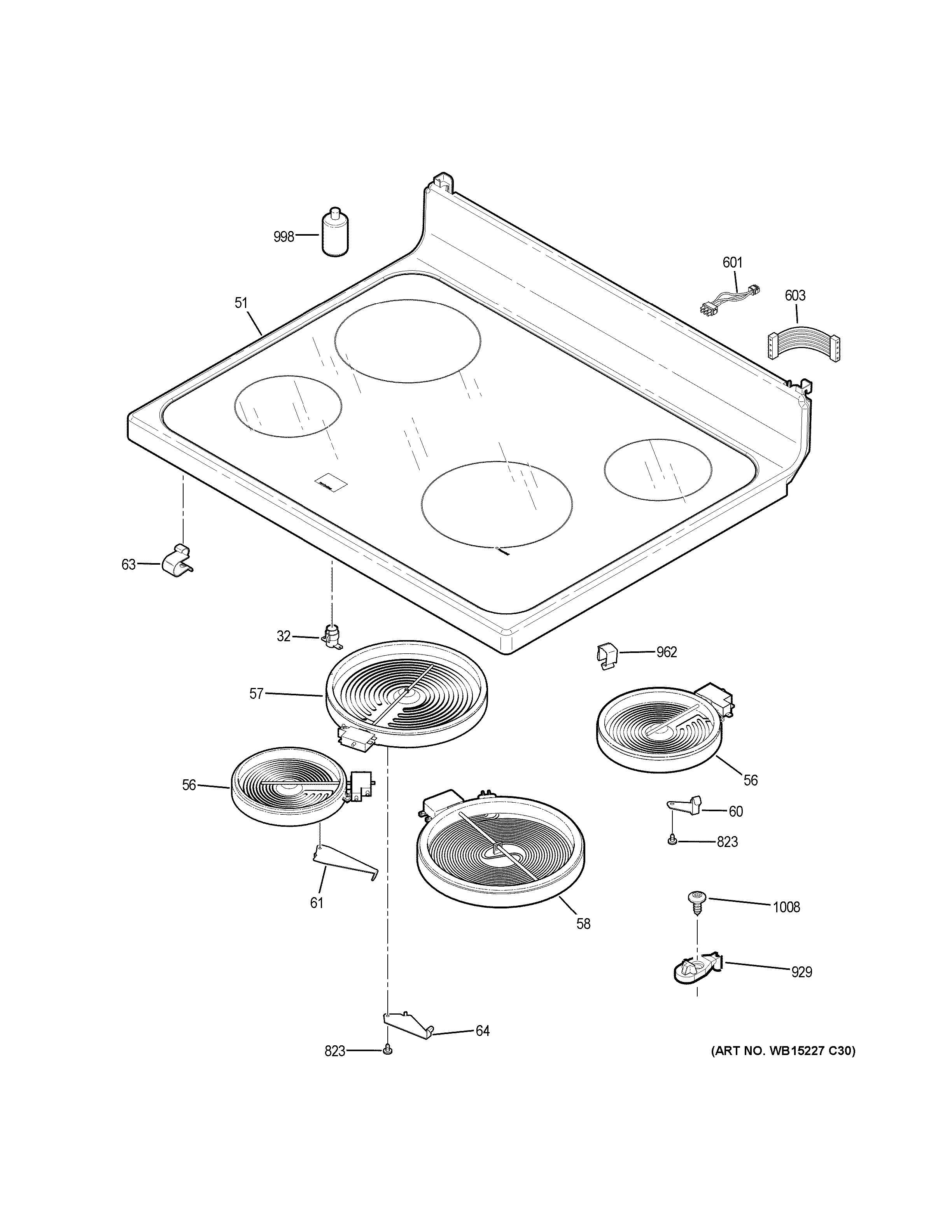

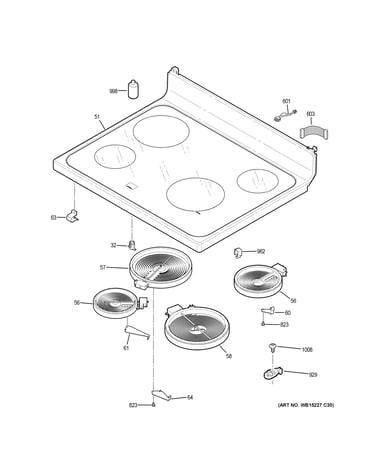

Cooktop diagram

Range radiant surface element, 5-1/2-in (replaces wb30t10127)

Part #WB30T10145

BEST SELLER
$85.47 |
7% OFF Phone Price : $91.47
In Stock
Range Radiant Surface Element, 8-in (replaces Wb30t10128) WB30T10132
#57

Cooktop diagram

Range radiant surface element, 8-in (replaces wb30t10128)

Part #WB30T10132

BEST SELLER
$53.12 |
10% OFF Phone Price : $59.12
In Stock
Range Oven Door Inner Glass (replaces Wb55t10154, Wb56t10152, Wb56x26391) WB56X22160
#338

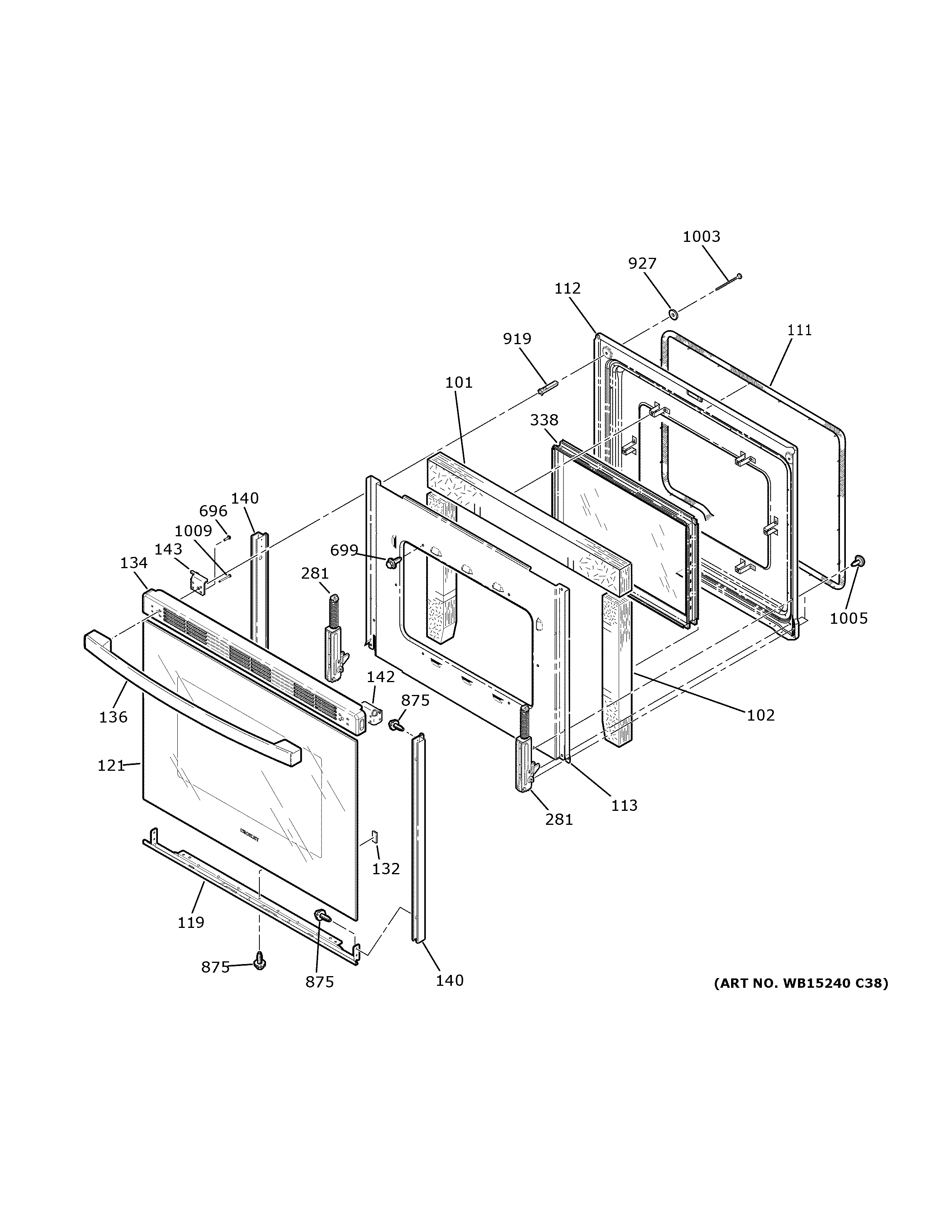

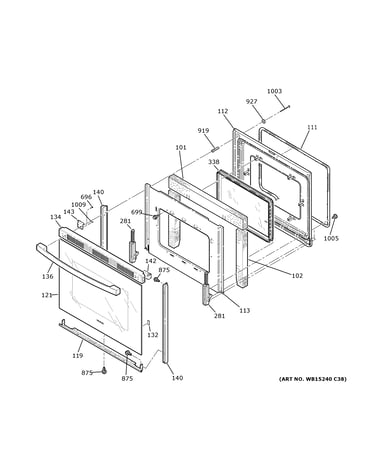

Door diagram

Range oven door inner glass (replaces wb55t10154, wb56t10152, wb56x26391)

Part #WB56X22160

BEST SELLER
$359.05 |
$12.00 OFF Phone Price : $371.05
In Stock
Cooktop Indicator Light WB27T10668
#32

Cooktop diagram

Cooktop indicator light

Part #WB27T10668

BEST SELLER
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Oven Control Overlay WB07X26647
#18

Control panel diagram

Range oven control overlay

Part #WB07X26647

$31.46 |
16% OFF Phone Price : $37.46
In Stock
Range Oven Door Lock Handle And Latch Assembly (replaces Wb14t10092) WB14X41386
#150

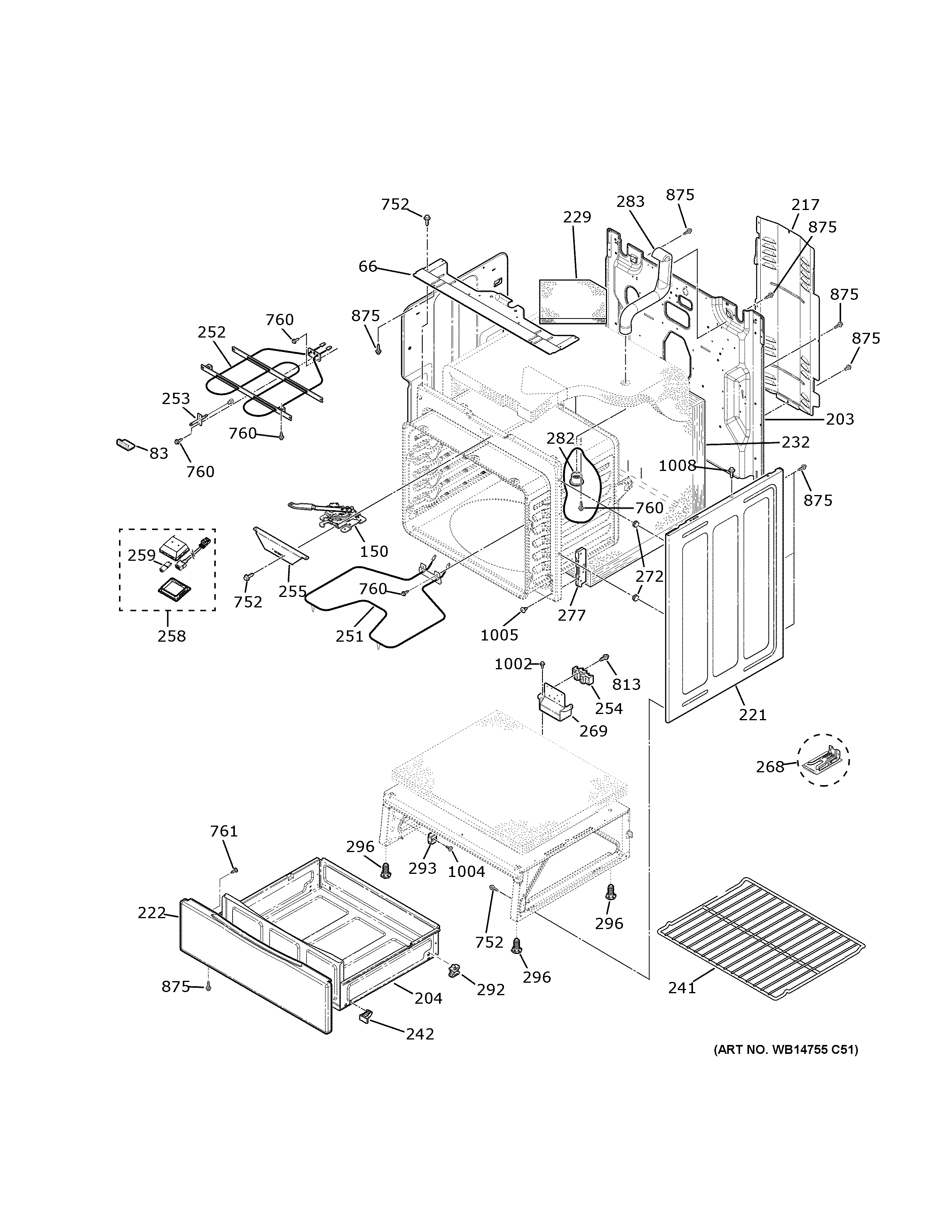

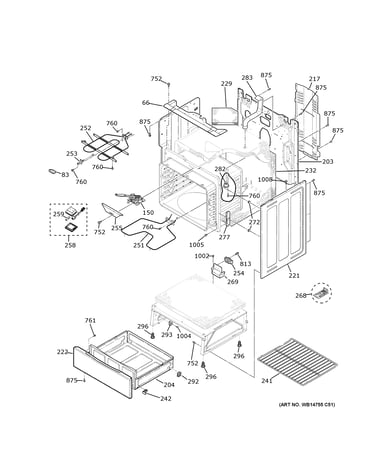

Body parts diagram

Range oven door lock handle and latch assembly (replaces wb14t10092)

Part #WB14X41386

$53.71
In Stock
Range Oven Door Gasket (replaces Wb04t10001) WB04T10086
#111

Door diagram

Range oven door gasket (replaces wb04t10001)

Part #WB04T10086

$39.75 |
13% OFF Phone Price : $45.75
In Stock
Ge Range Main Top, Black WB62X20907
#51

Cooktop diagram

Ge range main top, black

Part #WB62X20907

$466.43 |
$12.00 OFF Phone Price : $478.43
In Stock
Wall Oven Light Bulb WB25T10102
#259

Body parts diagram

Wall oven light bulb

Part #WB25T10102

This item is not returnable
$15.03 |
12% OFF Phone Price : $17.03
In Stock
