Model # LSHD3680ST/00 Official LG range hood

Here are the diagrams and repair parts for Official LG LSHD3680ST-00 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 28 parts |

#17

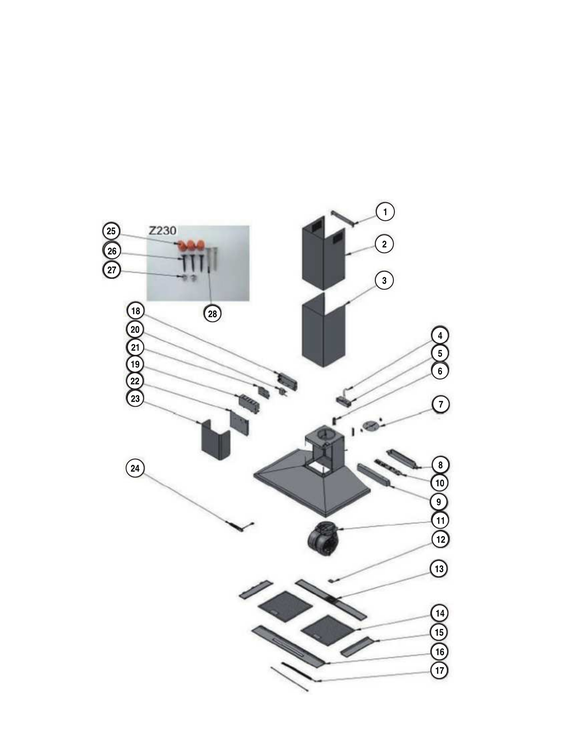

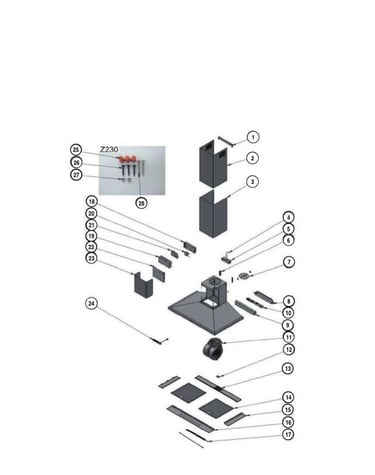

Range hood diagram

Range hood light bulb

Part #EBZ63405084

$220.89

In Stock

Qty

#10

Range hood diagram

Pcb assy,mai

Part #EBR82409905

$129.58

In Stock

Qty

#21

Range hood diagram

Pcb assy,mai

Part #EBZ63405051

$327.80

In Stock

Qty

#13

Range hood diagram

Lg panel assembly,rear,part

Part #EBZ63405076

$194.95

In Stock

Qty

#15

Range hood diagram

Lg panel,side,part

Part #EBZ63405077

$96.53

In Stock

Qty

#20

Range hood diagram

Capacitor,pa

Part #EBZ63405050

$129.58

In Stock

Qty

#25

Range hood diagram

Nut,part

Part #EBZ63405021

$10.27 |

16% OFF Phone Price : $12.27

In Stock

Qty

Range hood diagram

Bracket,part

Part #EBZ63405041

$47.27

In Stock

Qty

#26

Range hood diagram

Screw,part

Part #EBZ63405025

$13.20

In Stock

Qty

Range hood diagram

Range hood flue cover, upper

Part #EBZ63405072

$235.29

In Stock

Qty
