Craftsman
Front-Engine Lawn Tractor

Model # 502255150 Official Craftsman lawn tractor

Here are the diagrams and repair parts for Official Craftsman 502255150 lawn tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

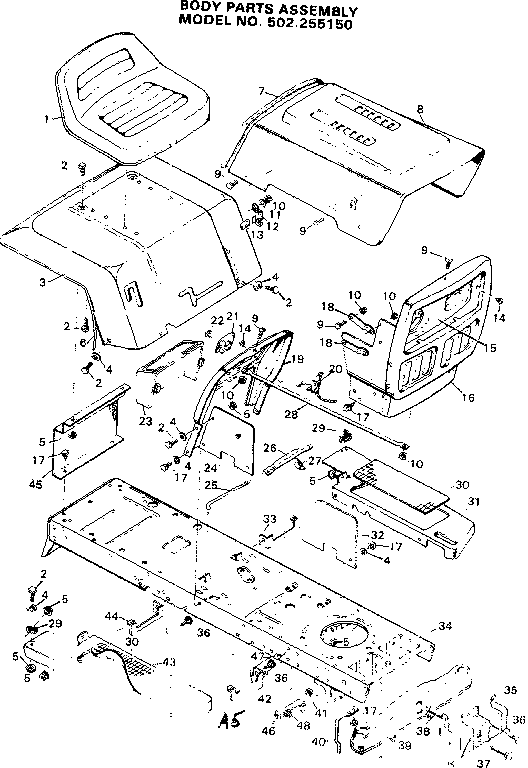

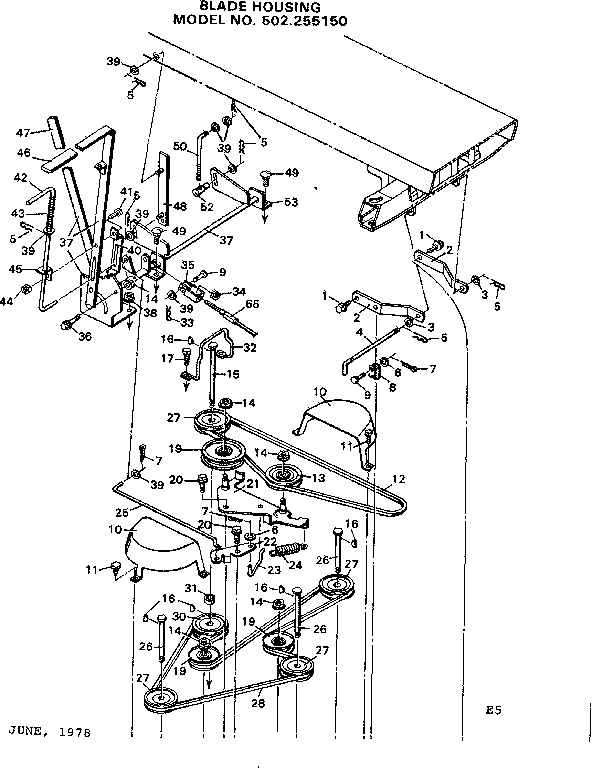

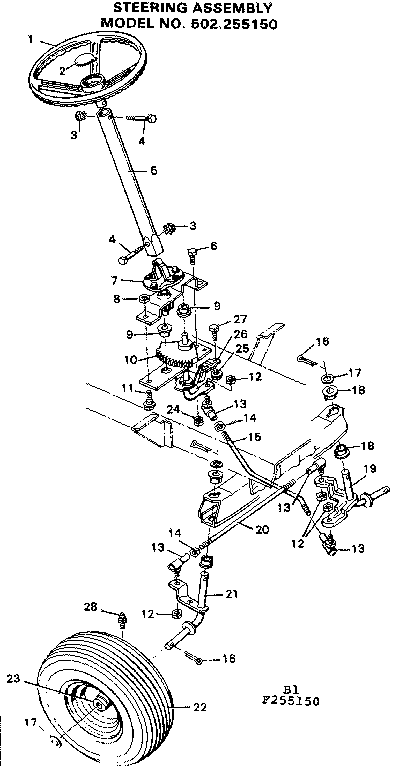

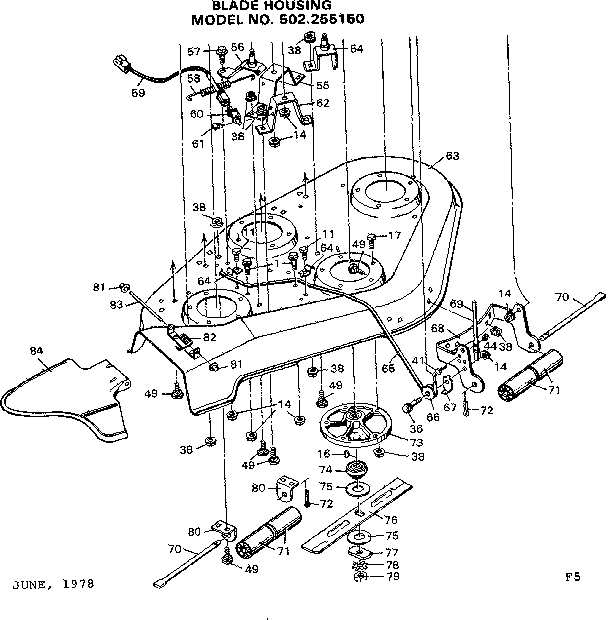

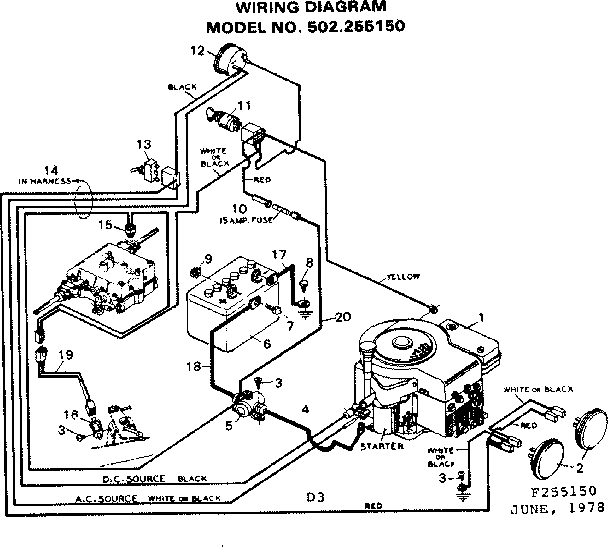

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 298 parts  |
Filter 23712
#65

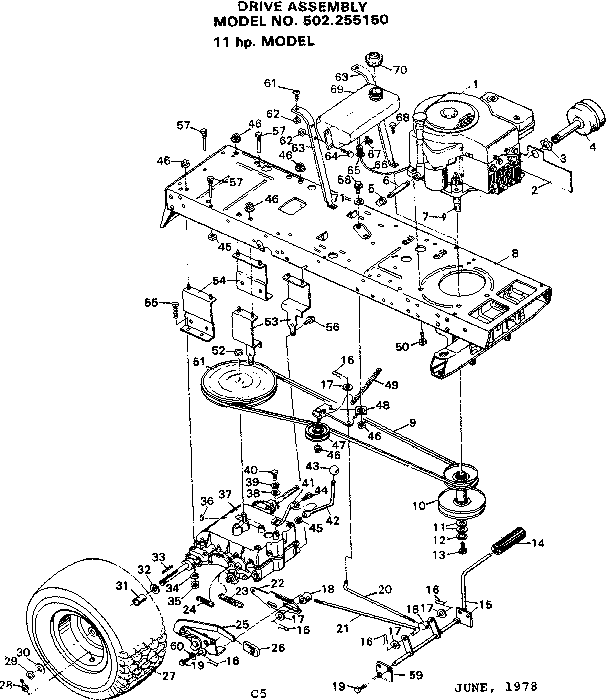

Drive assembly diagram

Filter

Part #23712

Replaced by #84001895

?
Manufacturer substitution
This part replaces 23712. Substitute parts can look different from the original.
BEST SELLER
$9.59 |
9% OFF Phone Price : $10.59
In Stock
Pad 790006
#52

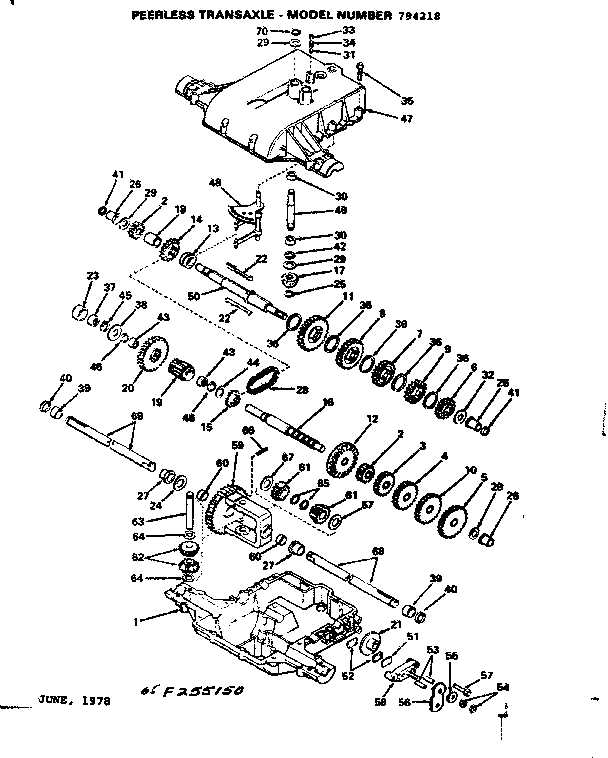

Peerless transaxle diagram

Pad

Part #790006

Replaced by #799021

?
Manufacturer substitution
This part replaces 790006. Substitute parts can look different from the original.
BEST SELLER
$8.91 |
10% OFF Phone Price : $9.91
In Stock
Valve Cap 400162
Valve cap

Part #400162

Replaced by #65139

?
Manufacturer substitution
This part replaces 400162. Substitute parts can look different from the original.
BEST SELLER
$10.49 |
16% OFF Phone Price : $12.49
In Stock
Plate 790007
#51

Peerless transaxle diagram

Plate

Part #790007

Replaced by #790007

?
Manufacturer substitution
This part replaces 790007. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.29 |
16% OFF Phone Price : $6.29
In Stock
Murray Lawn Tractor Spring 792079
#34

Peerless transaxle diagram

Murray lawn tractor spring

Part #792079

This item is not returnable
$3.40 |
23% OFF Phone Price : $4.40
In Stock
Race 780072
#29

Peerless transaxle diagram

Race

Part #780072

Replaced by #780072

?
Manufacturer substitution
This part replaces 780072. Substitute parts can look different from the original.
This item is not returnable
$3.40 |
23% OFF Phone Price : $4.40
In Stock
Bolt STD533107
Bolt

Part #STD533107

The manufacturer no longer makes this part, and there's no substitute part

Ring 788051
#41

Peerless transaxle diagram

Ring

Part #788051

Replaced by #788051A

?
Manufacturer substitution
This part replaces 788051. Substitute parts can look different from the original.
This item is not returnable
$4.60
In Stock
Bearing 780059
#27

Peerless transaxle diagram

Bearing

Part #780059

Replaced by #780059MA

?
Manufacturer substitution
This part replaces 780059. Substitute parts can look different from the original.
$39.21 |
13% OFF Phone Price : $45.21
In Stock
Lock Nut STD541431
Lock nut

Part #STD541431

The manufacturer no longer makes this part, and there's no substitute part
