LG
Range

Model # LSD4913ST/00 Official LG dual fuel slide-in range

Here are the diagrams and repair parts for Official LG LSD4913ST-00 dual fuel slide-in range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

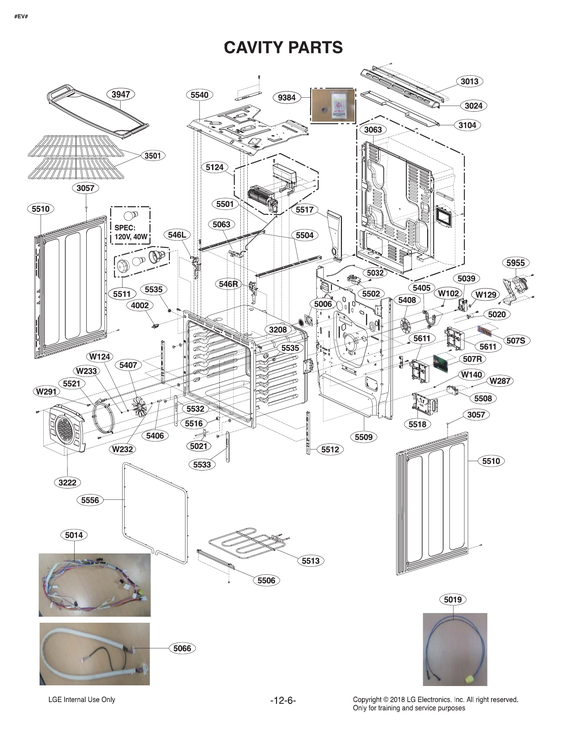

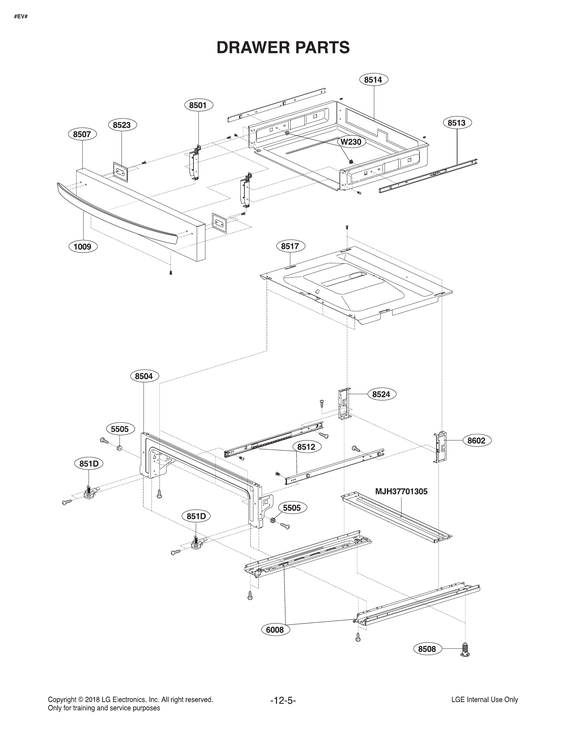

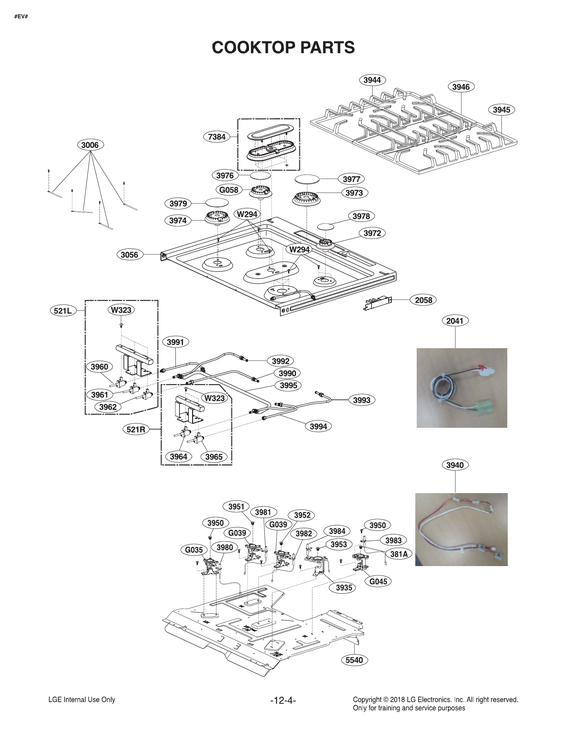

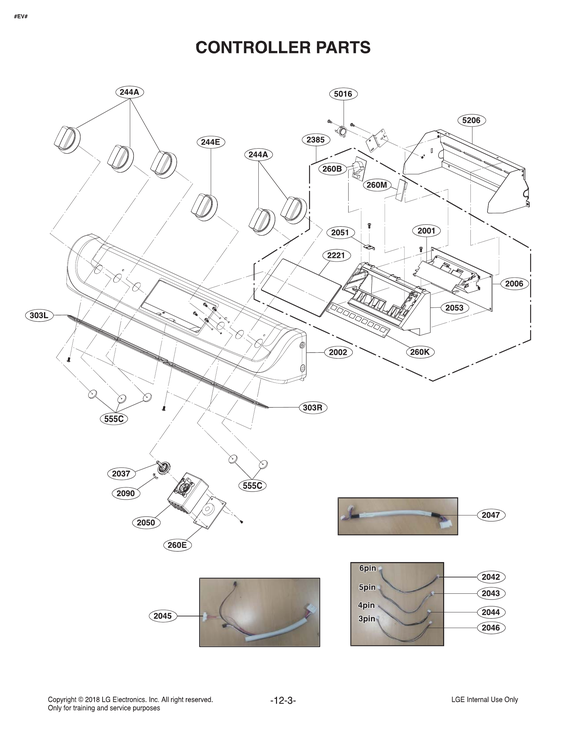

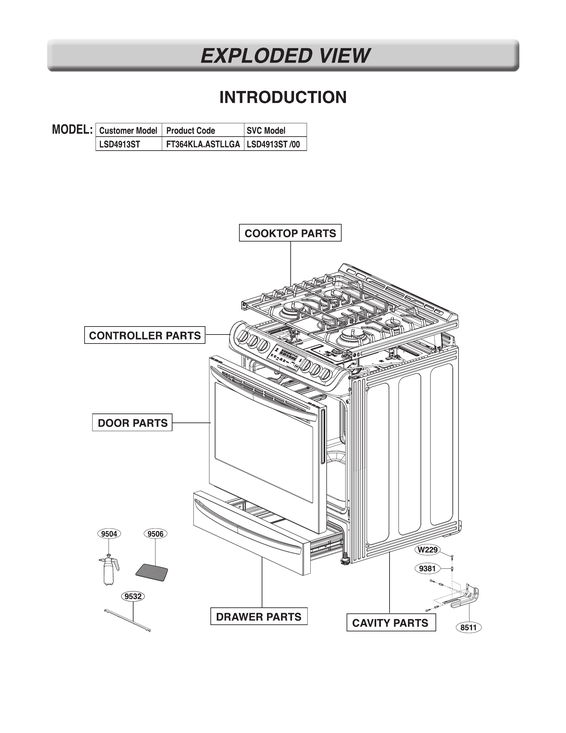

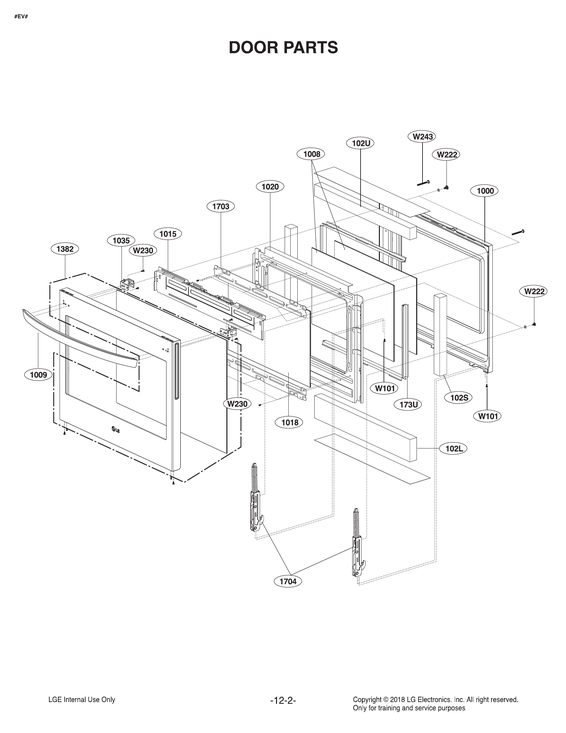

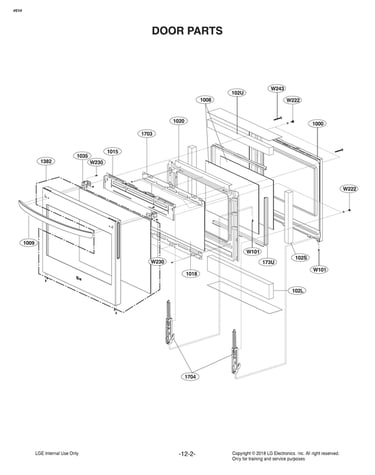

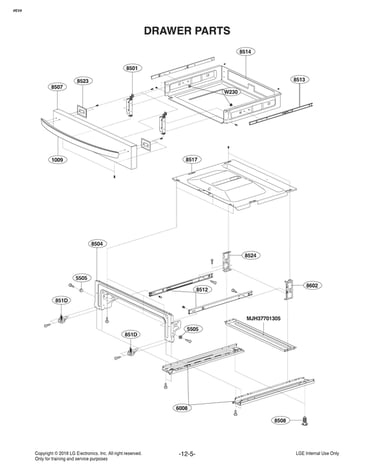

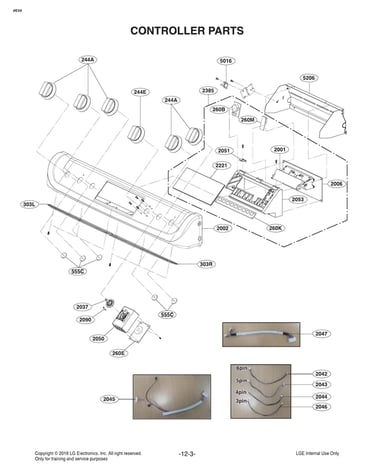

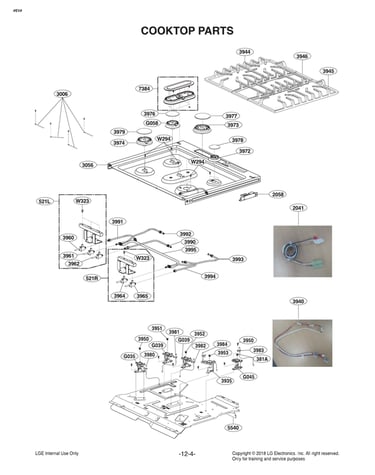

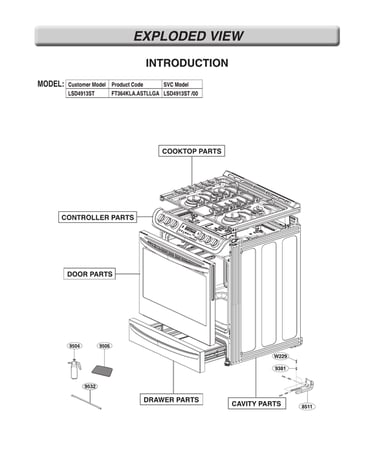

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 166 parts  |
Lg Range Oven Temperature Sensor (replaces Ebg61305801) EBG61305805

#5021

All parts diagram

Lg range oven temperature sensor (replaces ebg61305801)

Part #EBG61305805

BEST SELLER
$55.60 |
10% OFF Phone Price : $61.60
In Stock
Microwave Thermostat (replaces 6930w1a002k, 6930wrt003c) 6930W1A003J

#5016

All parts diagram

Microwave thermostat (replaces 6930w1a002k, 6930wrt003c)

Part #6930W1A003J

BEST SELLER
$10.27 |
16% OFF Phone Price : $12.27
In Stock
Range Broil Element (replaces Mee62306501) MEE62306504

#5513

All parts diagram

Range broil element (replaces mee62306501)

Part #MEE62306504

BEST SELLER
$68.86 |
8% OFF Phone Price : $74.86
In Stock
Range Knob Spring MHY64083701

#2090

All parts diagram

Range knob spring

Part #MHY64083701

BEST SELLER
$8.29
In Stock
Range Safety Thermostat 6930W1A003X

#5020

All parts diagram

Range safety thermostat

Part #6930W1A003X

BEST SELLER
$11.97 |
14% OFF Phone Price : $13.97
In Stock
Range Convection Fan Blade MDG62882901

#5407

All parts diagram

Range convection fan blade

Part #MDG62882901

BEST SELLER
This item is not returnable
$21.20 |
22% OFF Phone Price : $27.20
Back Order
Range Nut 1NHB0500032

#W233

All parts diagram

Range nut

Part #1NHB0500032

BEST SELLER
This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Range Oven Door Inner Glass 4890W1N005L

#1008

All parts diagram

Range oven door inner glass

Part #4890W1N005L

BEST SELLER
$99.55 |
11% OFF Phone Price : $111.55
In Stock
Cooktop Spark Module (replaces Ebj60659901, Ebz60709801) EBJ62730001

#2058

All parts diagram

Cooktop spark module (replaces ebj60659901, ebz60709801)

Part #EBJ62730001

Replaced by #EBJ64465501

?
Manufacturer substitution
This part replaces EBJ62730001. Substitute parts can look different from the original.
BEST SELLER
$51.44
In Stock
Range Oven Light Switch (replaces 6600r000082, Ebf60663401) EBF60663403

#4002

All parts diagram

Range oven light switch (replaces 6600r000082, ebf60663401)

Part #EBF60663403

This item is not returnable
$25.20 |
19% OFF Phone Price : $31.20
In Stock
