Bosch
Electric Wall Oven

Model # HBN5420UC/01 Official Bosch electric built-in oven

Here are the diagrams and repair parts for Official Bosch HBN5420UC-01 electric built-in oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

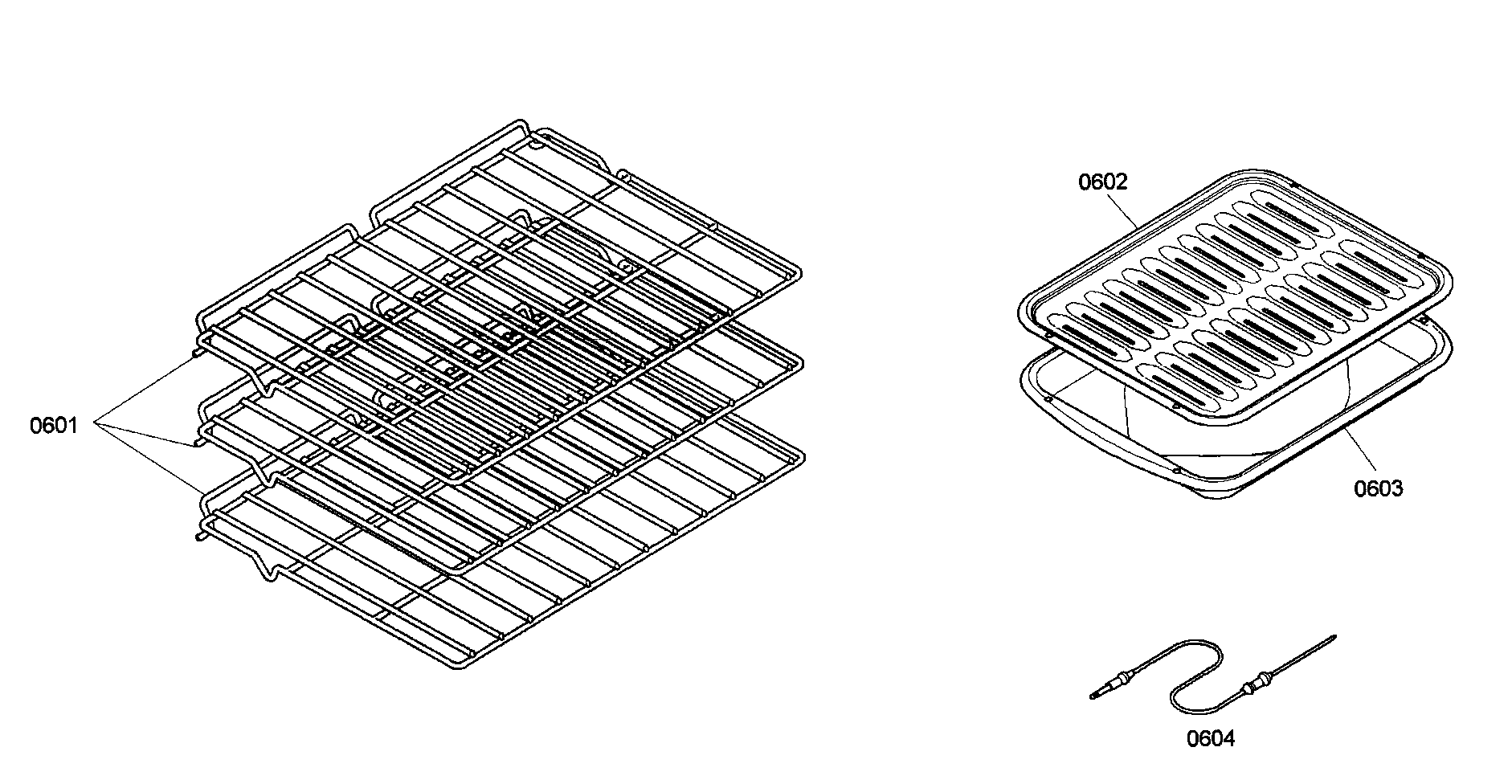

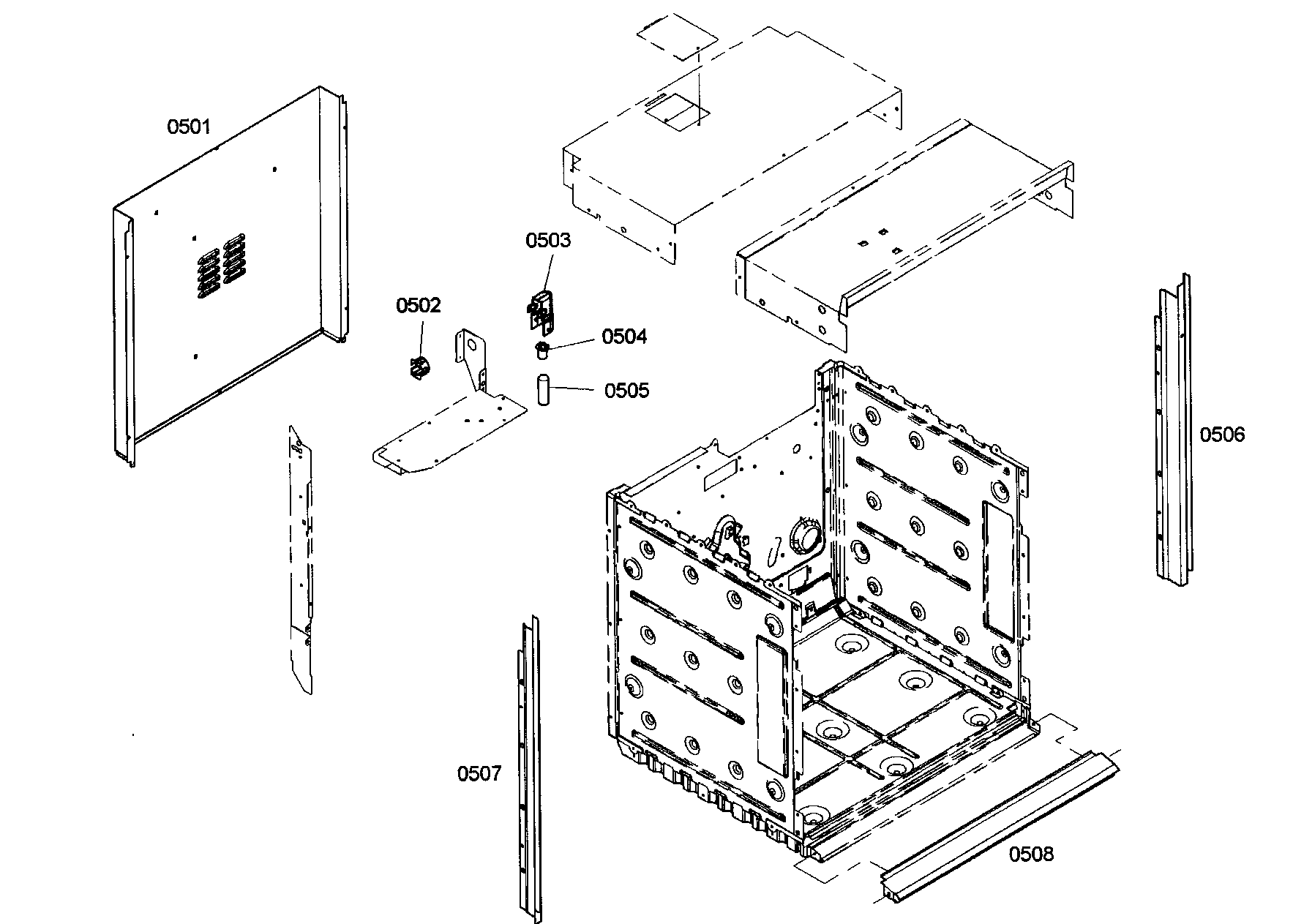

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 82 parts  |
Motor 642845
#302

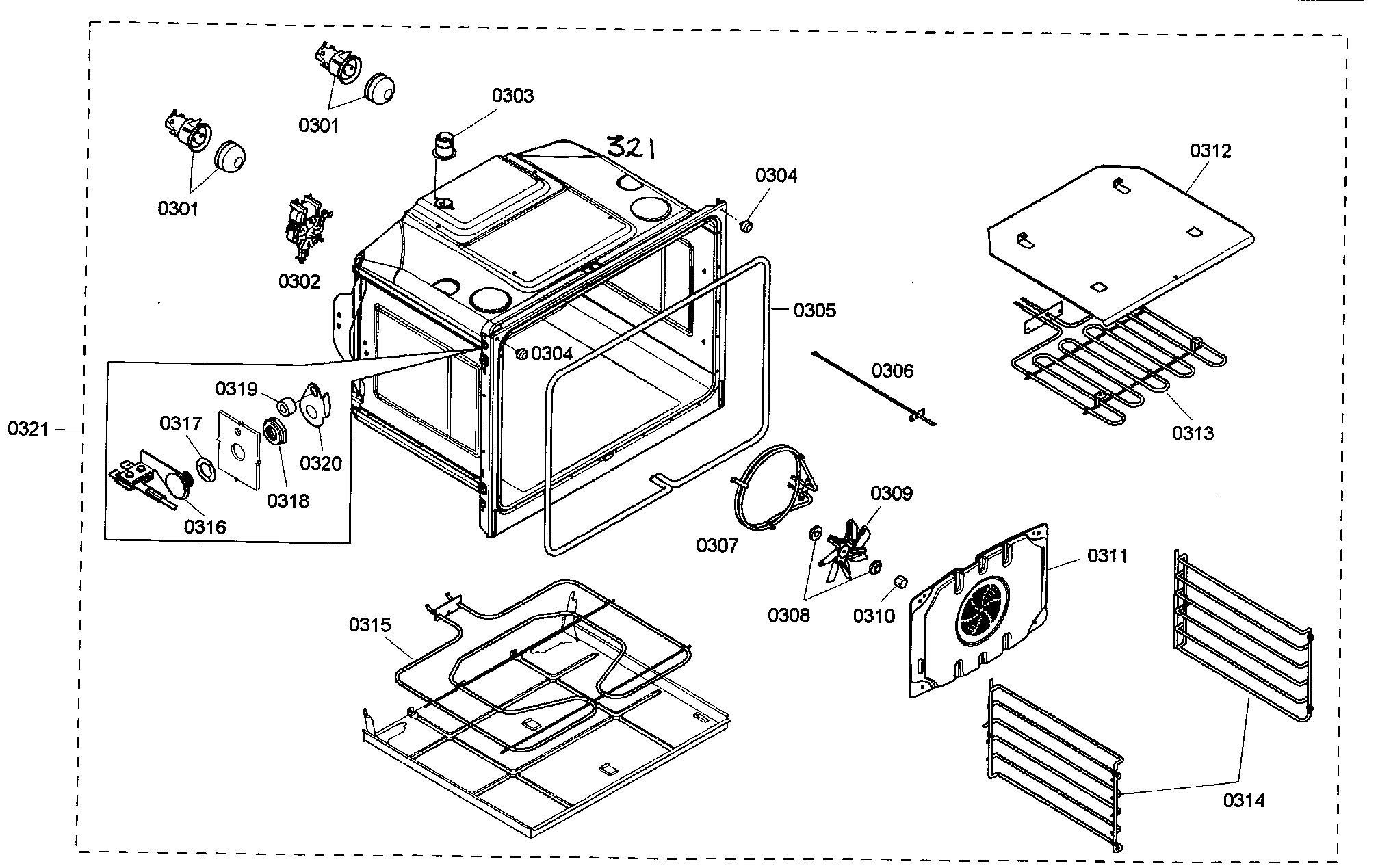

Oven assy diagram

Motor

Part #642845

Replaced by #00642845

?
Manufacturer substitution
This part replaces 642845. Substitute parts can look different from the original.
$165.59 |
7% OFF Phone Price : $177.59
In Stock
Limiter 642844
#206

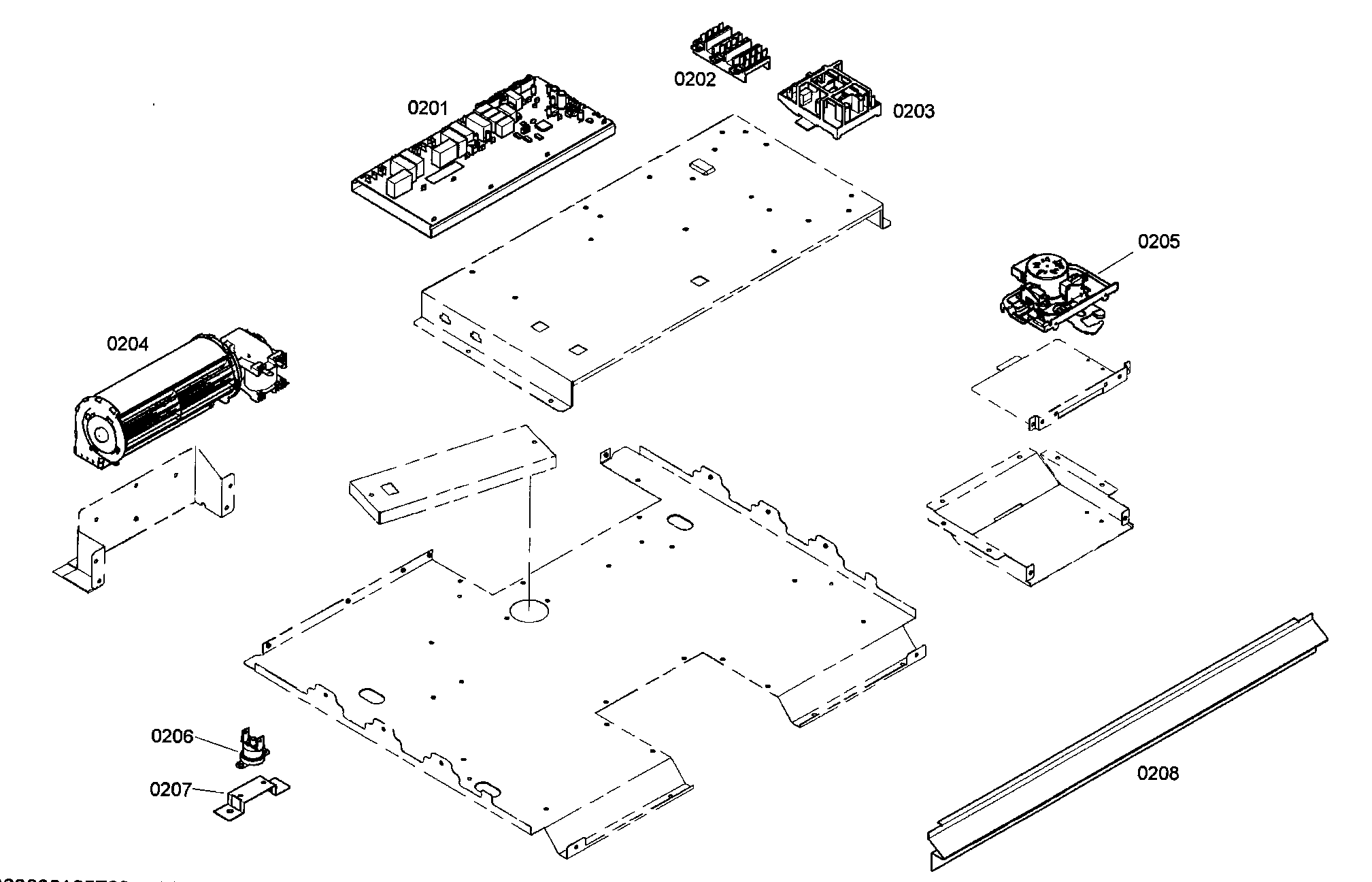

Control assy diagram

Limiter

Part #642844

Replaced by #00617877

?
Manufacturer substitution
This part replaces 642844. Substitute parts can look different from the original.
$29.36
In Stock
Cntrl.mech 665239
#101

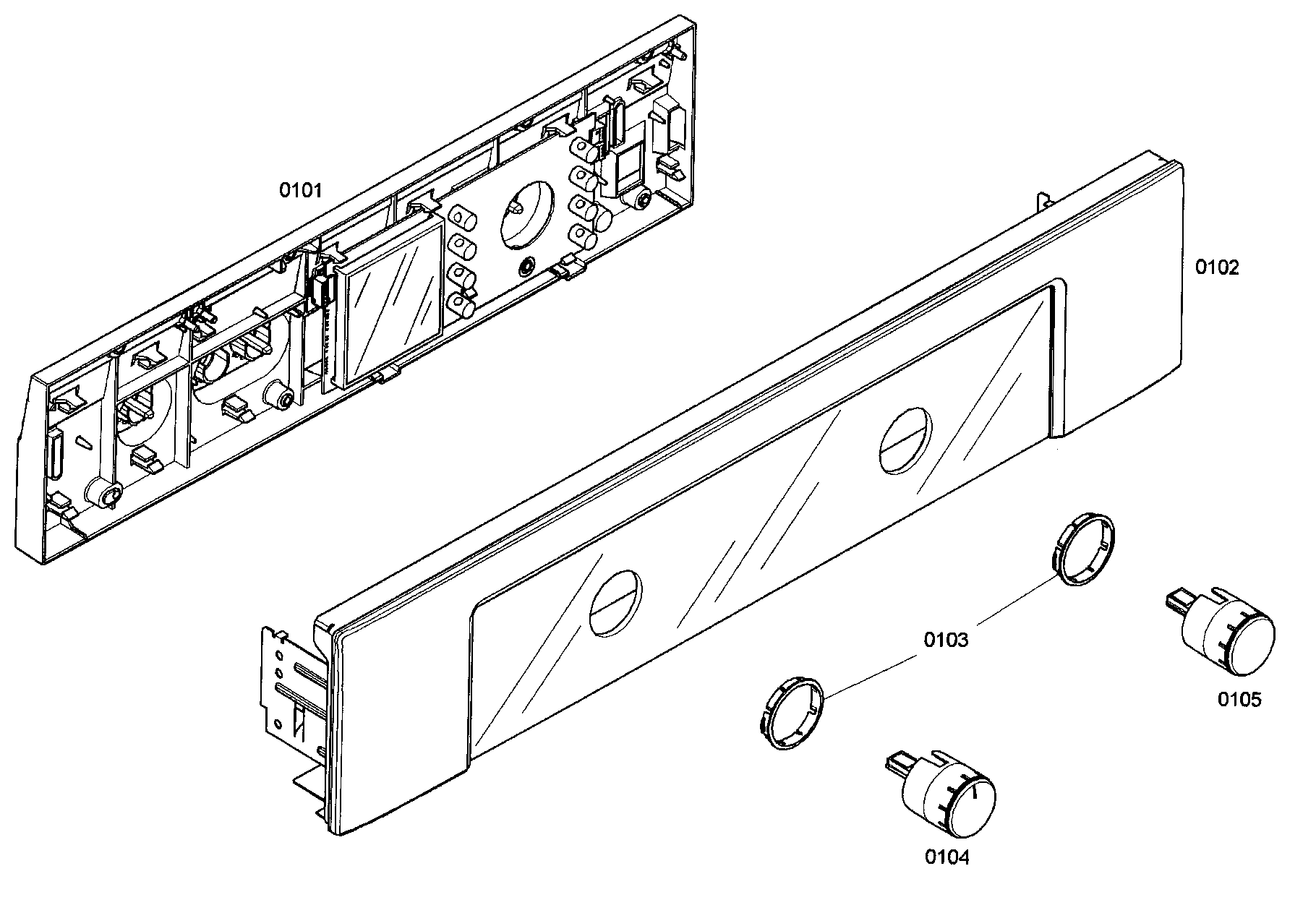

Front panel diagram

Cntrl.mech

Part #665239

Replaced by #00702859

?
Manufacturer substitution
This part replaces 665239. Substitute parts can look different from the original.
$220.11 |
5% OFF Phone Price : $232.11
In Stock
Ring 423808
#103

Front panel diagram

Ring

Part #423808

Replaced by #00423808

?
Manufacturer substitution
This part replaces 423808. Substitute parts can look different from the original.
This item is not returnable
$20.34
In Stock
Bracket 610187
#412

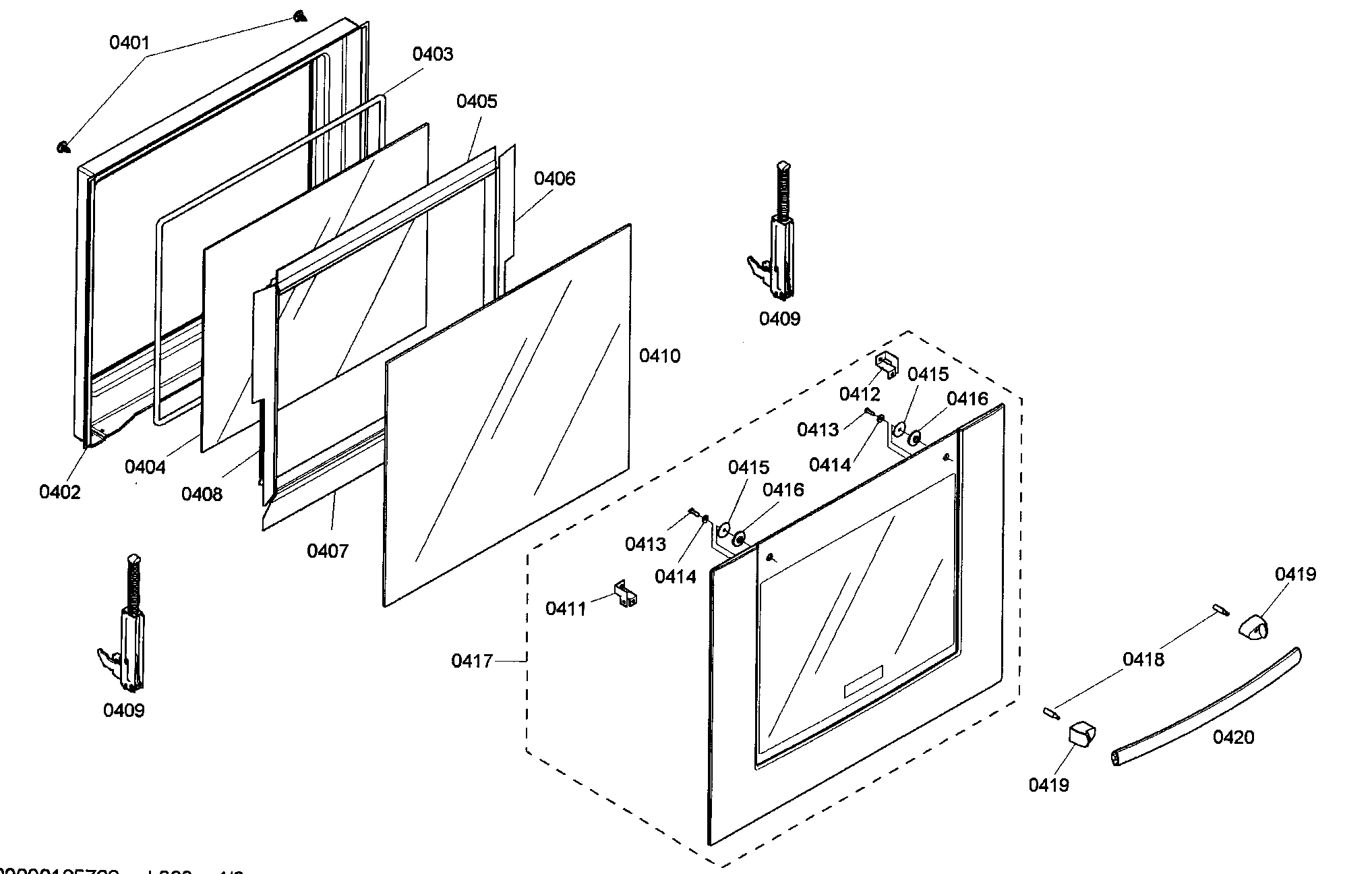

Door assy diagram

Bracket

Part #610187

Replaced by #00613179

?
Manufacturer substitution
This part replaces 610187. Substitute parts can look different from the original.
$23.49
In Stock
Fan 665045
#204

Control assy diagram

Fan

Part #665045

Replaced by #00665045

?
Manufacturer substitution
This part replaces 665045. Substitute parts can look different from the original.
$187.14
In Stock
Trim Plate 643430
#408

Door assy diagram

Trim plate

Part #643430

Replaced by #00680904

?
Manufacturer substitution
This part replaces 643430. Substitute parts can look different from the original.
$214.01 |
5% OFF Phone Price : $226.01
In Stock
Wall Oven Wire Harness 663925
#NI

Front panel diagram

Wall oven wire harness

Part #663925

Replaced by #00663925

?
Manufacturer substitution
This part replaces 663925. Substitute parts can look different from the original.
$26.29
In Stock
Inner Door 478701
#402

Door assy diagram

Inner door

Part #478701

Replaced by #00688544

?
Manufacturer substitution
This part replaces 478701. Substitute parts can look different from the original.
$332.33 |
$12.00 OFF Phone Price : $344.33
In Stock
Catalyzer 491572
#303

Oven assy diagram

Catalyzer

Part #491572

Replaced by #00491572

?
Manufacturer substitution
This part replaces 491572. Substitute parts can look different from the original.
$59.36
In Stock
