Model # 392683770 Official Sears tub door

Here are the diagrams and repair parts for Official Sears 392683770 tub door, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 65 parts |

#NI

All parts diagram

Screw (gold)

Part #310122

The manufacturer no longer makes this part, and there's no substitute part

#22

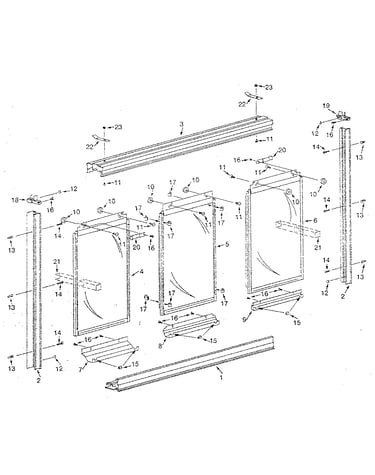

Replacement parts diagram

Robe hook

Part #496600

The manufacturer no longer makes this part, and there's no substitute part

#16A

Replacement parts diagram

Retainer screw

Part #456311

The manufacturer no longer makes this part, and there's no substitute part

#NI

All parts diagram

Bar screw

Part #310123

The manufacturer no longer makes this part, and there's no substitute part

#6C

Replacement parts diagram

Panel

Part #672229

The manufacturer no longer makes this part, and there's no substitute part

#16C

Replacement parts diagram

Retainer screw

Part #456320

The manufacturer no longer makes this part, and there's no substitute part

#NI

All parts diagram

Hrdware pack

Part #672512

The manufacturer no longer makes this part, and there's no substitute part

#23A

Replacement parts diagram

Lock nut

Part #495801

The manufacturer no longer makes this part, and there's no substitute part

#10

Replacement parts diagram

Shower door roller

Part #555900

The manufacturer no longer makes this part, and there's no substitute part

#9A

Replacement parts diagram

Panel guide

Part #665703

The manufacturer no longer makes this part, and there's no substitute part
