Room Air Conditioner

Model # ACQ052PK0 Official Whirlpool air conditioner

Here are the diagrams and repair parts for Official Whirlpool ACQ052PK0 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

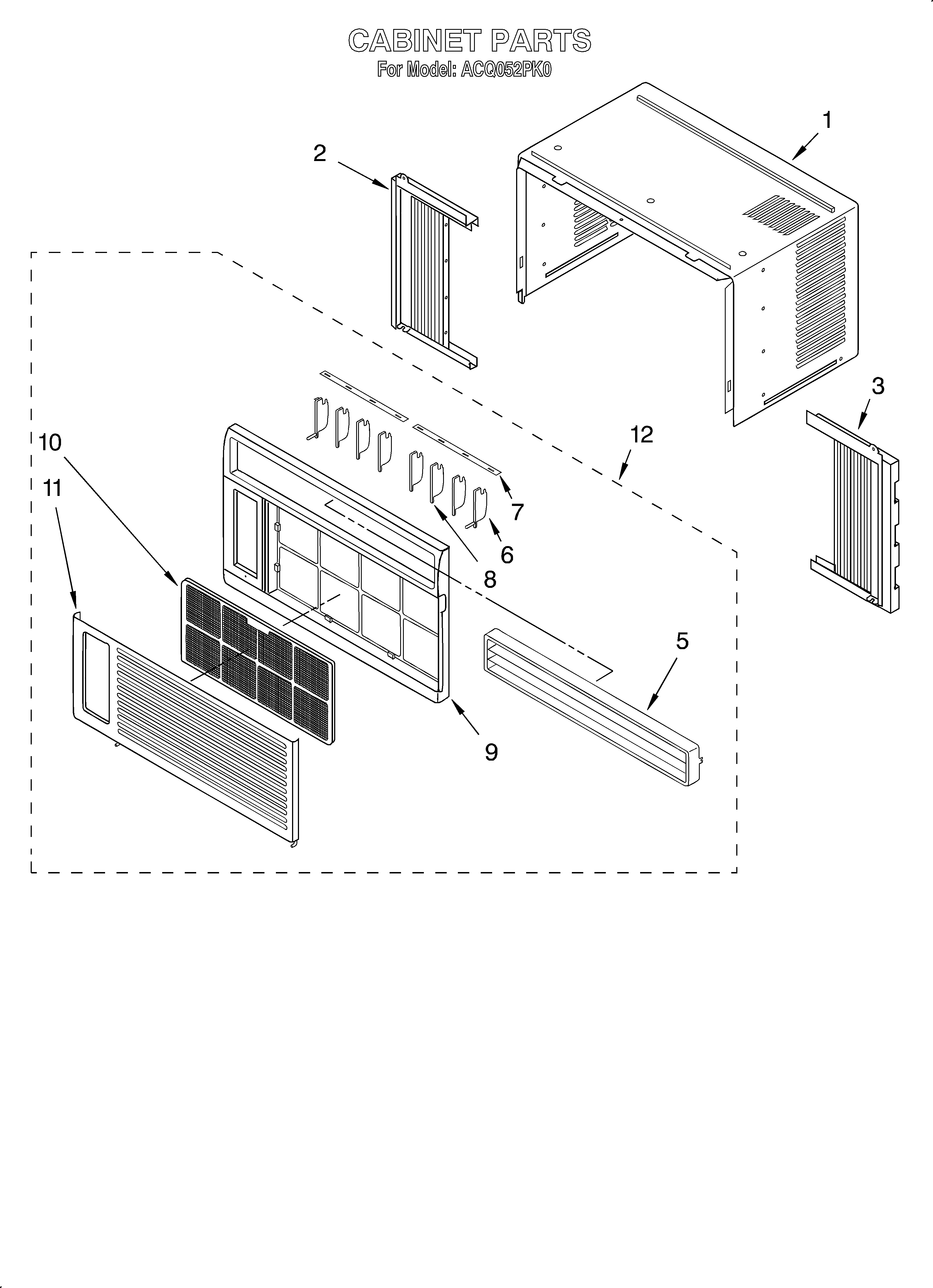

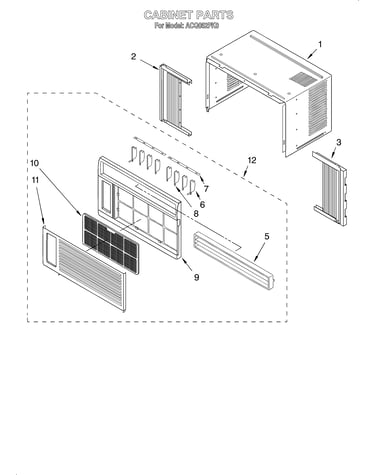

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 39 parts  |
Fan Blade 4380738
#5

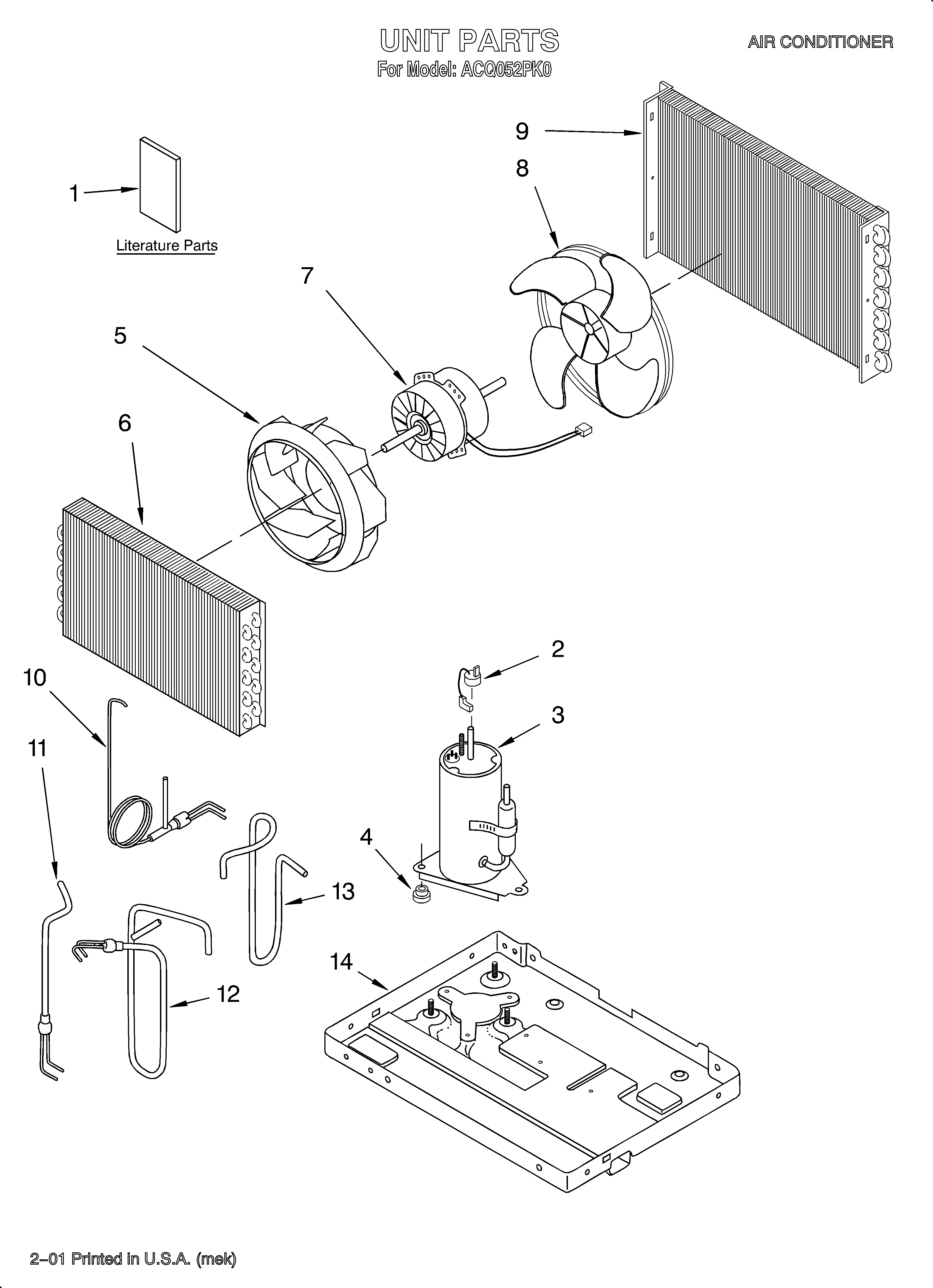

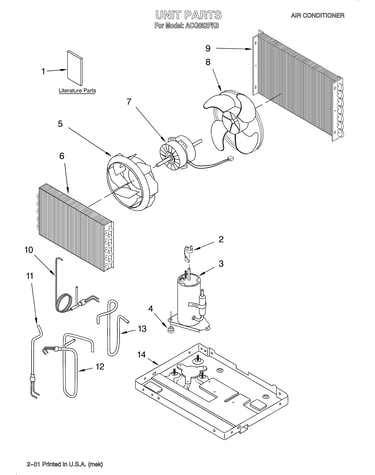

Unit/literature diagram

Fan blade

Part #4380738

The manufacturer no longer makes this part, and there's no substitute part

Housing-bl 4380740
#4

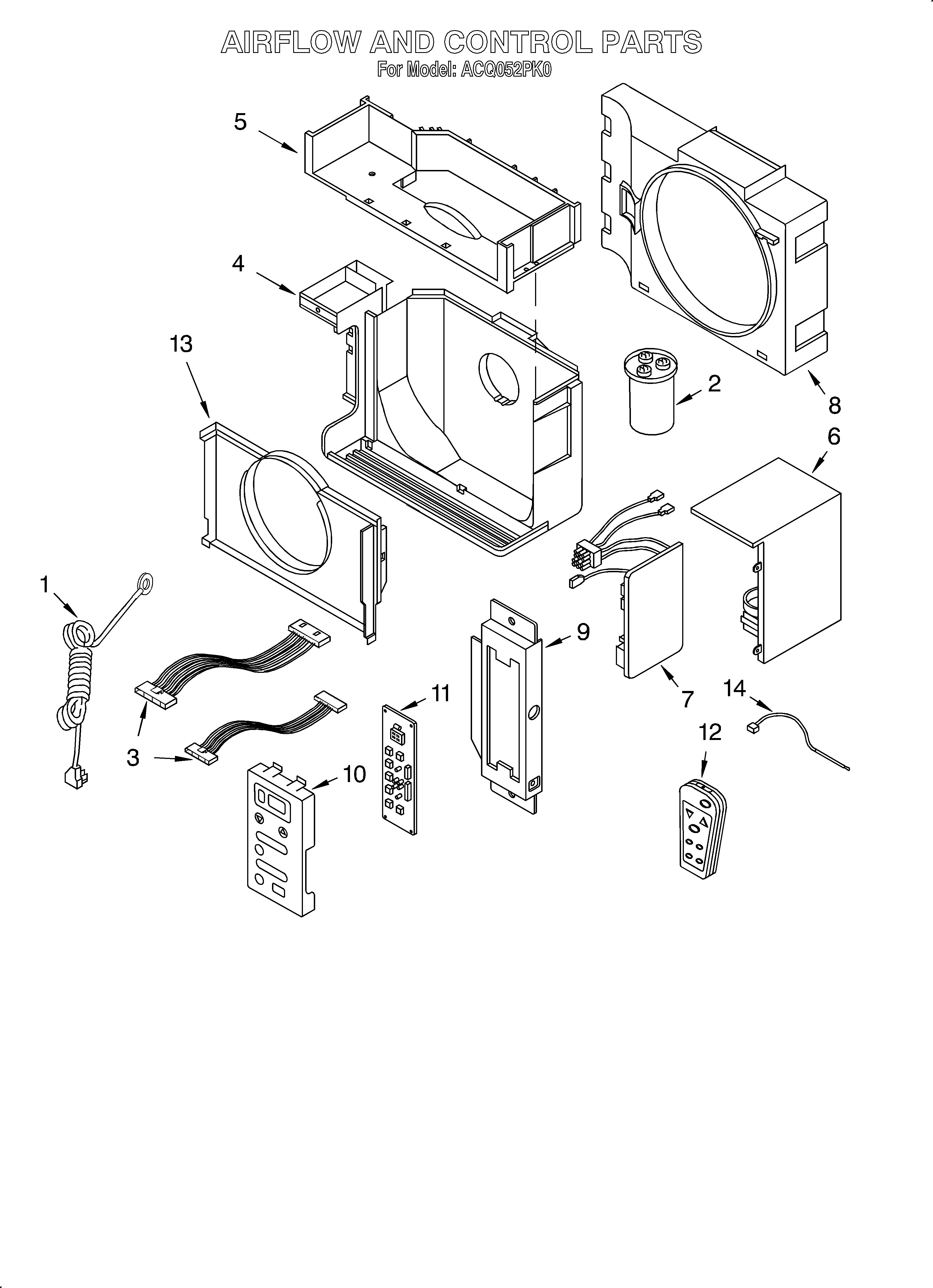

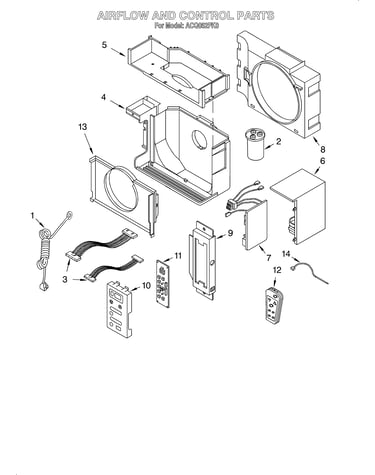

Airflow and control diagram

Housing-bl

Part #4380740

The manufacturer no longer makes this part, and there's no substitute part

Fan Blade 4380749
#8

Unit/literature diagram

Fan blade

Part #4380749

The manufacturer no longer makes this part, and there's no substitute part

Condenser 4380752
#9

Unit/literature diagram

Condenser

Part #4380752

The manufacturer no longer makes this part, and there's no substitute part

Wire Harness 4380711
#3

Airflow and control diagram

Wire harness

Part #4380711

The manufacturer no longer makes this part, and there's no substitute part

Suction Tube 4380731
#12

Unit/literature diagram

Suction tube

Part #4380731

The manufacturer no longer makes this part, and there's no substitute part

Base 4380743
#14

Unit/literature diagram

Base

Part #4380743

The manufacturer no longer makes this part, and there's no substitute part

Evaporator 4380735
#6

Unit/literature diagram

Evaporator

Part #4380735

The manufacturer no longer makes this part, and there's no substitute part

Inlet Tube 4380726
#11

Unit/literature diagram

Inlet tube

Part #4380726

The manufacturer no longer makes this part, and there's no substitute part

Overload 4380720
#2

Unit/literature diagram

Overload

Part #4380720

The manufacturer no longer makes this part, and there's no substitute part
