KitchenAid
Wine & Beverage Cooler

Model # KUWS246EBL02 Official KitchenAid wine cellar

Here are the diagrams and repair parts for Official KitchenAid KUWS246EBL02 wine cellar, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Wine Cooler Temperature Control Thermostat 4344659
#6

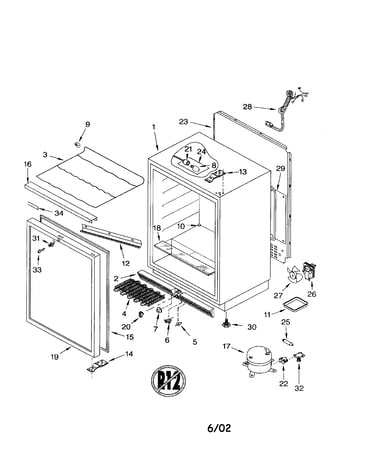

Cabinet diagram

Wine cooler temperature control thermostat

Part #4344659

Replaced by #WP4344659

?
Manufacturer substitution
This part replaces 4344659. Substitute parts can look different from the original.
$176.63 |
6% OFF Phone Price : $188.63
Back Order
Light Bulb 4344602
#8

Cabinet diagram

Light bulb

Part #4344602

Replaced by #WP22002263

?
Manufacturer substitution
This part replaces 4344602. Substitute parts can look different from the original.
$11.88 |
14% OFF Phone Price : $13.88
In Stock
Door Gasket 4344639
#15A

Cabinet diagram

Door gasket

Part #4344639

The manufacturer no longer makes this part, and there's no substitute part

Fan Blade 4344632
#27

Cabinet diagram

Fan blade

Part #4344632

The manufacturer no longer makes this part, and there's no substitute part

Drier Tube 4344630
#25

Cabinet diagram

Drier tube

Part #4344630

The manufacturer no longer makes this part, and there's no substitute part

For Field Installable Icemaker Repair Parts List, Refer To Model 106.8560 N/P
For field installable icemaker repair parts list, refer to model 106.8560

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Handle 4344650
#16C

Cabinet diagram

Handle

Part #4344650

The manufacturer no longer makes this part, and there's no substitute part

Door Hinge 4344641
#13A

Cabinet diagram

Door hinge

Part #4344641

The manufacturer no longer makes this part, and there's no substitute part

Door (stainless) 4344649
#19C

Cabinet diagram

Door (stainless)

Part #4344649

The manufacturer no longer makes this part, and there's no substitute part

Door Handle 4344646
#16B

Cabinet diagram

Door handle

Part #4344646

The manufacturer no longer makes this part, and there's no substitute part
