Craftsman

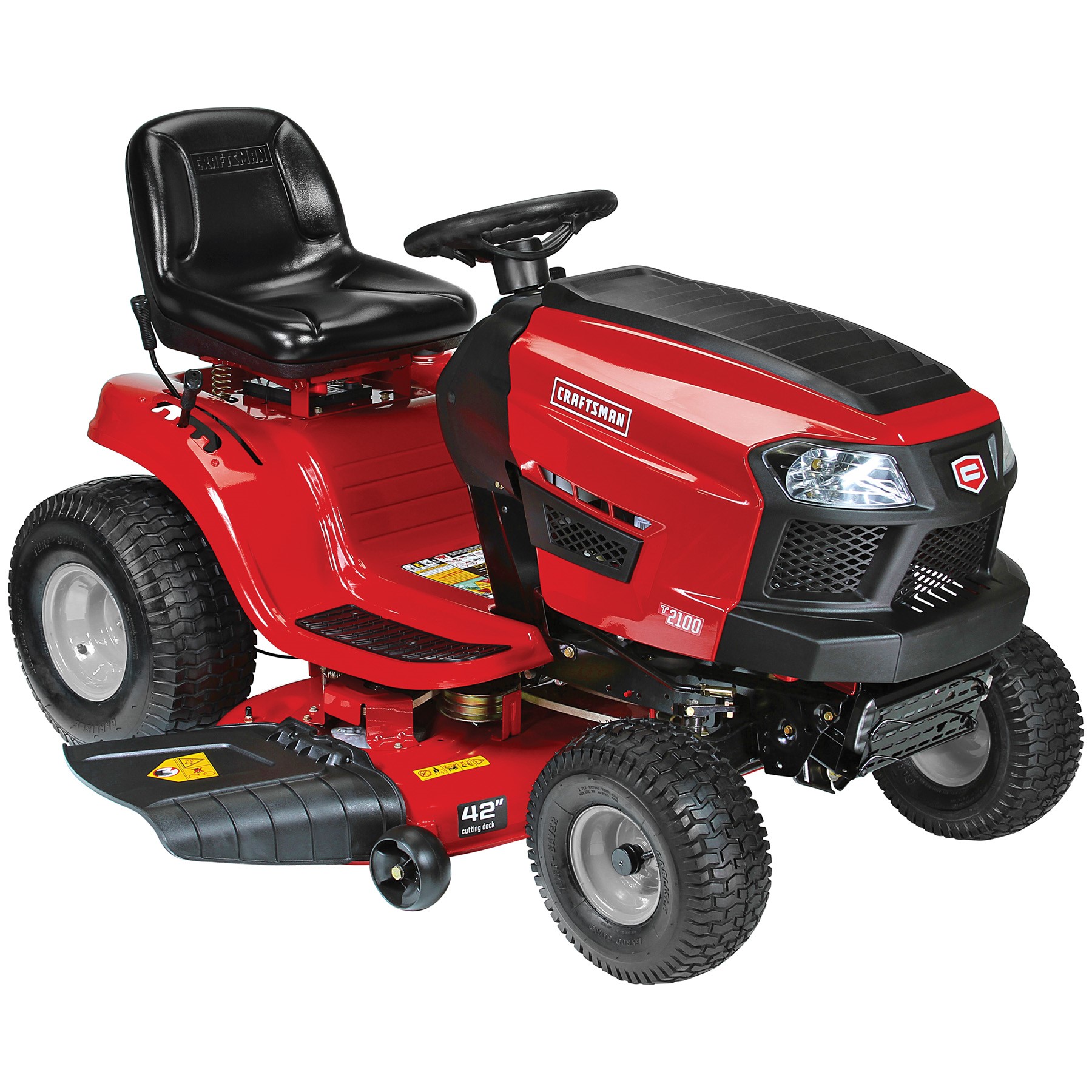

Front-Engine Lawn Tractor

Model # 247255870 Official Craftsman tractor

Here are the diagrams and repair parts for Official Craftsman 247255870 tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

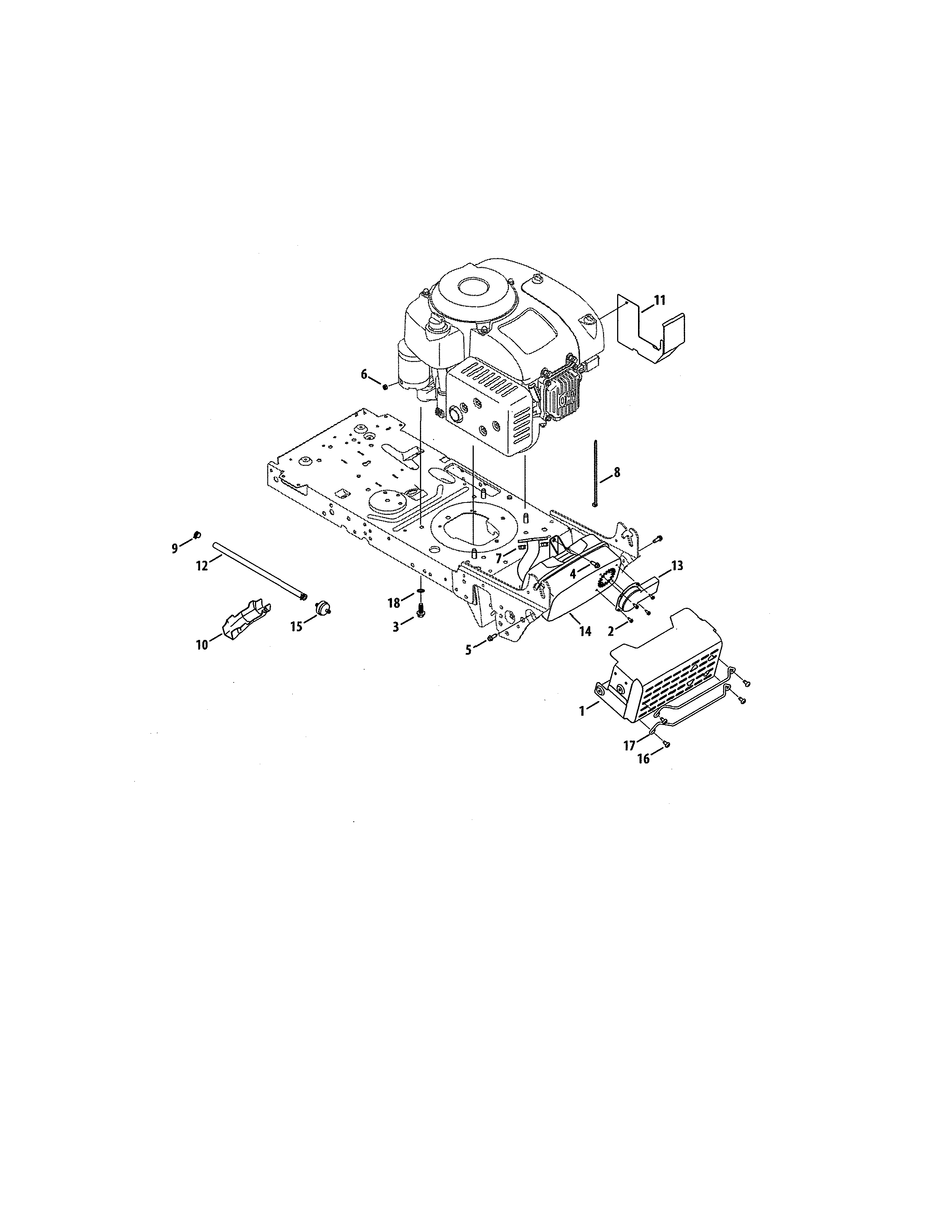

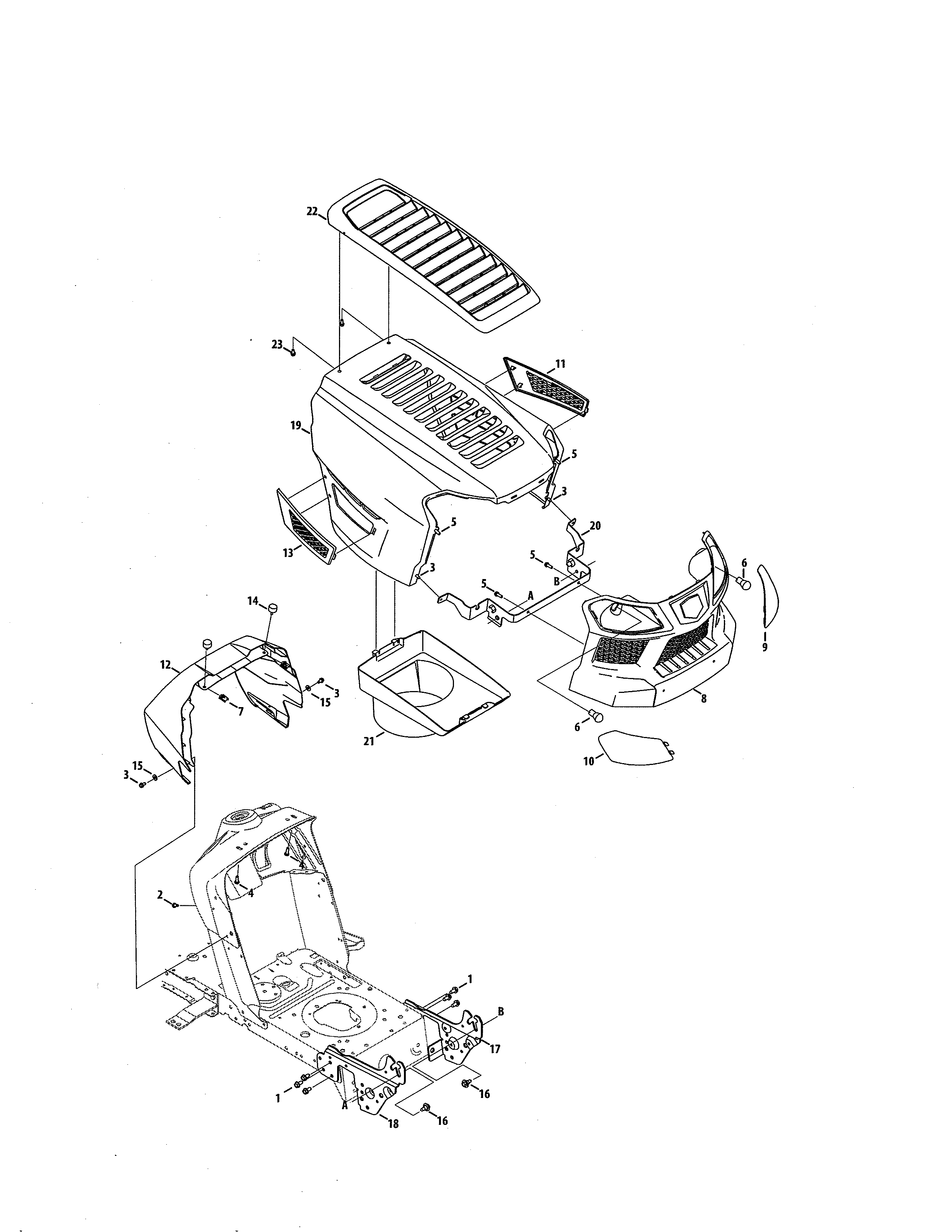

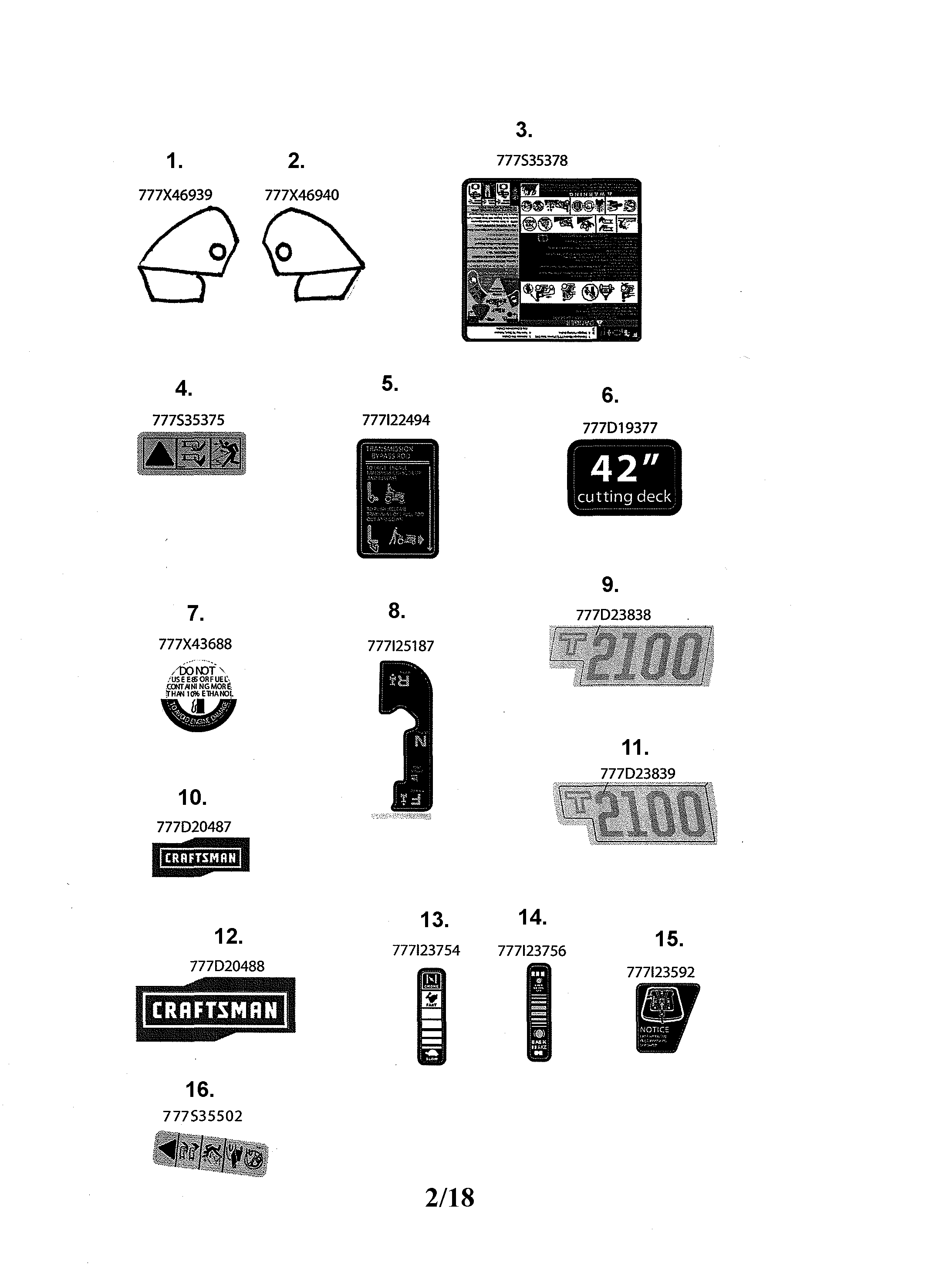

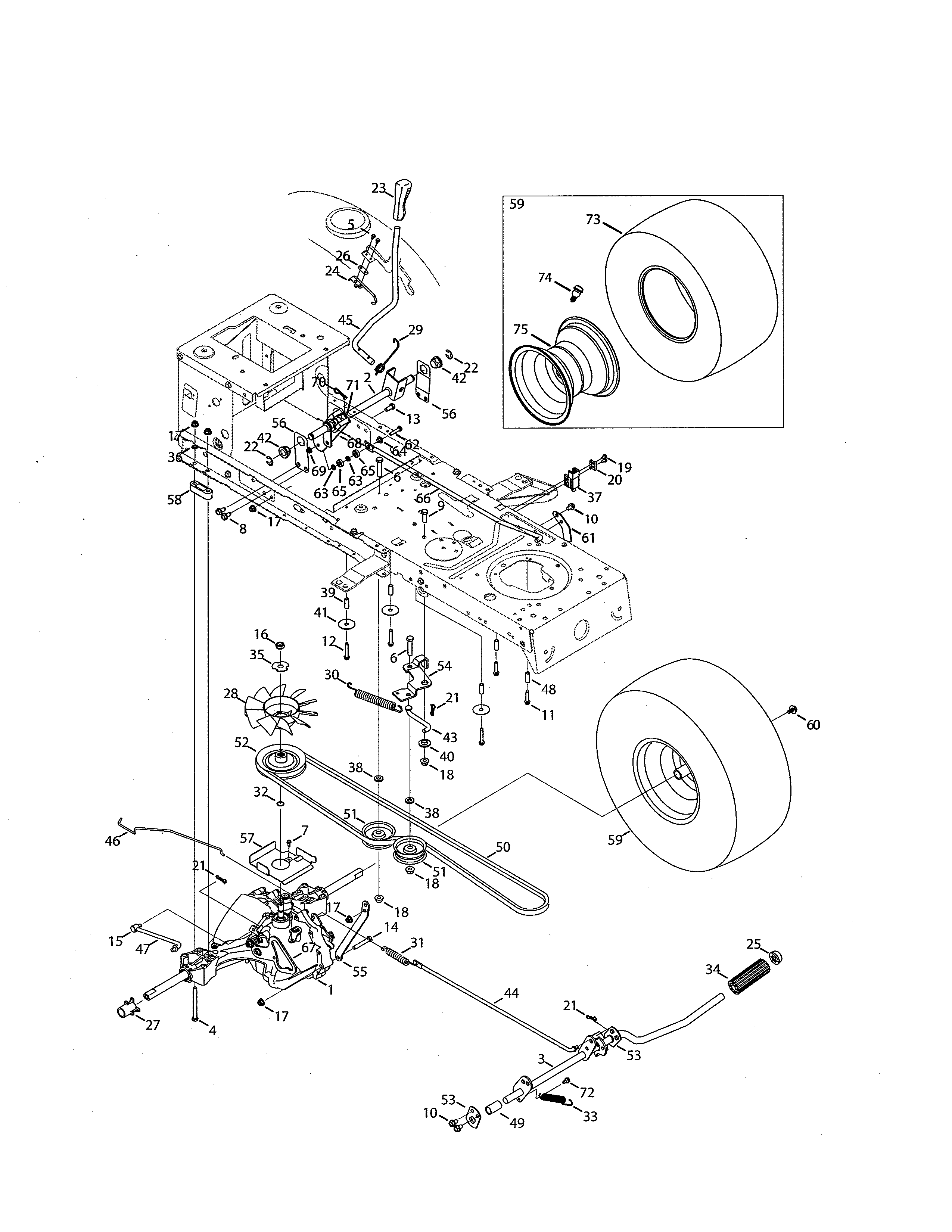

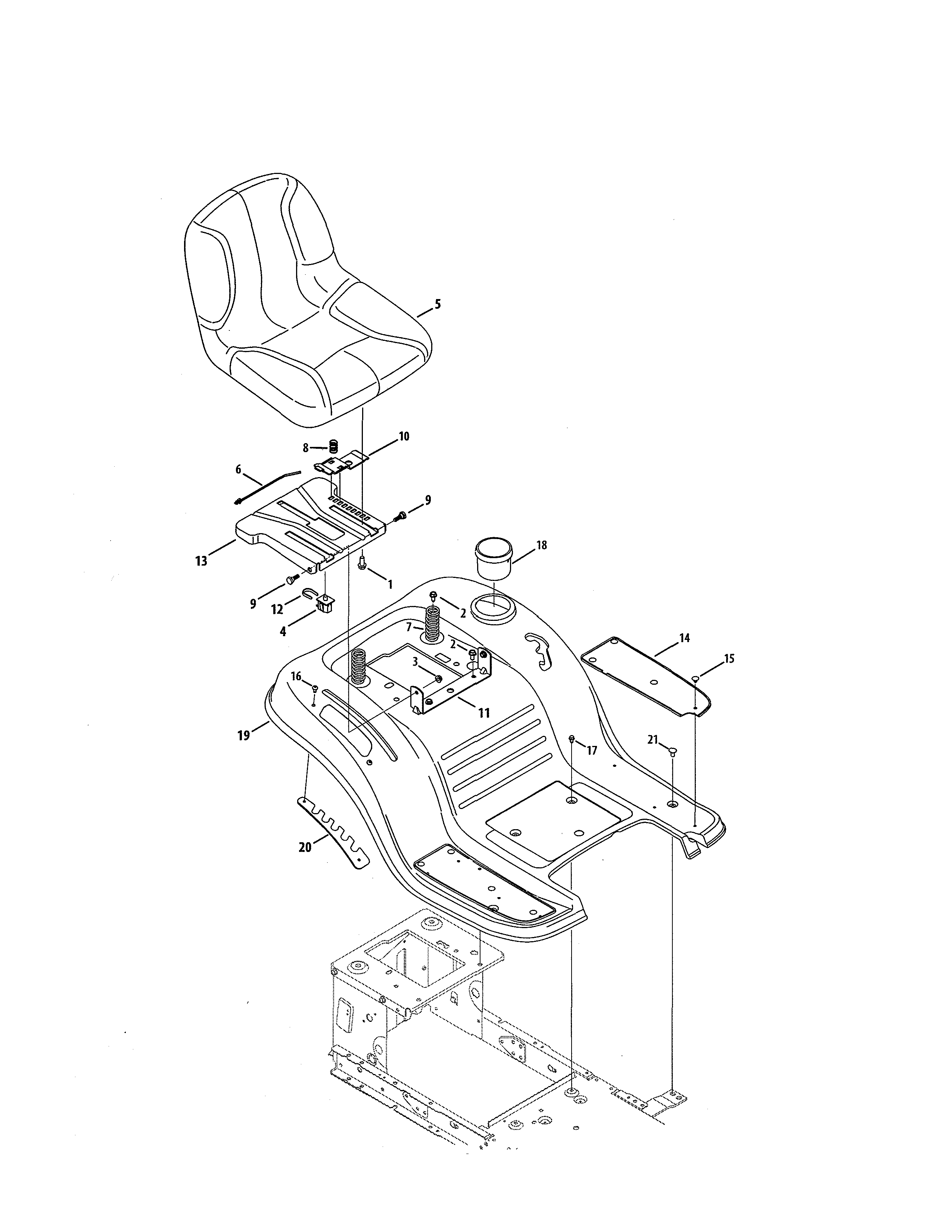

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 451 parts  |
Lawn Tractor Blade Drive Belt, 1/2 X 96-1/2-in 954-04060C
#39

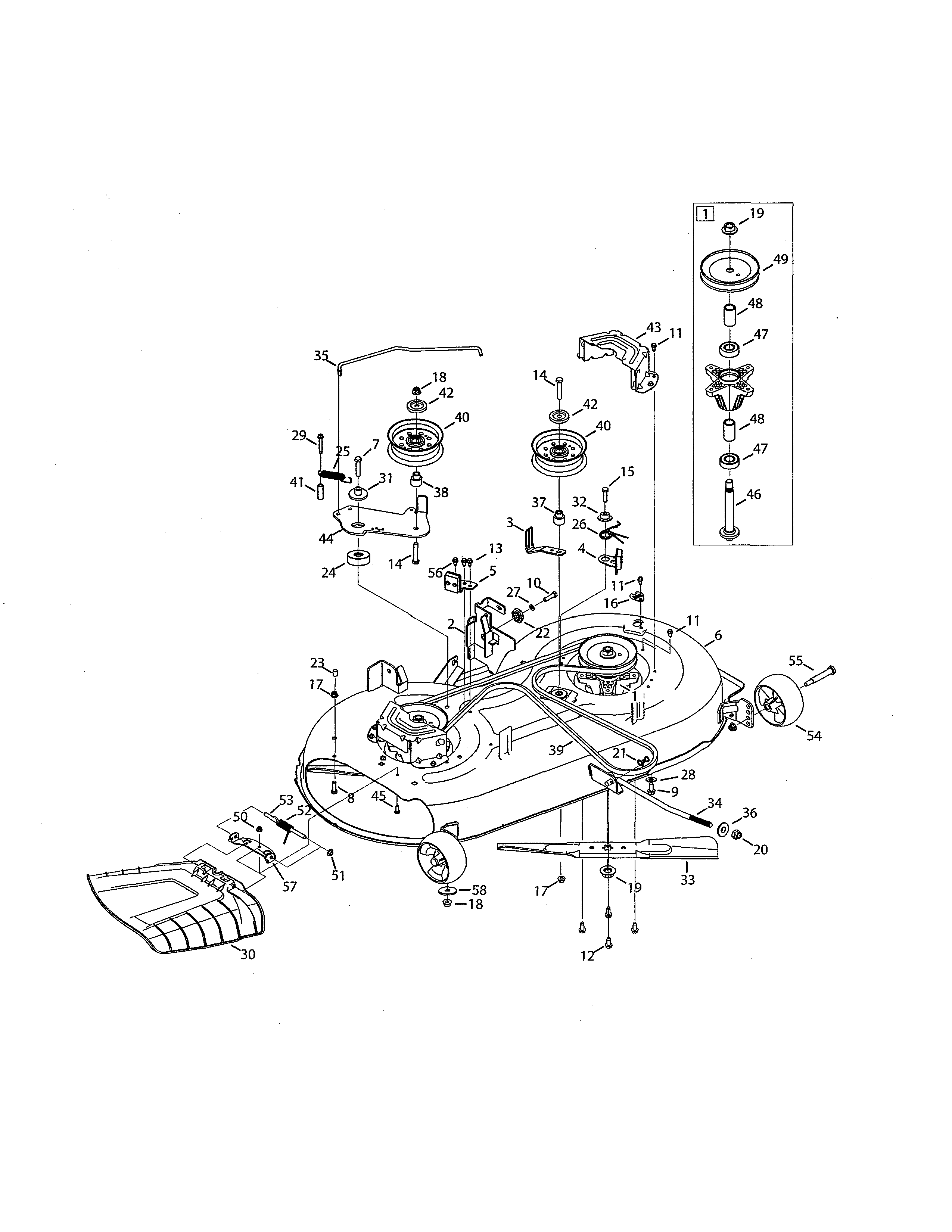

Mower deck/spindle diagram

Lawn tractor blade drive belt, 1/2 x 96-1/2-in

Part #954-04060C

The manufacturer no longer makes this part, and there's no substitute part

Troybilt Lawn Tractor Blade Engagement Cable (replaces 946-05124) 946-05124A
#22

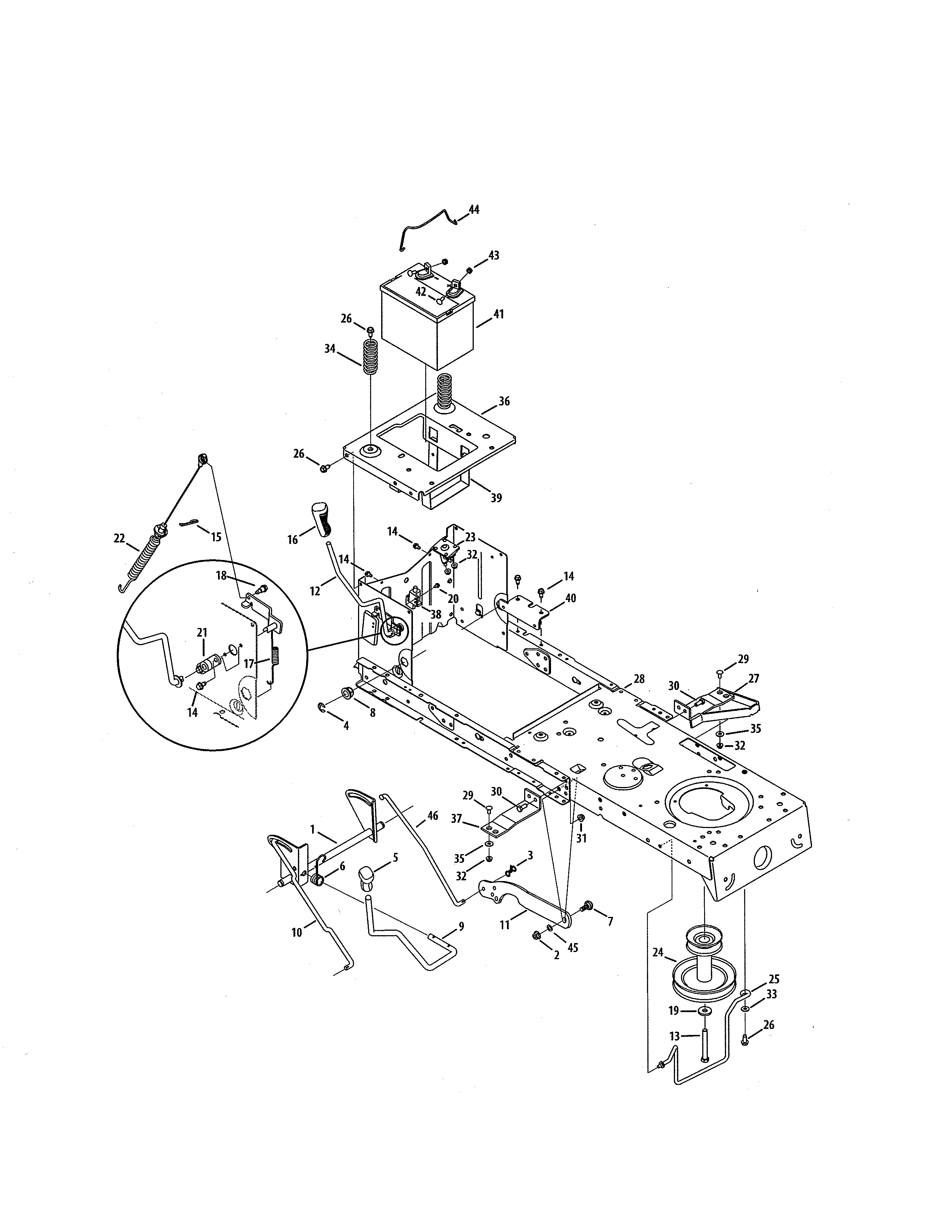

Frame/battery diagram

Troybilt lawn tractor blade engagement cable (replaces 946-05124)

Part #946-05124A

BEST SELLER
$34.69 |
15% OFF Phone Price : $40.69
In Stock
Lawn & Garden Equipment Cotter Pin, 1/4- To 5/16-in 714-04040
Lawn & garden equipment cotter pin, 1/4- to 5/16-in

Part #714-04040

BEST SELLER
This item is not returnable
$3.00 |
25% OFF Phone Price : $4.00
In Stock
Yard Machines Lawn & Garden Equipment Lock Nut, 5/16-18 (replaces 753-05591) 712-04063
Yard machines lawn & garden equipment lock nut, 5/16-18 (replaces 753-05591)

Part #712-04063

BEST SELLER
This item is not returnable
$4.40 |
19% OFF Phone Price : $5.40
In Stock
Lawn Tractor Ignition Key 625-04124
#33

Dash panel/fuel tank diagram

Lawn tractor ignition key

Part #625-04124

Replaced by #925-1745A

?
Manufacturer substitution
This part replaces 625-04124. Substitute parts can look different from the original.
BEST SELLER
$19.56 |
9% OFF Phone Price : $21.56
In Stock
Ace Lawn & Garden Equipment Self-tapping Bolt, 5/16-18 X 3/4-in (replaces 1724491, 1740496, 1909304, 910-1260a, Gw-7101260) 710-1260A
#12

Mower deck/spindle diagram

Ace lawn & garden equipment self-tapping bolt, 5/16-18 x 3/4-in (replaces 1724491, 1740496, 1909304, 910-1260a, gw-7101260)

Part #710-1260A

BEST SELLER
This item is not returnable
$4.25 |
19% OFF Phone Price : $5.25
In Stock
Lawn Tractor Bearing (replaces 741-04124) 941-04124
#16

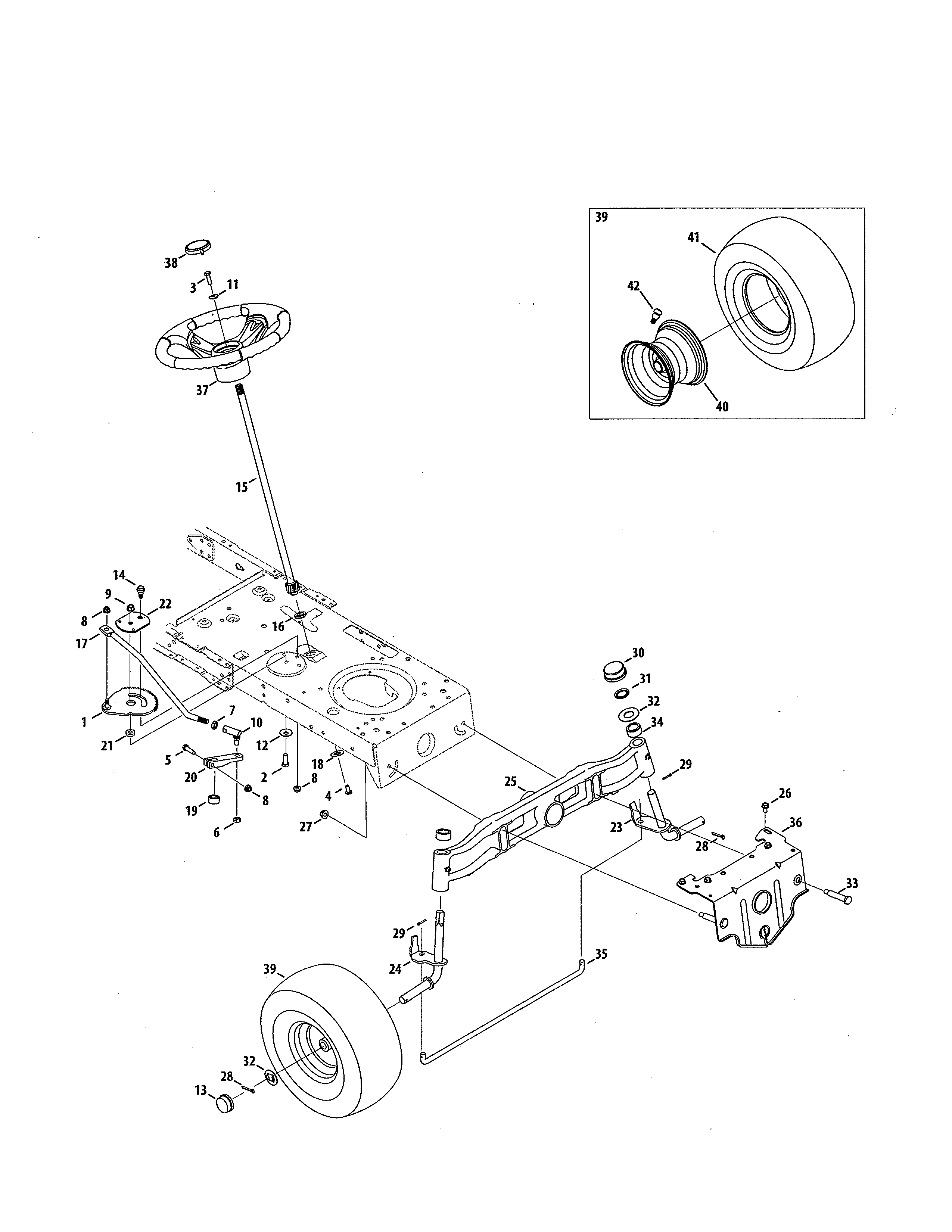

Steering diagram

Lawn tractor bearing (replaces 741-04124)

Part #941-04124

BEST SELLER
This item is not returnable
$6.10 |
14% OFF Phone Price : $7.10
In Stock
Yard Machines Lawn & Garden Equipment Nut 712-04064
Yard machines lawn & garden equipment nut

Part #712-04064

BEST SELLER
This item is not returnable
$4.49 |
18% OFF Phone Price : $5.49
In Stock
Lawn Tractor Gauge Wheel 734-04155
#54

Mower deck/spindle diagram

Lawn tractor gauge wheel

Part #734-04155

BEST SELLER
$23.42 |
20% OFF Phone Price : $29.42
In Stock
Lawn Tractor Starter Solenoid 725-06153
#23

Frame/battery diagram

Lawn tractor starter solenoid

Part #725-06153

Replaced by #725-06153A

?
Manufacturer substitution
This part replaces 725-06153. Substitute parts can look different from the original.
BEST SELLER
$42.97 |
12% OFF Phone Price : $48.97
Back Order
