Model # 126 Official Porter Cable planer

Here are the diagrams and repair parts for Official Porter Cable 126 planer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

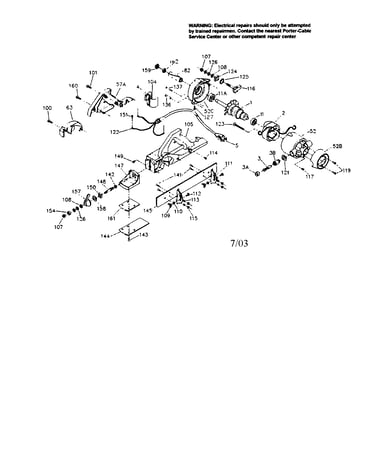

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 72 parts |

#3A

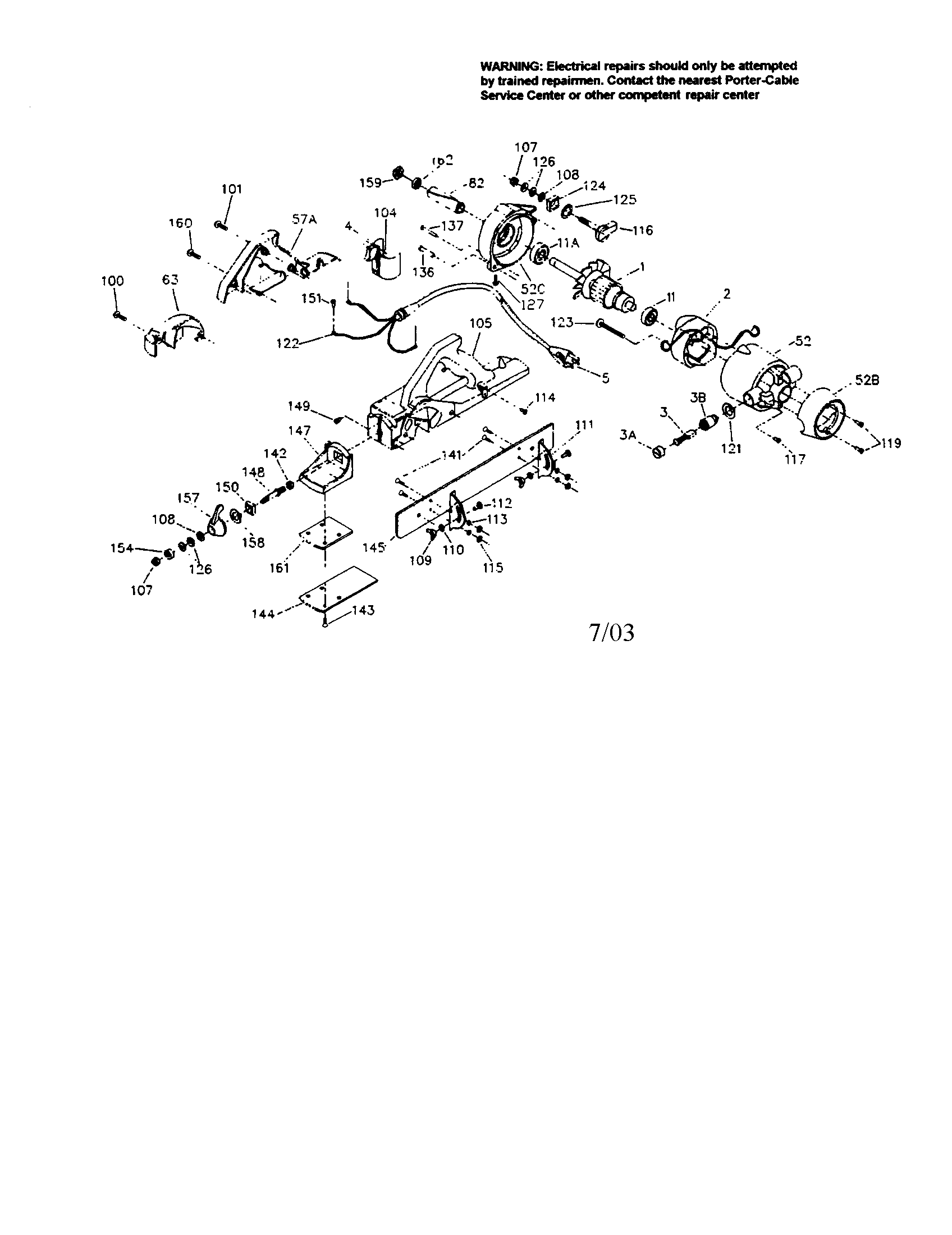

Porter-plane diagram

Sander motor brush cap

Part #803483

The manufacturer no longer makes this part, and there's no substitute part

#107

Porter-plane diagram

Lock nut

Part #802315

The manufacturer no longer makes this part, and there's no substitute part

#3B

Porter-plane diagram

Power tool motor brush holder

Part #873497

The manufacturer no longer makes this part, and there's no substitute part

#126

Porter-plane diagram

Fiber washer

Part #800250

The manufacturer no longer makes this part, and there's no substitute part

#158

Porter-plane diagram

Washer

Part #802223

The manufacturer no longer makes this part, and there's no substitute part

#108

Porter-plane diagram

Spacer

Part #824529

The manufacturer no longer makes this part, and there's no substitute part

#121

Porter-plane diagram

Washer

Part #803496

The manufacturer no longer makes this part, and there's no substitute part

#127

Porter-plane diagram

Sears screw

Part #852310

The manufacturer no longer makes this part, and there's no substitute part

#154

Porter-plane diagram

Porter cable washer

Part #827171

The manufacturer no longer makes this part, and there's no substitute part

#110

Porter-plane diagram

Washer

Part #802318

The manufacturer no longer makes this part, and there's no substitute part
