Model # WAS24460UC/16 Official Bosch washer

Here are the diagrams and repair parts for Official Bosch WAS24460UC-16 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

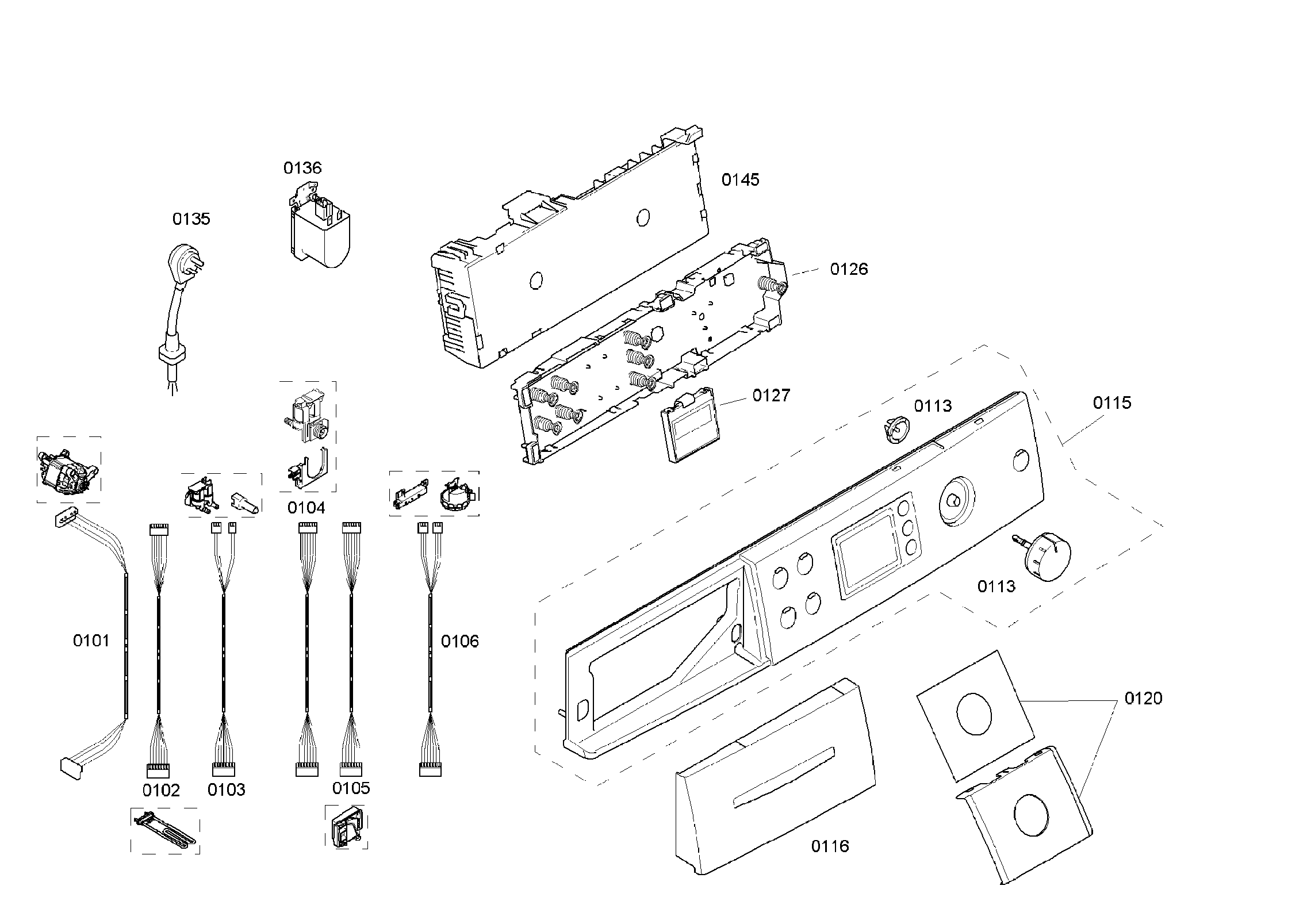

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 88 parts  |
Electronic Lock 612148
#211

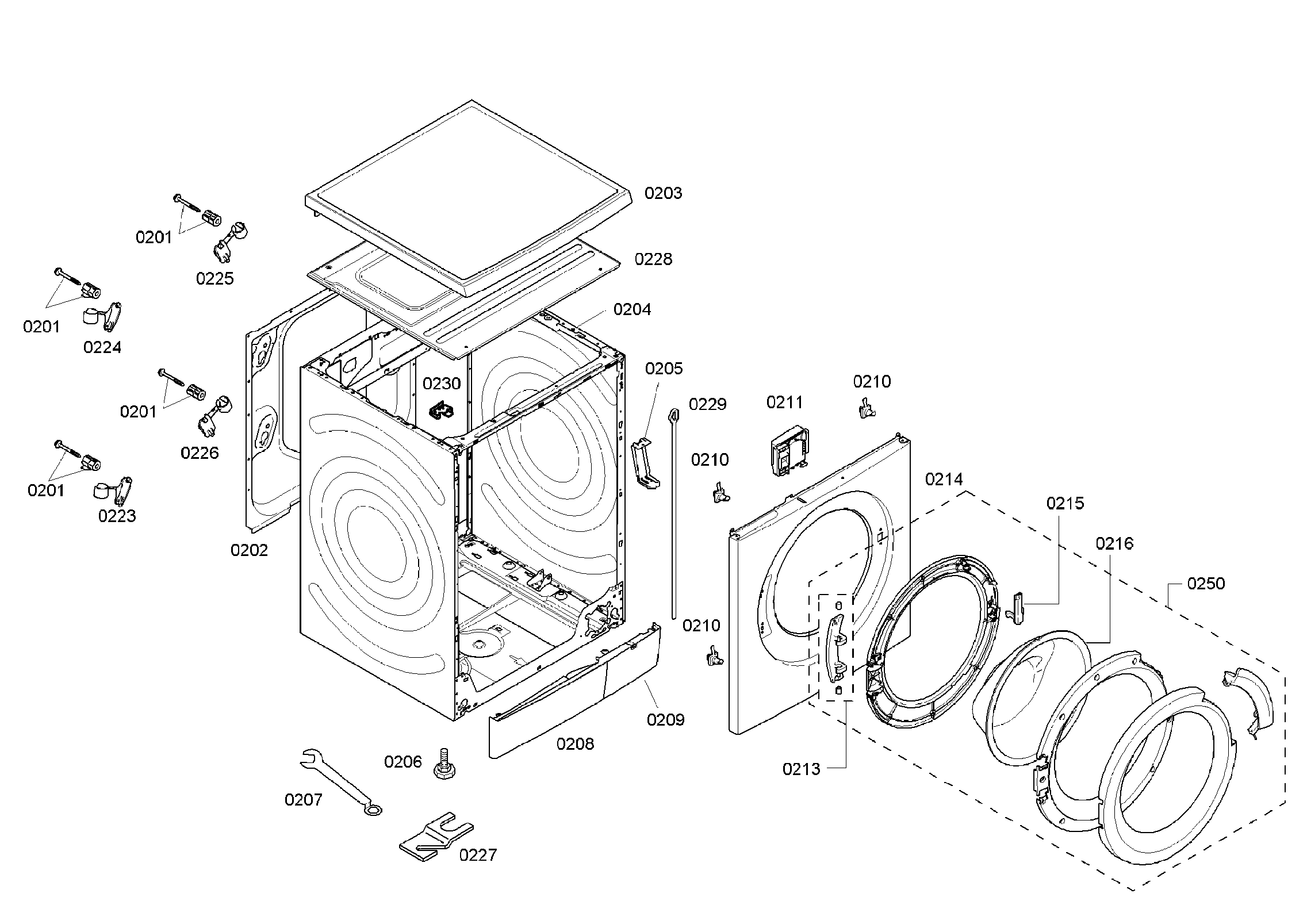

Cabinet diagram

Electronic lock

Part #612148

Replaced by #00612148

?
Manufacturer substitution
This part replaces 612148. Substitute parts can look different from the original.
$98.69 |
11% OFF Phone Price : $110.69
In Stock
Washer Door Assembly 704287
#250

Cabinet diagram

Washer door assembly

Part #704287

Replaced by #00704287

?
Manufacturer substitution
This part replaces 704287. Substitute parts can look different from the original.
$347.49 |
$12.00 OFF Phone Price : $359.49
In Stock
Window 675797
#216

Cabinet diagram

Window

Part #675797

Replaced by #00742712

?
Manufacturer substitution
This part replaces 675797. Substitute parts can look different from the original.
$75.19 |
7% OFF Phone Price : $81.19
In Stock
Fastening 670743
#326

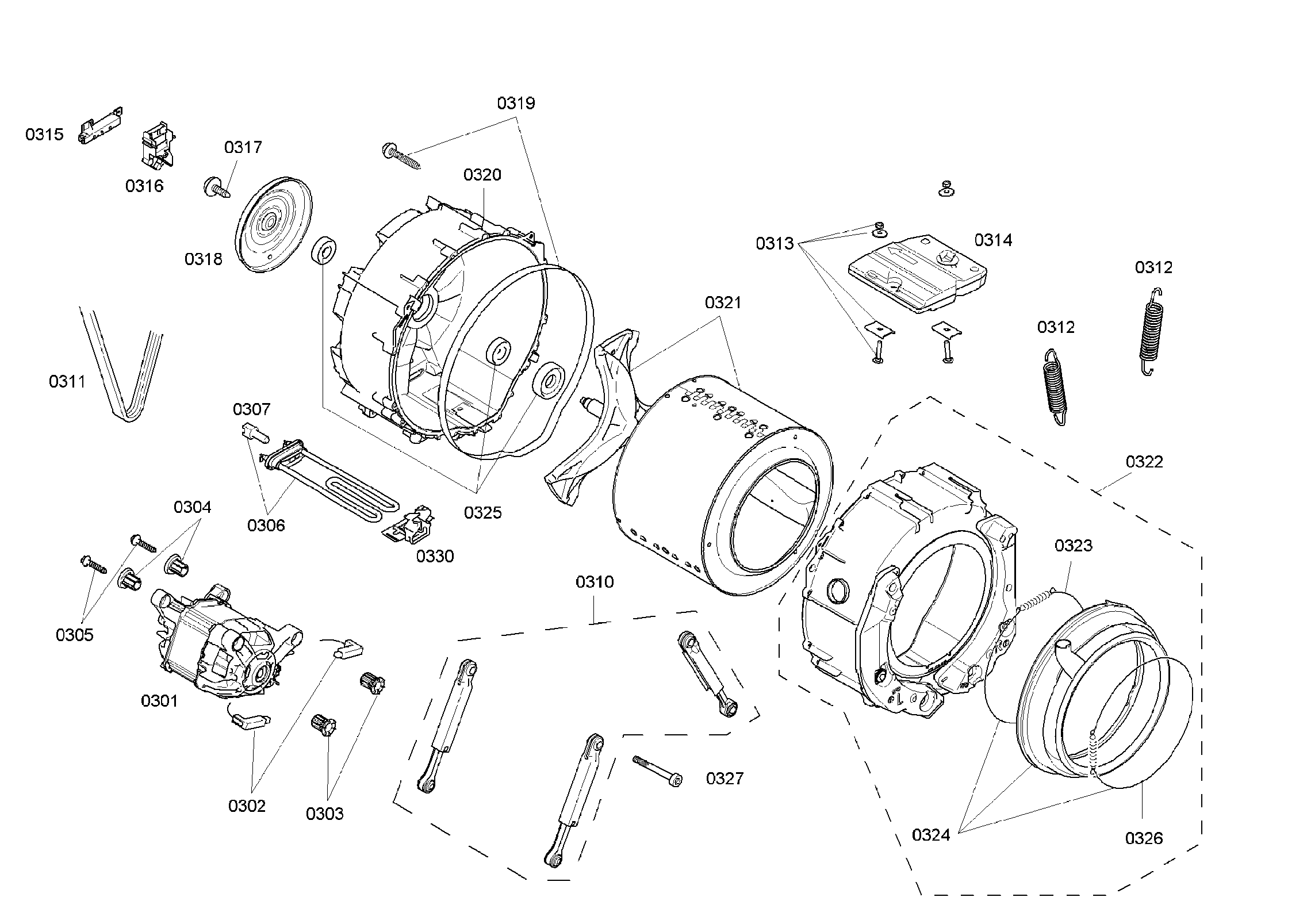

Drum assy diagram

Fastening

Part #670743

Replaced by #00670743

?
Manufacturer substitution
This part replaces 670743. Substitute parts can look different from the original.
$16.63
In Stock
Spring 605140
#312

Drum assy diagram

Spring

Part #605140

Replaced by #00605140

?
Manufacturer substitution
This part replaces 605140. Substitute parts can look different from the original.
This item is not returnable
$94.27
In Stock
Washer Analog Pressure Sensor 619600
#412

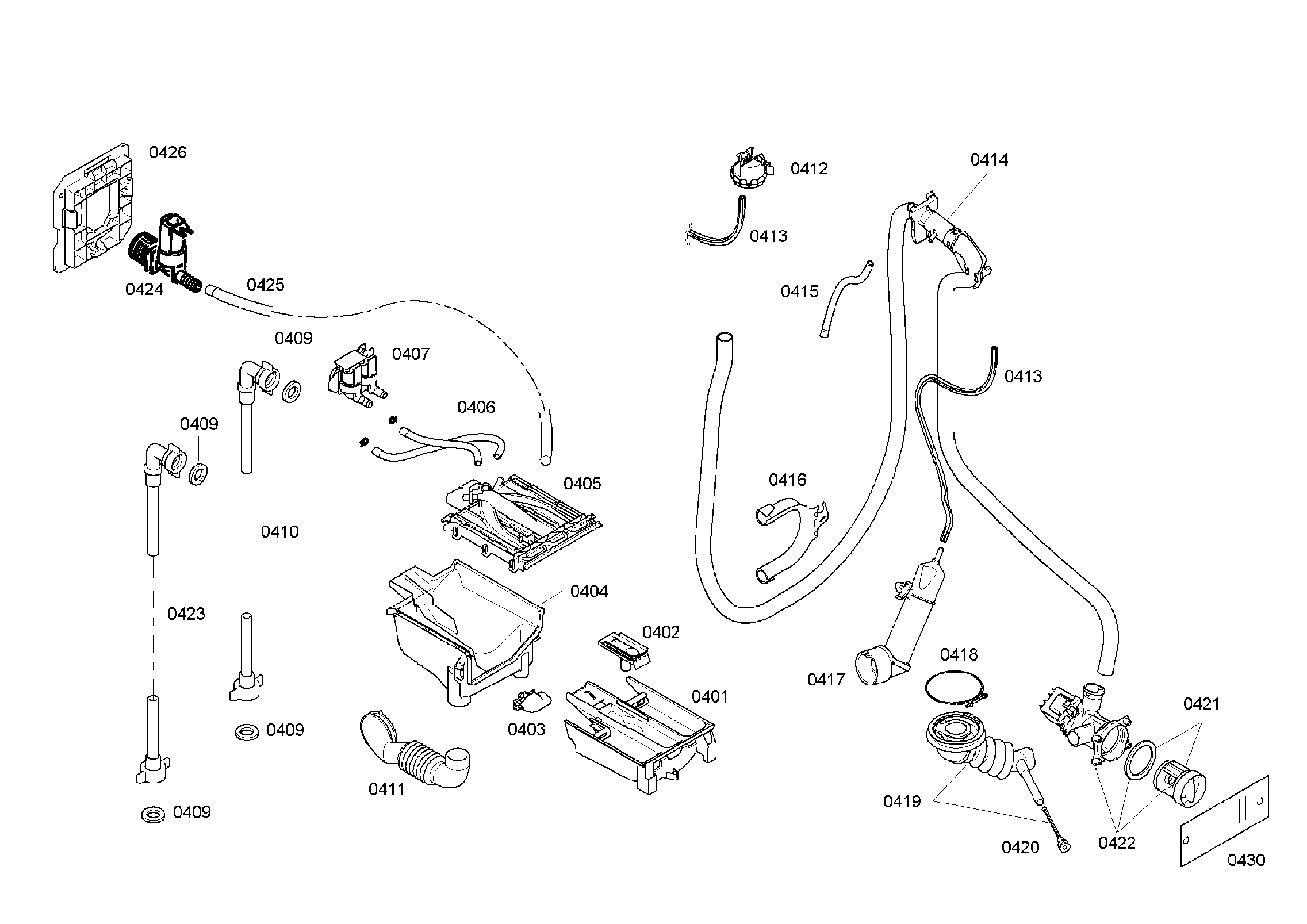

Pump assy diagram

Washer analog pressure sensor

Part #619600

Replaced by #00637136

?
Manufacturer substitution
This part replaces 619600. Substitute parts can look different from the original.
$43.29 |
12% OFF Phone Price : $49.29
In Stock
Foot 610643
#206

Cabinet diagram

Foot

Part #610643

Replaced by #00610643

?
Manufacturer substitution
This part replaces 610643. Substitute parts can look different from the original.
This item is not returnable
$19.89
In Stock
Hinge Washer 655117
#213

Cabinet diagram

Hinge washer

Part #655117

Replaced by #00655117

?
Manufacturer substitution
This part replaces 655117. Substitute parts can look different from the original.
$32.59 |
16% OFF Phone Price : $38.59
In Stock
Hose 605215
#415

Pump assy diagram

Hose

Part #605215

Replaced by #00605215

?
Manufacturer substitution
This part replaces 605215. Substitute parts can look different from the original.
$13.37
In Stock
Hose 605209
#413

Pump assy diagram

Hose

Part #605209

Replaced by #00605209

?
Manufacturer substitution
This part replaces 605209. Substitute parts can look different from the original.
$49.64
In Stock
