Thermador
Wall Oven/Microwave Combo

Model # MEMC301ES01 Official Thermador electric oven

Here are the diagrams and repair parts for Official Thermador MEMC301ES01 electric oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

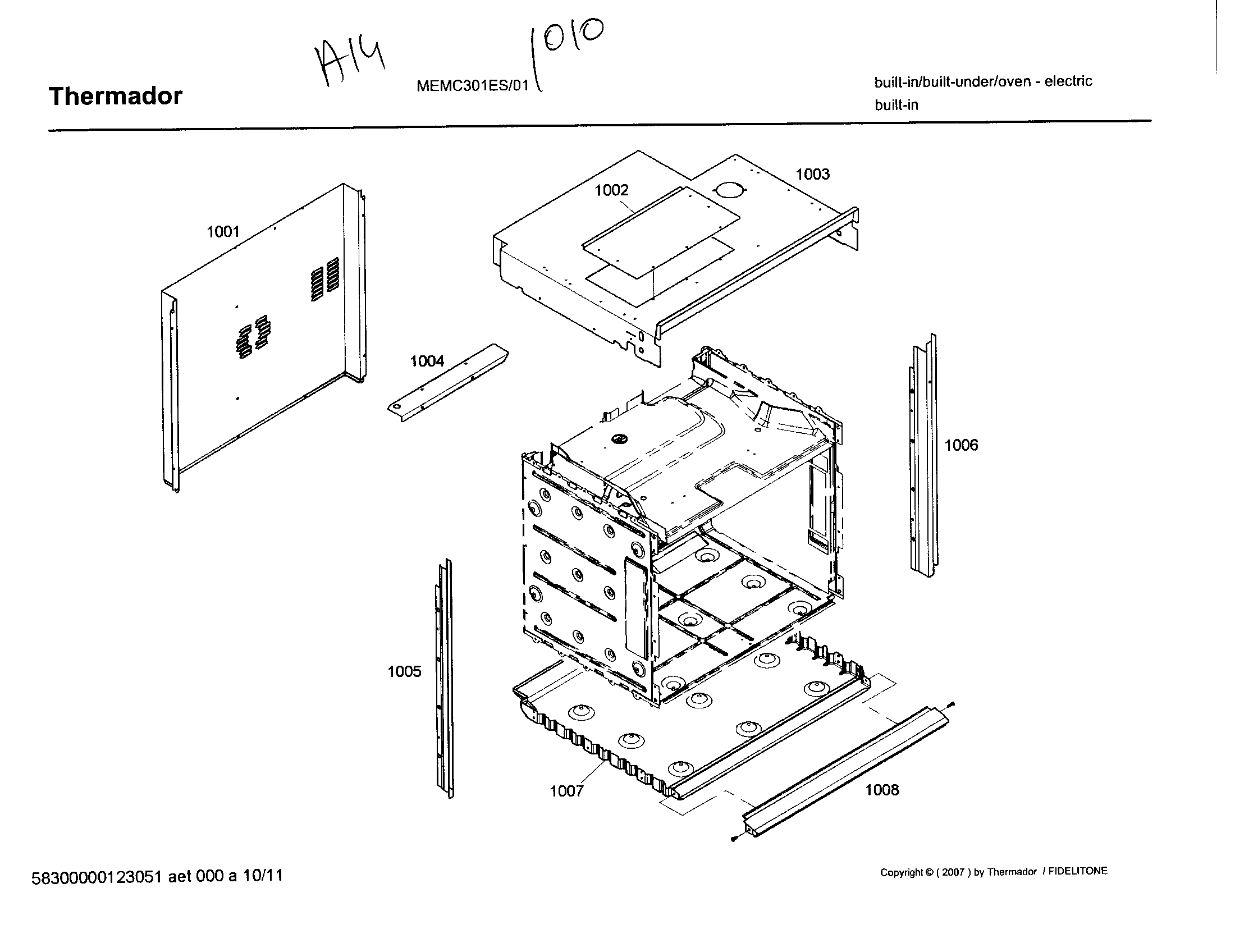

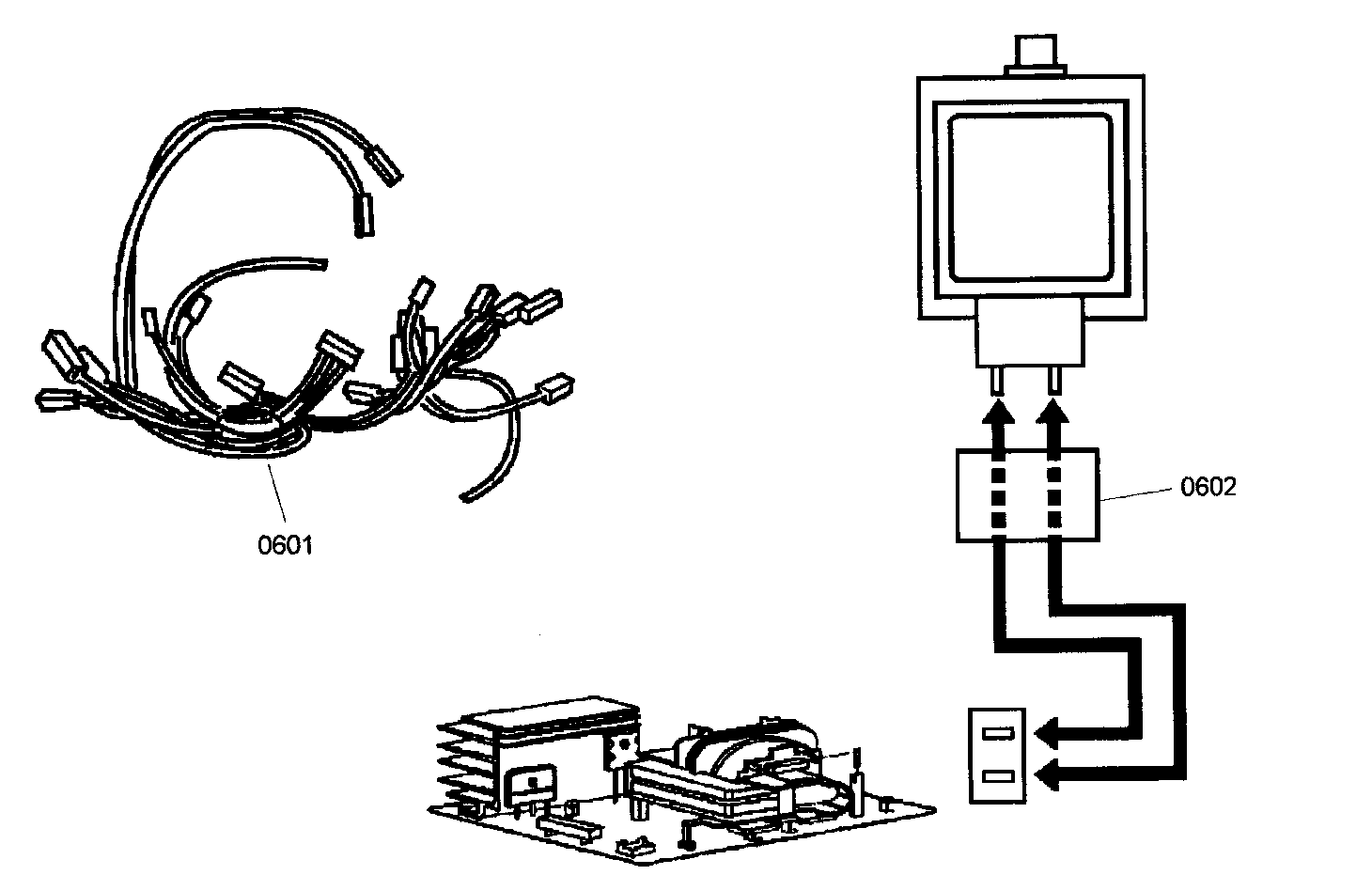

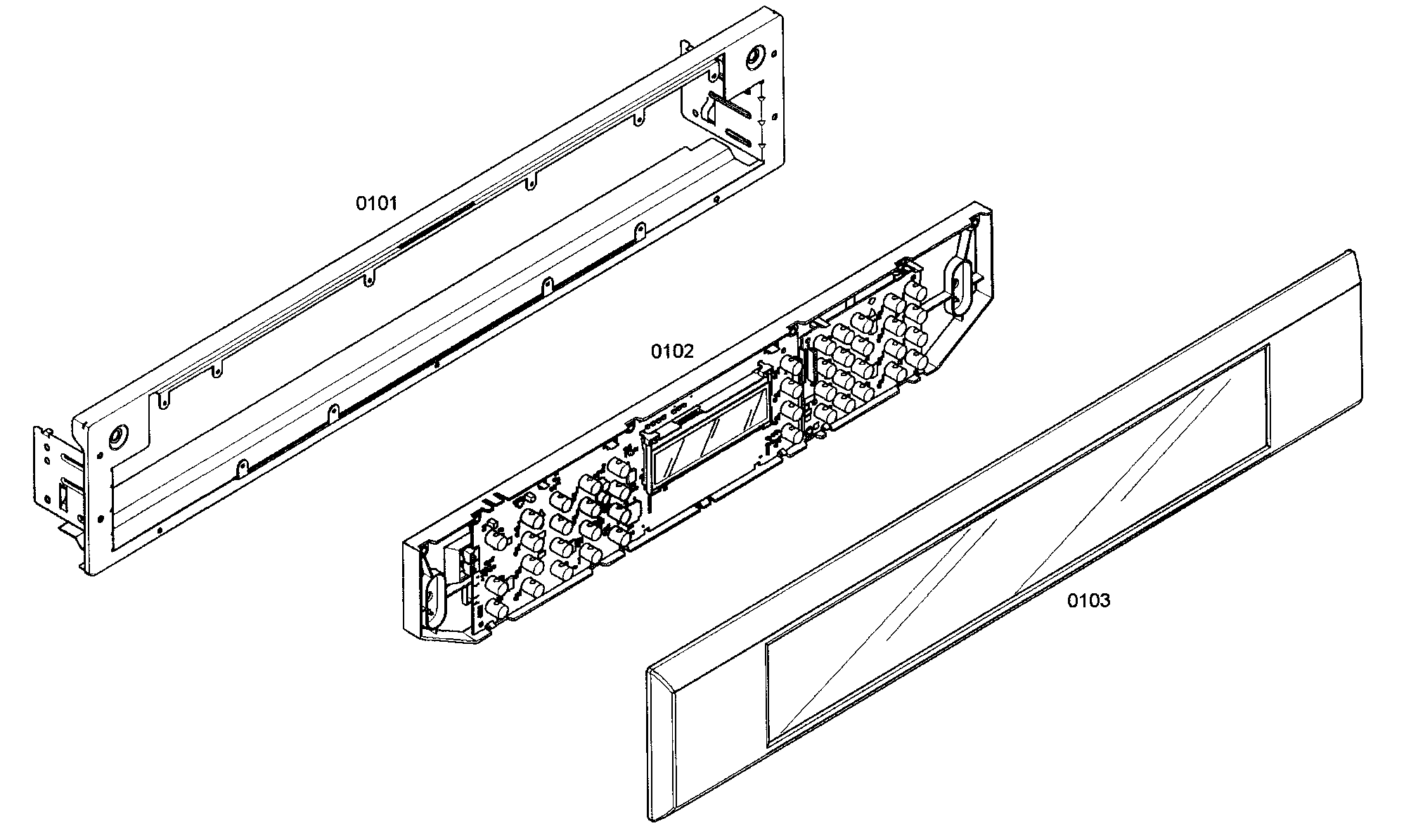

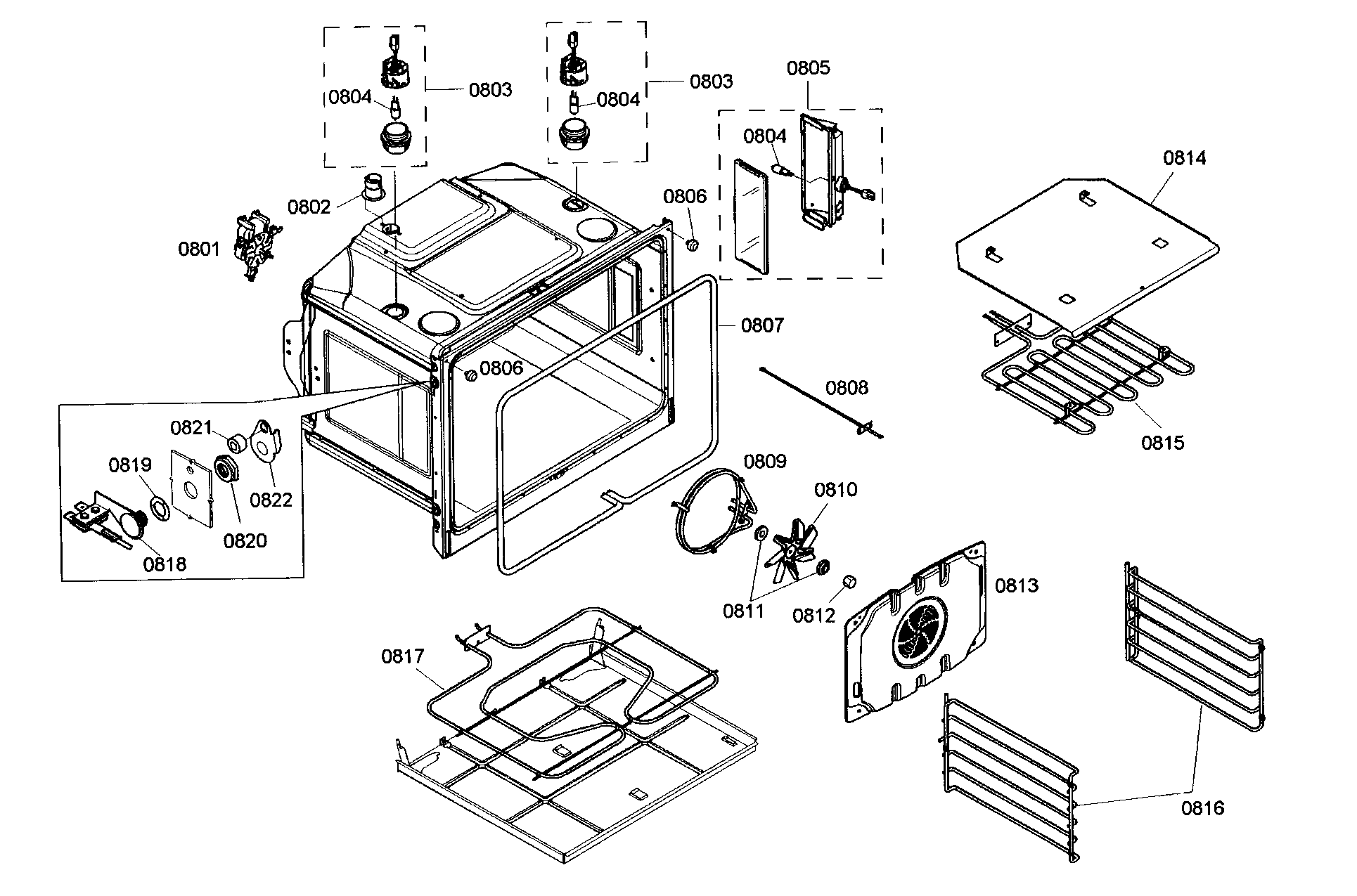

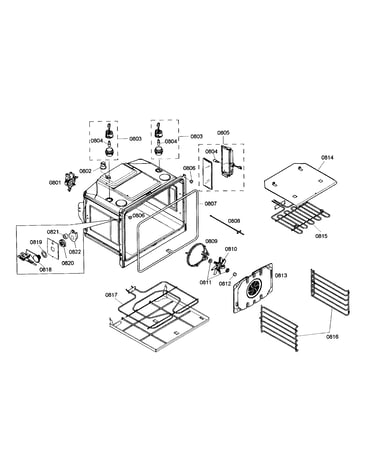

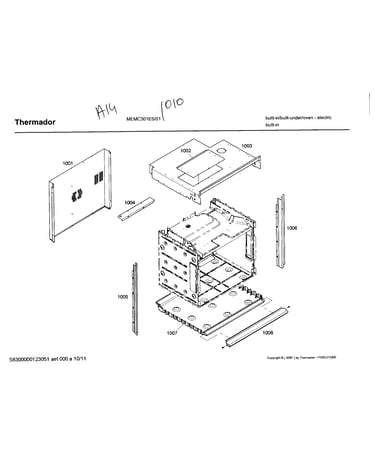

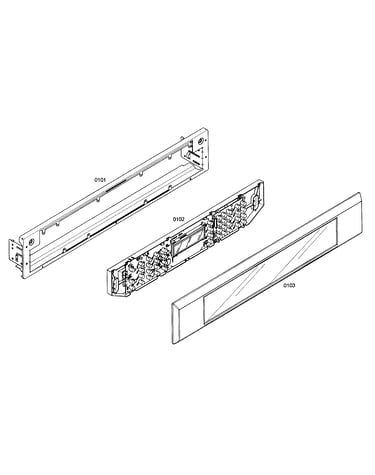

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 111 parts  |
Power Supply 643049
#310

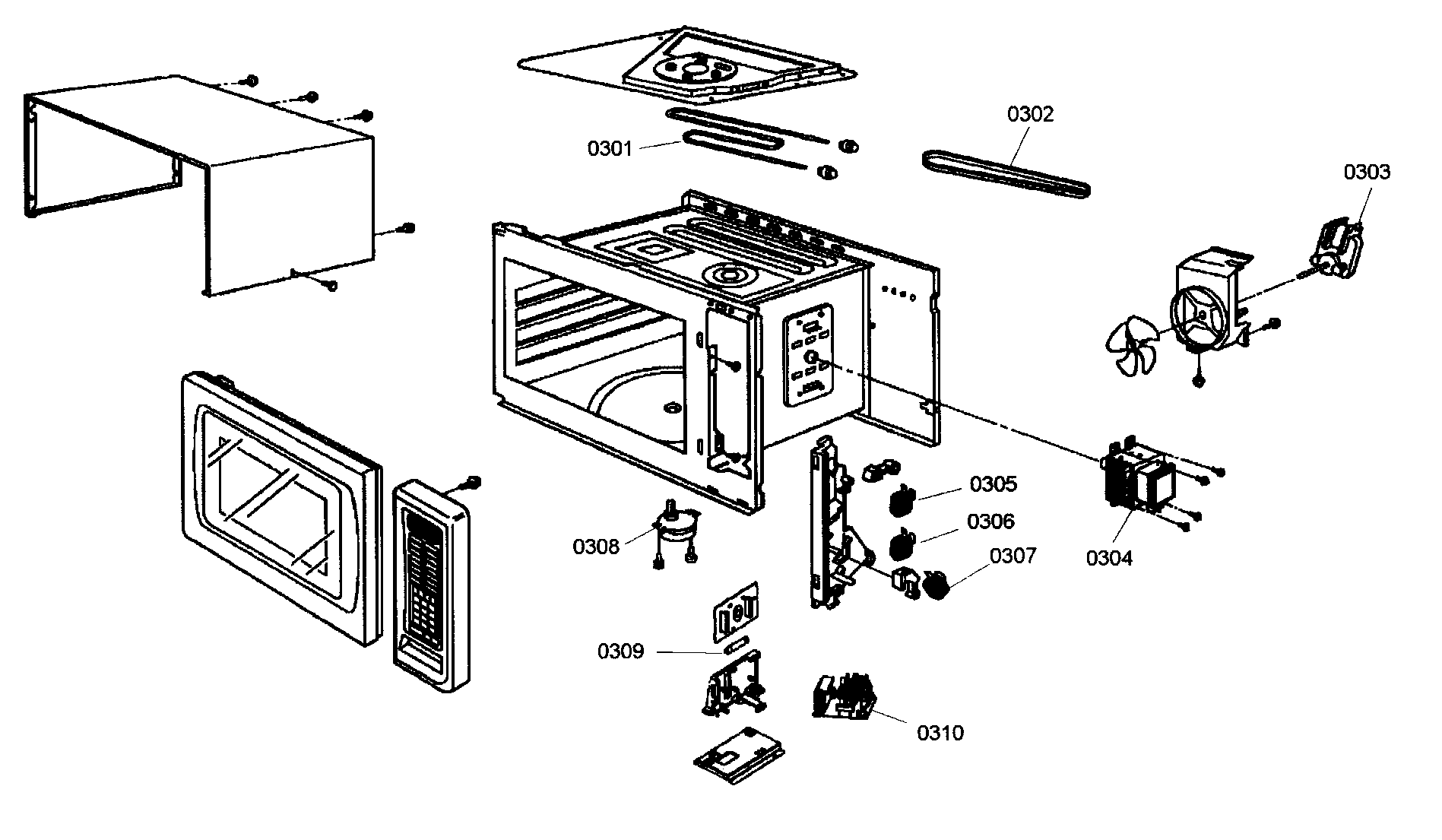

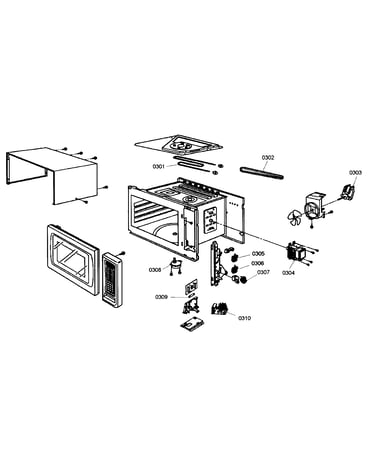

Microwave parts 2 diagram

Power supply

Part #643049

Replaced by #00641857

?
Manufacturer substitution
This part replaces 643049. Substitute parts can look different from the original.
This item is not returnable
$399.16 |
$12.00 OFF Phone Price : $411.16
In Stock
Shelf 478316
#1102

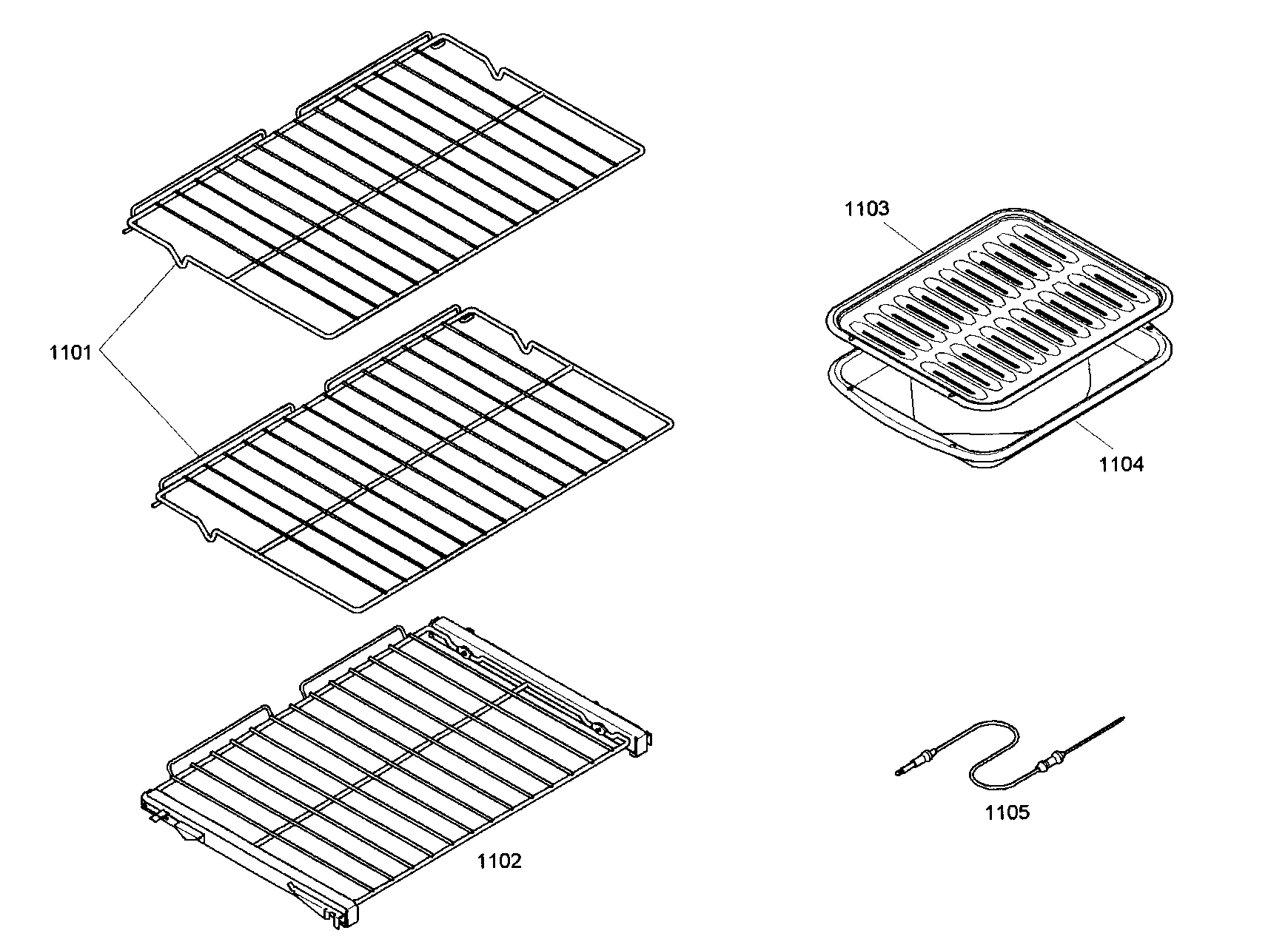

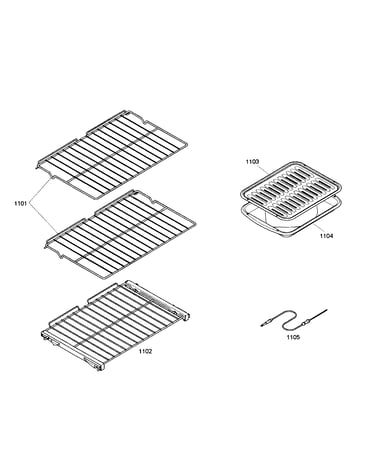

Shelf assy diagram

Shelf

Part #478316

Replaced by #00478316

?
Manufacturer substitution
This part replaces 478316. Substitute parts can look different from the original.
$394.03 |
$12.00 OFF Phone Price : $406.03
In Stock
Glass Panel 478309
#904

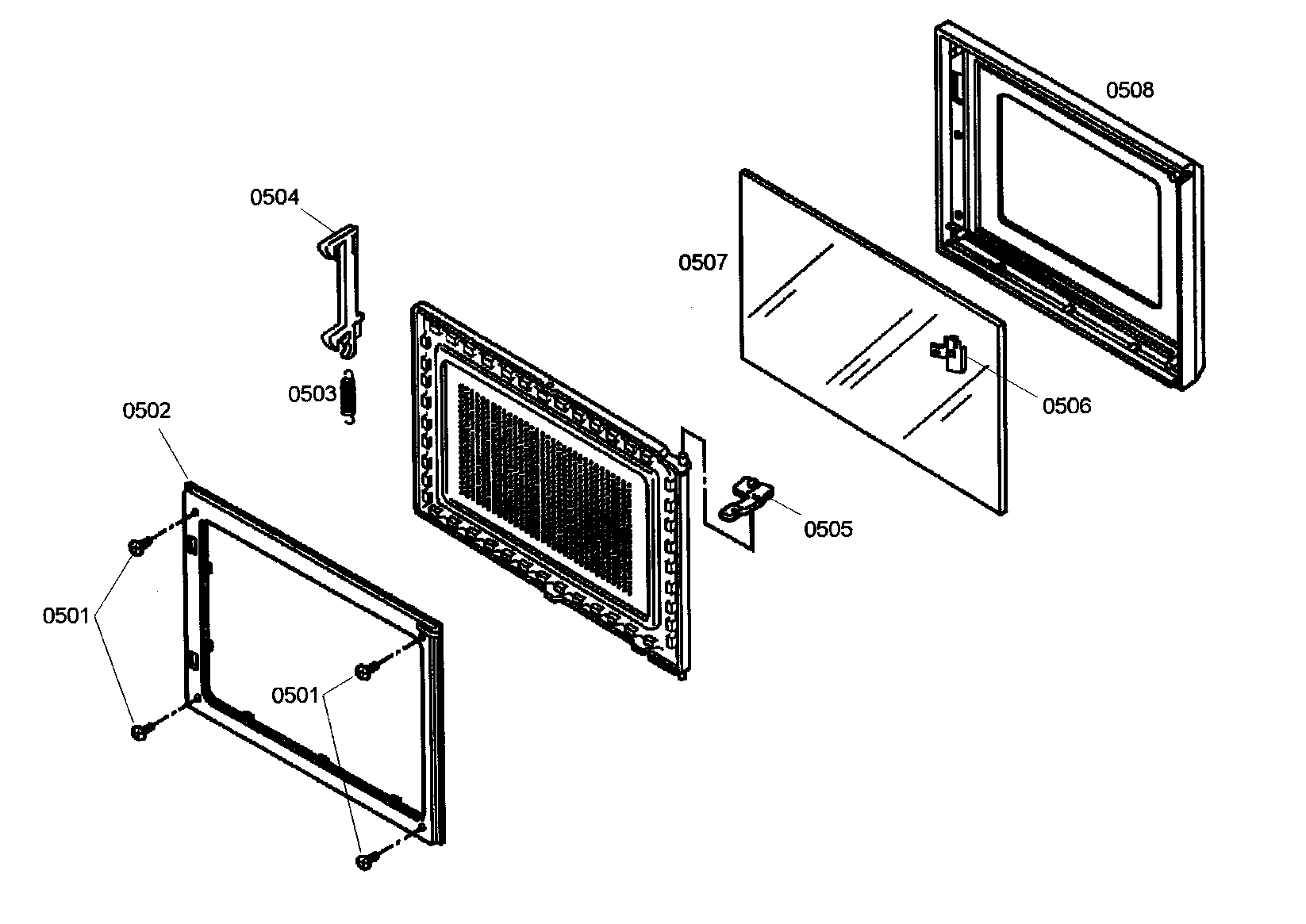

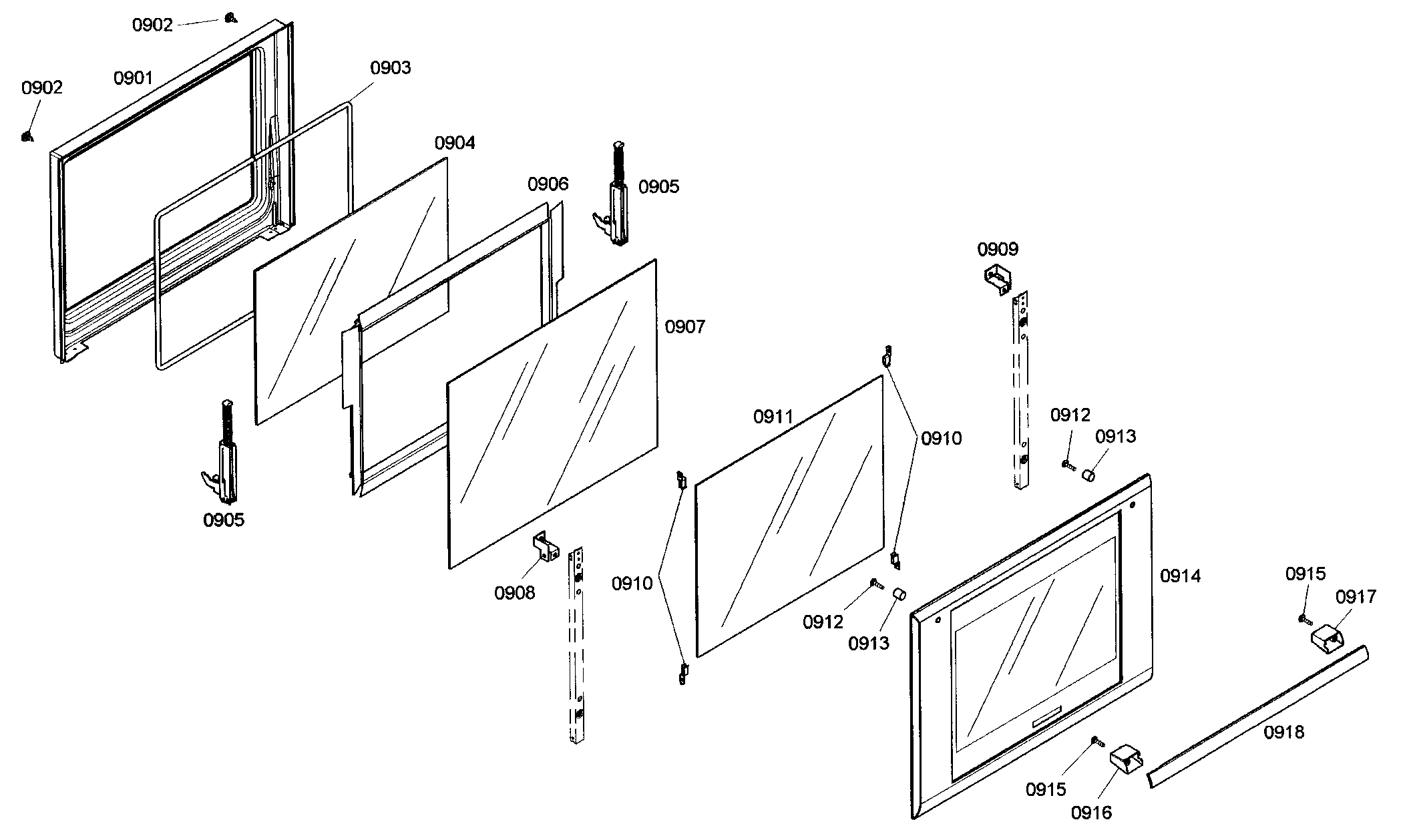

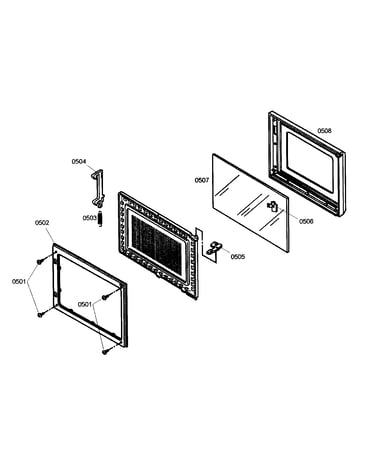

Door assy diagram

Glass panel

Part #478309

Replaced by #00770023

?
Manufacturer substitution
This part replaces 478309. Substitute parts can look different from the original.
$182.39 |
6% OFF Phone Price : $194.39
In Stock
Seal 144652
#903

Door assy diagram

Seal

Part #144652

Replaced by #00144652

?
Manufacturer substitution
This part replaces 144652. Substitute parts can look different from the original.
$39.29 |
13% OFF Phone Price : $45.29
In Stock
Door Latch 608387
#504

Door assy diagram

Door latch

Part #608387

Replaced by #00608387

?
Manufacturer substitution
This part replaces 608387. Substitute parts can look different from the original.
$20.34
In Stock
Limiter 642844
#702

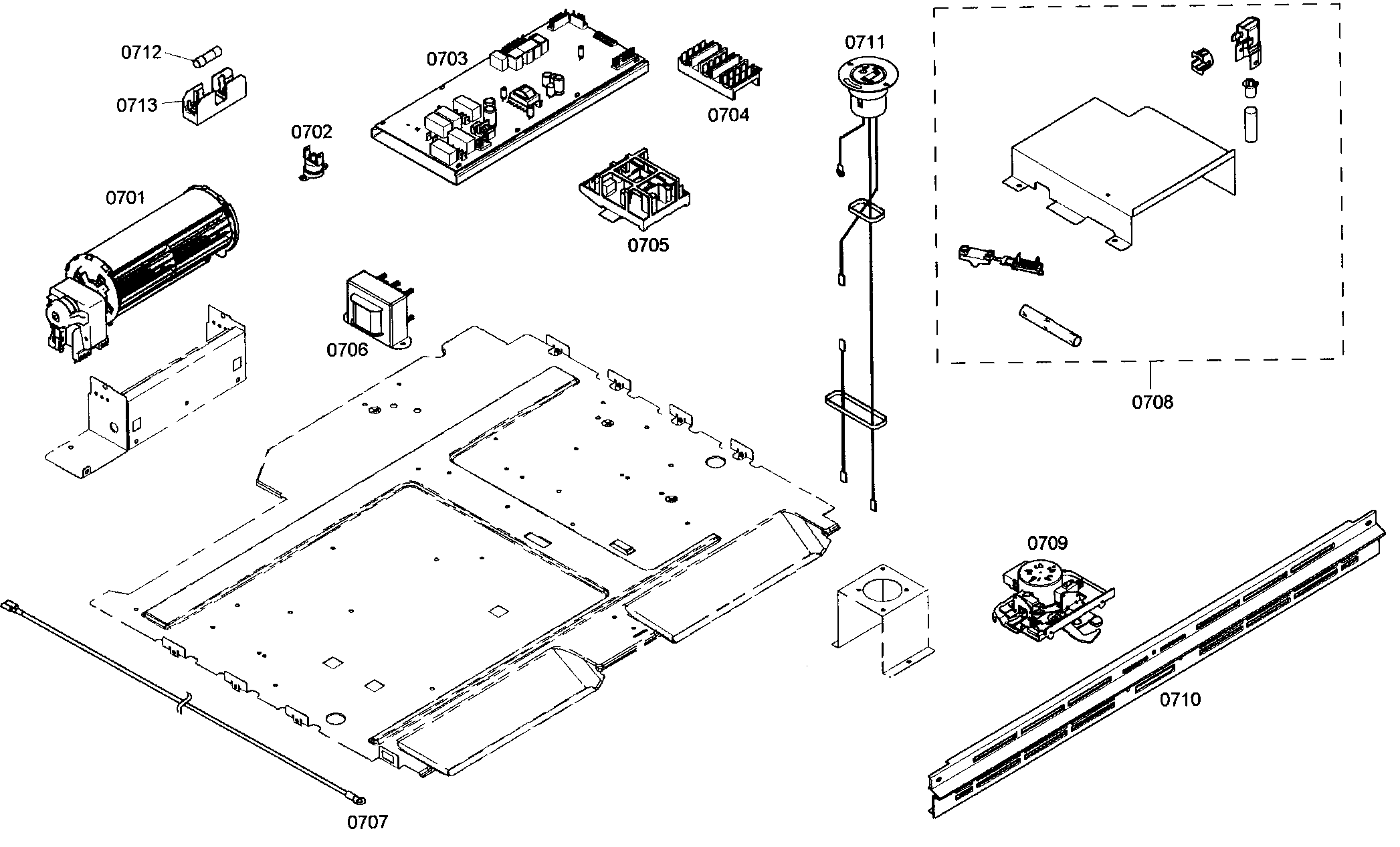

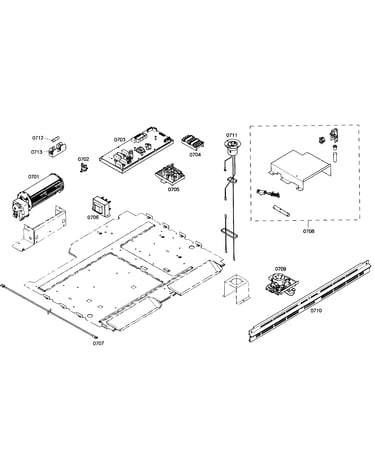

Pcb assy diagram

Limiter

Part #642844

Replaced by #00617877

?
Manufacturer substitution
This part replaces 642844. Substitute parts can look different from the original.
$29.36
In Stock
Circuit Pcb 643067
#402

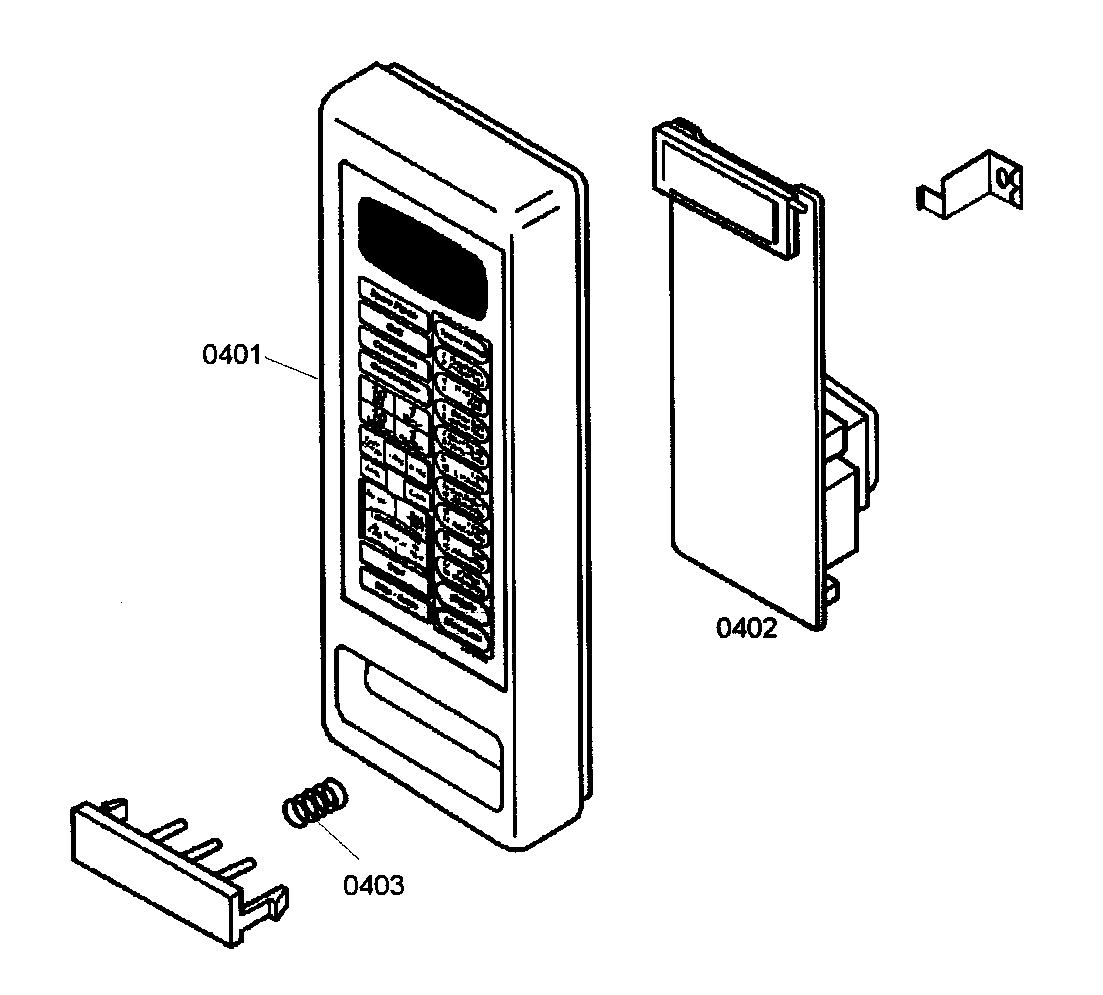

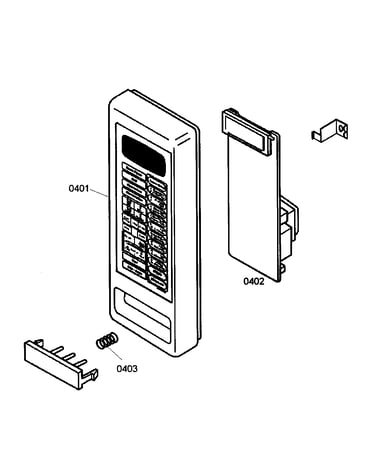

Microwave panel diagram

Circuit pcb

Part #643067

Replaced by #00643067

?
Manufacturer substitution
This part replaces 643067. Substitute parts can look different from the original.
This item is not returnable
$286.71 |
$12.00 OFF Phone Price : $298.71
In Stock
Glass Panel 478310
#907

Door assy diagram

Glass panel

Part #478310

Replaced by #00478310

?
Manufacturer substitution
This part replaces 478310. Substitute parts can look different from the original.
$137.56 |
8% OFF Phone Price : $149.56
In Stock
Cabinet 478549
#202

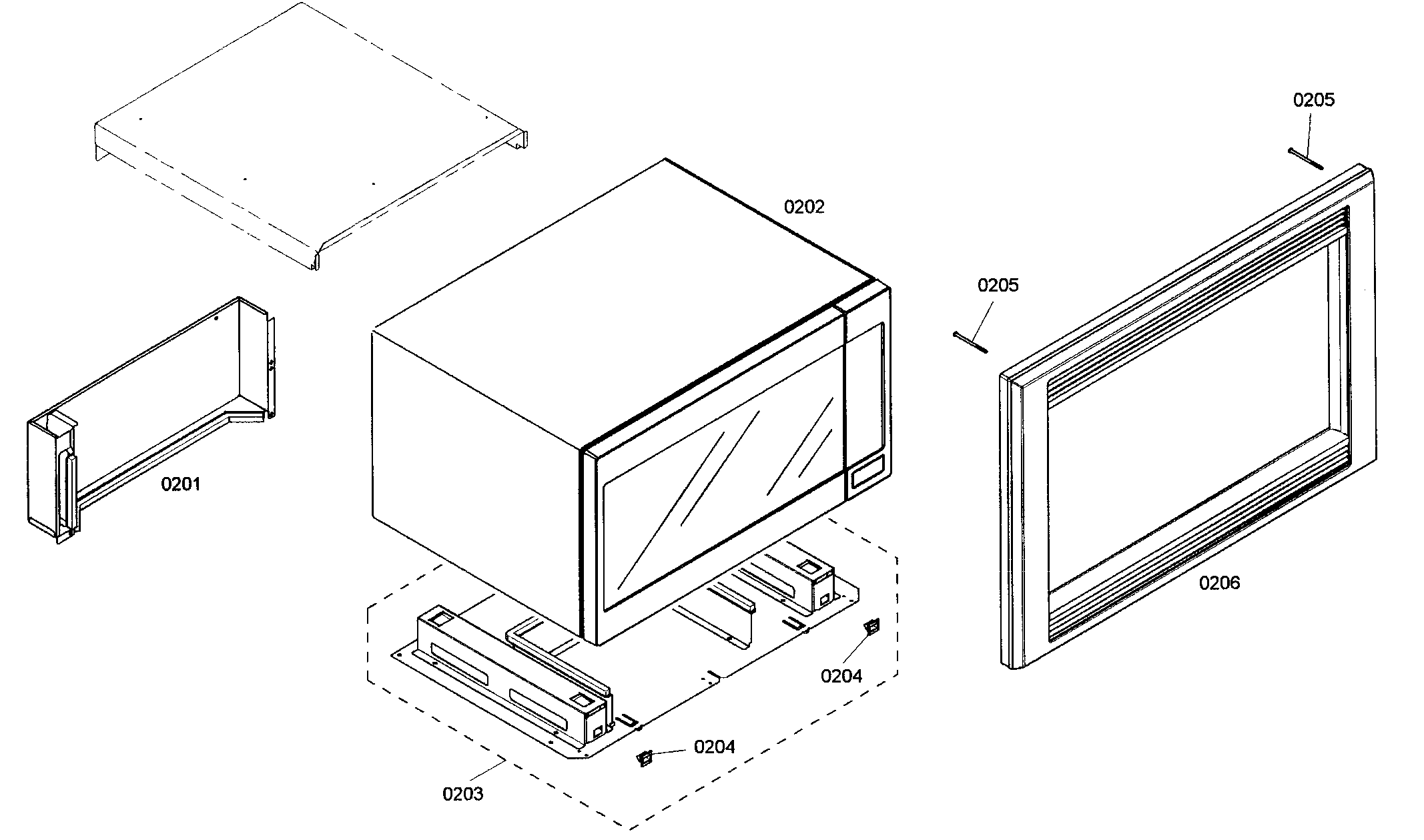

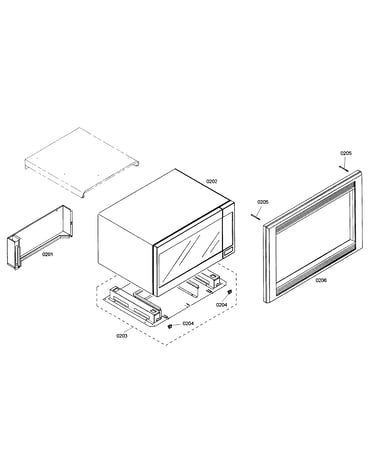

Microwave parts 1 diagram

Cabinet

Part #478549

Replaced by #00478549

?
Manufacturer substitution
This part replaces 478549. Substitute parts can look different from the original.
$948.63
In Stock
Bracket 608096
#909

Door assy diagram

Bracket

Part #608096

Replaced by #00613179

?
Manufacturer substitution
This part replaces 608096. Substitute parts can look different from the original.
$23.49
In Stock
