DeWalt
Reciprocating Saw

Model # DW938TY1 Official DeWalt saw

Here are the diagrams and repair parts for Official DeWalt DW938TY1 saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

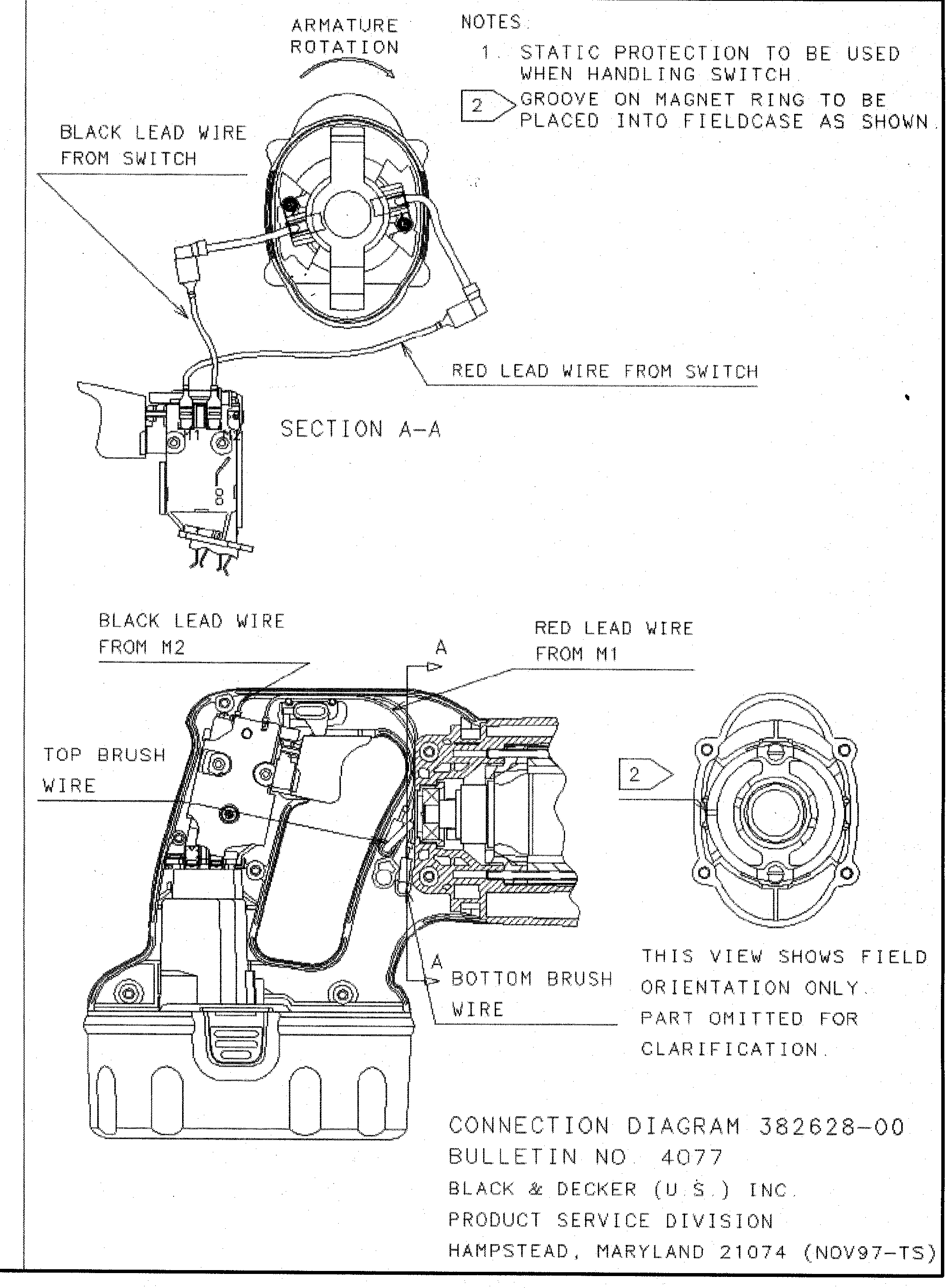

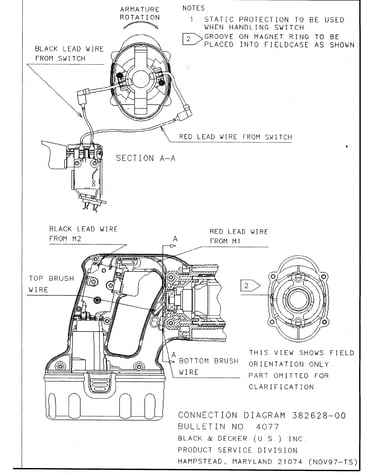

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 50 parts  |
Sears Screw 448269-00
#13

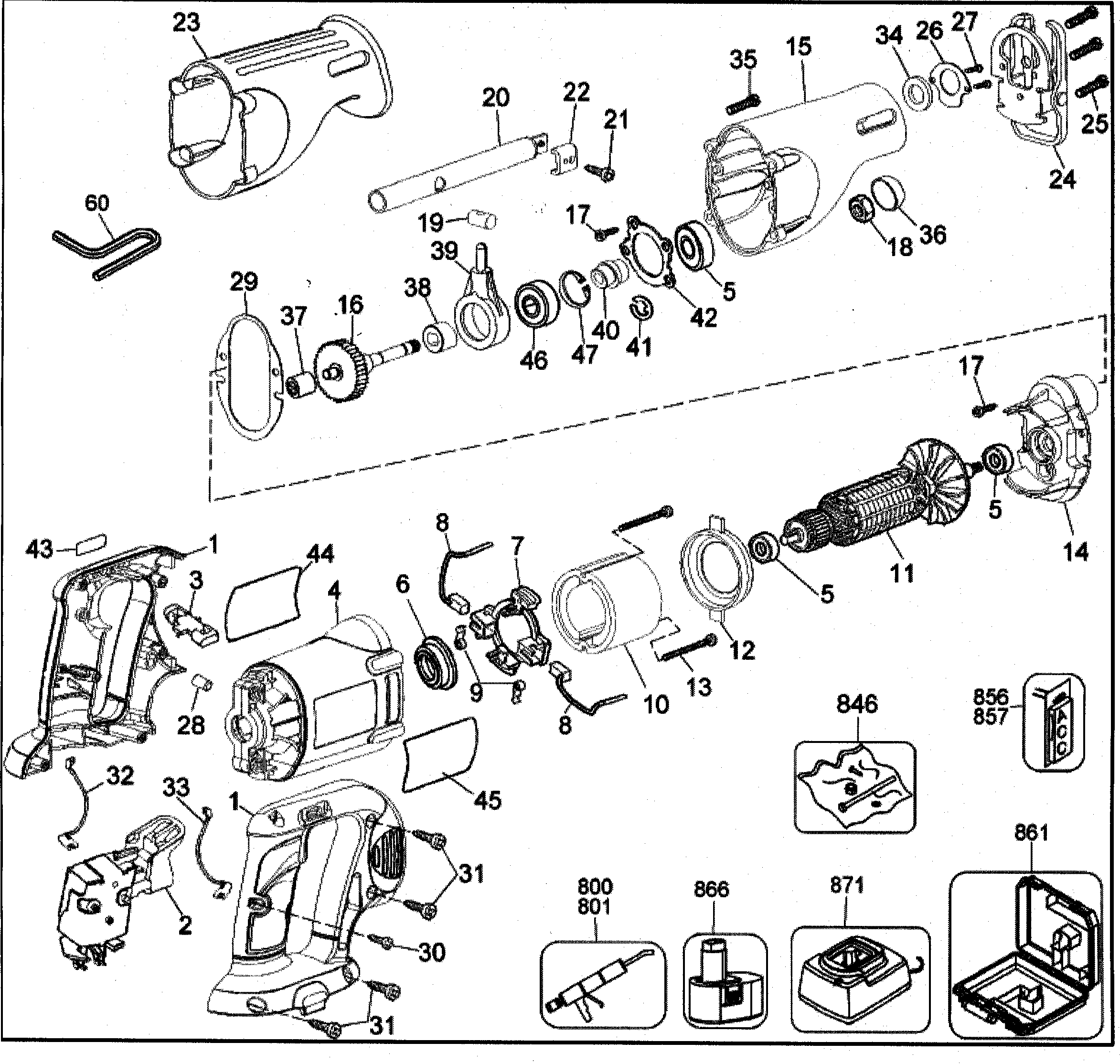

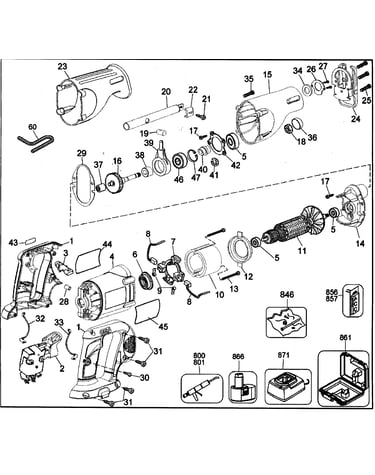

Housing assy diagram

Sears screw

Part #448269-00

The manufacturer no longer makes this part, and there's no substitute part

Bearing 330003-12
#46

Housing assy diagram

Bearing

Part #330003-12

The manufacturer no longer makes this part, and there's no substitute part

Screw 330019-15
#35

Housing assy diagram

Screw

Part #330019-15

The manufacturer no longer makes this part, and there's no substitute part

Screw 604609-00
#17

Housing assy diagram

Screw

Part #604609-00

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Grease 283484-01
#801

Housing assy diagram

Craftsman grease

Part #283484-01

The manufacturer no longer makes this part, and there's no substitute part

Screw 330045-43
#27

Housing assy diagram

Screw

Part #330045-43

The manufacturer no longer makes this part, and there's no substitute part

Retainer 383668-00
#42

Housing assy diagram

Retainer

Part #383668-00

The manufacturer no longer makes this part, and there's no substitute part

Boot 382194-00
#23

Housing assy diagram

Boot

Part #382194-00

The manufacturer no longer makes this part, and there's no substitute part

Plug 383544-00
#28

Housing assy diagram

Plug

Part #383544-00

The manufacturer no longer makes this part, and there's no substitute part

Retainer 382189-00
#26

Housing assy diagram

Retainer

Part #382189-00

The manufacturer no longer makes this part, and there's no substitute part
