Model # KICU568SBL0 Official KitchenAid electric counter unit

Here are the diagrams and repair parts for Official KitchenAid KICU568SBL0 electric counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |

Display W10122341
#18

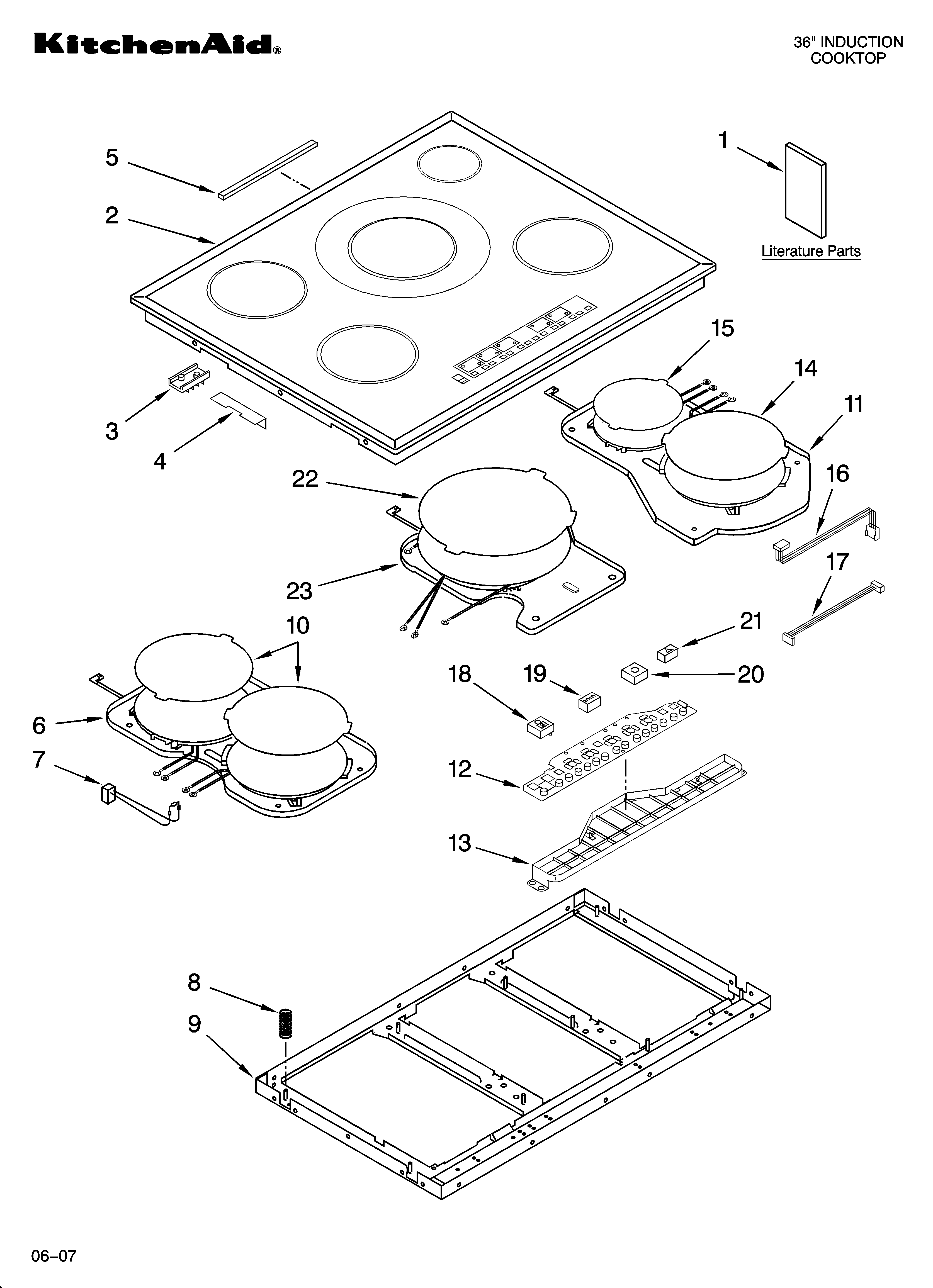

Cooktop parts diagram

Display

Part #W10122341

In Stock
Wire Harness W10122354
#17

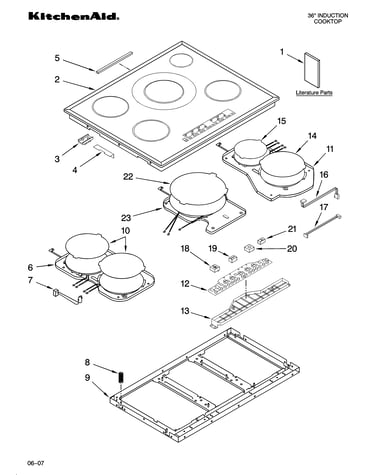

Cooktop parts diagram

Wire harness

Part #W10122354

In Stock
Display W10122344
#19

Cooktop parts diagram

Display

Part #W10122344

In Stock
Terminal Block W10122379
#12

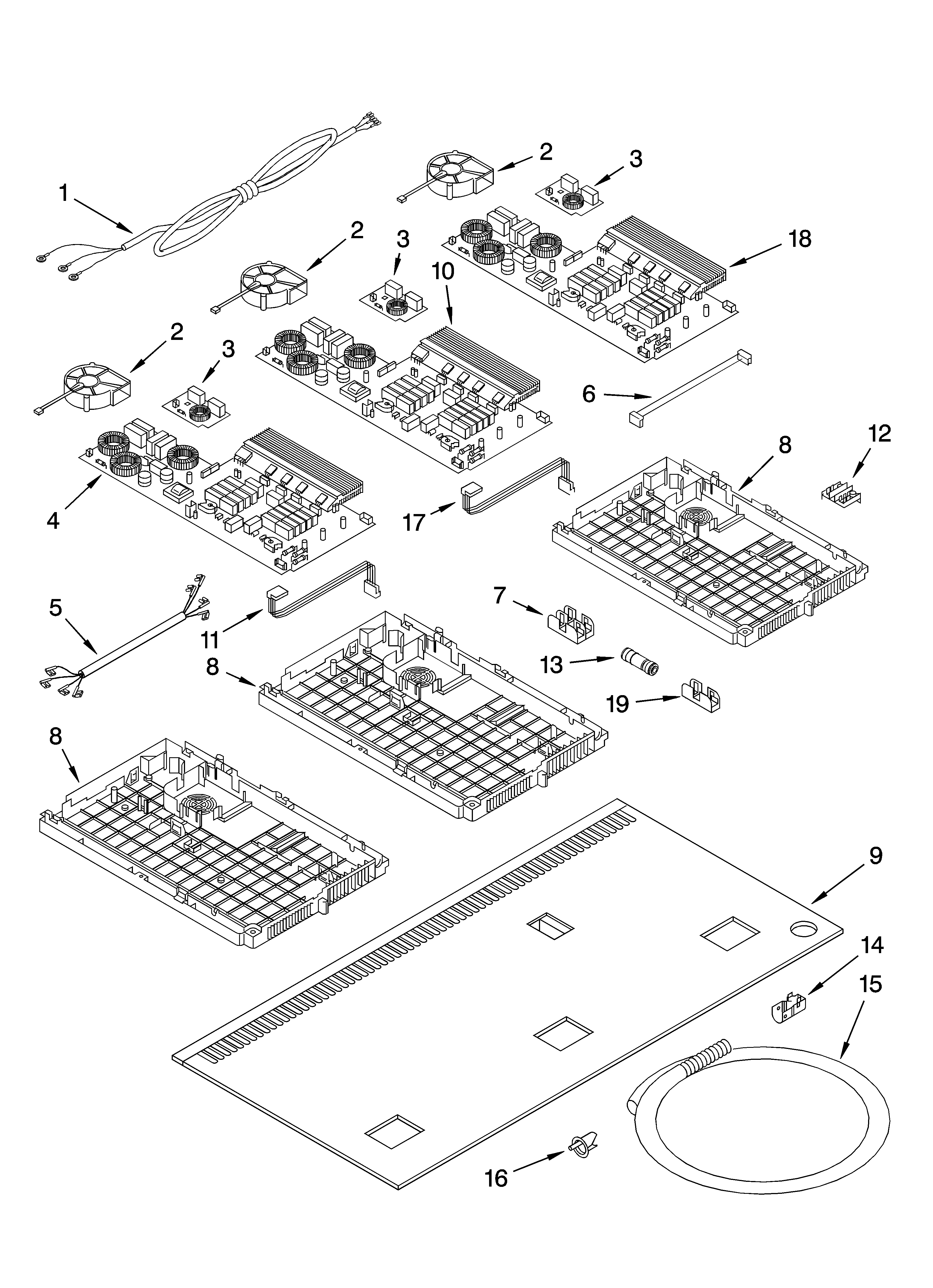

Interior parts diagram

Terminal block

Part #W10122379

In Stock
Jenn-air Fuse Block W10122373
#19

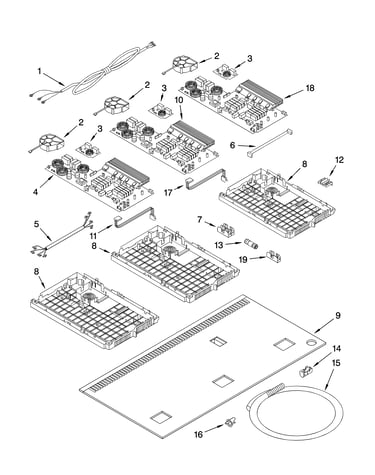

Interior parts diagram

Jenn-air fuse block

Part #W10122373

In Stock
Display W10122343
#20

Cooktop parts diagram

Display

Part #W10122343

In Stock
Wire Harness W10122361
#6

Interior parts diagram

Wire harness

Part #W10122361

The manufacturer no longer makes this part, and there's no substitute part

Hot Plate W10122332
#6

Cooktop parts diagram

Hot plate

Part #W10122332

The manufacturer no longer makes this part, and there's no substitute part

Wire Harness W10134545
#5

Interior parts diagram

Wire harness

Part #W10134545

The manufacturer no longer makes this part, and there's no substitute part

Wire Harness W10122376
#11

Interior parts diagram

Wire harness

Part #W10122376

The manufacturer no longer makes this part, and there's no substitute part
