Craftsman
Power Saw

Model # 90027600 Official Craftsman worm drive saw

Here are the diagrams and repair parts for Official Craftsman 90027600 worm drive saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

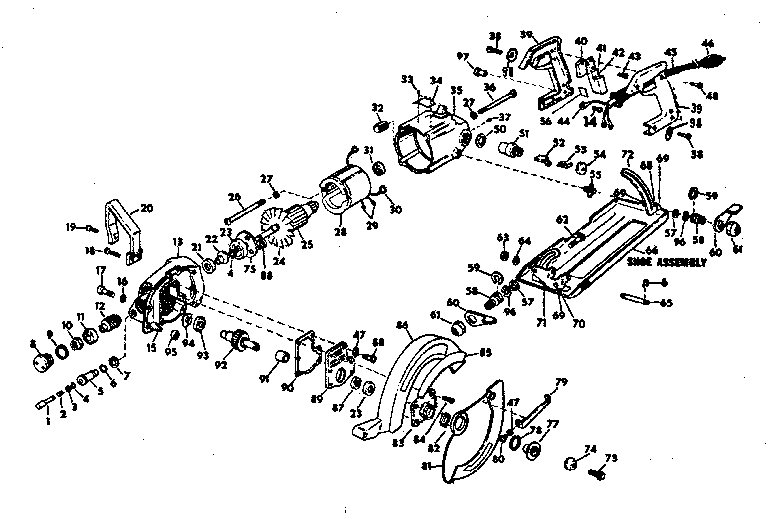

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 104 parts  |
Craftsman Screw 99284-16
#18

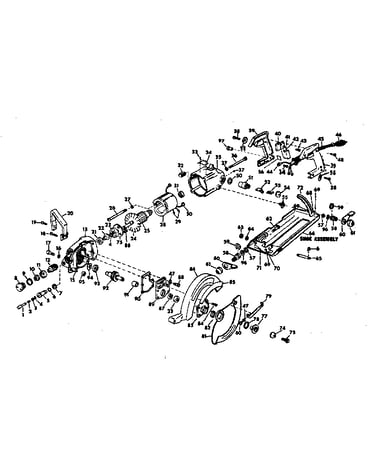

Unit parts diagram

Craftsman screw

Part #99284-16

The manufacturer no longer makes this part, and there's no substitute part

Detroit Nut 33328-01
#10

Unit parts diagram

Detroit nut

Part #33328-01

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Screw 99257-08
#17

Unit parts diagram

Craftsman screw

Part #99257-08

The manufacturer no longer makes this part, and there's no substitute part

Stop Nut 32492
#61

Unit parts diagram

Stop nut

Part #32492

The manufacturer no longer makes this part, and there's no substitute part

Plug 58641-01
#8

Unit parts diagram

Plug

Part #58641-01

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 418
#47

Unit parts diagram

Lock washer

Part #418

The manufacturer no longer makes this part, and there's no substitute part

Bearing 71806
Bearing

Part #71806

The manufacturer no longer makes this part, and there's no substitute part

Gasket 67893
#90

Unit parts diagram

Gasket

Part #67893

The manufacturer no longer makes this part, and there's no substitute part

Terminal 33315
#29

Unit parts diagram

Terminal

Part #33315

The manufacturer no longer makes this part, and there's no substitute part

Screw 99404-66
#36

Unit parts diagram

Screw

Part #99404-66

The manufacturer no longer makes this part, and there's no substitute part
