Dacor
Gas Cooktop

Model # ESG486 Official Dacor gas cooktop

Here are the diagrams and repair parts for Official Dacor ESG486 gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

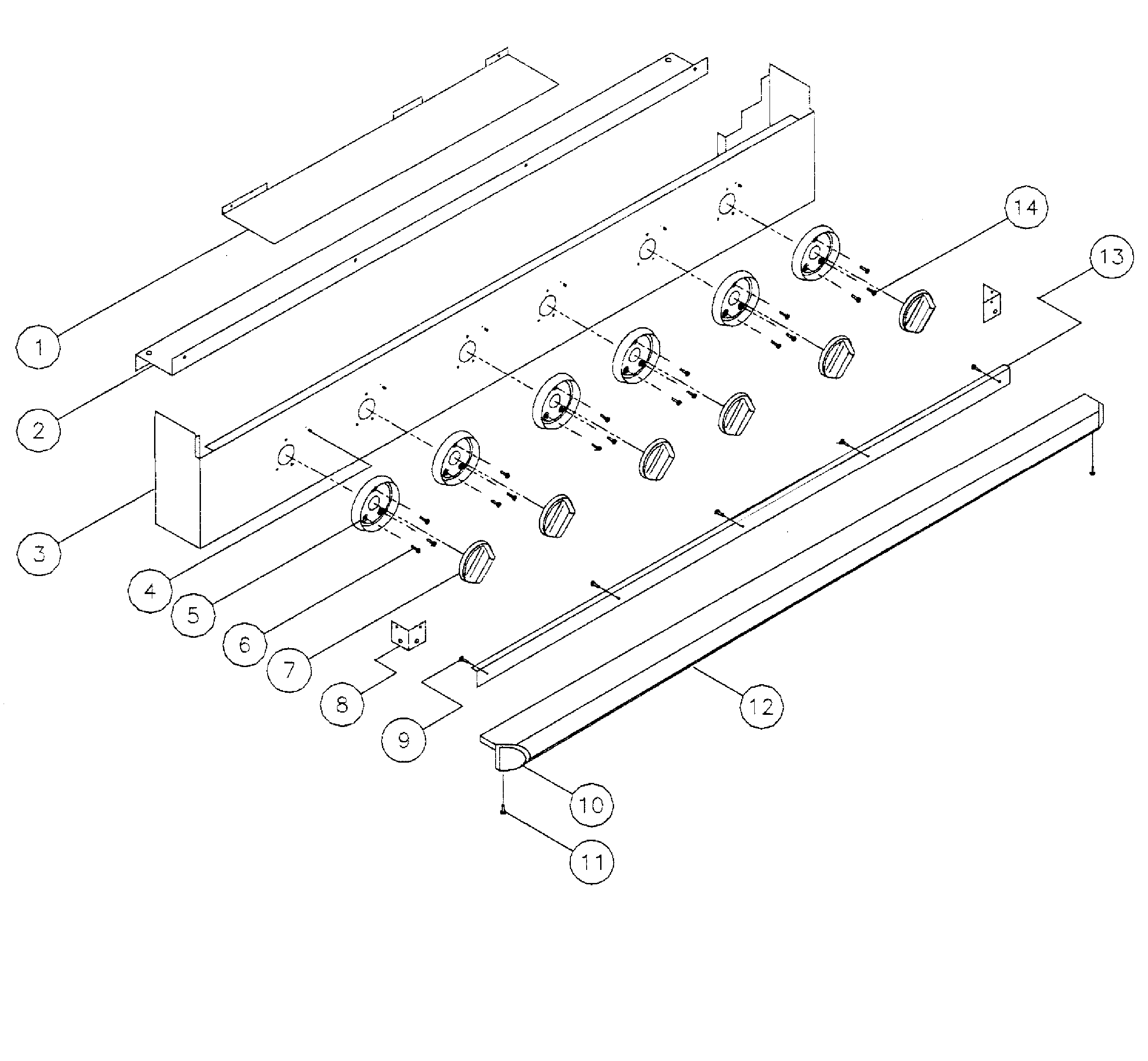

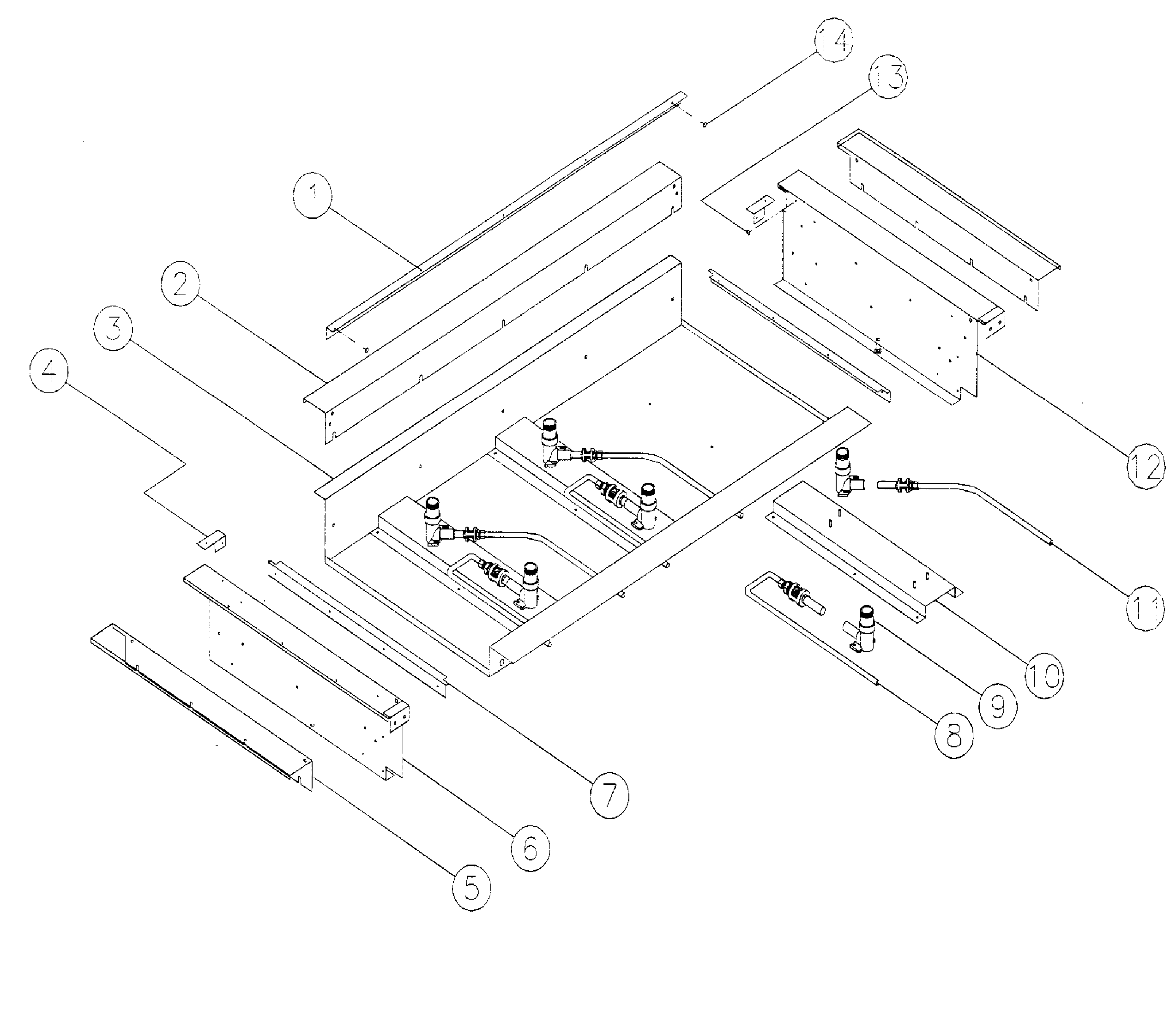

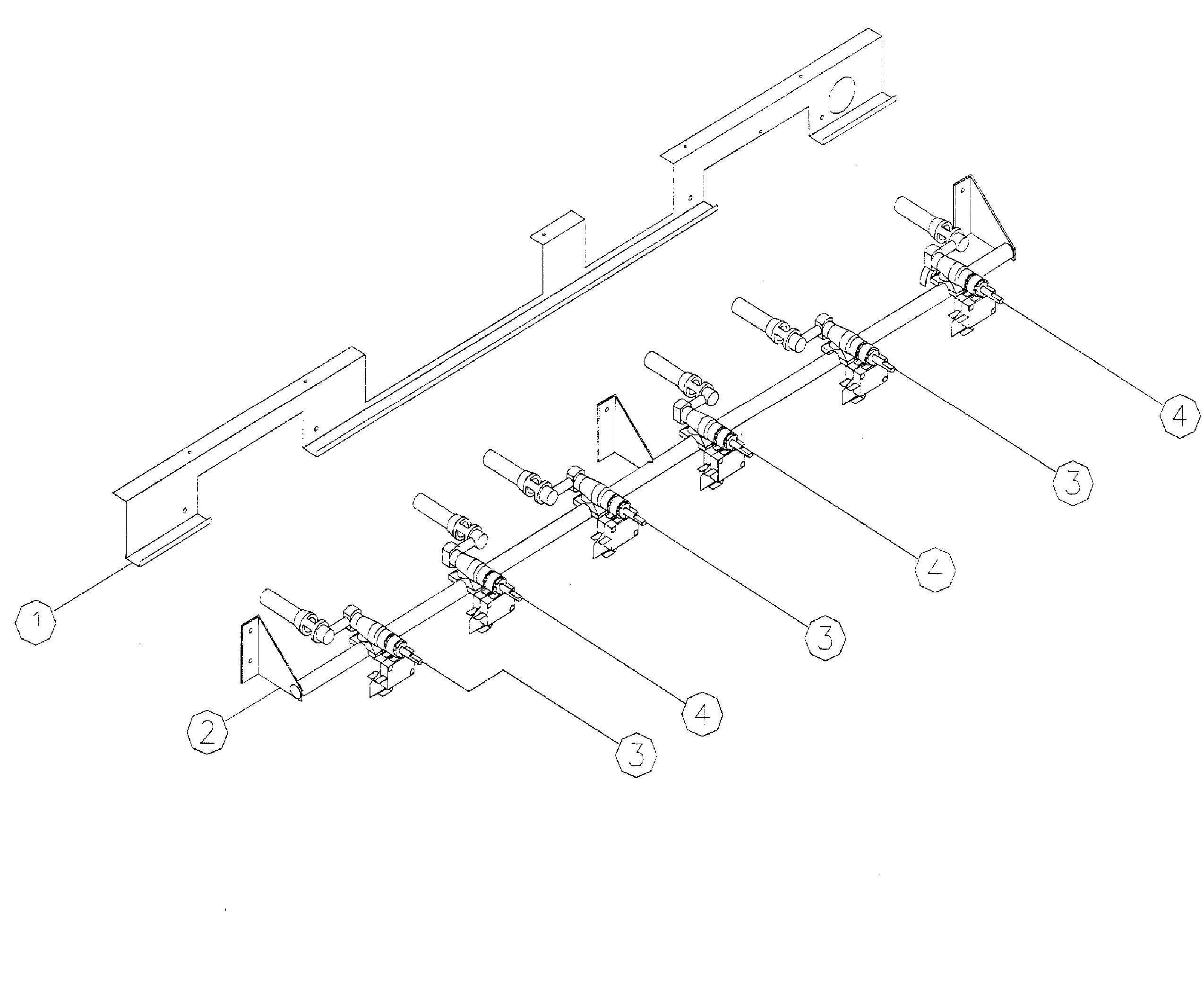

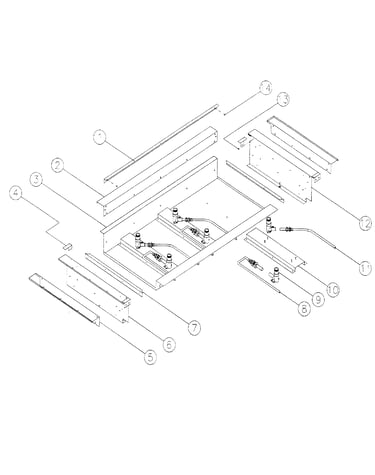

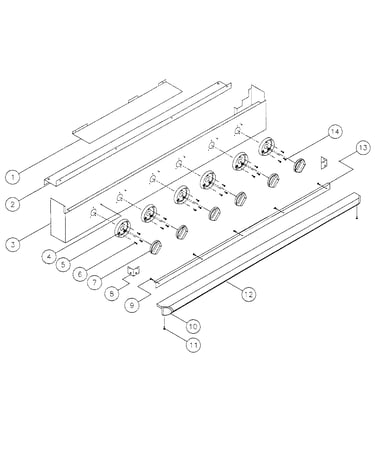

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |
Range Spark Module 86528
#14

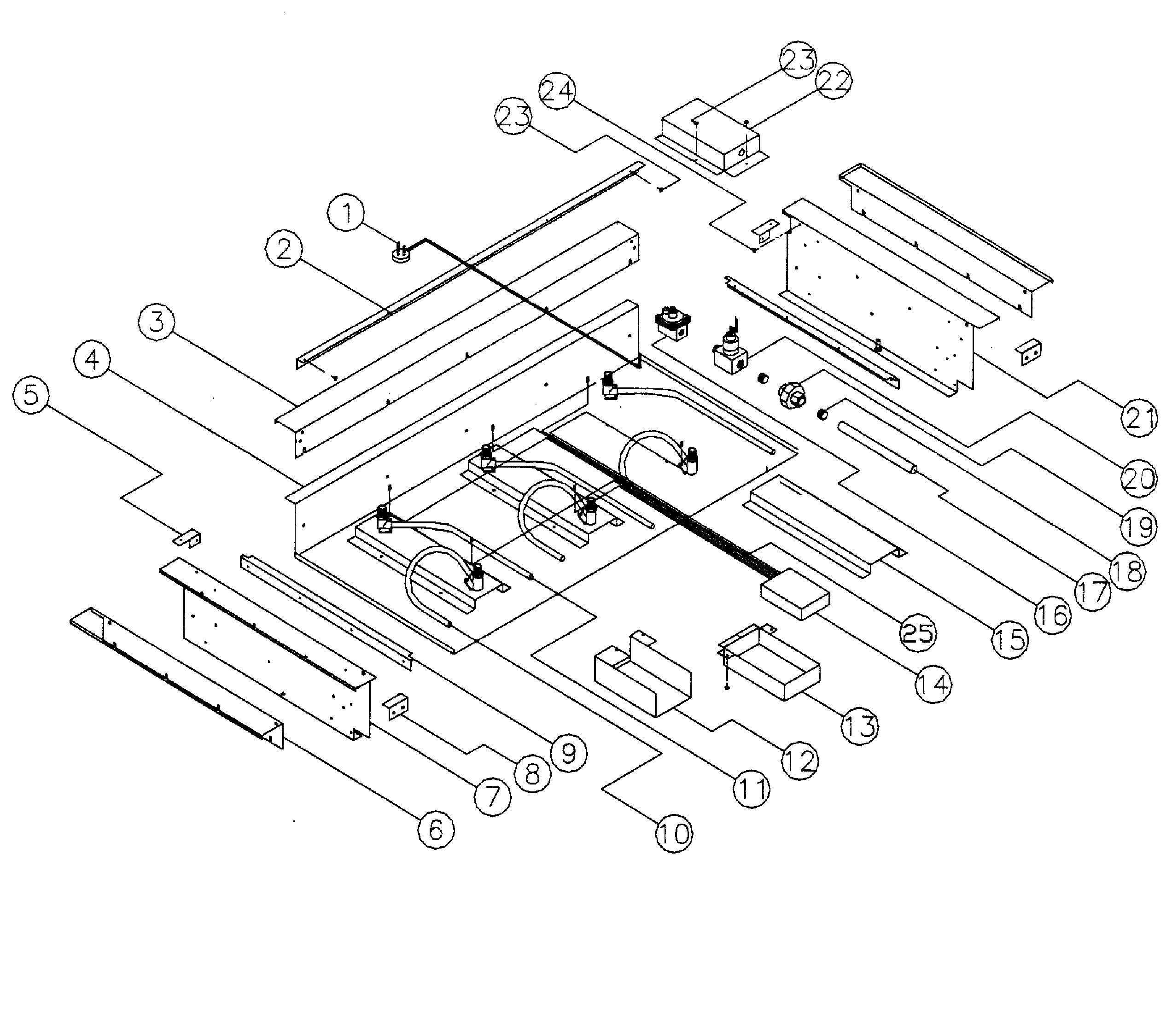

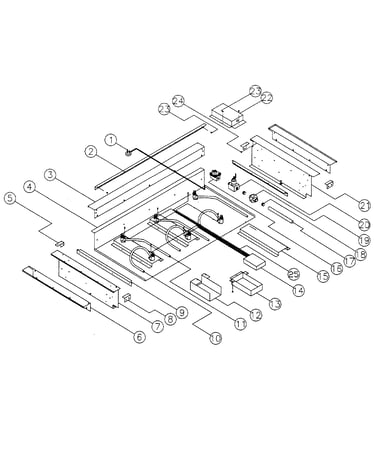

Tubing-a diagram

Range spark module

Part #86528

$161.99
In Stock
Cooktop Spark Module 82318
#8

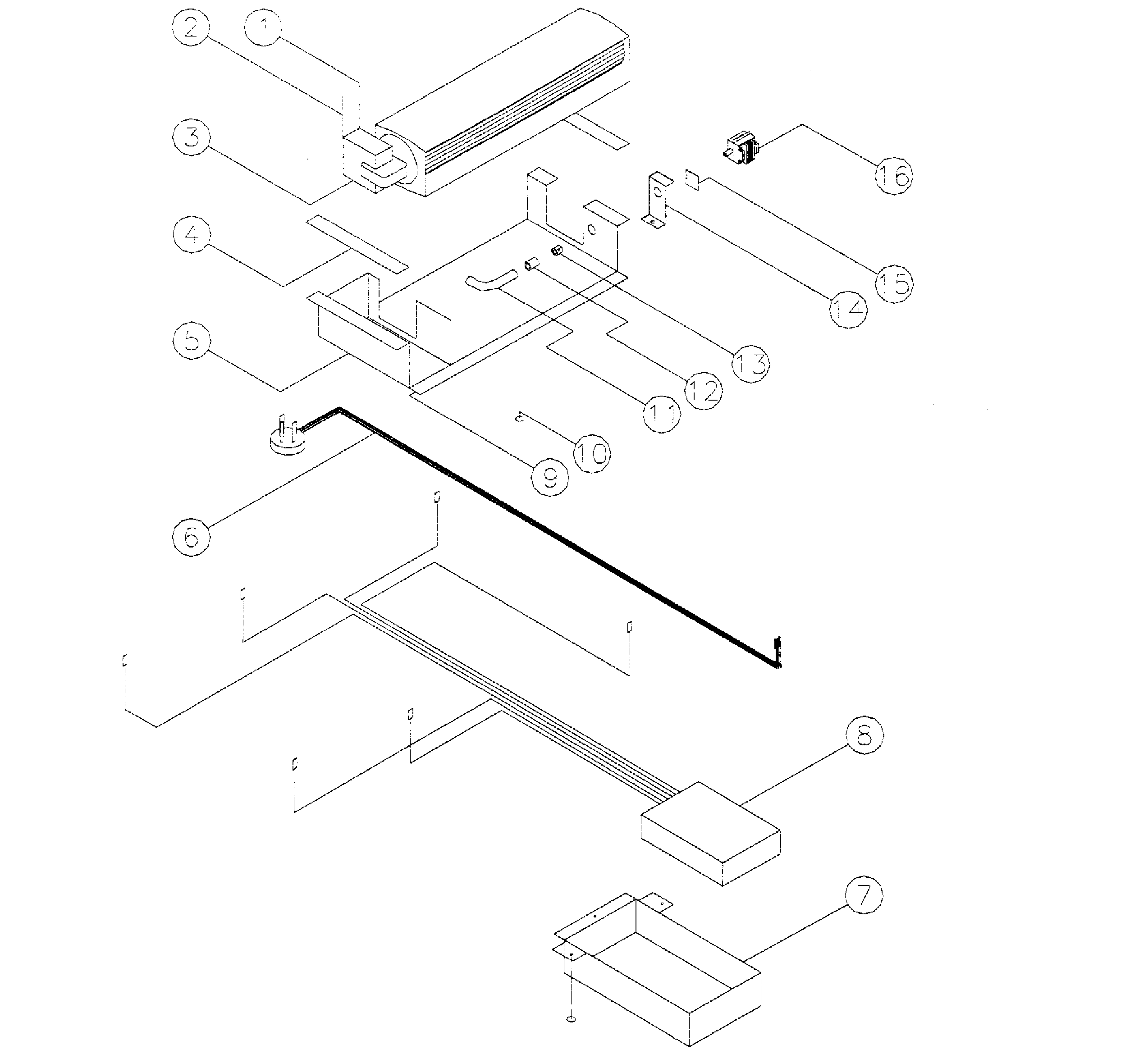

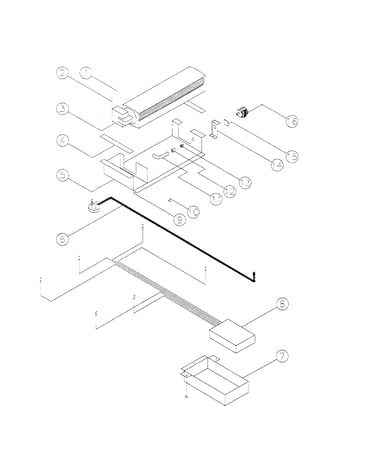

Fan assy diagram

Cooktop spark module

Part #82318

Replaced by #86528

?
Manufacturer substitution
This part replaces 82318. Substitute parts can look different from the original.
$161.99
In Stock
Appliance Screw 83534
Appliance screw

Part #83534

This item is not returnable
$2.16
Back Order
Cap 62022BM
#2

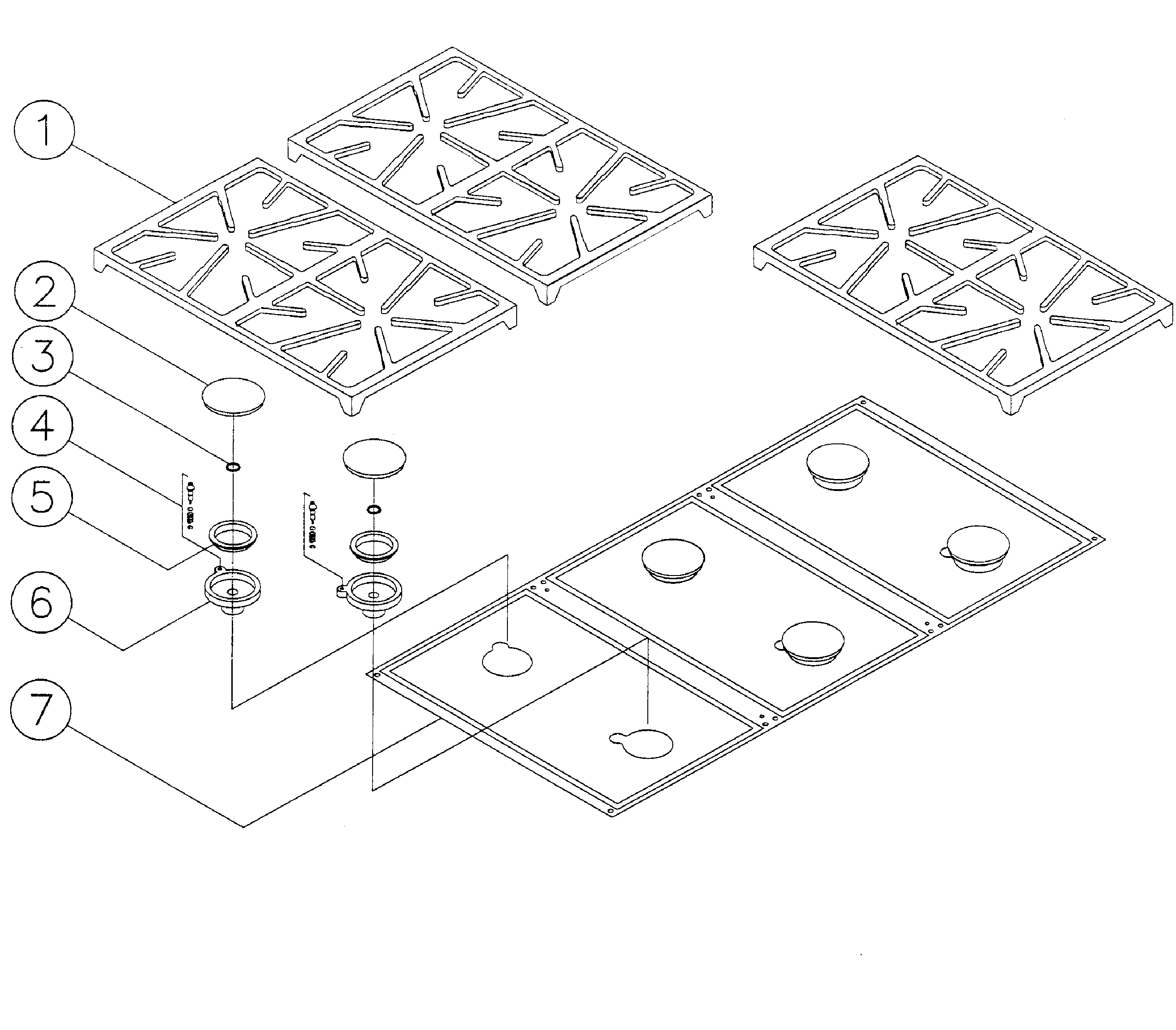

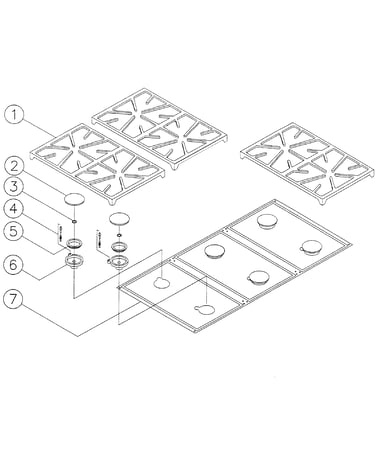

Top assy diagram

Cap

Part #62022BM

Replaced by #72435SB

?
Manufacturer substitution
This part replaces 62022BM. Substitute parts can look different from the original.
$15.99
Back Order
Dacor Tub 3/16 62231
#12

Fan assy diagram

Dacor tub 3/16

Part #62231

This item is not returnable
$2.16
In Stock
Dacor Rear Tube 62025
#11

Tubing-a diagram

Dacor rear tube

Part #62025

$24.49
In Stock
Dacor Channel 27071
#15

Tubing-a diagram

Dacor channel

Part #27071

$18.99
In Stock
Dacor Air Switch Kit 86365
#16A

Fan assy diagram

Dacor air switch kit

Part #86365

$422.99
In Stock
Dacor Stud Recei 62220
#13

Fan assy diagram

Dacor stud recei

Part #62220

This item is not returnable
$2.16
In Stock
Gas Valve 86551
#3B

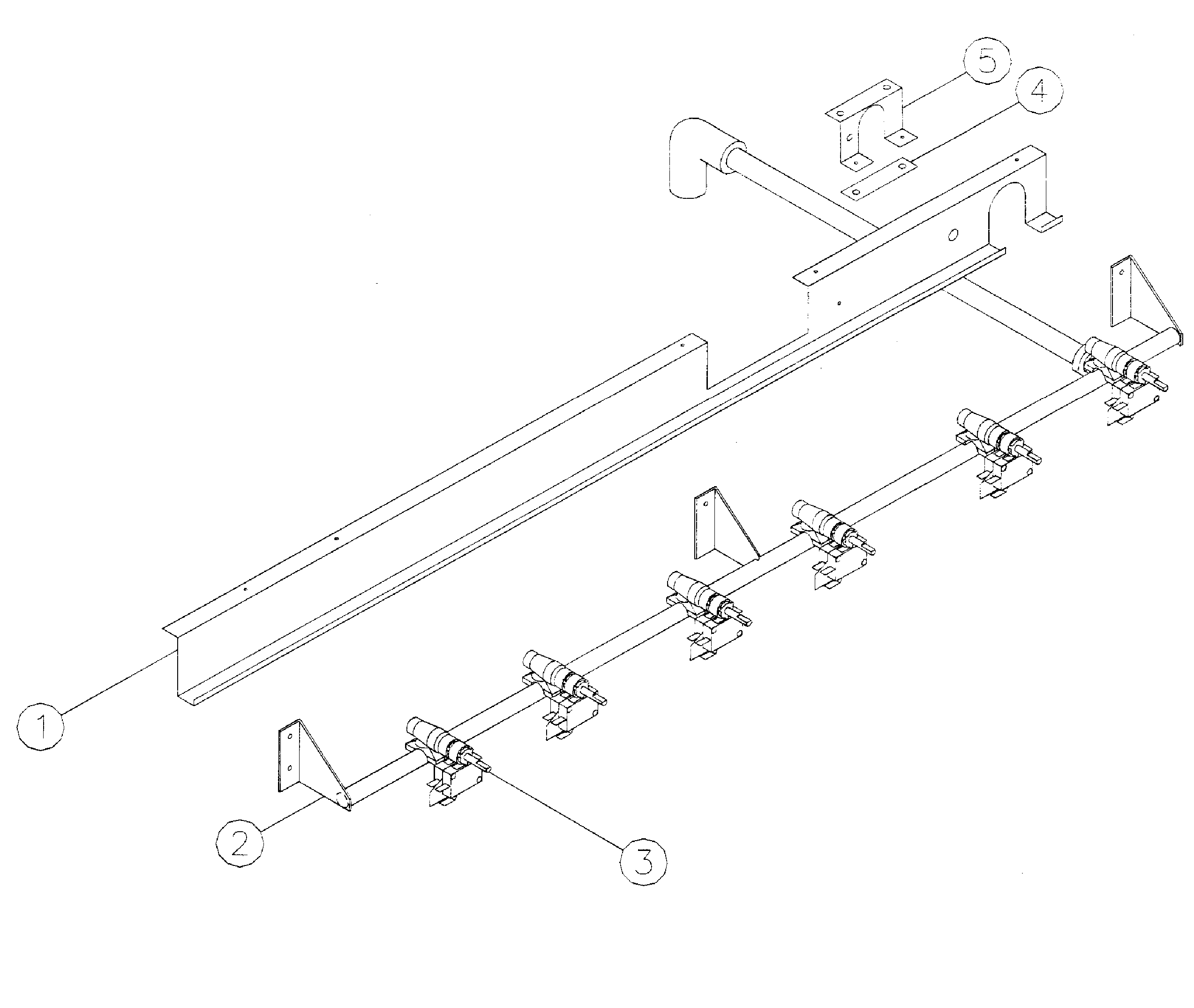

Manifold-b diagram

Gas valve

Part #86551

$75.49
In Stock
