Model # P3DNA08N04801 Official York furnace

Here are the diagrams and repair parts for Official York P3DNA08N04801 furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

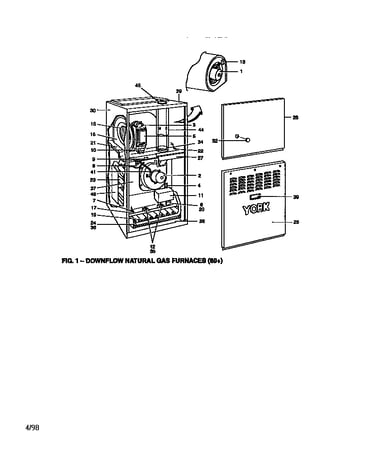

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 47 parts  |
Furnace Temperature Limit Switch 025-29041-002
#4

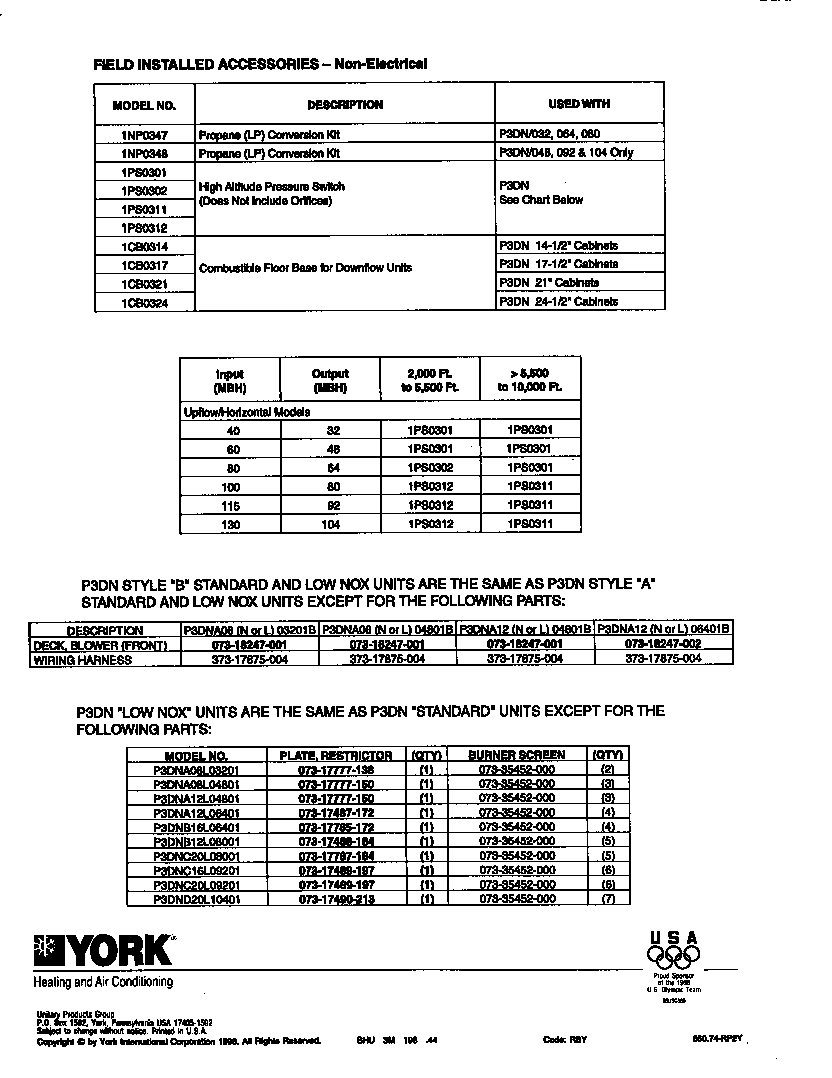

Functional replacement parts diagram

Furnace temperature limit switch

Part #025-29041-002

The manufacturer no longer makes this part, and there's no substitute part

Kero-sun Furnace Burner 029-20482-000
#19

Functional replacement parts diagram

Kero-sun furnace burner

Part #029-20482-000

The manufacturer no longer makes this part, and there's no substitute part

Fuse 025-32746-026
#14

Functional replacement parts diagram

Fuse

Part #025-32746-026

The manufacturer no longer makes this part, and there's no substitute part

Furnace Inducer Vent Motor Assembly 024-27519-000
#2

Functional replacement parts diagram

Furnace inducer vent motor assembly

Part #024-27519-000

The manufacturer no longer makes this part, and there's no substitute part

Wheel-fan 026-19654-707
#16

Functional replacement parts diagram

Wheel-fan

Part #026-19654-707

The manufacturer no longer makes this part, and there's no substitute part

Base Panel 073-17518-001
#26

Functional replacement parts diagram

Base panel

Part #073-17518-001

The manufacturer no longer makes this part, and there's no substitute part

Wrapper 373-17511-001
#30

Functional replacement parts diagram

Wrapper

Part #373-17511-001

The manufacturer no longer makes this part, and there's no substitute part

Door Handle 029-22113-000
#39

Functional replacement parts diagram

Door handle

Part #029-22113-000

The manufacturer no longer makes this part, and there's no substitute part

Exchanger, Heat (assembly) 373-17519-003
#23

Functional replacement parts diagram

Exchanger, heat (assembly)

Part #373-17519-003

The manufacturer no longer makes this part, and there's no substitute part

Gasket, Restrictor Plate 028-13258-000
#40

Functional replacement parts diagram

Gasket, restrictor plate

Part #028-13258-000

The manufacturer no longer makes this part, and there's no substitute part
