Model # 315269261 Official Craftsman drill/driver

Here are the diagrams and repair parts for Official Craftsman 315269261 drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

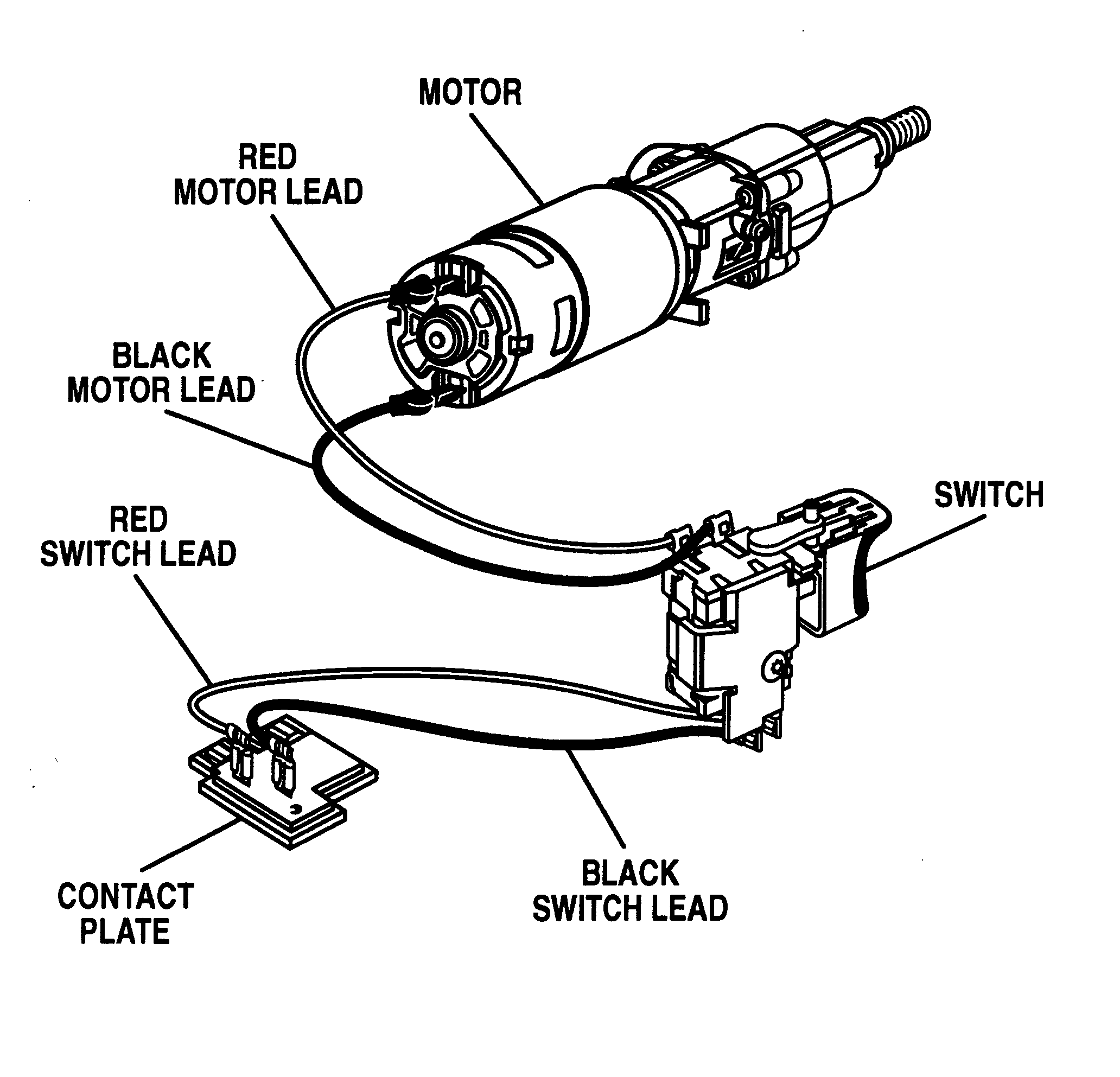

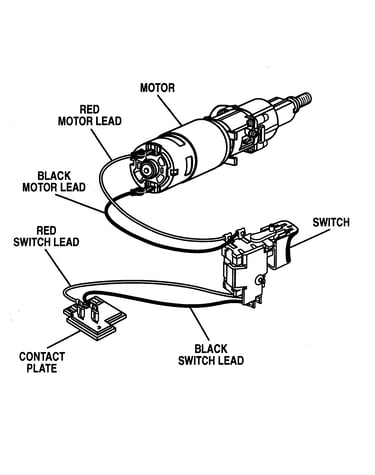

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 26 parts  |
Button 3801201
#2

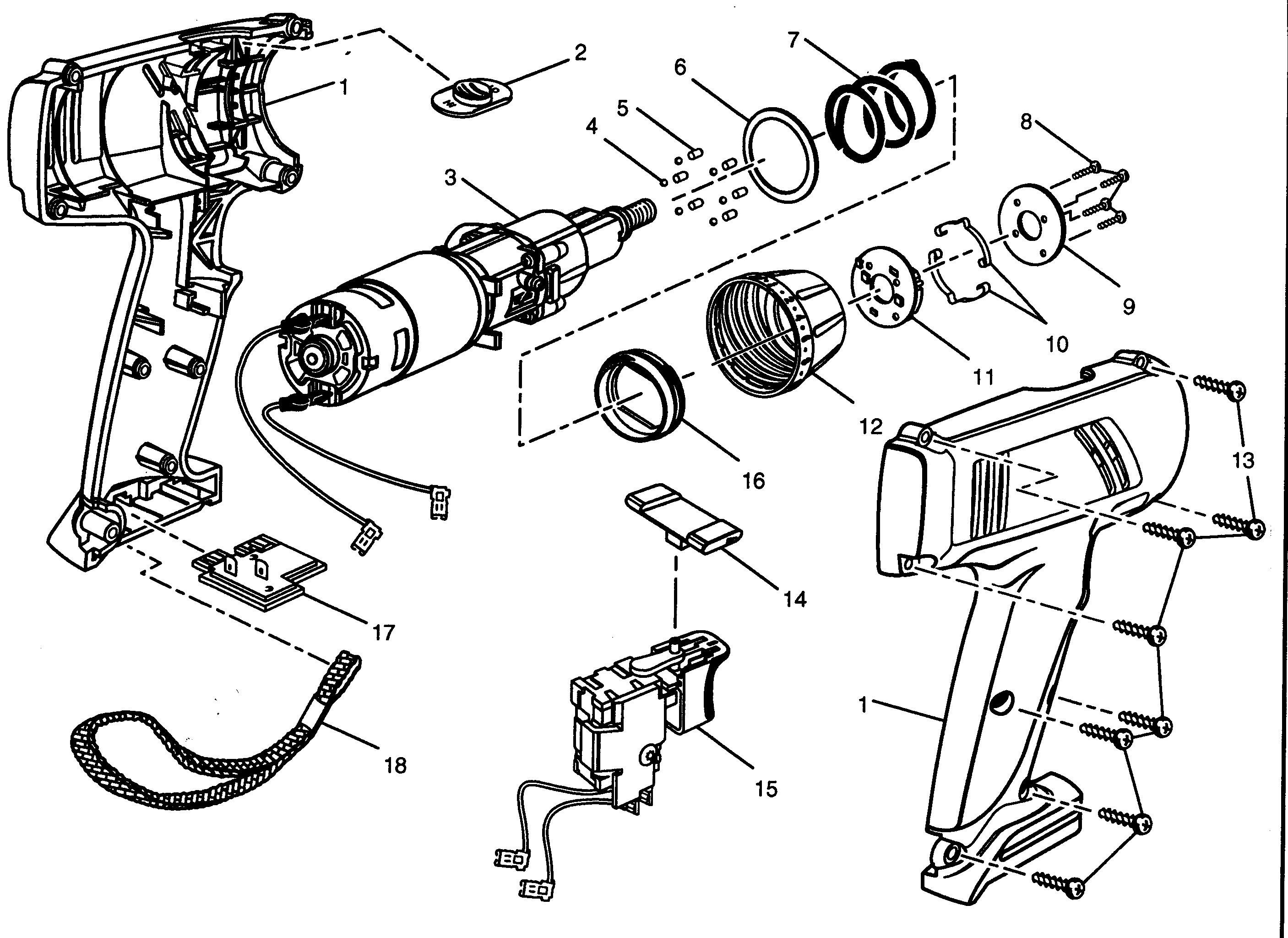

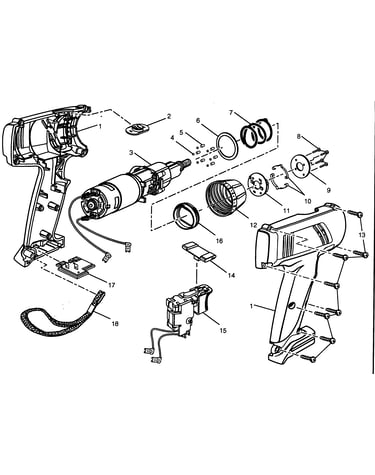

Housing assy diagram

Button

Part #3801201

The manufacturer no longer makes this part, and there's no substitute part

Gear Motor 983600-001
#3

Housing assy diagram

Gear motor

Part #983600-001

The manufacturer no longer makes this part, and there's no substitute part

Clutch Cap 5501401
#16

Housing assy diagram

Clutch cap

Part #5501401

The manufacturer no longer makes this part, and there's no substitute part

Strap 9002709
#18

Housing assy diagram

Strap

Part #9002709

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Steel Ball 6721901
#4

Housing assy diagram

Power tool steel ball

Part #6721901

The manufacturer no longer makes this part, and there's no substitute part

Clutch Cap 984699-001
#12

Housing assy diagram

Clutch cap

Part #984699-001

The manufacturer no longer makes this part, and there's no substitute part

Housing 984371-001
#1

Housing assy diagram

Housing

Part #984371-001

The manufacturer no longer makes this part, and there's no substitute part

Battery Pack 9-11031
#4

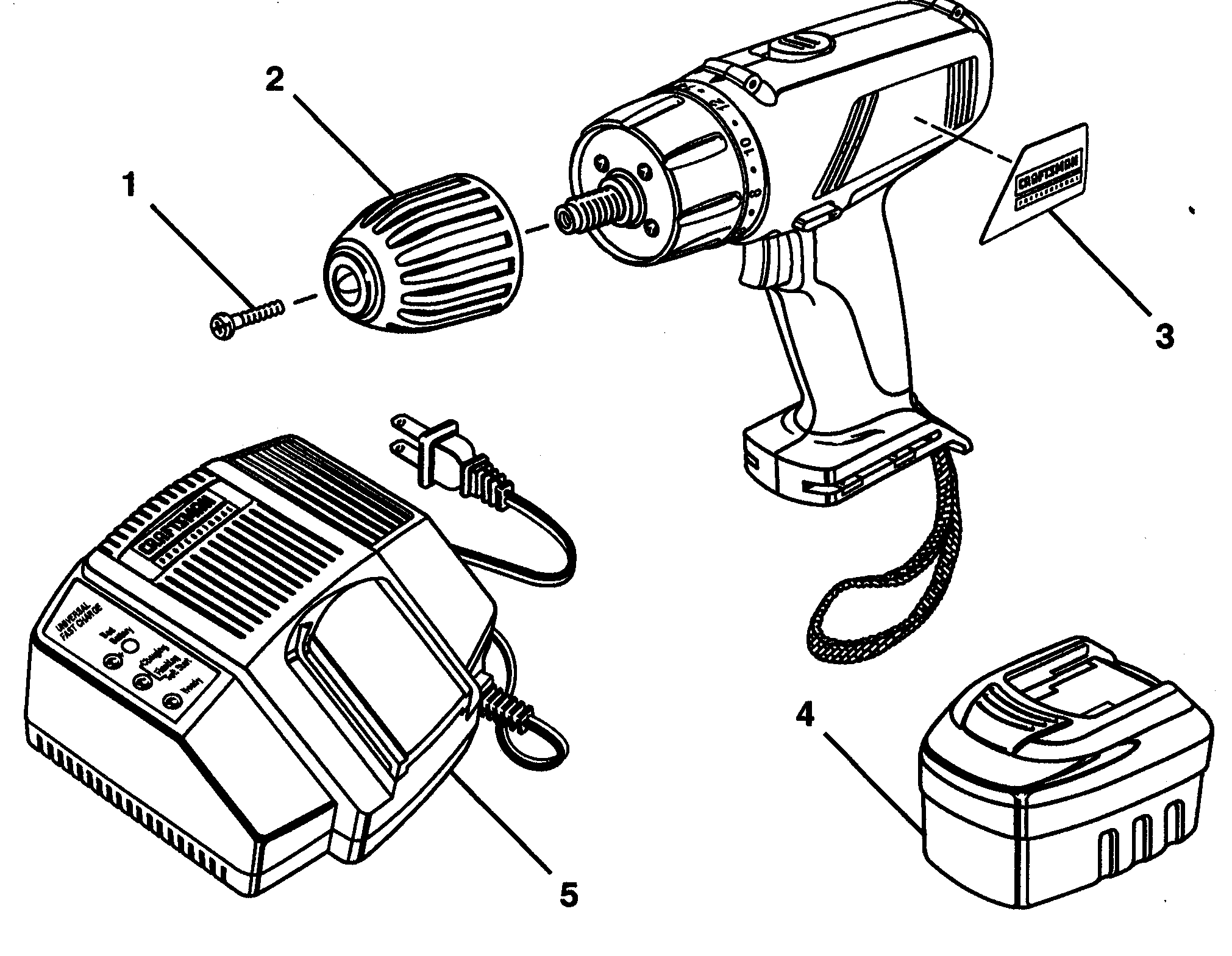

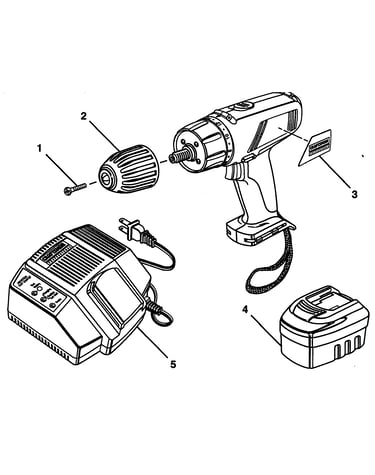

Drill diagram

Battery pack

Part #9-11031

The manufacturer no longer makes this part, and there's no substitute part

Ring 6399201
#10

Housing assy diagram

Ring

Part #6399201

The manufacturer no longer makes this part, and there's no substitute part

Drill Screw, M3 X 20 6620311
#8

Housing assy diagram

Drill screw, m3 x 20

Part #6620311

The manufacturer no longer makes this part, and there's no substitute part
