Model # EW475W Official Adobe Aire evaporative cooler
Here are the diagrams and repair parts for Official Adobe Aire EW475W evaporative cooler, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
EW475W Room Air Conditioners
#4

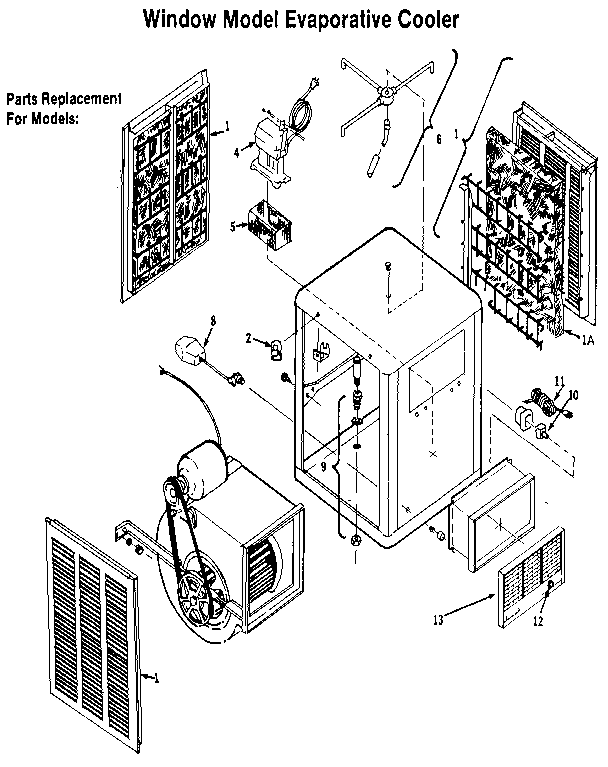

Window model evaporative cooler diagram
Pump
Part #A400113A
The manufacturer no longer makes this part, and there's no substitute part
#1
Window model evaporative cooler diagram
Pad assembly
Part #A506001A
The manufacturer no longer makes this part, and there's no substitute part
#6
Window model evaporative cooler diagram
Distributor
Part #A901305C
The manufacturer no longer makes this part, and there's no substitute part
#5
Window model evaporative cooler diagram
Screen
Part #M400501A
The manufacturer no longer makes this part, and there's no substitute part
#10
Window model evaporative cooler diagram
Switch
Part #P2-3006-3
The manufacturer no longer makes this part, and there's no substitute part
#12
Window model evaporative cooler diagram
Knb sped ctr
Part #A707401A
The manufacturer no longer makes this part, and there's no substitute part
#23

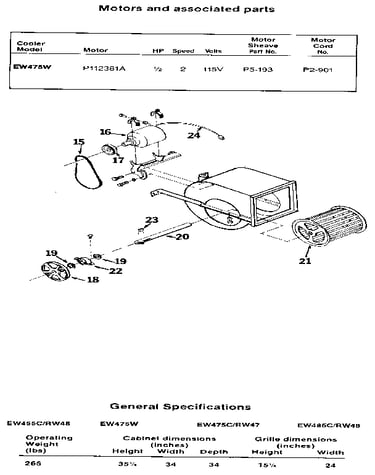

Motors and associated diagram
Key
Part #M714001A
The manufacturer no longer makes this part, and there's no substitute part
#13
Window model evaporative cooler diagram
Grille
Part #A601801A
The manufacturer no longer makes this part, and there's no substitute part
#22
Motors and associated diagram
Bearing
Part #A703807A
The manufacturer no longer makes this part, and there's no substitute part
#11
Window model evaporative cooler diagram
Cord plug
Part #P202404A
The manufacturer no longer makes this part, and there's no substitute part
