Model # CRH3-1/P55200-6C Official Amana remote condensing section - crh series

Here are the diagrams and repair parts for Official Amana CRH3-1-P55200-6C remote condensing section - crh series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

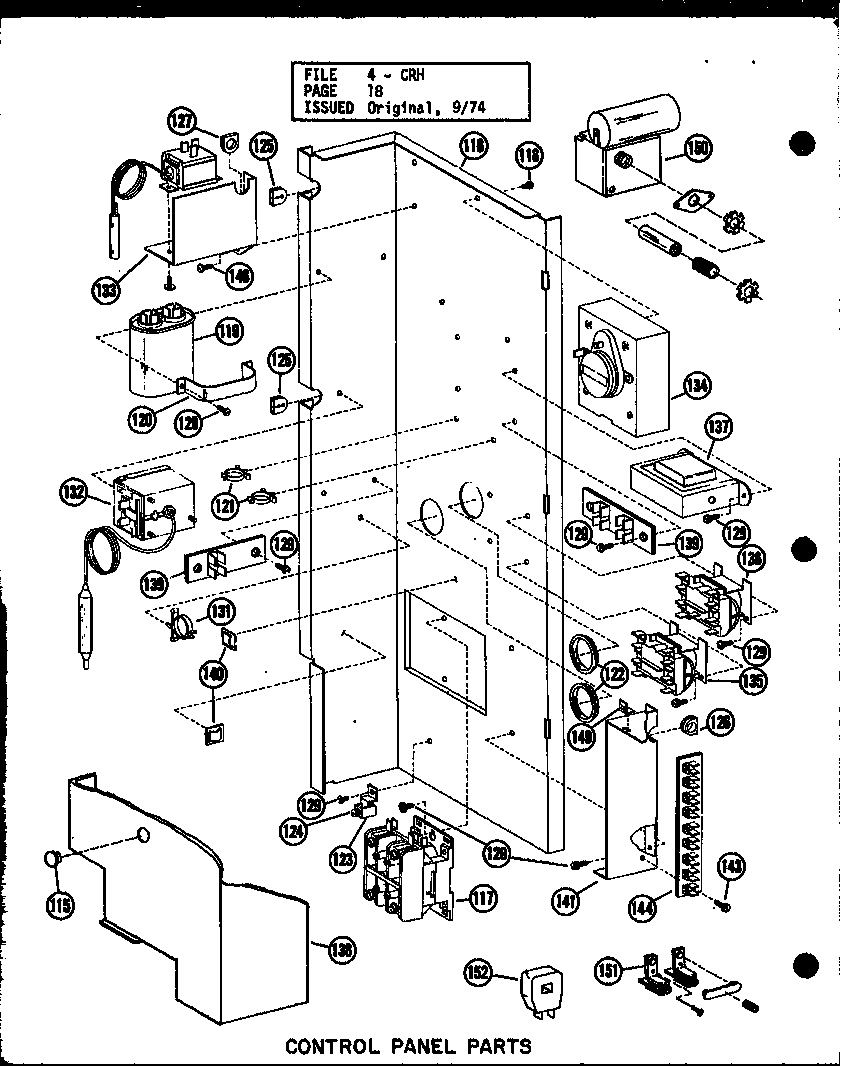

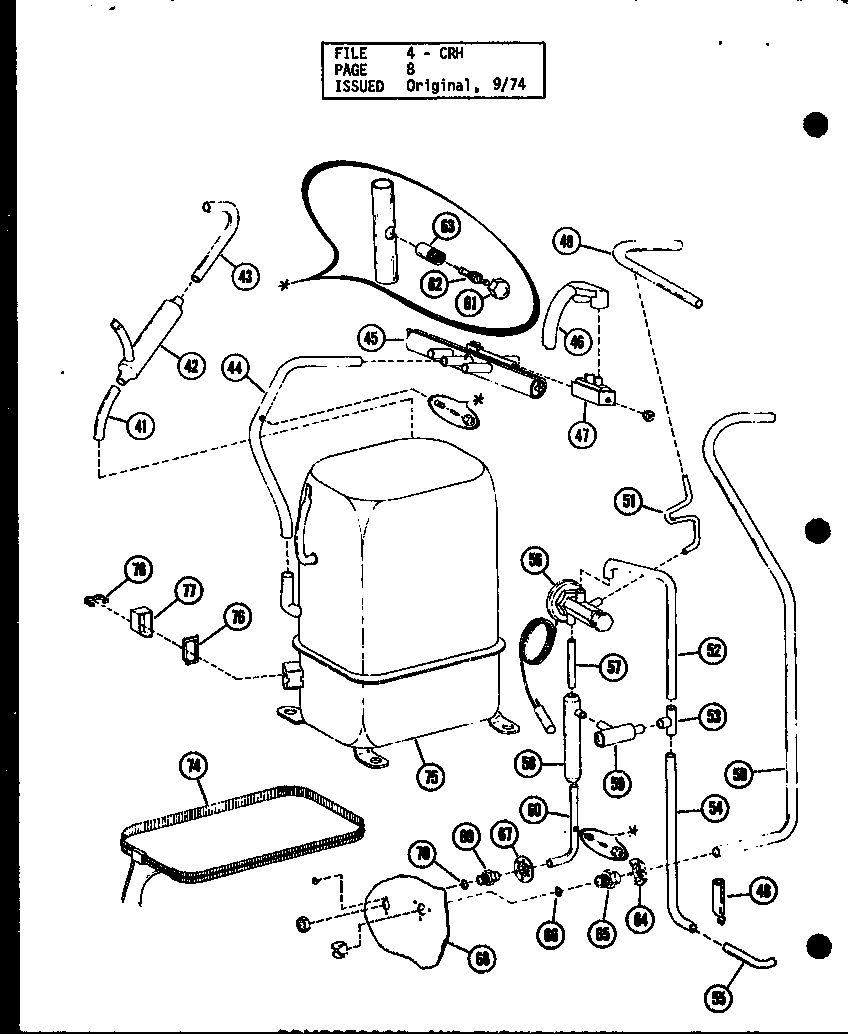

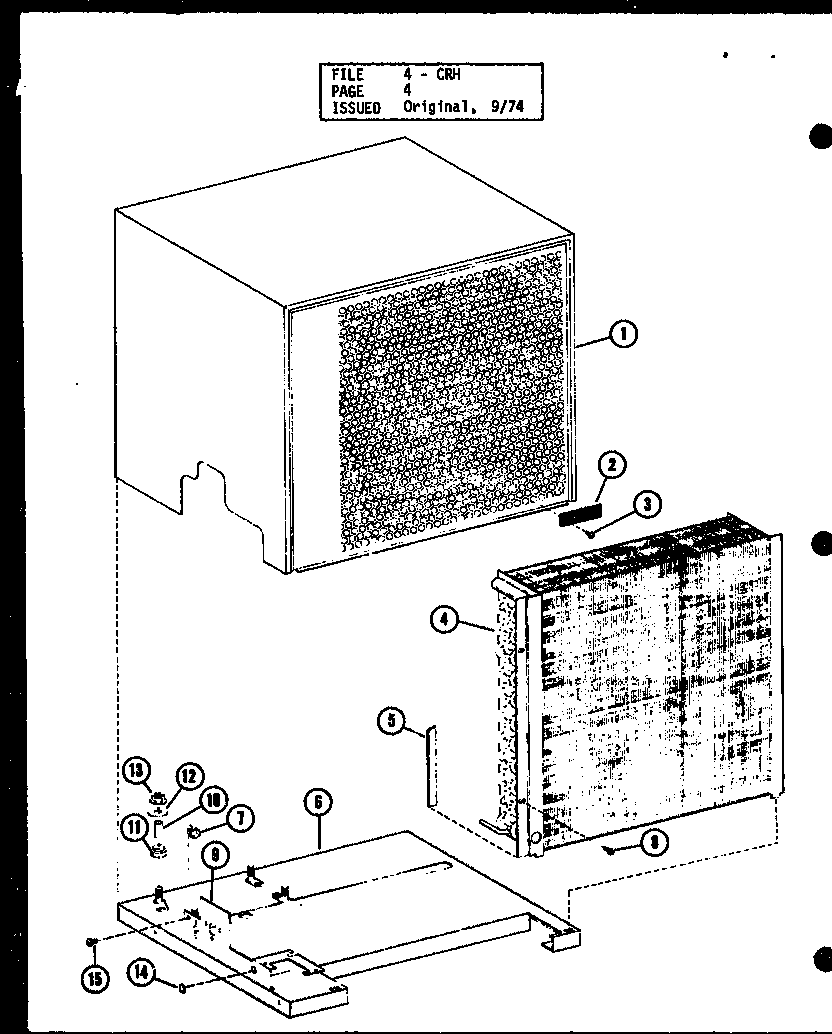

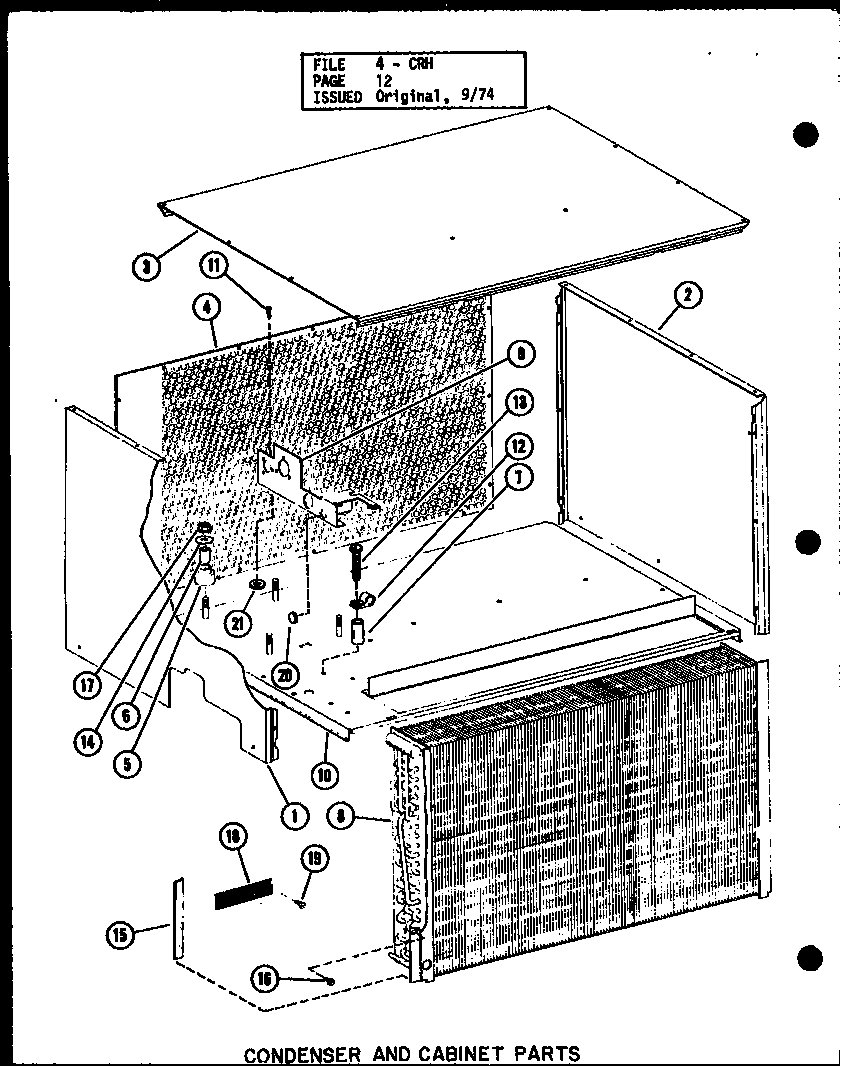

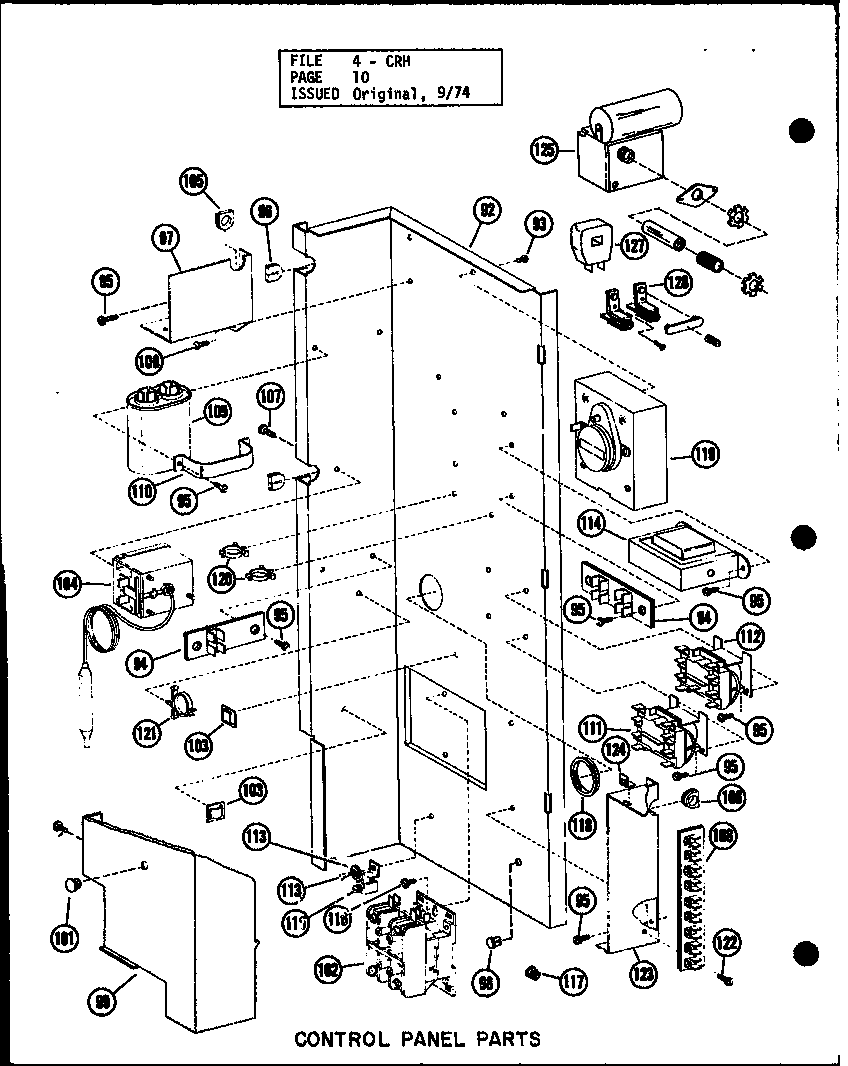

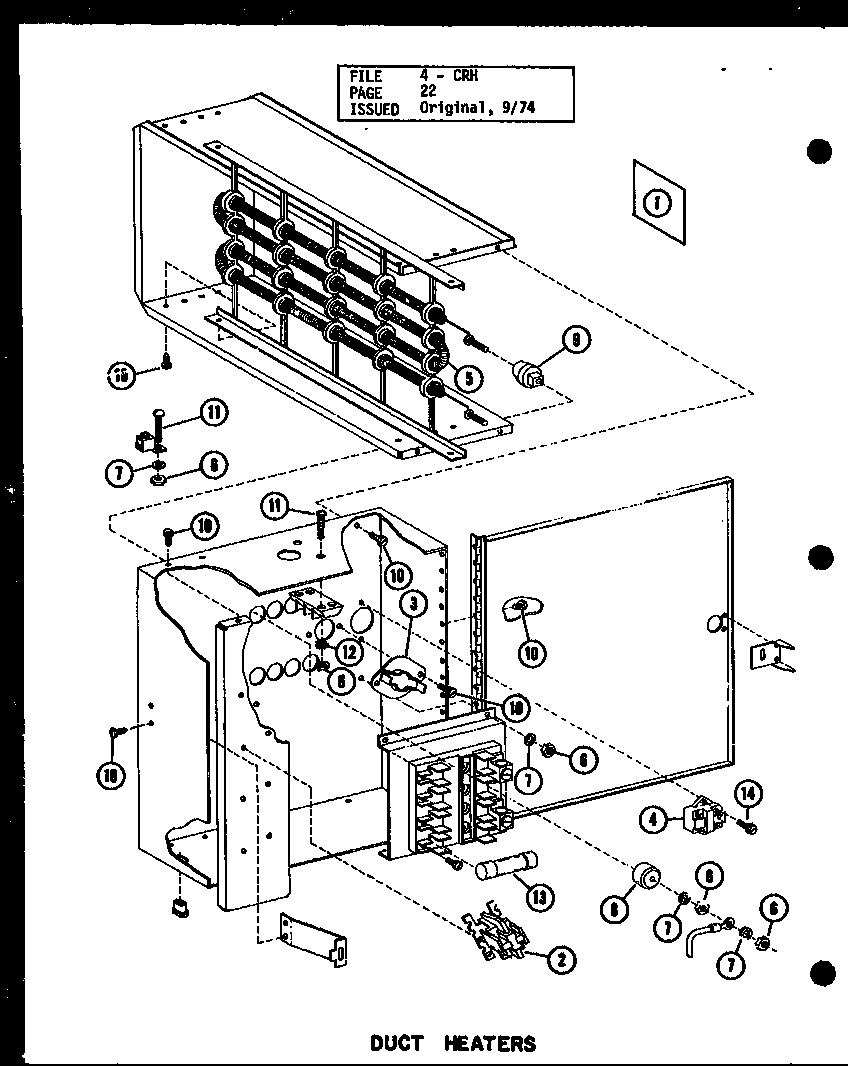

Model diagram and schematic

SEARCH WITHIN THIS MODEL

Filters

Screws

ALL PARTS

Showing 10 of 212 parts |

Screw

Part #M0211317

Replaced by #WP489464

This item is not returnable

$6.60 |

13% OFF Phone Price : $7.60

In Stock

Qty

Screw

Part #M0211016

Replaced by #M0211016

This item is not returnable

$3.40

In Stock

Qty

#42

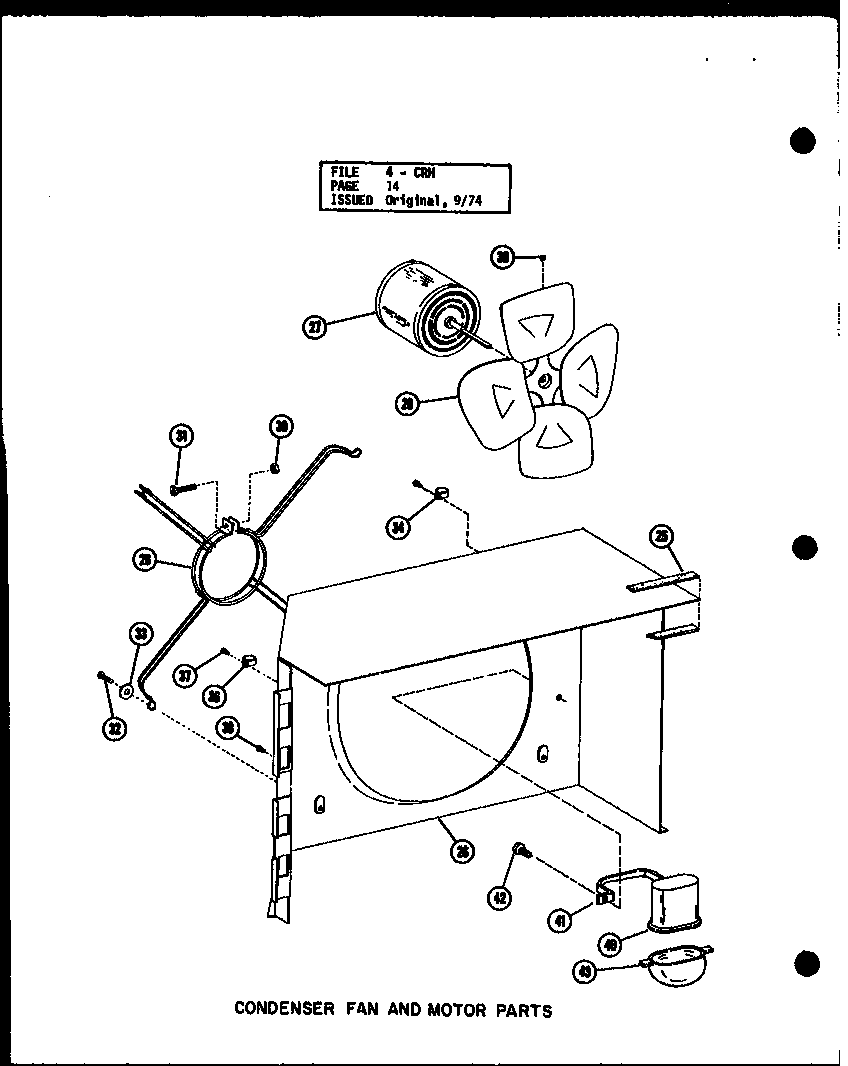

Condenser fan and motor parts (crh4-1/p55201-11c) (crh4-1/p55201-15c) (crh4-3/p55201-12c) (crh4-3/p55201-16c) (crh5-1/p55201-13c) (crh5-3/p55201-14c) diagram

Screw

Part #M0211217

Replaced by #WP489464

This item is not returnable

$6.60 |

13% OFF Phone Price : $7.60

In Stock

Qty

#38

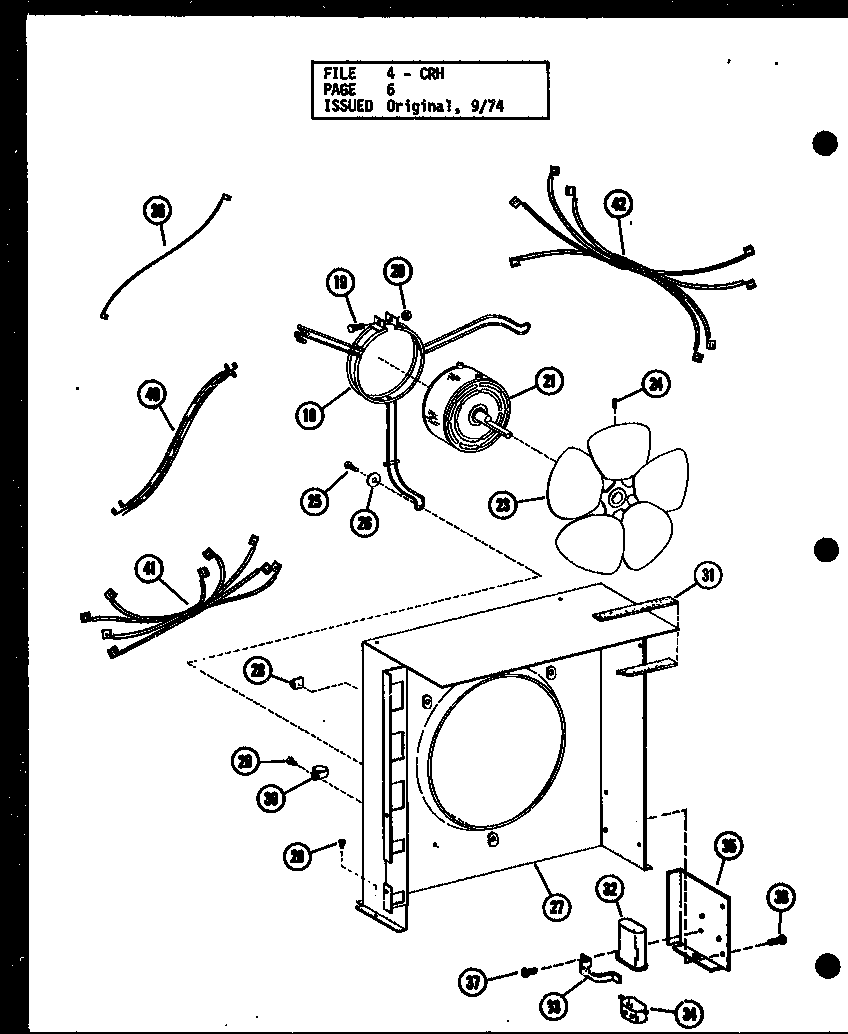

Condenser fan and motor parts (crh3-1/p55200-6c) (crh215-1/p55200-10c) diagram

Screw

Part #M0211018

Replaced by #M0211018

This item is not returnable

$4.39 |

19% OFF Phone Price : $5.39

In Stock

Qty

Cord clip

Part #M0104101

Replaced by #WPM0104106

This item is not returnable

$4.39 |

19% OFF Phone Price : $5.39

In Stock

Qty

Fastener

Part #M0257564

The manufacturer no longer makes this part, and there's no substitute part

#167

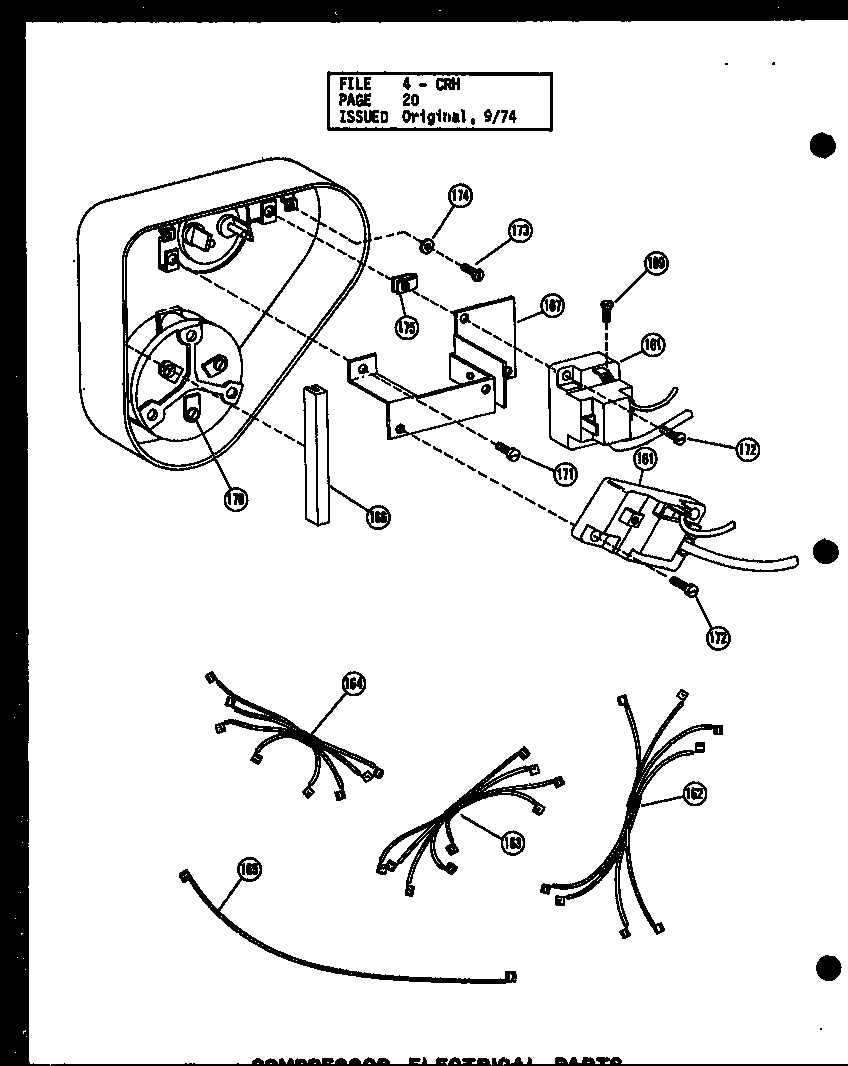

Compressor electrical parts (crh4-1/p55201-11c) (crh4-1/p55201-15c) (crh4-3/p55201-12c) (crh4-3/p55201-16c) (crh5-1/p55201-13c) (crh5-3/p55201-14c) diagram

Bracker, overload

Part #B4784601

The manufacturer no longer makes this part, and there's no substitute part

Assembly, Reversing Valve, Ranco V25-500 C4855501

#60B

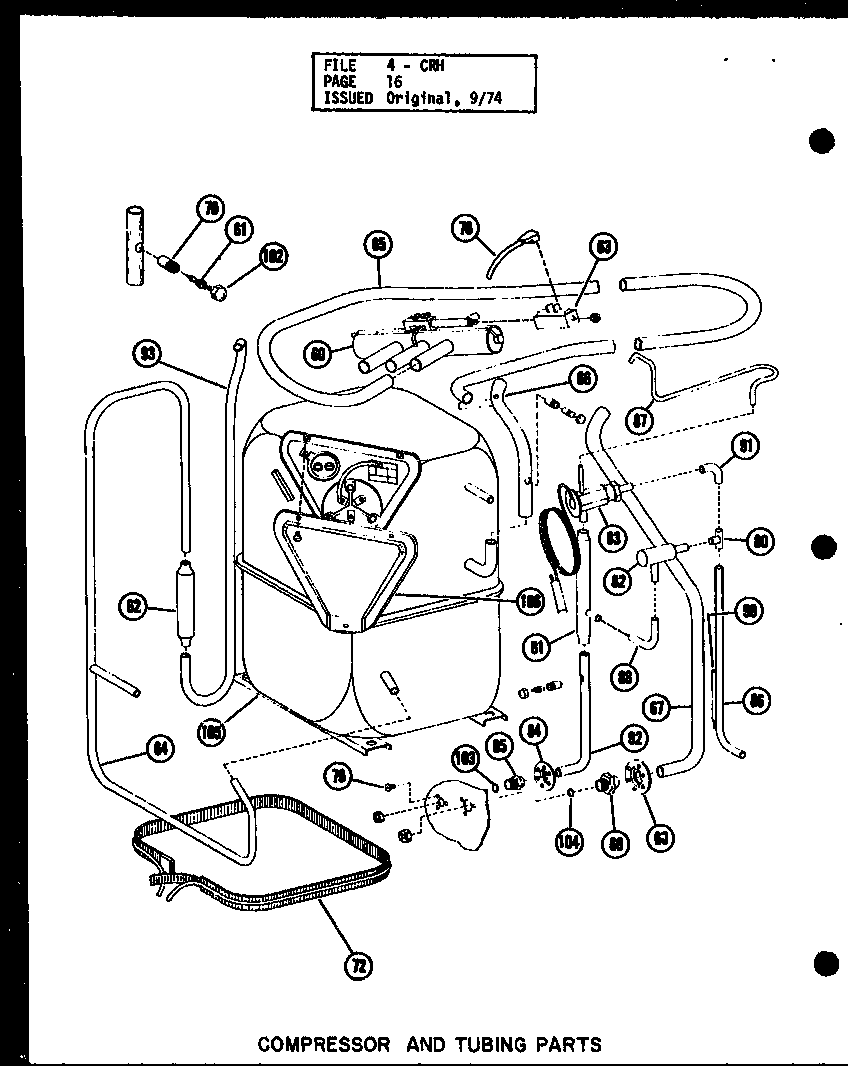

Compressor and tubing parts (crh4-1/p55201-11c) (crh4-1/p55201-15c) (crh4-3/p55201-12c) (crh4-3/p55201-16c) (crh5-1/p55201-13c) (crh5-3/p55201-14c) diagram

Assembly, reversing valve, ranco v25-500

Part #C4855501

The manufacturer no longer makes this part, and there's no substitute part

Defrost timer

Part #C4859602

The manufacturer no longer makes this part, and there's no substitute part
