Model # 2581095180 Official Kenmore gas outdoor grill

Here are the diagrams and repair parts for Official Kenmore 2581095180 gas outdoor grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 119 parts  |
Briq Grate 10222-20
#11

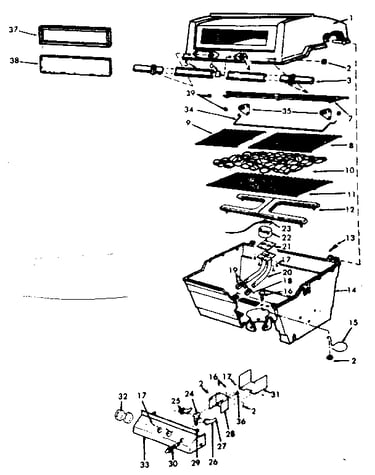

Grill, burner section, ground post & patio base diagram

Briq grate

Part #10222-20

Replaced by #04170107

?
Manufacturer substitution
This part replaces 10222-20. Substitute parts can look different from the original.
$44.39 |
12% OFF Phone Price : $50.39
In Stock
Cookbook 10084-343
#106

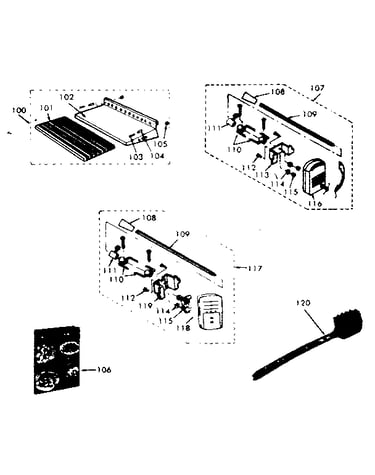

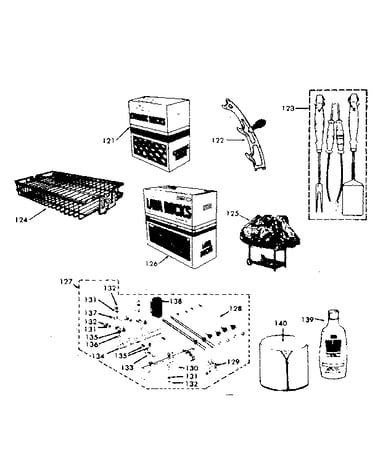

Optional accessories diagram

Cookbook

Part #10084-343

The manufacturer no longer makes this part, and there's no substitute part

Pal Nut Y-12650
#29

Grill, burner section, ground post & patio base diagram

Pal nut

Part #Y-12650

The manufacturer no longer makes this part, and there's no substitute part

Lp Tank 10930-53
#73

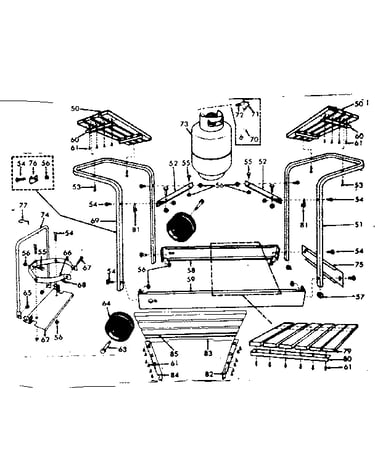

Deluxe cart diagram

Lp tank

Part #10930-53

The manufacturer no longer makes this part, and there's no substitute part

Screw Y-12304
#53

Deluxe cart diagram

Screw

Part #Y-12304

The manufacturer no longer makes this part, and there's no substitute part

Manifold 10152-29
#24

Grill, burner section, ground post & patio base diagram

Manifold

Part #10152-29

The manufacturer no longer makes this part, and there's no substitute part

Screw Y-12832
#61

Deluxe cart diagram

Screw

Part #Y-12832

The manufacturer no longer makes this part, and there's no substitute part

Air Shutter 10787-6
#19

Grill, burner section, ground post & patio base diagram

Air shutter

Part #10787-6

The manufacturer no longer makes this part, and there's no substitute part

Screw Y-12649
#18

Grill, burner section, ground post & patio base diagram

Screw

Part #Y-12649

The manufacturer no longer makes this part, and there's no substitute part

Shoulder Bolt 10240-6
#63

Deluxe cart diagram

Shoulder bolt

Part #10240-6

The manufacturer no longer makes this part, and there's no substitute part
