Troybilt
Generator

Model # 030477A-01 Official Troybilt portable generator

Here are the diagrams and repair parts for Official Troybilt 030477A-01 portable generator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

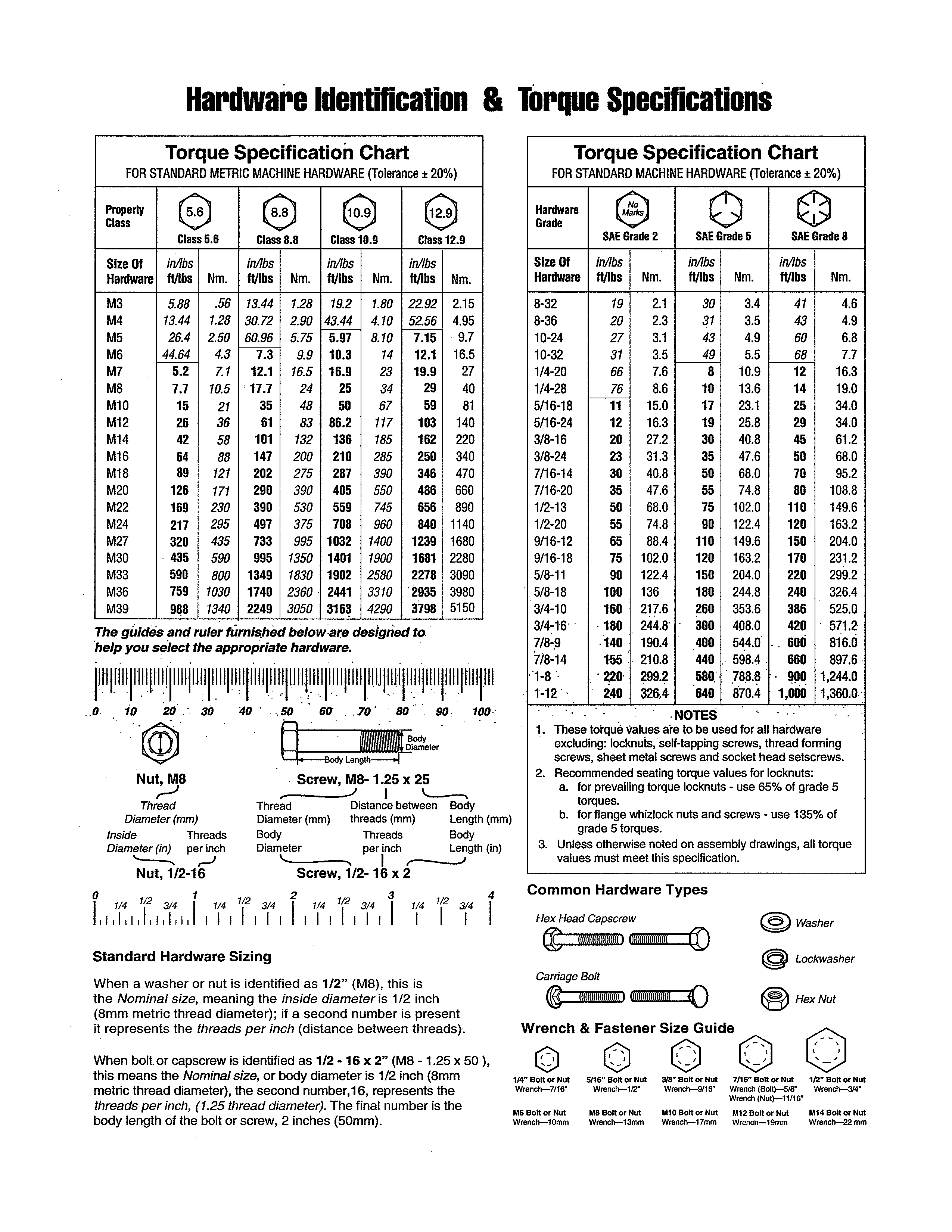

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 110 parts  |
Generator Fuel Valve (replaces 193272gs, 195590gs) 310574GS
#54

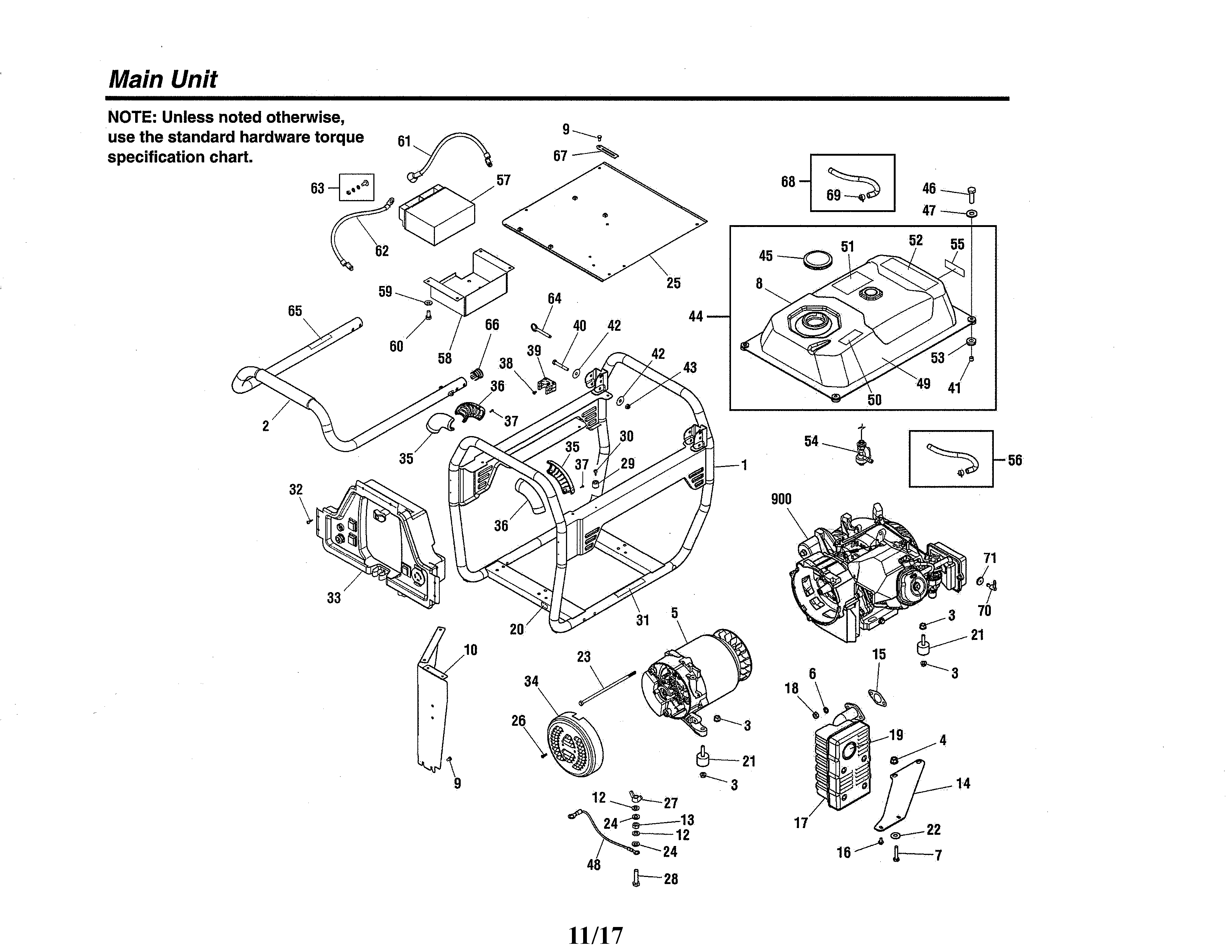

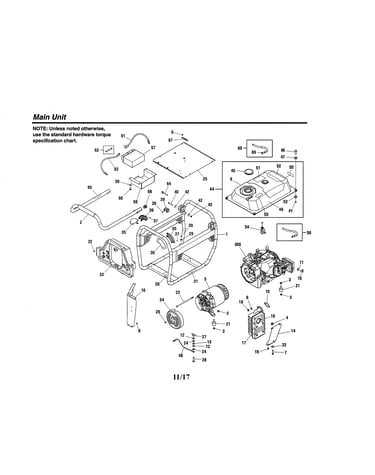

Main unit diagram

Generator fuel valve (replaces 193272gs, 195590gs)

Part #310574GS

$15.02 |
12% OFF Phone Price : $17.02
In Stock
Generator E-ring 191265GS
#5

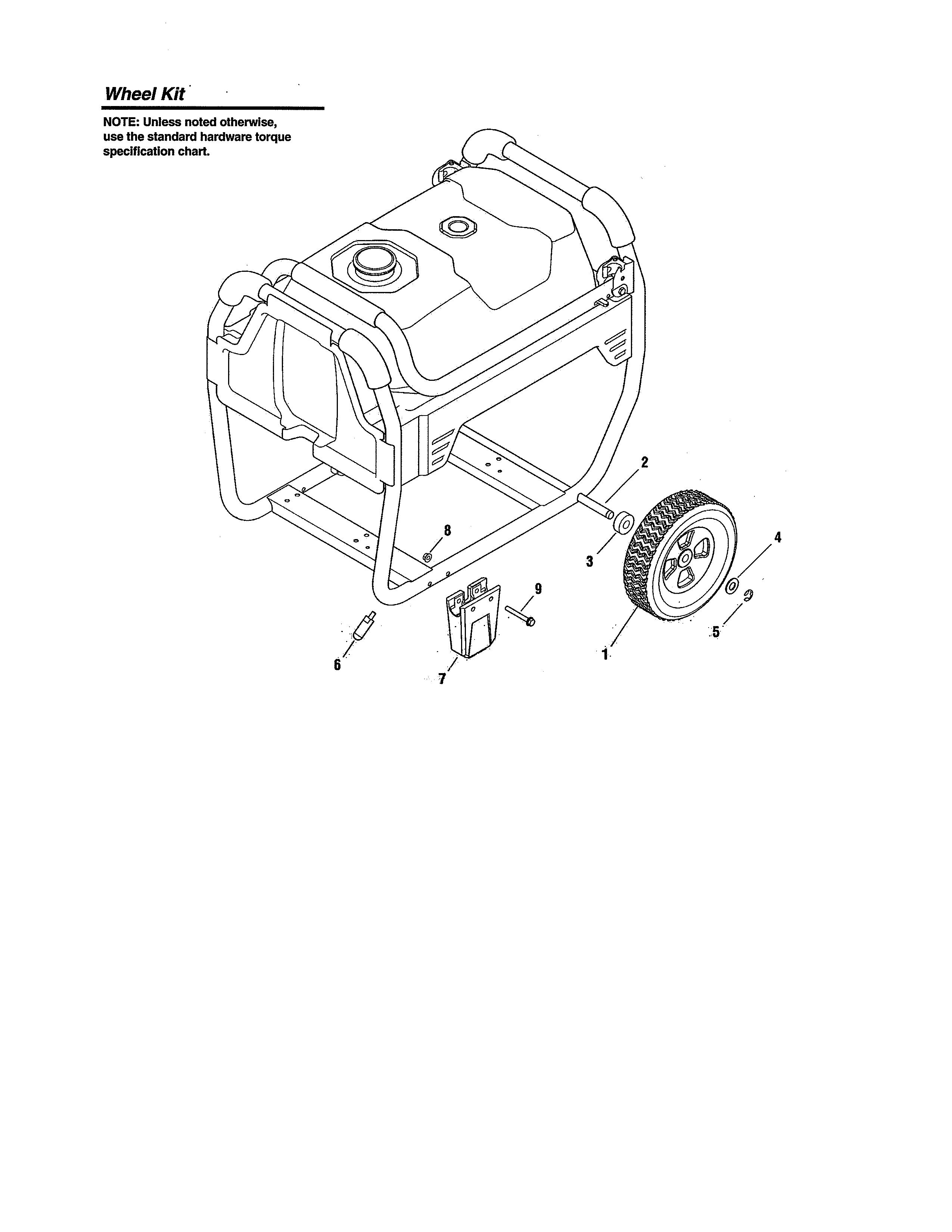

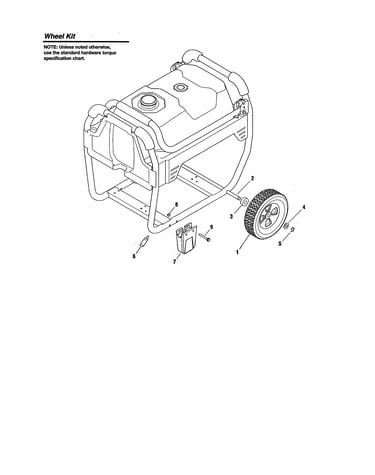

Wheel kit diagram

Generator e-ring

Part #191265GS

Replaced by #703977

?
Manufacturer substitution
This part replaces 191265GS. Substitute parts can look different from the original.
This item is not returnable
$8.26
In Stock
Nut 312916GS
#6

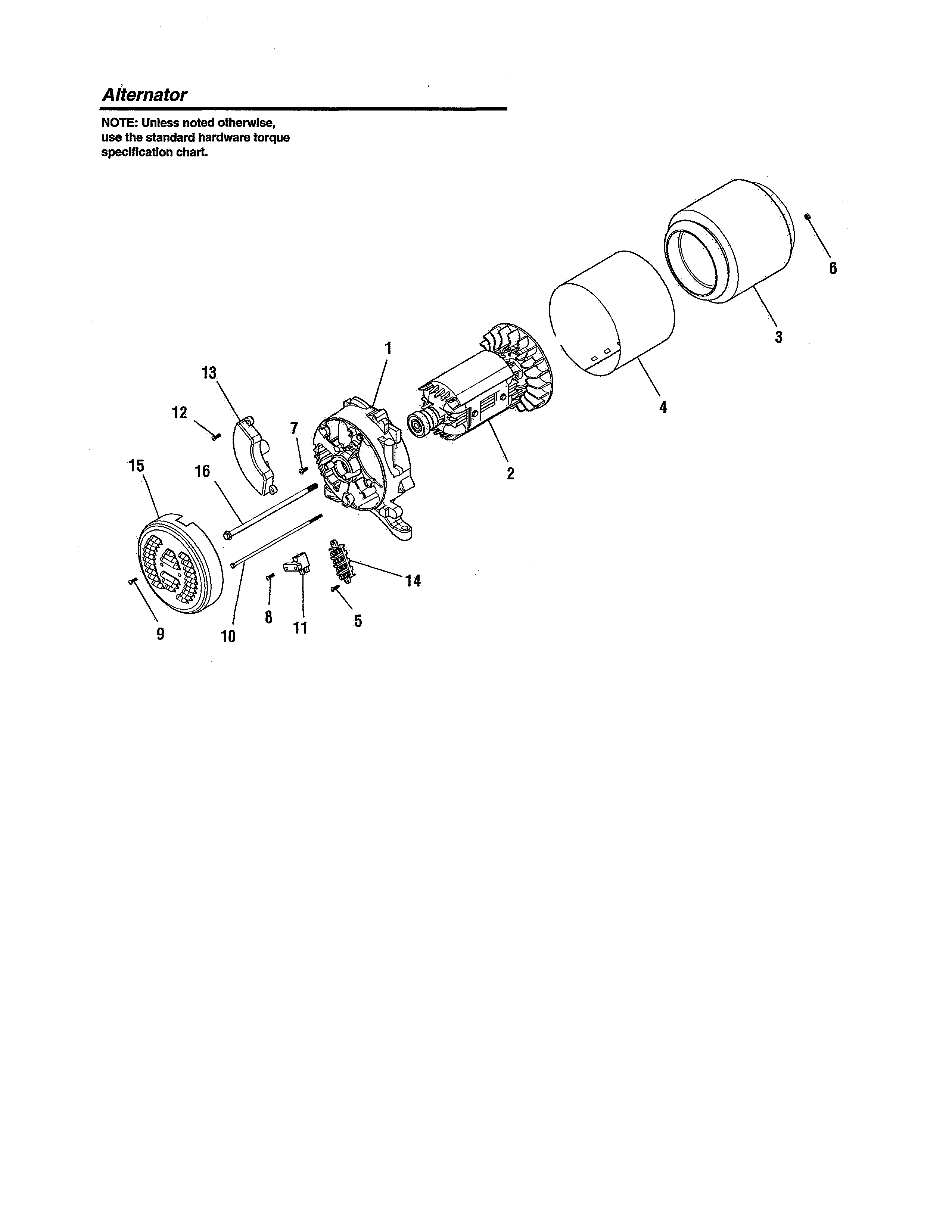

Alternator diagram

Nut

Part #312916GS

This item is not returnable
$5.97
In Stock
Screw 313076GS
#37

Main unit diagram

Screw

Part #313076GS

This item is not returnable
$4.60
In Stock
Bolt 312915GS
#23

Main unit diagram

Bolt

Part #312915GS

$10.17
In Stock
Elbow 283603GS
#70

Main unit diagram

Elbow

Part #283603GS

This item is not returnable
$5.77
In Stock
Band-statr 312918GS
#4

Alternator diagram

Band-statr

Part #312918GS

$24.98
In Stock
Troybilt Hardware Kit 706278

#NI03

All parts diagram

Troybilt hardware kit

Part #706278

$33.84
In Stock
Nut 312945GS
#43

Main unit diagram

Nut

Part #312945GS

This item is not returnable
$5.77
In Stock
Knob 311512GS
#27

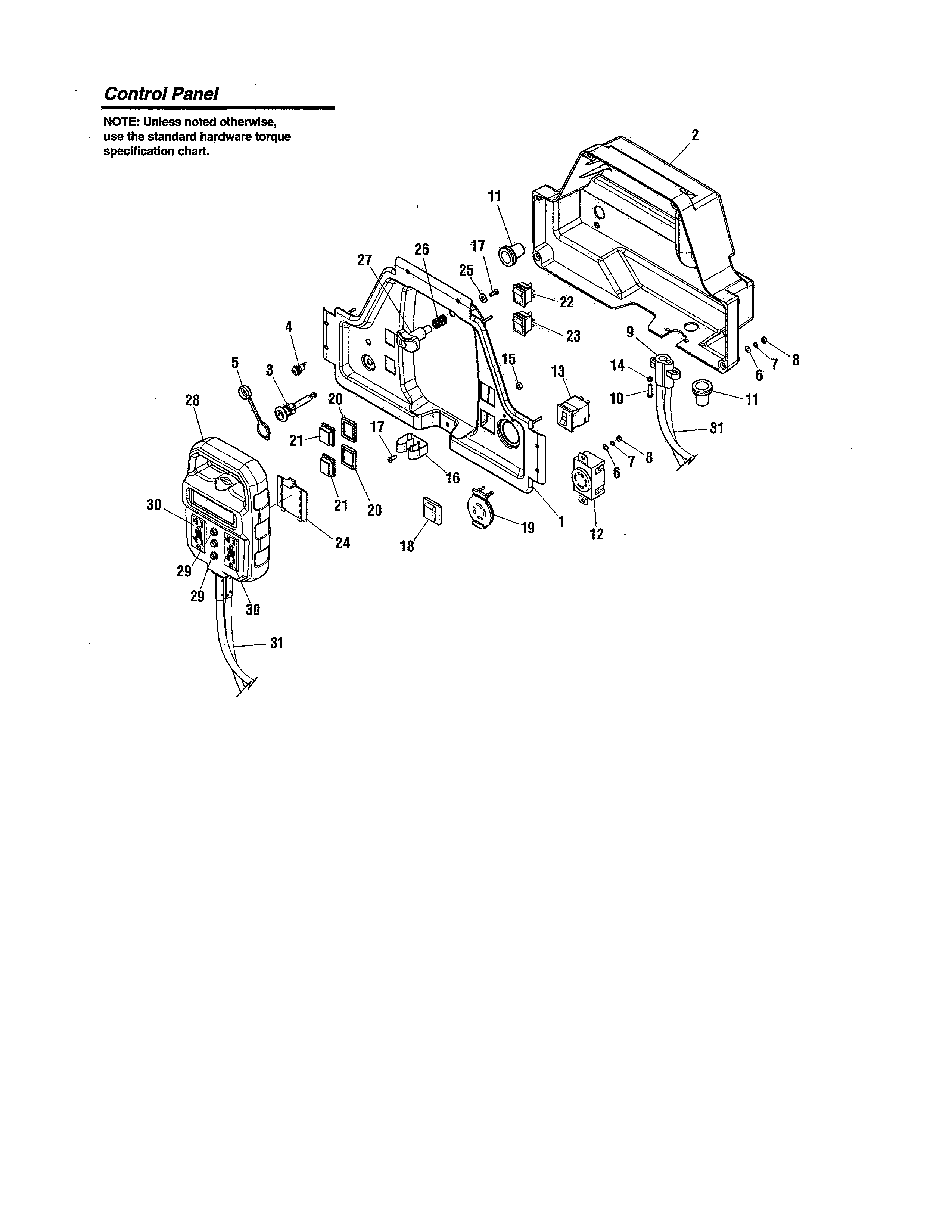

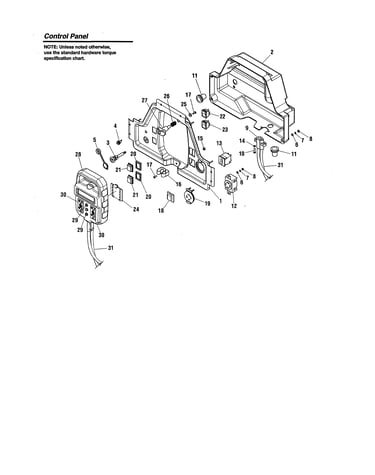

Control panel diagram

Knob

Part #311512GS

$11.77
In Stock
